REX1000 Intelligent DigitalTemperature Control Instruments/Temperature Controller
- Category: >>>
- Supplier: Yueqing Jingda Instrument Factory
Share on (60200083833):
Product Overview
Description
Product Description

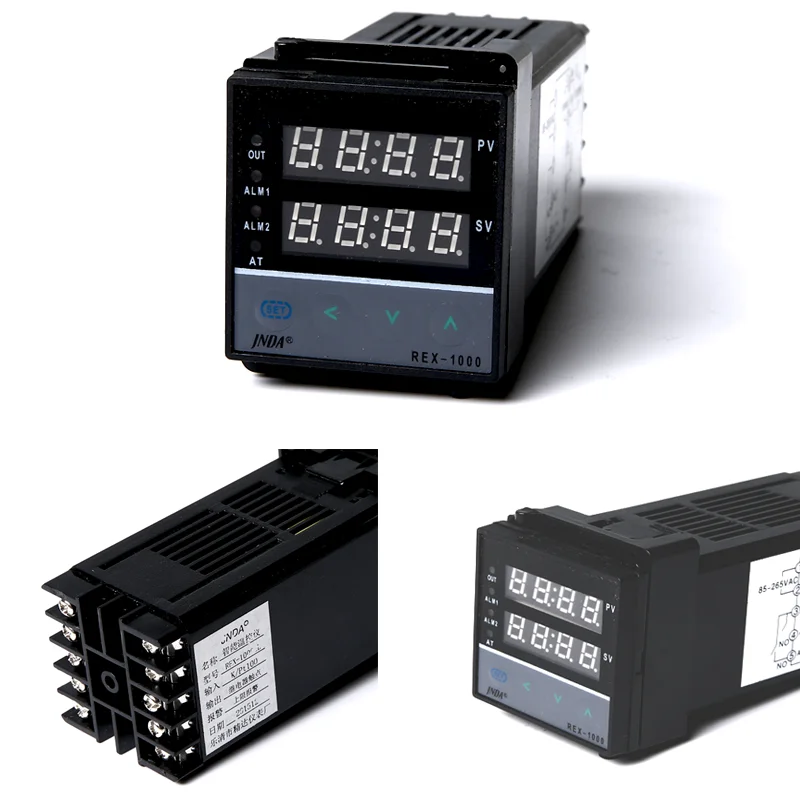

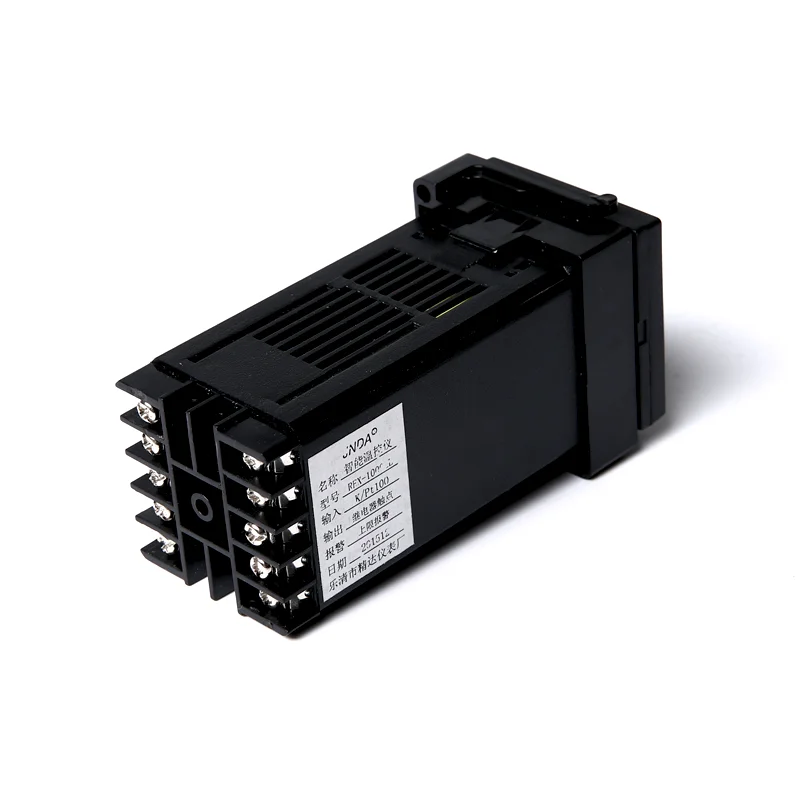

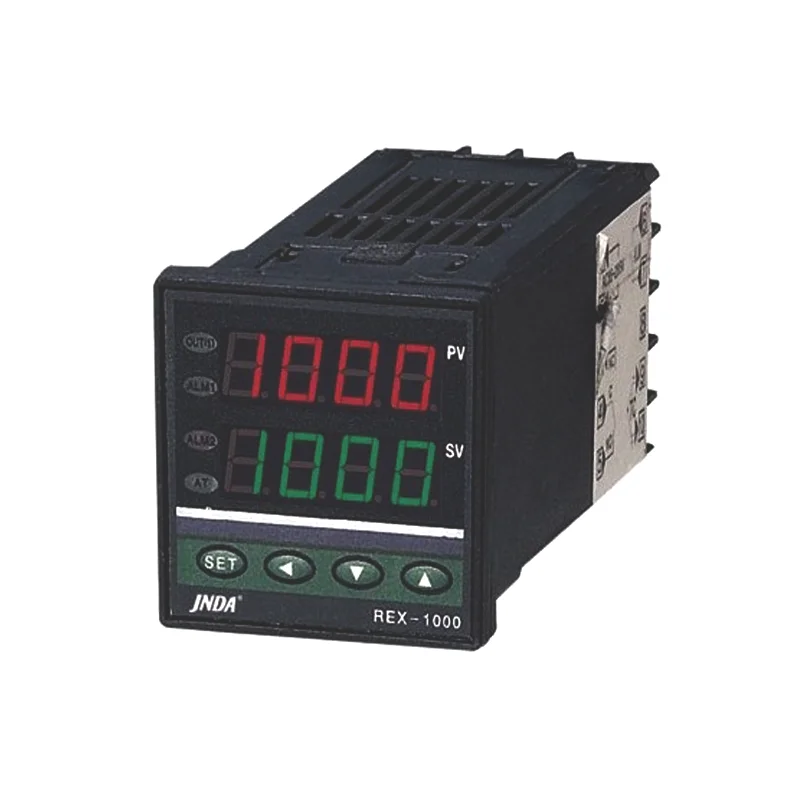

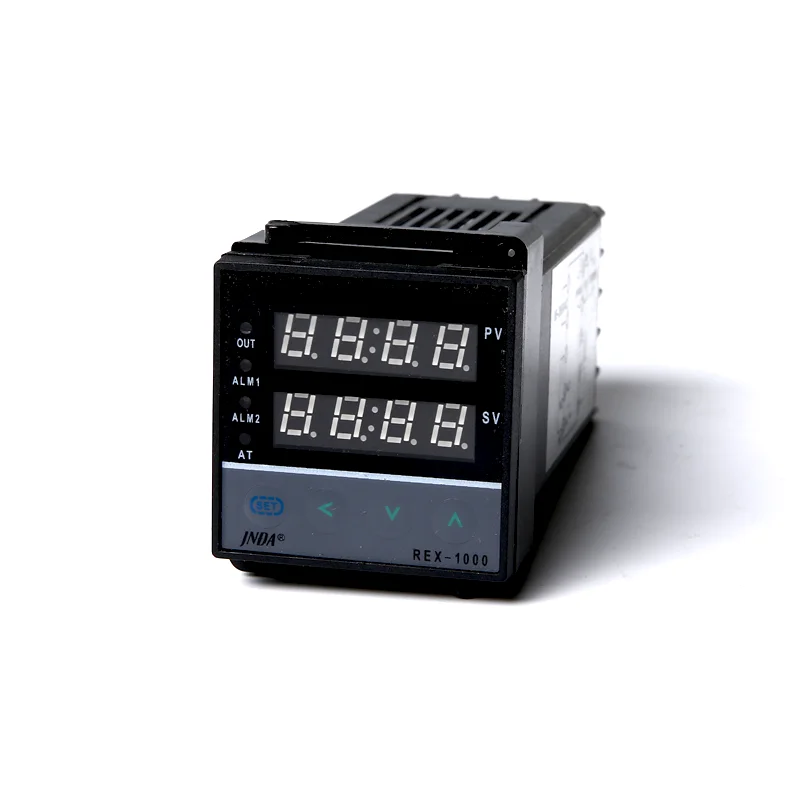

48*48*110 Rex-1000 Intelligent DigitalTemperature Control Instruments/Temperature Controller
Name: JNDA Digital/PID temperature controller REX-1000
Item No.: REX-1000
With the design of super EMI resistance and compatibility for ON/OFF power supply being adopted, PID self-tuning and self-adapting functions have met the international standards in terms of disturbance-resistance and safety standards.
Specification |
|
Measurement precision | 0.5 degree + 1 digit number |
Display resolution for measurement | 1 digit number |
Control mode | PID self-tuning(PV export of PID function) standard reverse action(corrective action) ON/OFF step type can also be optional. PP + IP + D action interval 2℃(OF) |
Heating ratio backward | 0.1 to 199.9%(ON/OFF Function when T=0) |
Action cycle | T=1-100S (Step style when T=0) |
Integral time | 0-9999S (P+D function when T=0) |
Differential time | 0-999.9S (P+1 function when D=0) |

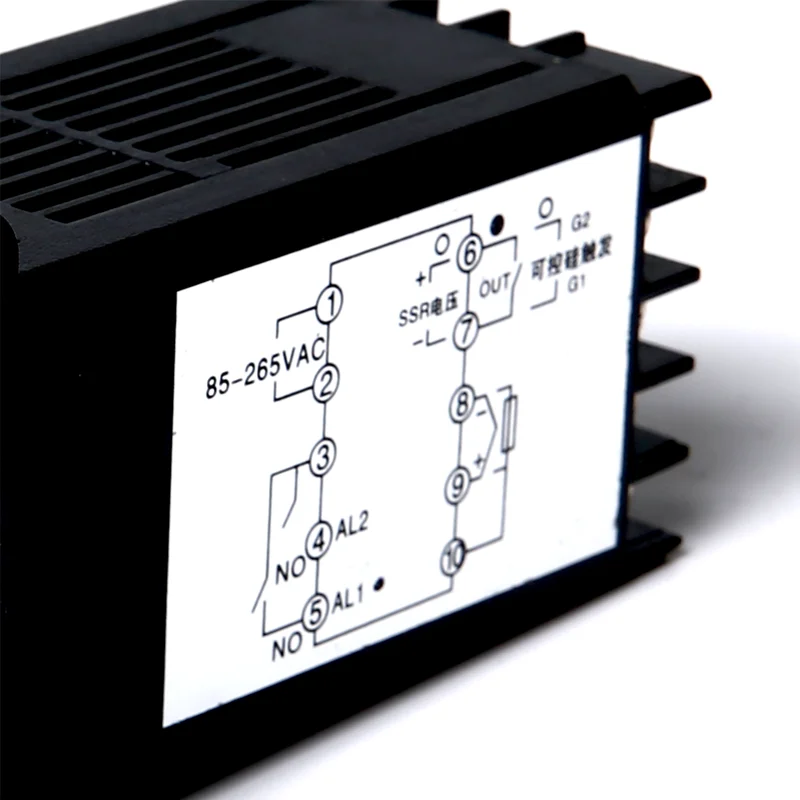

Input signal | S,K,E,J,N,Pt100 |
Output signal | L Relay contact ON/OFF output(normally open + normally close) |
G Solid state voltage output | |
K SCR trigger: 5 to 500A bidirectional SCR, 2 unilateral SCR, reverse parallel connection or SCR power module can be triggered. | |
Alarm | Customazation is needed when plus deviation, minus deviation alarm or other alarm modes are required for maximum and minimum alarm(alternative). |
Dimension | REX-1000: 48*48*110 REX-4000:48*96*110 REX-7000: 72*72*110 REX-8000: 80*160*110 REX-9000: 96*96*110 |
