Hot Water Lithium Bromide chillers

Product Overview

Description



Hot Water Lithium Bromide chillers

Shuangliang LiBr Chiller - Industrial Chiller Driven by Waste Energy





Hot Water LiBr chillers provides cooling for air conditioning and industrial process by using hot water as driven energy, fits in industry companies and places with abundant hot water where needs cooling in summer and chilled water for processing.







Hot Water Lithium Bromide chillers

• Function

          Cooling only, provide chilled water with temperature ≥5℃;

• Refrigerating capacity

          10, 20, 30USRT / 99 ~ 2000 USRT

• Energy

           Hot water with temperature ≥68℃, solar hot water is available.







Introduction of Hot Water Lithium Bromide chillers



General Information:



Hot Water LiBr chiller is a kind of large-size industrial facility with hot water as the driving energy and lithium bromide solution as the absorbent and water as refrigerant.



Hot water LiBr chillers, using hot water as the energy source, not only reduces greatly the cost for electricity and operation fees in regions where there are rich hot water resources, but also compensates the peak-valley load difference.



When the hot summer rolls in, shortage of electric power will poses a great worry for various cities. Concentrated consumption of power by air-conditioners is the sticking point for such a seasonal problem, for which, Hot Water LiBr chillers offer an attractive solution.

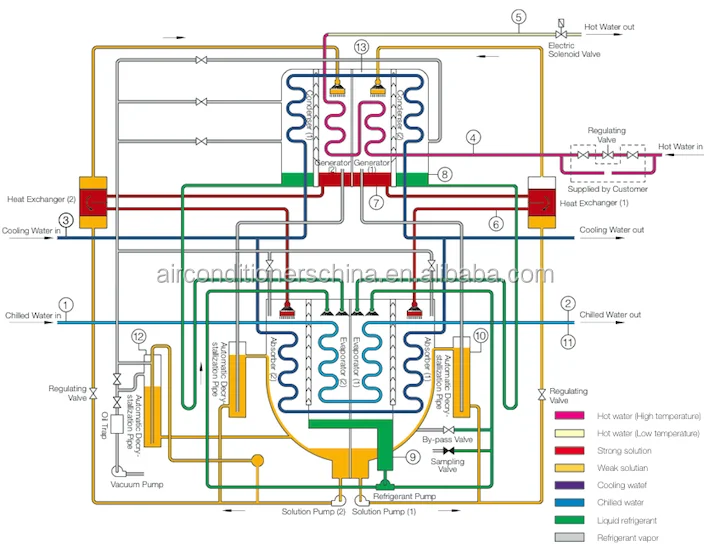

Working Principle:



♦ Cooling cycle





Remark:

1 Chilled water inlet temp. (I)                                                            2 Chilled water outlet temp. (C,I,A)                                   3 Cooling water inlet temp. (C,I,A)

4 Auto purging unit pressure (I)                                                        5 LP generator Concentrated solution temp. (C,I)             6 Condensation temp. (C,I,A)

7 HP generator intermediate concentrated solution temp. (I,A)        8 Evaporation temp. (I,A)                                                  9 Chilled water flow (A)

10 De-crystallization pipe temp. (I,A)                                               11 HP generator pressure (C,I,A)                         12 Concentrated solution spraying temp. (C,I)

13 HP solution level(C,I))                                                                 14 Flue gas inlet temp. (I)                                     15 Flue gas exhausted temp. (I)

(A)-Alarm        (I)-Indication           (C)-Control









SL Absorption Chiller Features



Pioneering technology had been used to ensure the advanced features of chiller



1. Pioneering a chiller with two pumps and without spray nozzles -- solves the degradation of cooling capacity forever



2. Solution heat exchanger with new construction and flow pattern -- improves chiller energy efficiency and reduces fuel consumption.



3. Distribution of refrigerant by dripping plates -- improves chiller energy efficiency and reduces fuel consumption.



4. New tubes and their arrangement in evaporator -- improve chiller energy efficiency and reduce fuel consumption.



5. Special construction of high pressure generator -- improves chiller reliability and energy efficiency, and reduces fuel consumption.



High pressuregenerator with solution inside tubes and wet back of combustion chamber improves chiller operation safety, and reduces fuel consumption.



6. Heating by evaporator -- improves heating efficiency and safety of operation



7. Evaporator tubes are protected from freezing -- improve the chiller reliability.



8. Serial flow of solution -- improve chiller reliability.



9. Pioneering non-condensable gas purging during heating -- improves the chiller reliability.





 What's Absorption Chiller ?



Lithium bromide absorption chiller adopts nature water but not traditional Freon as refrigerant, recovers waste heat as major driving source, not only helps to protect environment but also to save energy obviously.

Since the first unit of absorption chiller produced in 1985, ShuangLiang already provided more than 20,000 units chillers with total cooling capacity over 30 billion Kcal. Also it is in the position to provide customized chillers.





Energy Saving System



Recover waste heat exists in variable industries to drive Lithium Bromide Absorption Chiller and Heat Pump for production of 5-25℃ chilled water and up to 169℃ hot water or 6bar steam.

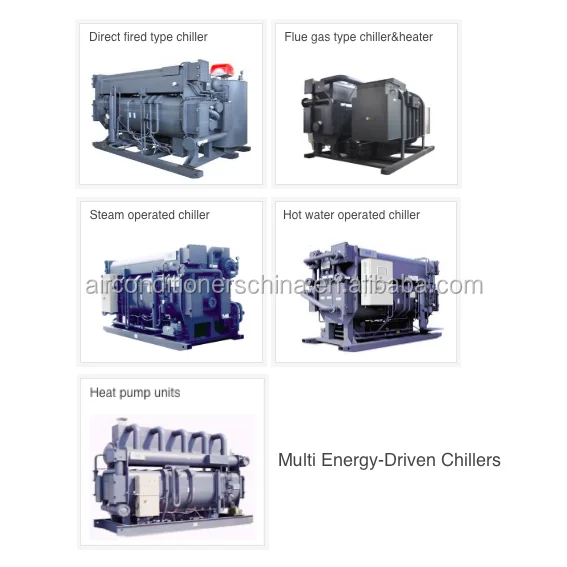

Absorption Chiller Series



Normal types: Steam Type, Direct Fired Type, Hot Water Type, Flue Gas Type
ShuangLiang provides Steam type Lithium bromide absorption chiller,  Direct Fired type Lithium bromide absorption chiller,  Hot Water type Lithium bromide absorption chiller,  Flue Gas type Lithium bromide absorption chiller, and Lithium bromide absorption Heat Pump. Industrial Air Conditioners
