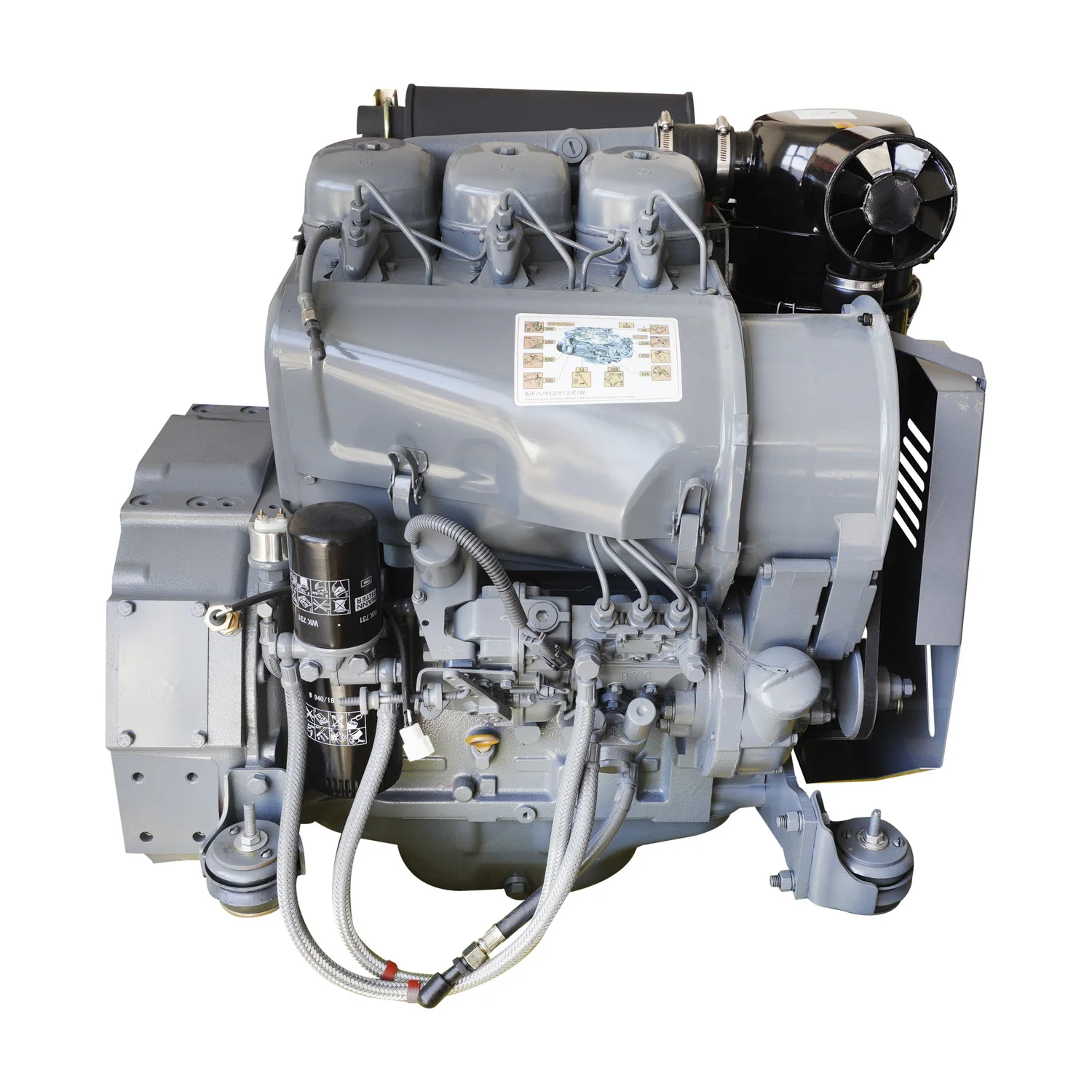

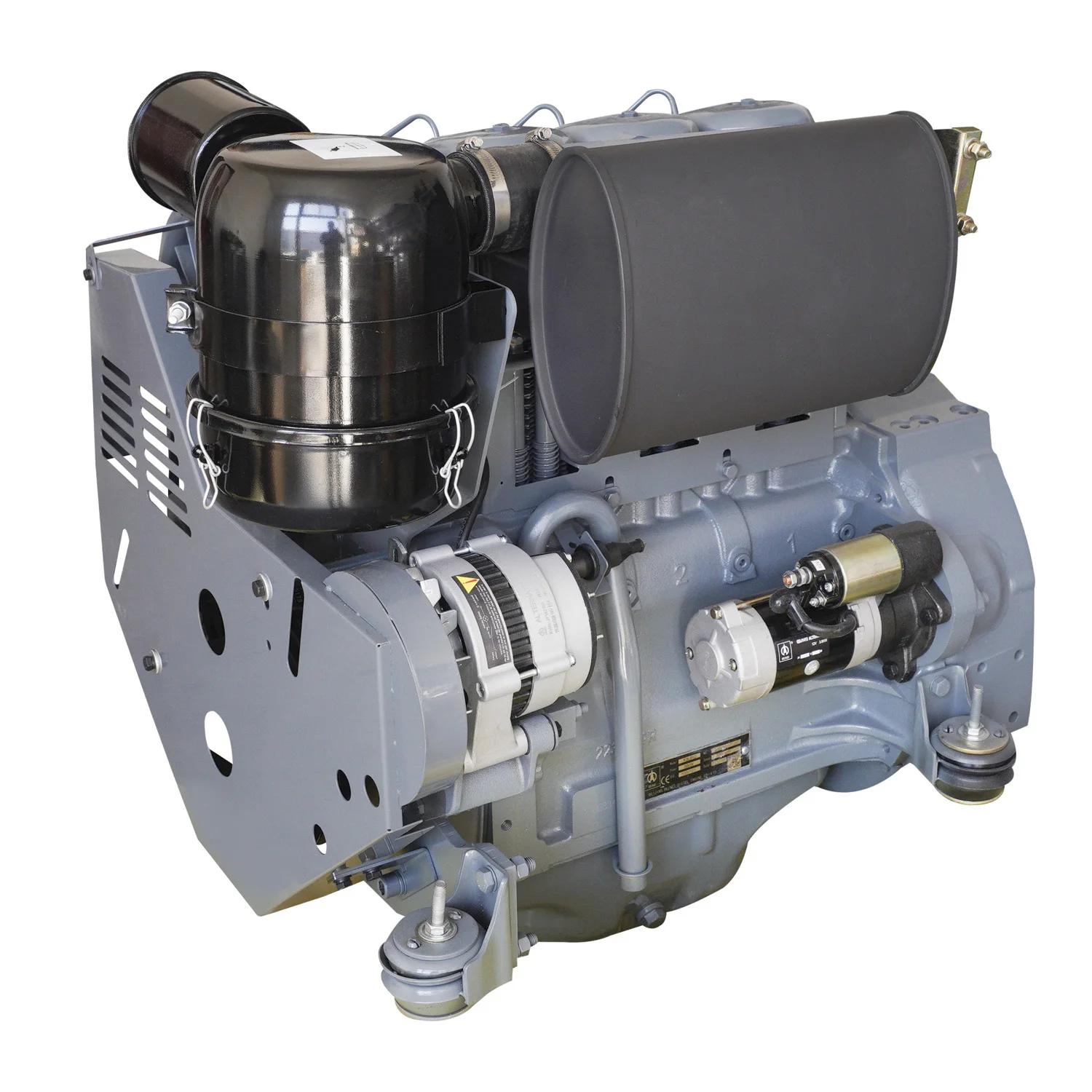

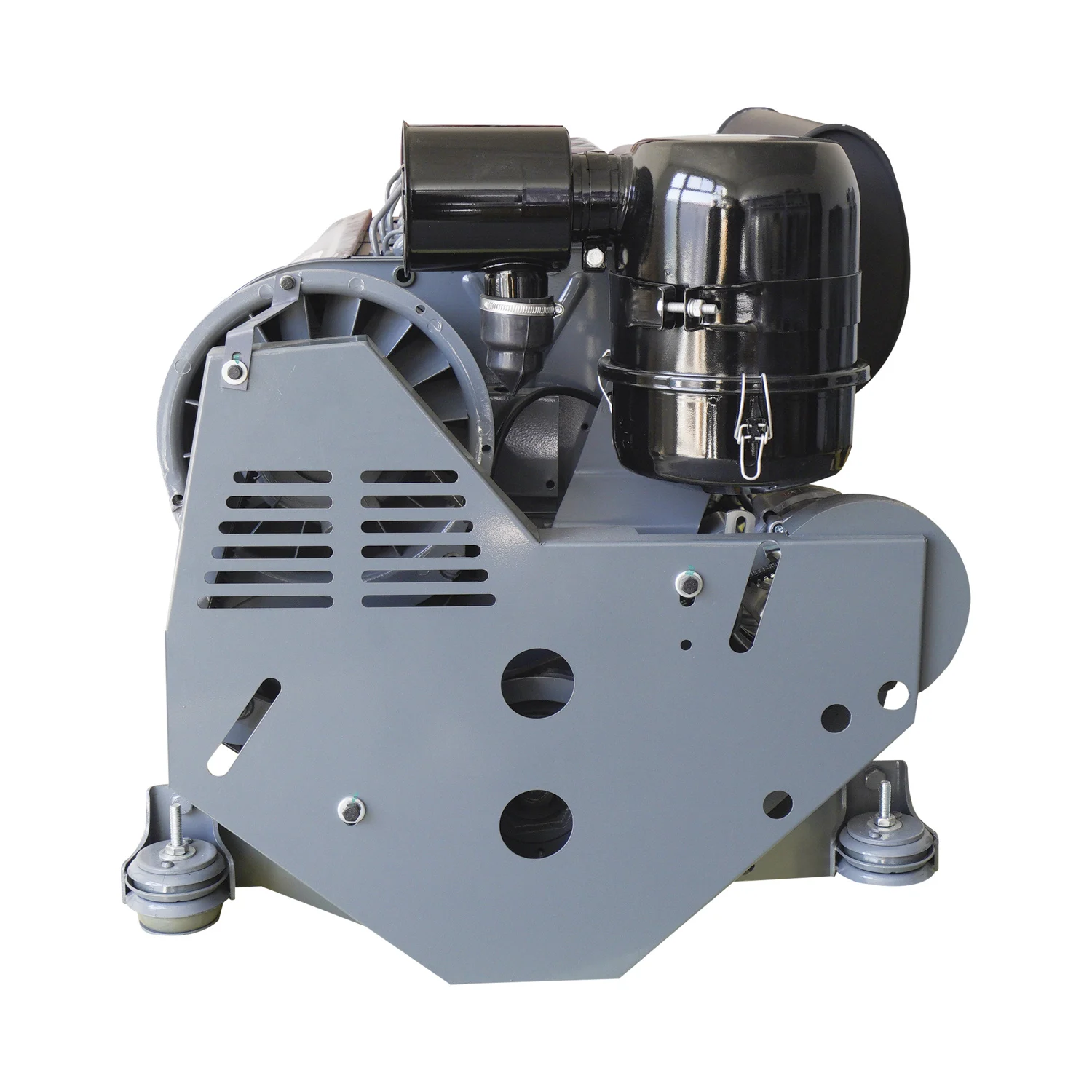

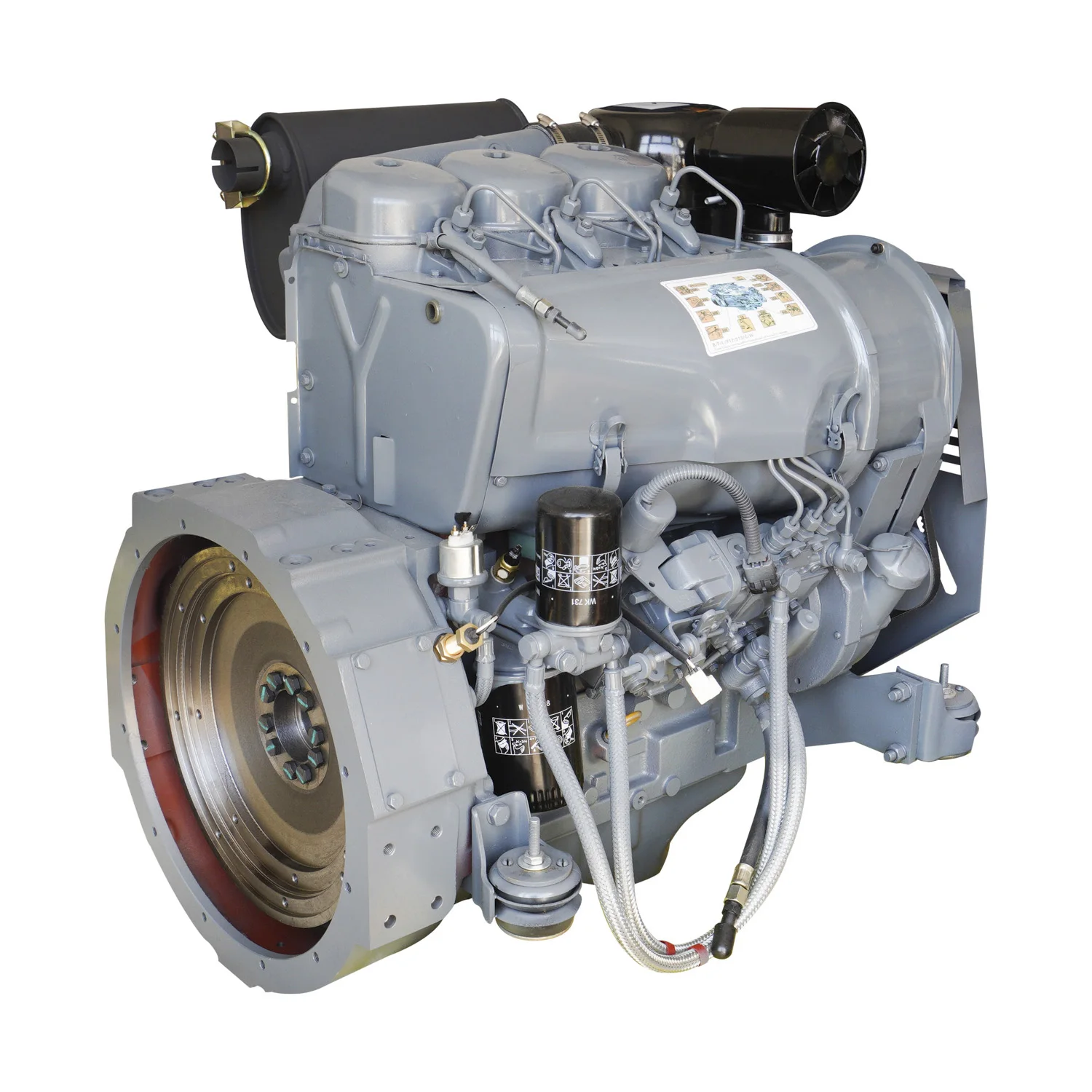

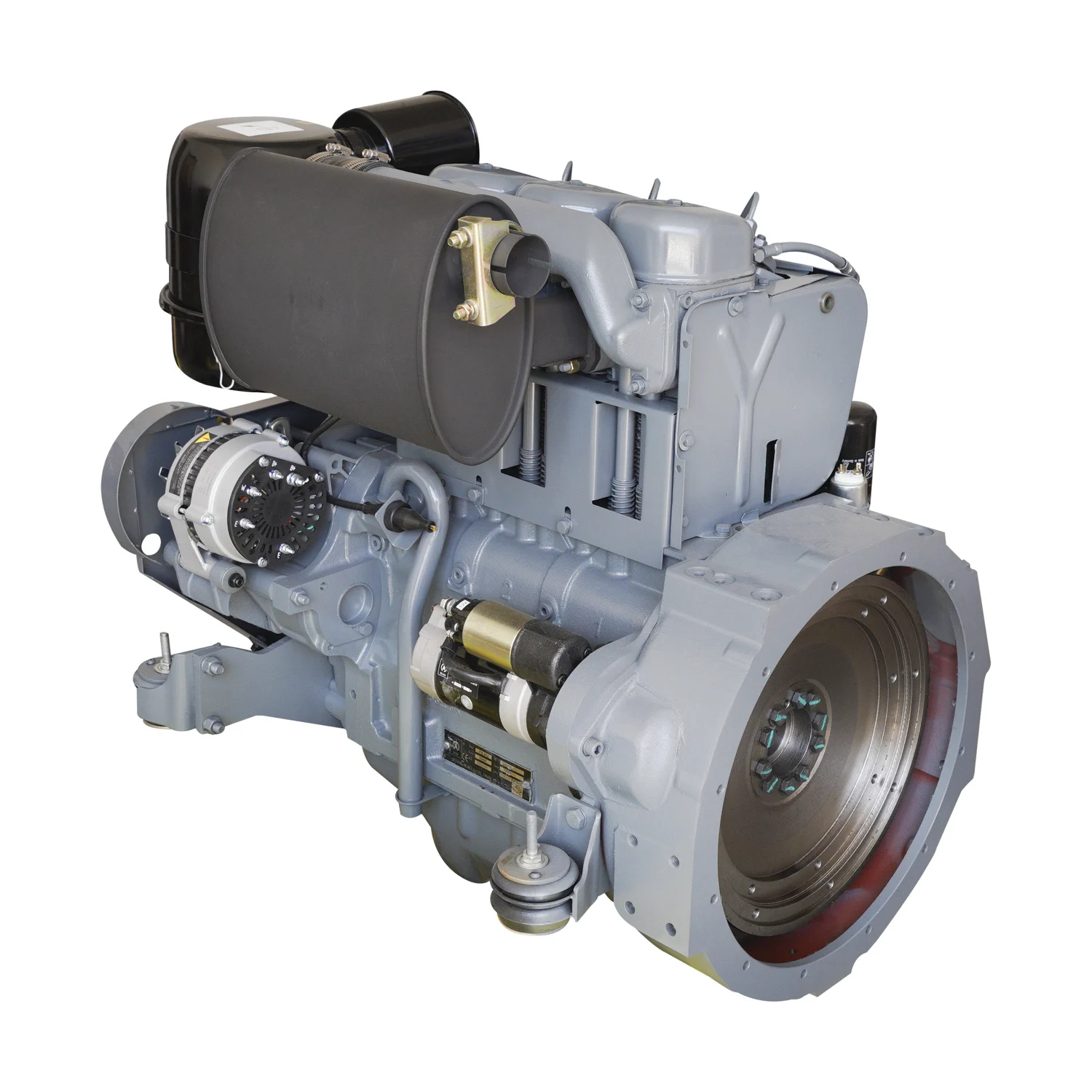

3 цилиндровый дизельный двигатель с воздушным охлаждением F3L912
- Category: >>>
- Supplier: Beijing Antaios Technology Co. Ltd.
Share on (60200595779):
Product Overview
Description
Model | F2L912 | F3L912 | F4L912 | F4L912T | F6L912 | F6L912T |
No. of Cly | 2 | 3 | 4 | 4 | 6 | 6 |
Bore/stroke(mm) | 100/120 | 100/120 | 100/120 | 100/120 | 100/120 | 100/120 |
Displacement(L) | 1.88 | 2.828 | 3.77 | 3.77 | 5.622 | 5.655 |
Air-intake system | Naturally aspirated | Naturally aspirated | Naturally aspirated | Turbo charging | Naturally aspirated | Turbocharged |
Rated Power(kw) | 14-20 | 24-38 | 32-51 | 41-52 | 48-78 | 61-85 |
Rated Speed(r/min) | 1500-2300 | 1500-2500 | 1500-2500 | 1500-2000 | 1500-2500 | 1500-2500 |
Cornpression ratio | 17 | 17 | 17 | 17 | 18 | 17 |
Direction of rotation(facing cooling blower) | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise |
Dimension(mm) | 678*704*872 | 730*673*815 | 860*673*815 | 865x673x815 | 1120x673x815 | 1125x673x815 |
Weight(kg) | 245 | 275 | 300 | 315 | 410 | 410 |
Why Choose Us

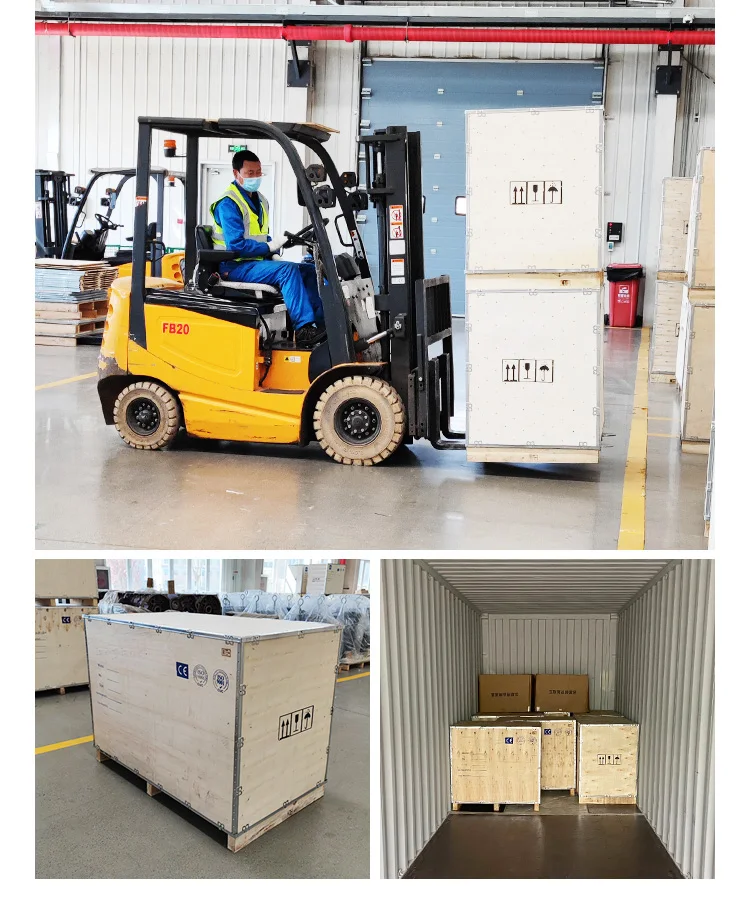

Packaging & Shipping
Company Profile
Main Products

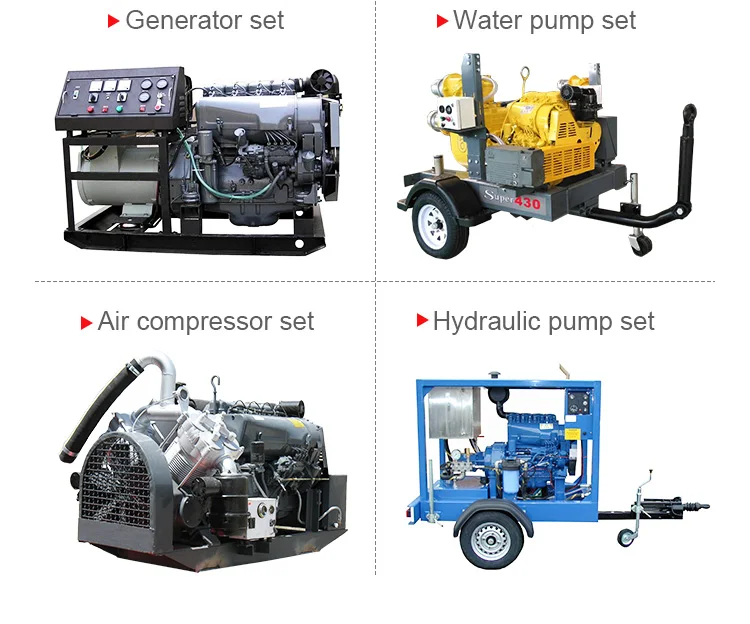

Application Scenarios
