OBT 8050 PA System Digital 10 Zones Paging Selector Speaker Selector

Product Overview

Description

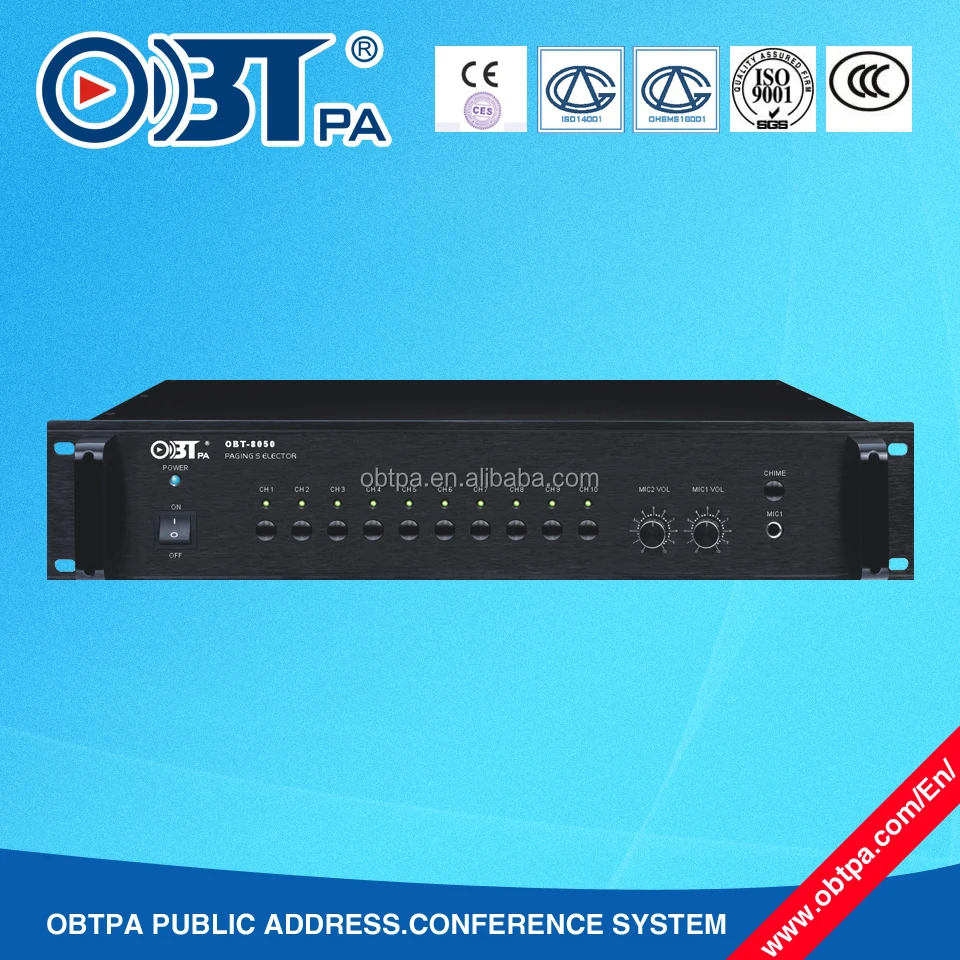

OBT-8050 PA System Digital 10 Zones Paging Selector Speaker Selector





Application:

Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,

Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.



Features:

1. Standard Rack Design (2U),black brushed aluminumfaceplate, humane pumping hands, sophisticated technology, filling the high-gradeTemperament;

2. Built-in 10 groups of power partitions, can be expanded to 120 partitions;
3. With memoryfunction when power is off ,achieve recoverywhen power is on;
4. Paging Partitionplayback control function, achieve paging to any partition;
5. Local and ultra long-range (1km) partition paging function , achieve convenient partition and flexibility;
6. With two MIC inputs, two line inputs;
7. Prelude volume is adjustable.



 Technical parameters:



Model	OBT-8050
Communication Protocol	RS485
Communication Interface	RS232
Communication Speed	4800bps
MIC Input	1 channel 6.35
Line Input	2 channel 6.35
Audio Input	1 channel 6.35
Alarm Audio Input	1 channel 6.35
Control Trigger Output	2 channel 6.35
Upper Communication Interface	1 group (9p)
Down Communication Interface	1 group (9p)
Ten Zone Upper Control Communication Interface	1 group (25p)
Ten Zone Down Control Communication Interface	1 group (25p)
Power Supply	~220V/50Hz
Standby Power Consumption	10W
Protection	AC FUSE×1A
Dimensions	525×475×170mm
Weight	6.76Kg







 Lead time:



Sample: In stock

Mass production: 5 working days





Company Pictures 1 for office:







Company Pictures 2 for workshop:





Certification 1 for License and Pantents:



Certification 2 for Products:







Real Projects Connection Diagram:

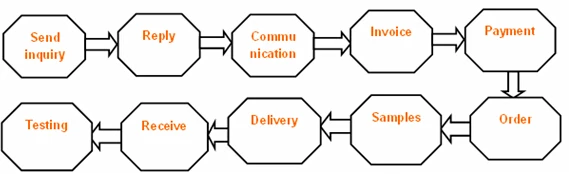

How to start to make business with us?



Service:

Good Service:

1. Professional sales reply you enquiry in 24Hrs

2. Feedback of complaint in 24Hrs

3. OEM/ODM are welcomed

4. 2 years Warranty



Warranty:

1. All products have been strictly Quality Checked before packing.

2. All products have been well packed before shipping.

3. All products with 2 years warranty.



After Sales Service:

1. We are always online to solve all your request.

2. Any faulty product, we can send replacement to you freely



Shipping:
