U25 steel arches roof support for mining
US $850.00-$990.00

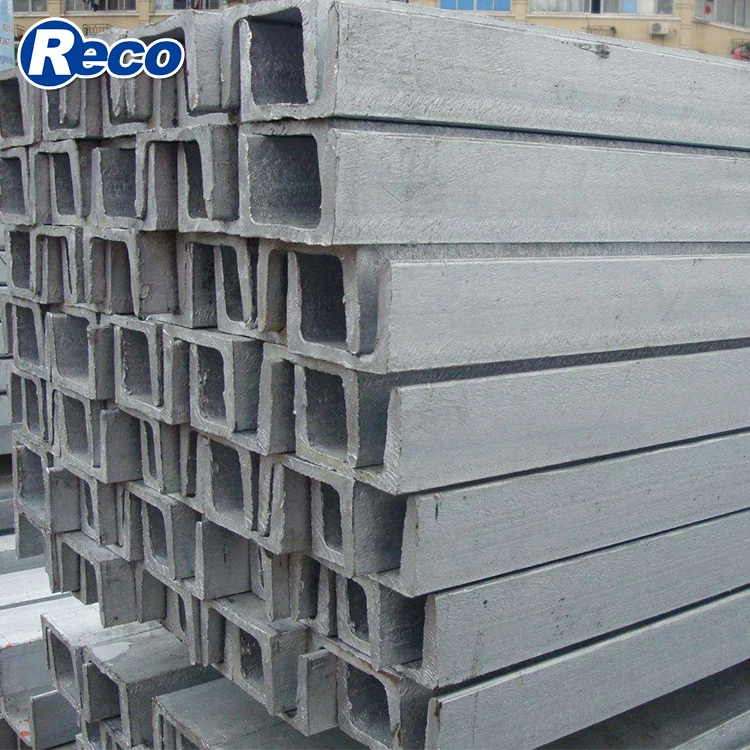

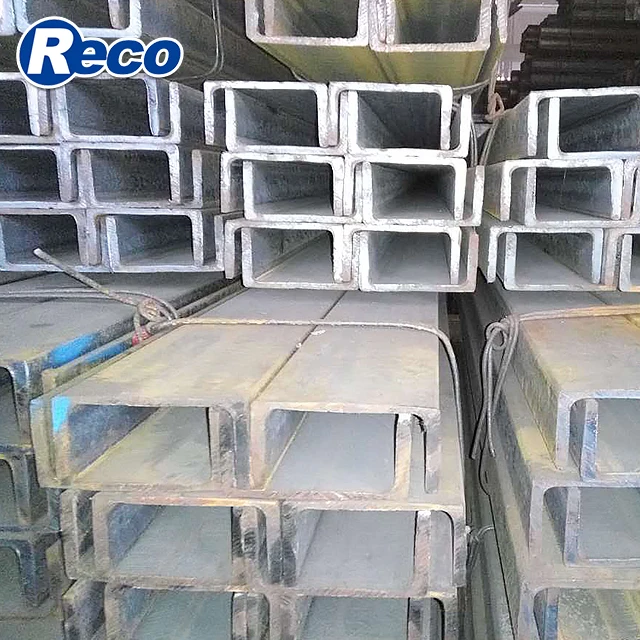

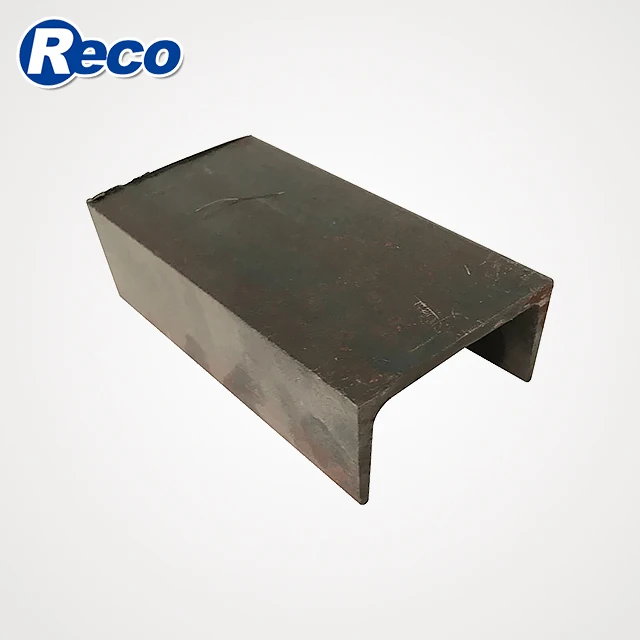

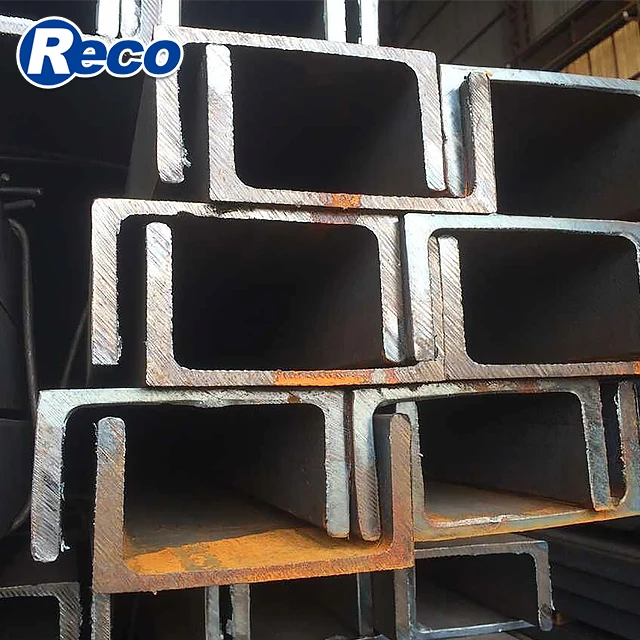

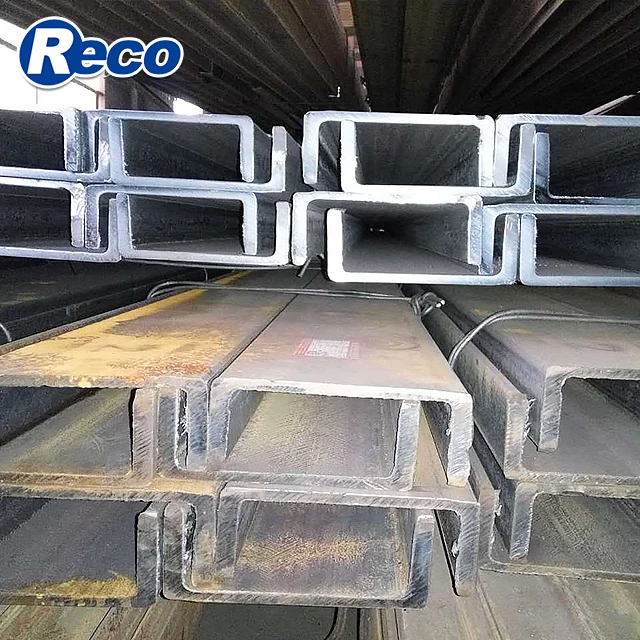

Hot rolled u channel steel
- Category: Steel Channels >>>
- Supplier: Jiangsu Reco International Trade Co. Ltd.
Share on (60200830759):
Product Overview
Description
high quality u channel steel st37 steel channel hot galvanized steel profile
------- RECO CHINA
Product Description
Based information of u beam/channel:
1. Name: U Steel Channel Beam Bar
2. Standard: GB/T707-1988 GB9787-88 Q235B/JIS G3192-2006 SS400/ EN 10025 S325JR
3. Grade: Q235,SS400,S235JR
4. Dimensions: GB Steel channel 50*37*4.5-400*104*14.5
JIS Steel channel 75*40*3.8*7-152*76*6.4*9
EN Steel channel 140*60*7*10-200*75*8.5*11.5
5. Length:6-12m
6. Technique: hot rolled
7. Tolerance: As the standard or as your requirement
8. Surface: Galvanized, paint
9. Application: Steel structural,doors, railway and traffice,vehchile, mechine
10. Packing detail: standard export packing or as your requirement.
11. MOQ:25mt
12. Delivery: Within 25 days after deposit
13. Payment: T/T or L/C
U channel/beam detail size as follow:
GB Standard Channel Bar (H*B*T) | |||||
Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | ||
| 5 | 50*37*4.5 | 5.438 | 24b | 240*80*9 | 30.628 |
| 6.3 | 63*40*4.8 | 6.634 | 25a | 250*78*7 | 27.41 |
| 6.5 | 65*40*4.8 | 6.709 | 25b | 250*80*9 | 31.335 |
| 8 | 80*43*5 | 8.045 | 25c | 250*82*11 | 35.26 |
| 10 | 100*48*5.3 | 10.007 | 28a | 280*82*7.5 | 31.427 |
| 12 | 120*53*5.5 | 12.059 | 28b | 280*84*9.5 | 35.823 |
| 12.6 | 126*53*5.5 | 12.318 | 28c | 280*86*11.5 | 40.219 |
| 14a | 140*58*6 | 14.535 | 30a | 300*85*7.5 | 34.463 |
| 14b | 140*60*8 | 16.733 | 30b | 300*87*9.5 | 39.173 |
| 16a | 160*63*6.5 | 17.24 | 32a | 320*88*8 | 38.083 |
| 16b | 160*65*8.5 | 19.752 | 32b | 320*90*10 | 43.107 |
| 18a | 180*68*7 | 20.174 | 32c | 320*92*12 | 48.131 |
| 18b | 180*70*9 | 23 | 36a | 360*96*9 | 47.814 |
| 20a | 200*73*7 | 22.64 | 36b | 360*98*11 | 53.466 |
| 20b | 200*75*9 | 25.777 | 36c | 360*100*13 | 59.118 |
| 22a | 220*77*7 | 24.999 | 40a | 400*100*10 | 58.928 |
| 22b | 220*79*9 | 28.453 | 40b | 400*102*12.5 | 65.208 |
| 24a | 240*78*7 | 26.86 | 40c | 400*104*14.5 | 71.488 |
JIS Standard Channel Bar (H*B*T)
| |||||
| H(MM) | B(MM) | T1(MM) | T2(MM) | KG/M |
| 50 | 25 | 3.0-5.0 | 6.0 | 2.37-3.46 |
| 75 | 40 | 3.8 | 7.0 | 5.30 |
| 75 | 40 | 4.0 | 7.0 | 5.60 |
| 75 | 40 | 4.5 | 7.0 | 5.85 |
| 75 | 40 | 5.0 | 7.0 | 6.92 |
| 76 | 50 | 5.1 | 6.8 | 6.70 |
| 100 | 50 | 3.8 | 6.0 | 7.30 |
| 100 | 50 | 4.2 | 6.0 | 8.03 |
| 100 | 50 | 4.5 | 7.5 | 8.97 |
| 100 | 50 | 5.0 | 7.5 | 9.36 |
| 102 | 51 | 6.1 | 7.6 | 10.42 |
| 125 | 65 | 5.2 | 6.8 | 11.66 |
| 125 | 65 | 5.3 | 6.8 | 12.17 |
| 125 | 65 | 5.5 | 8.0 | 12.91 |
| 125 | 65 | 6.0 | 8.0 | 13.40 |
| 127 | 64 | 6.4 | 9.2 | 14.90 |
| 150 | 75 | 5.5 | 7.3 | 14.66 |
| 150 | 75 | 5.7 | 10.0 | 16.71 |
| 150 | 75 | 6.5 | 10.0 | 18.60 |
| 150 | 75 | 9.0 | 12.5 | 24.00 |
| 152 | 76 | 6.4 | 9.0 | 17.90 |
| 200 | 80 | 7.5 | 11.0 | 24.60 |

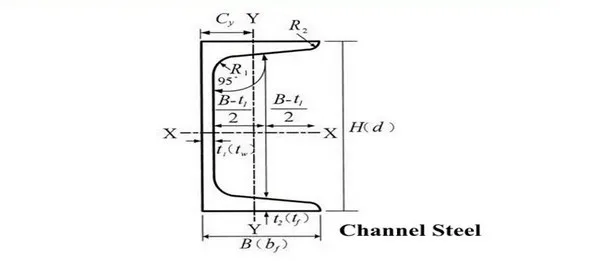

| Drawing | ||||
Application of U Steel Channel Bar
Steel structural,doors, railway and traffice,vehchile, mechine

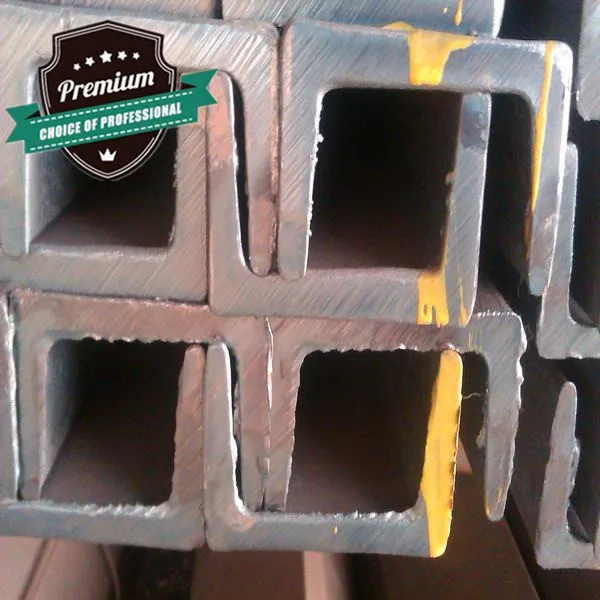

U channel/beam showcase:
BEST CUTTING OF U CHANNEL/BEAM
TIRM PACKING OF U CHANNEL/BEAM

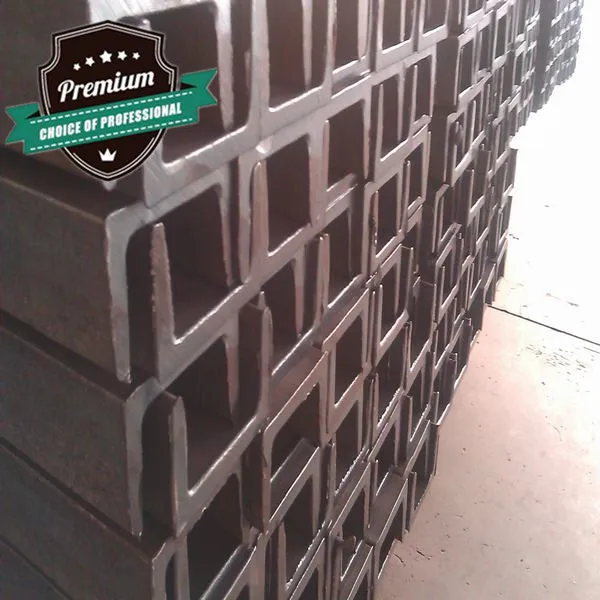

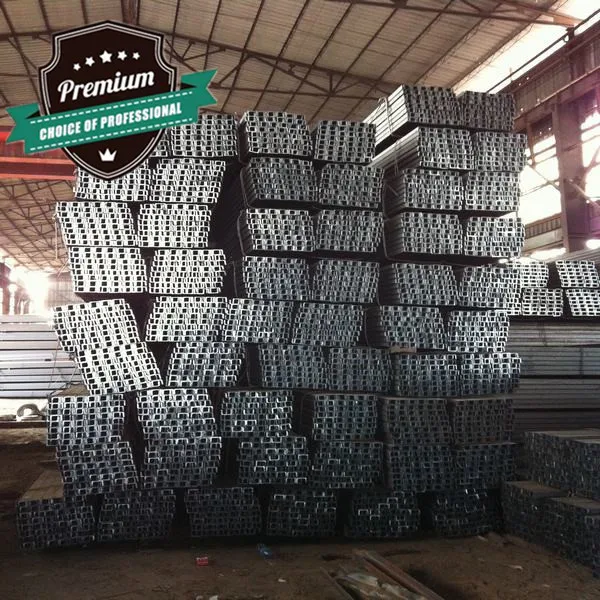

RICH STOCK OF U CHANNEL/ BEAM
Advantage of U Steel Channel Bar
1.Convenient in construction and save much time and labor
2.High mechanical strength
3.Low price, high quality
Application of U Steel Channel Bar
Steel structural,doors, railway and traffice,vehchile, mechine
Company Information
Our Services
FAQ
Q1: Do you provide the samples?
A: Yes, samples are free, but you need to pay the freight.
Q2: What about the packaging?
A: Standard export packaging or as requirement.
Q3: What’s your delivery time?
A: It is according to the quantity. Normally, delivery time within 45 days after received the deposit or L/C.
Q4: What payment terms you accept?
A: Generally, the payment terms are T/T or L/C.
