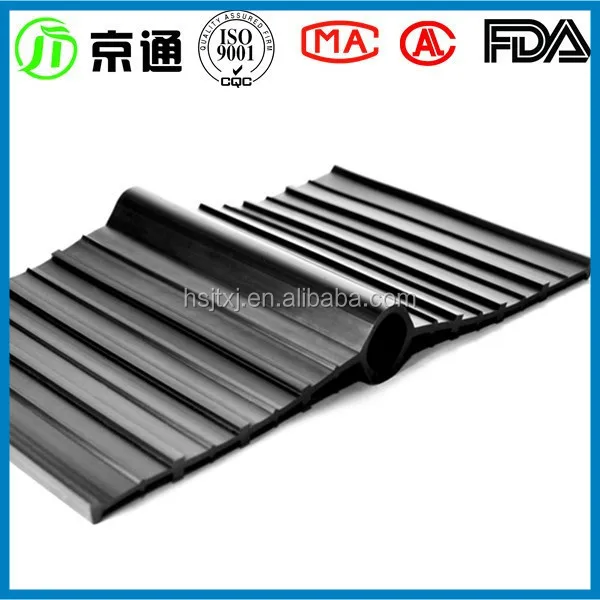

JingTong Rubber China High Tensile Elastic EPDM Natural Rubber Elastomer waterstop for construction

Share on (60200977661):


Price:

Quantity:


Product Overview

Description



Products Description


Waterstop Products
Water-stop and waterproof products include: rubber water-stop, hydrophilic expansion rubber water-stop, steel edge water-stop, PVC
water-stop, HDPE water-stop, TPV&TPER Water stop, Neoprene Rubber water stop Bentonite water-stop strip, etc. The products comply with: KEJIJI [2008] No.21 document & GB1817 3.2 – 2000 Polymer waterproof materials-Part 2: water-stop.
All products have been authenticated by the Ministry of Communications.


CLASSIFICATION

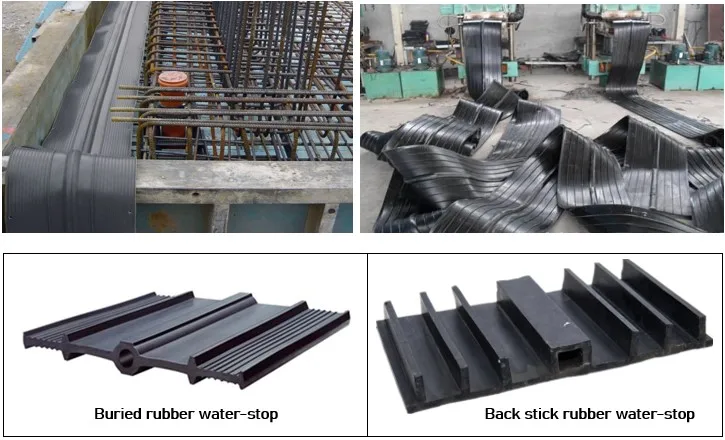

Based on usage, rubber sealing strip can be classified as buried water-stop and back stick type rubber water-stop. According to the form appearance, it can be divided into
l CB-type water stop (refers to the middle hole of buried water-stop),
l CP-type water stop (refers to the middle of nonporous buried water stop),
l EP-type water stop (also known as externally bonded water stop or backing with water stop, refers water stop to posted outside the middle of no pass water stop),
l EB-type water stop (also known as posted outside water stop or backing with water stop, refers to water stop posted outside the middle of the hole).


FEATURES
l Excellent high movement accommodation.
l Adjust for subsidence and seismic movements
l High elongation.
l High elasticity.
l Capable to withstand high hydrostatic head.
l Hot vulcanized site joints.

APPLICATIONS
l Ideal for high movements joints.
l Water containments.
l Chemical areas.
l Water excluding.
l Dams, reservoirs, and spillway.
l Water and waste treatments.
l Tunnels and civil engineering structures.
l Irrigation canals, sea walls and culverts.


APPLICATION SCOPE & STANDARD
Rubber water stop with water swelling rubber water can be applied to underground structures like dams, reservoirs, swimming pools, roofing and other building materials and structures used in the deformation joint waterproof. Because concrete structure has become one of the basic parts of the engineering, underground facilities, tunnels, culverts, water aqueducts, dams, that is mainly used for concrete cast in the construction joints for ensuring life of the project construction. So, it is very important in construction.
Water-stop complies with GB18173.2-2000 standard for polymer waterproof material - water stop production. According to users' piratical requirements in different projects, different parts, different slopes, our products can equip with cross. What's more, the angle of inside and outside rubber water-stop connector products can also be applied to any special designs.

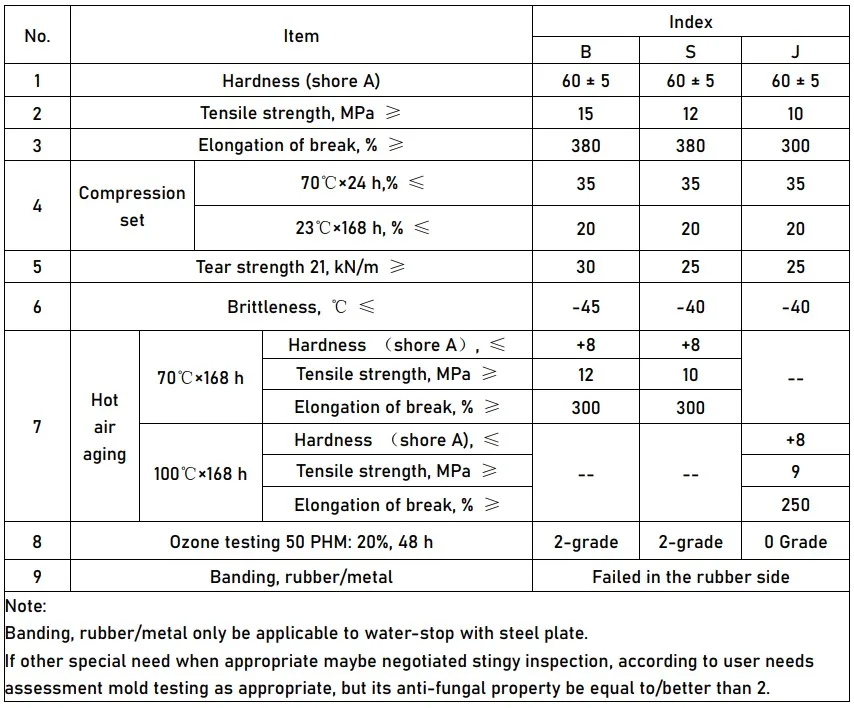

Technical Parameters




Specification

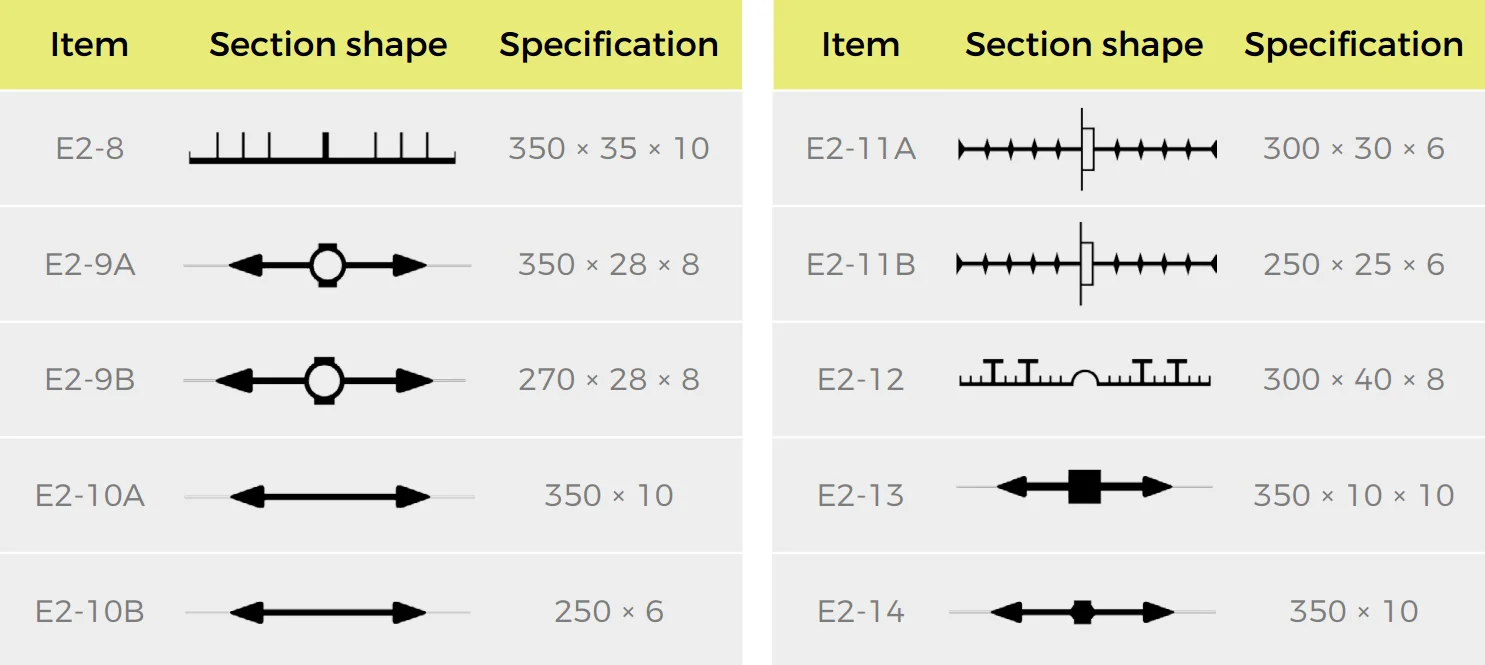

MODEL SPECIFICATION
Rubber sealing strip common specifications are 300 × 6, 300 × 8, 300 × 10, 350 × 8, 400 × 10 mm, etc. And the models are commonly used is buried 651.

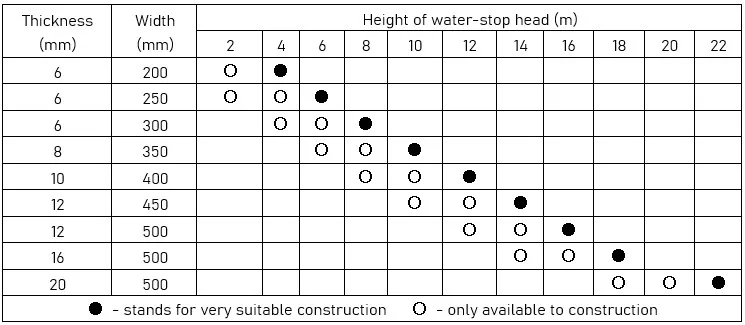

SEALING MATERIAL OF CHOICE IN ACCORDANCE WITH PROVISIONS:
Structures should be based on the level of importance, the amount of deformation and pressure, so that the water-stop can be used properly.
l Under normal circumstances, we generally advise you to choose the natural rubber water-stop.
l When it comes to weak acid and alkali corrosive media, you should use neoprene rubber water-stop.
l When it comes to oil medium, you should use nitrile rubber water-stop.
l When the application might be eroded by mold, water stop mildew should be considered. And at this time, the water-stop you choose should reaches level 2 and 2 above.
l According to the piratical using temperature
Ø -25 ℃ - 60 ℃, it is better to choose chloroprene rubber water stop.
Ø -35 ℃ - 60 ℃, it is better to choose natural rubber water stop
Ø -40 ℃ - 60 ℃, it is better to choose EPDM rubber water stop.
l when it comes to waterproof sheet materials such as welding, you should use its samule synthetic resin type water stop (EVA, PE, ECB, HDPE, PVC)

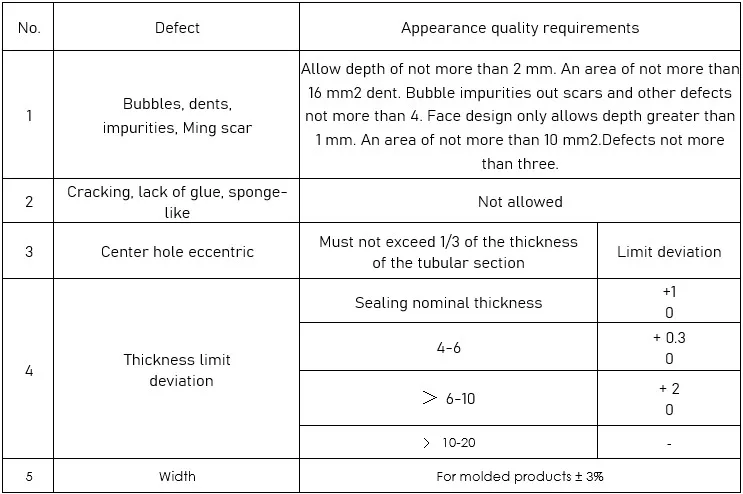

Appearance Quality Requirement

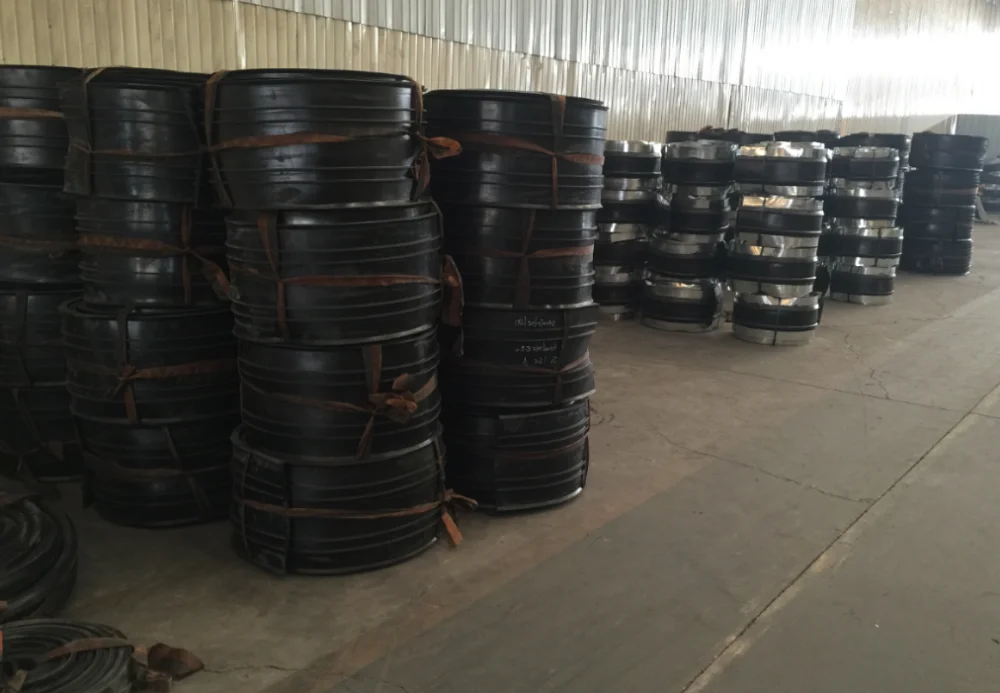

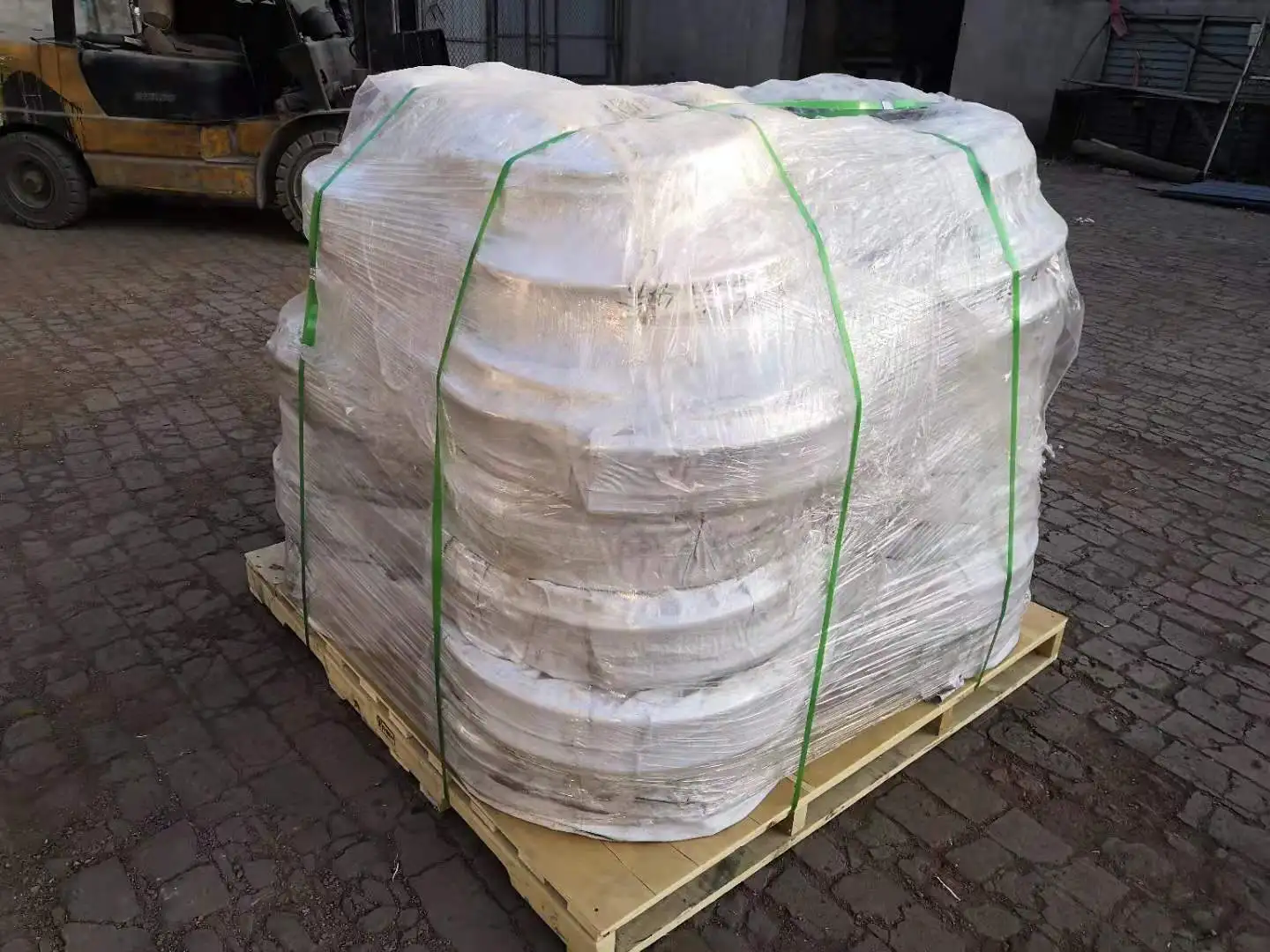

Package




* Sold by roll or individually for intersections.
* Or 10m or 15m or 20m or 25m per roll.
Packed as per customer’s requirement


Transportation and Storage
Products during transportation and storage, avoid direct sunlight, do not contact with heat, oil and hazardous solvents. Do not affect the quality of rubber in contact with substance. Finished product should be taken straight flat, do not increase the pressure. Storage areas best kept -10℃ ~ + 30℃, relative humidity 40% - 80%, and should be kept clean.

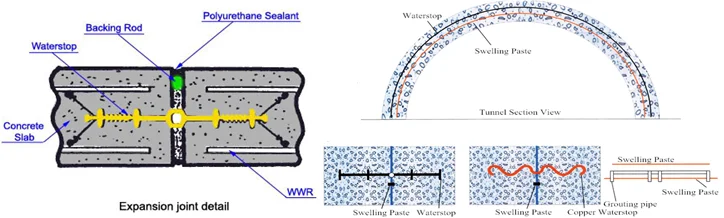

Installation Instructions


Rubber Waterstop
In construction, some or all of the rubber water-stop is buried in the concrete during pouring process. Because there maybe are many sharp corner stones and sharp steel heads in concrete, we need notice its installation positioning method and pouring pressure during water-stop position and concrete-pouring process to avoid water-stop punctured.
Ø Due to the tear strength of rubber/PVC materials is lower than strong stretching by 3-5 times, its product ability to resist external forces will significantly reduce if water-stop punctured. So, in order to keep effective of waterproof function, specific matters tips in construction as follows:
Ø Rubber water-stop can't resist long time outdoor exposure, should prevent from the rain, do not contact with strong polluting chemicals. It's better to keep products in stored places where temperature changes from - 10℃ to + 30℃, and relative humidity from 40% to 80%.
