mobile mini mix wet concrete batching plant with silo 60 ton
US $48000-$50000
300 ton design for cement silo
- Category: Concrete Batching Plant >>>
- Supplier: Shandong Zeyu Heavy Industry Science And Technology Co. Ltd.
Share on (60201049198):
Product Overview
Description

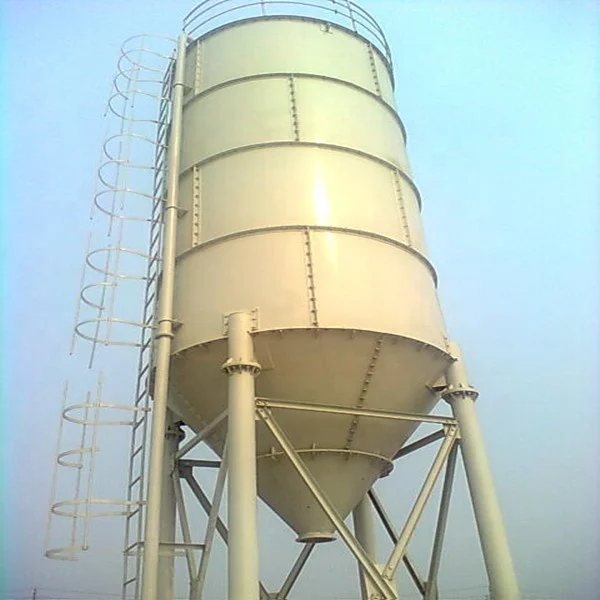

300 ton design for cement silo

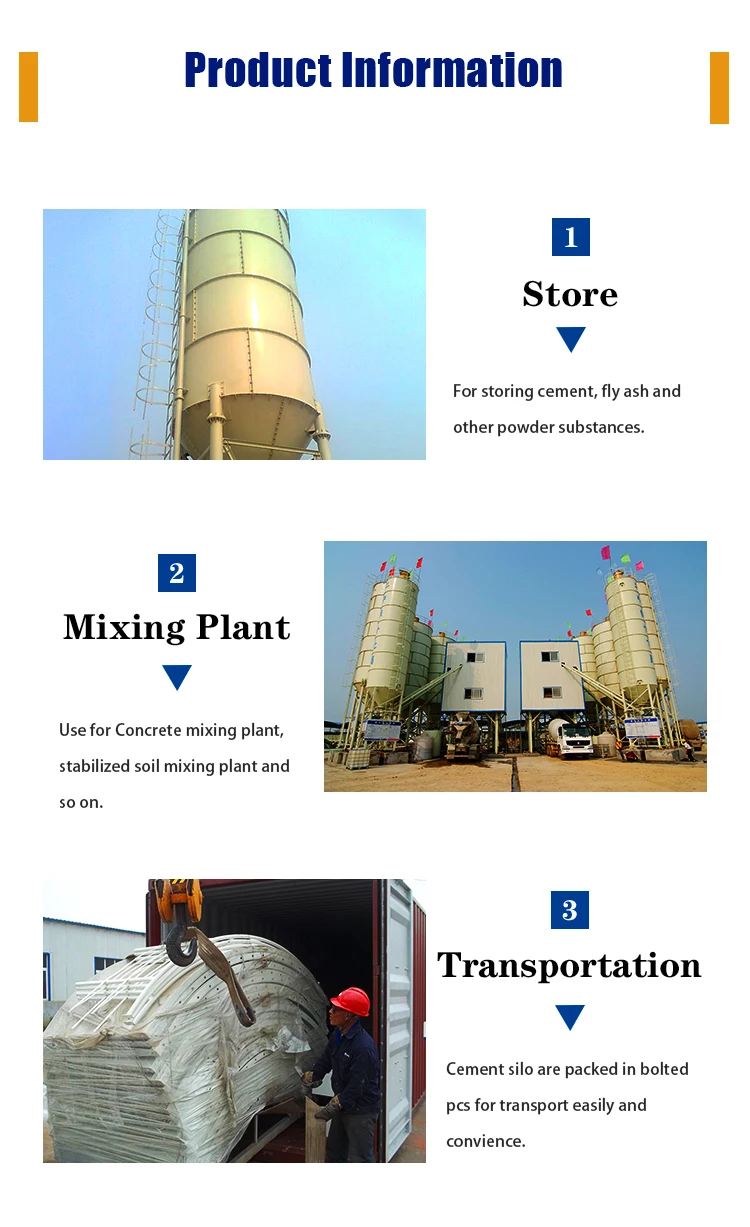

Product Information
Specification
No. | Model | Dia | Thickness of plate | Legs | Weight | Height of body | Total height | Height of legs |
1 | 50T | 3.16m | 5.4.3mm | 219*5.5 | 4t | 5.1m | 13.5m | 4.2m |
2 | 100T | 3.16m | 5.4.3mm | 219*5.5 | 6t | 9.3m | 19m | |
3 | 150T | 3.6m | 6.5.4mm | 219*9 | 10t | 10.7m | 21m | |
4 | 200T | 4.5m | 6.5.5mm | 273*7 | 13t | 9.3m | 19m | |
5 | 250T | 4.56m | 6.5.5mm | 273*9 | 15t | 10.7m | 21m | |
6 | 300T | 5m | 8.6.5mm | 325*9 | 19t | 10.7m | 21m | |
7 | 350T | 5m | 8.6.5mm | 325*10 | 22t | 11.7m | 22m | |
8 | 400T | 5.5m | 8.6.5mm | 426*10 | 24t | 12m | 23m | |
9 | 500T | 6m | 8.6.5mm | 426*12 | 26t | 12m | 23m |

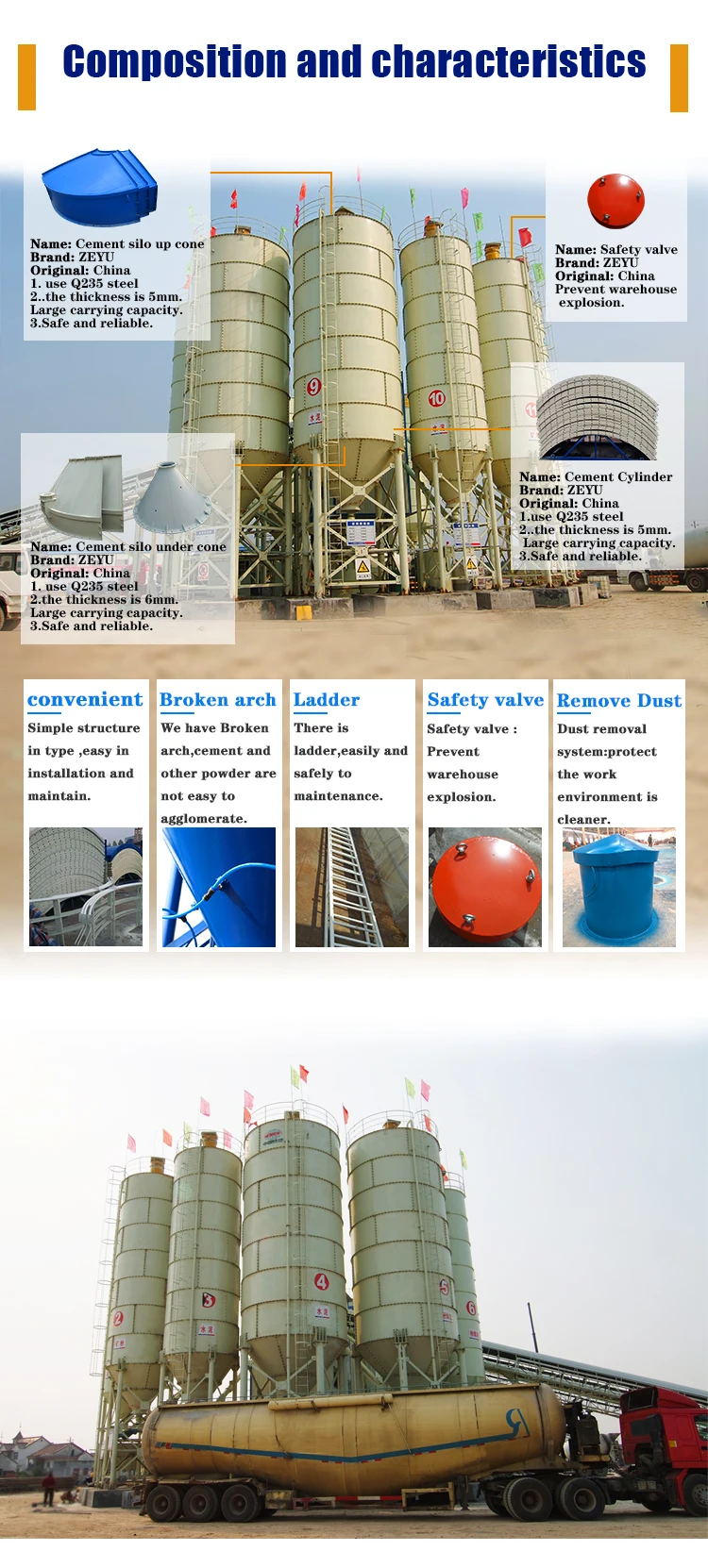

Composition And Characteristics

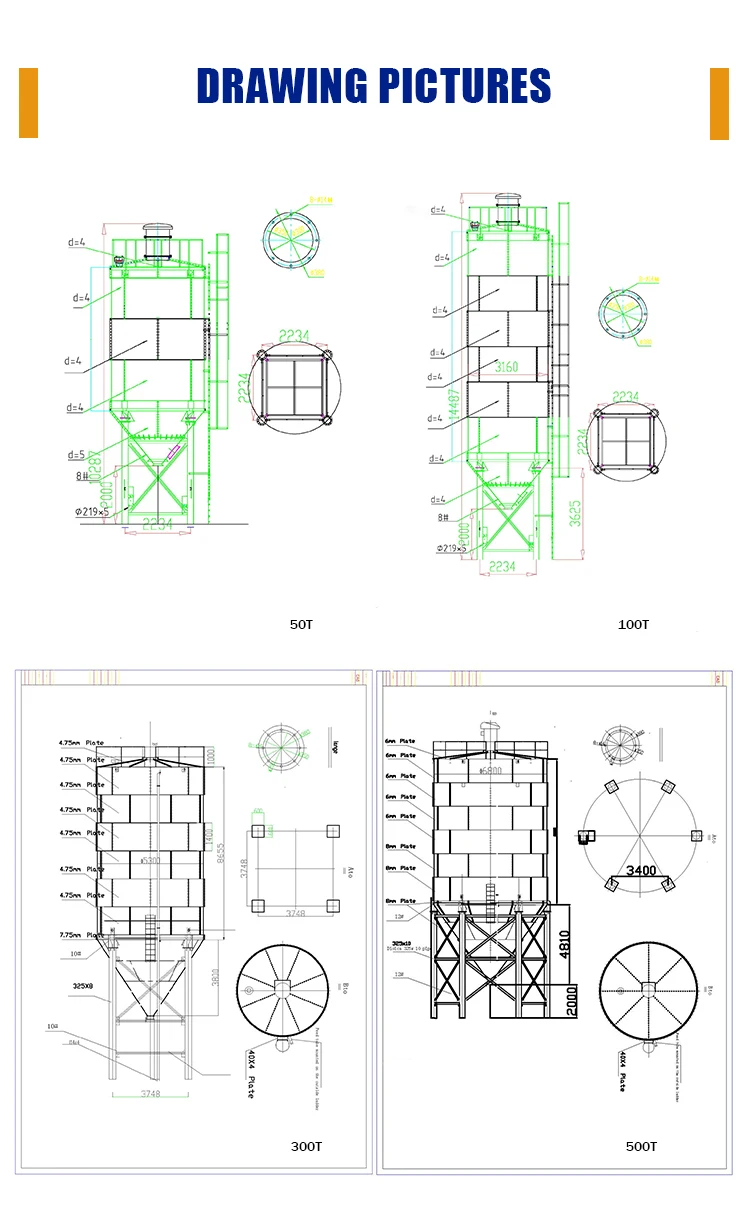

Drawing Pictures
Company Profile
Certifications

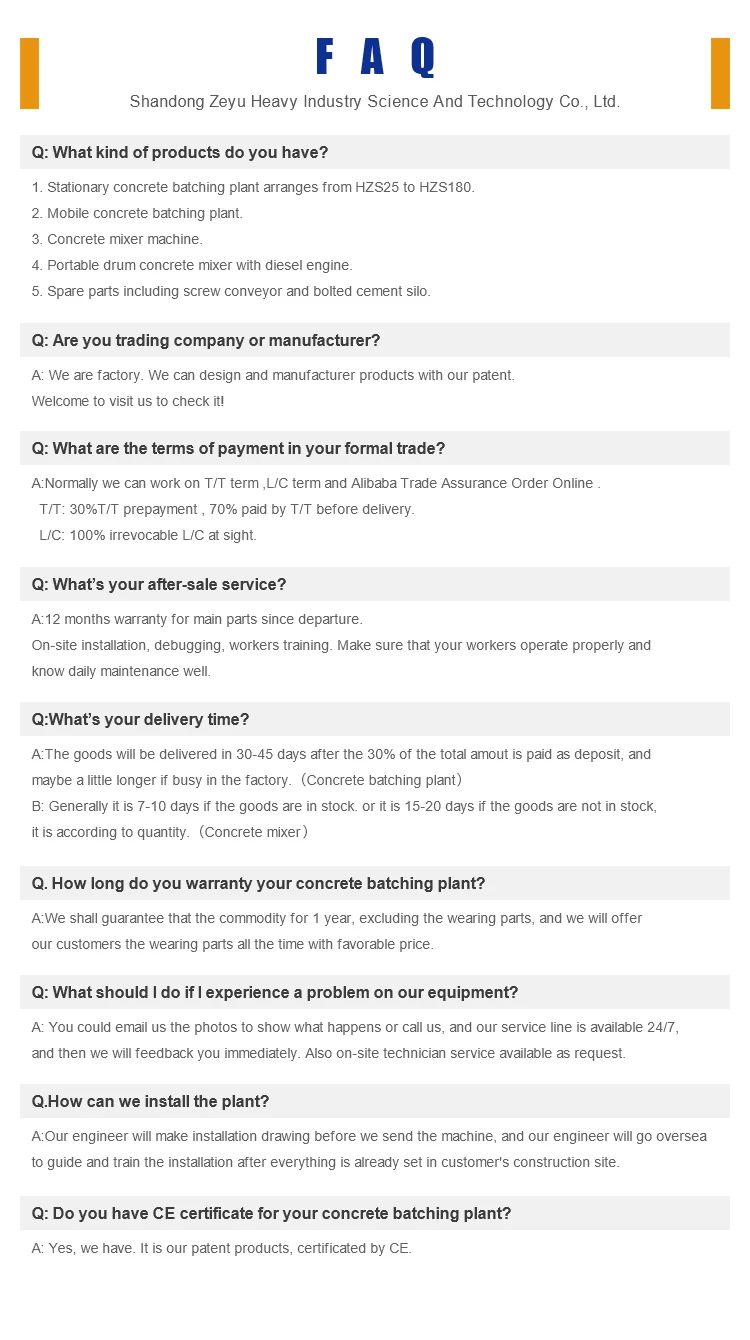

FAQ
