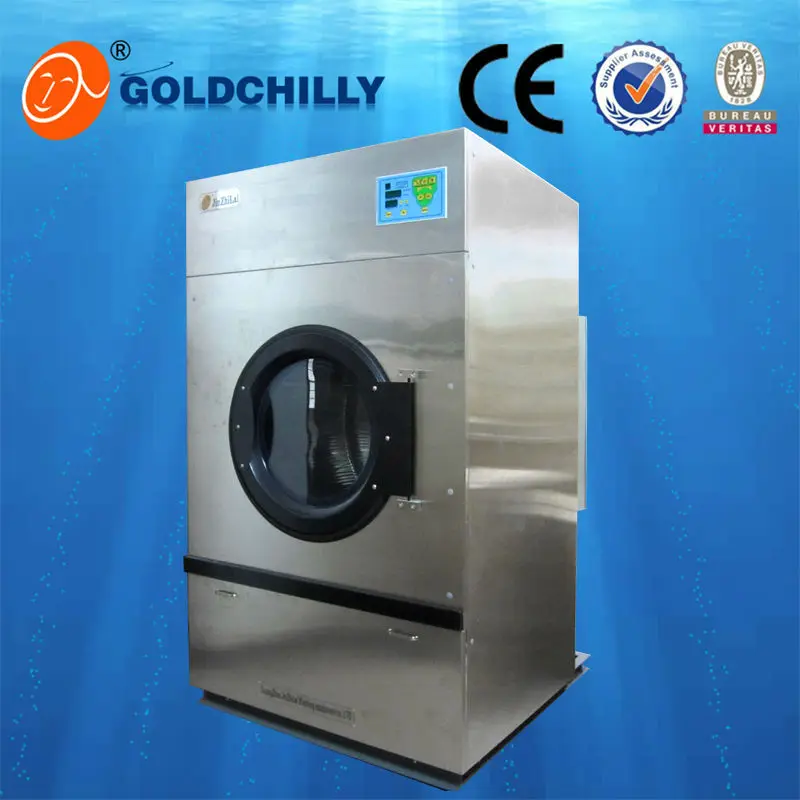

50kg Gas dryer machine industrial gas dryer machine laundry dryer machine

Product Overview

Description

50kg Gas dryer machine industrial gas dryer machine laundry dryer machine        50kg Gas dryer machine industrial gas dryer machine laundry dryer machine



Short introduction:



1,Computer control and simple operation



Computer intelligent automatic control, presetting 5 automatic programs is allowable, user can set temperature,time,REV according to different sheet, taking care of sheet during drying.





2,Stable running and simple maintenance



Transfer system adopts double belt transmission to ensure stable running and bring simple daily maintenance.



Multiple-wing balance wind wheel design to control deposit floss,low noise, stable running.





3,Human design, safety and convenience



Super diameter design for loading door to bring convenience for loading clothes and unloading clothes, door depth is connected with drum inter face to avoid damaging sheet.



Drawer style of floss collection device to pull out for cleaning, so that reduce daily clean strength.



User can choose from Stainless steel or carbon steel panel,excellent material of temperature-isolating to prevent heat from emanating for taking from machine face temperature.





4,Fast drying, high efficiency and energy-saving



HG Series dryer adopt heat exchange device of large specification to effectively expand heating area, fast raise temperature, short drying time.



Inner drum adopt super design of high-density ventilation over Φ800mm t0 ensure heat cross sheet and equipped with ventilation of refined design, effectively utilize heat to make sheet become dry during short time and save energy consumption.



Single and dual direction of drum rotation can be set, intertwist and shrinking of large piece of sheet can be prevent to ensure high effective drying effect.

Specification	Unit	HG-15	HG-25	HG-35	HG-50	HG-70	HG-100
Rated Capacity	kg	15	25	35	50	70	100
Dimeter	mm	800	970	970	1180	1280	1450
Dimeter depth	mm	600	670	1000	870	940	1050
Drum Speed	rpm	48	40	38	35	30	28
Power Supply	V/p/Hz	380/3/50	220/1/50	220/1/50	220/1/50	220/1/50	220/1/50
Motor Power	kW	0.55	0.75	0.75	1.1	1.5	2.2
Fan Motor Power	kW	0.55	0.75	0.75	1.1	1.5	2.2
Heating Type		Electricity Heating	Electricity Heating	Electricity Heating	Electricity Heating	Electricity Heating	Electricity Heating
		/Steam Heating	/Steam Heating	/Steam Heating	/Steam Heating	/Steam Heating	/Steam Heating
Electric Heating Power	kW	13	24	32	39.6	51	83
Steam Pipe Diameter	mm	G3/4"	G1"	G1"	1/2 G1"	G2"	G2"
Steam Pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Machine Weight	kg	420	450	480	510	600	750
Dimension	mm	850*1100	1060*1250	1060*1560	1310*1550	1405*1560	1620*1860
		*1600	*2000	*2000	*2200	*2300	*2530

Various models per various heating method(According to customer's requirement):

1 Electric heating

2 Steam heating

3 Gas heating



Machines package



Factory Overview

Payment form:



T/T 30% in advance 70%before shipping
