YHDC 0 20A 6 мм Диаметр сплит сердечника трансформатора тока sct 006

Product Overview

Description

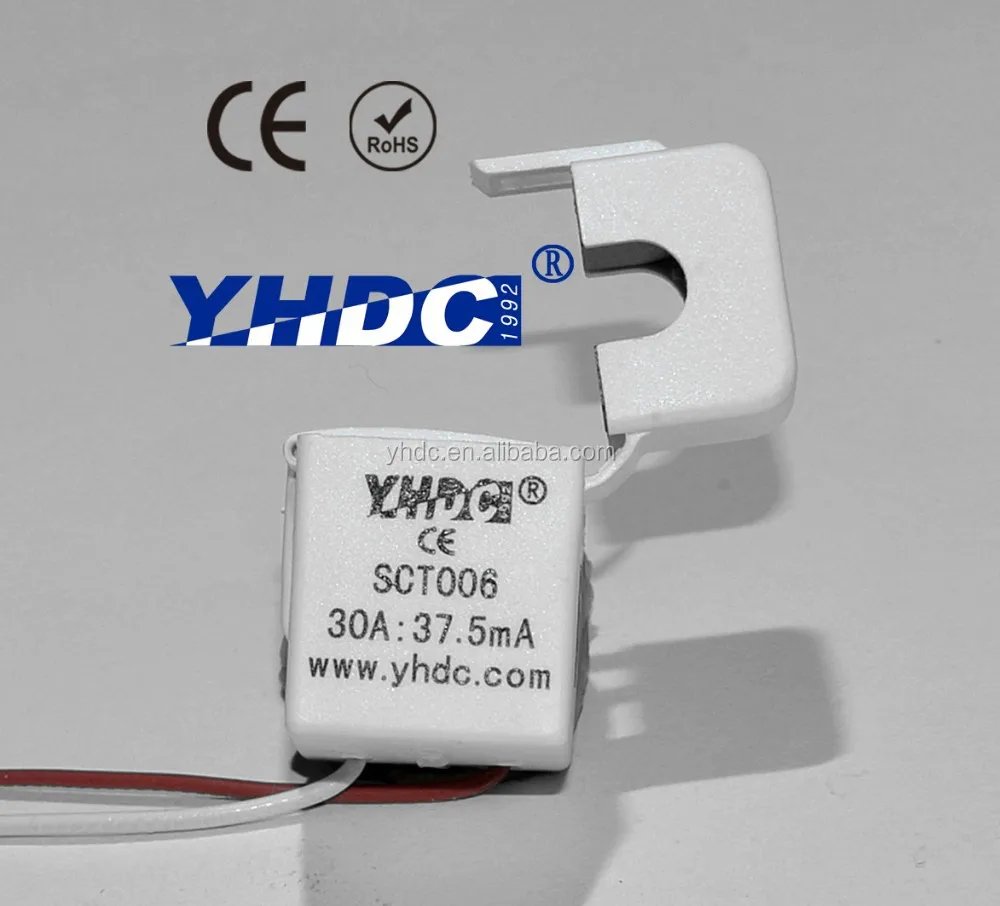

YHDC 0-30a 6mm diameter split-core current transformer sct-006



1 split-core current transformer
2 current input: 0-20A

3 output current: 25mA

4 turn ratio: 1:800
5 opening size : ID=6mm
6 work frequency: 50-1KHz

7: Purpose:

        over current / undercurrent measurement

        electric leakage current detection

        current measurement

        power monitor

8 fire resistance : UL94-V0

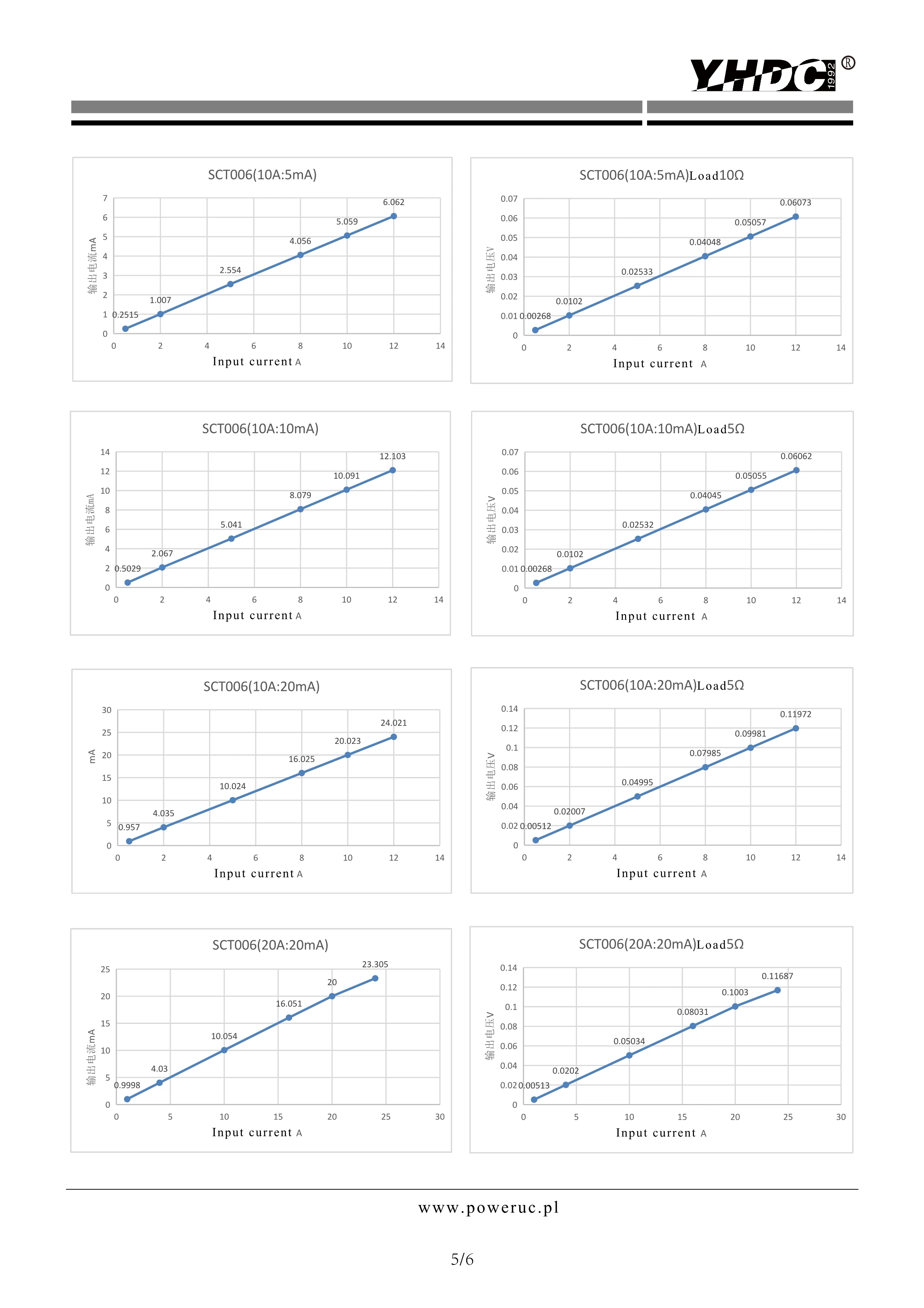

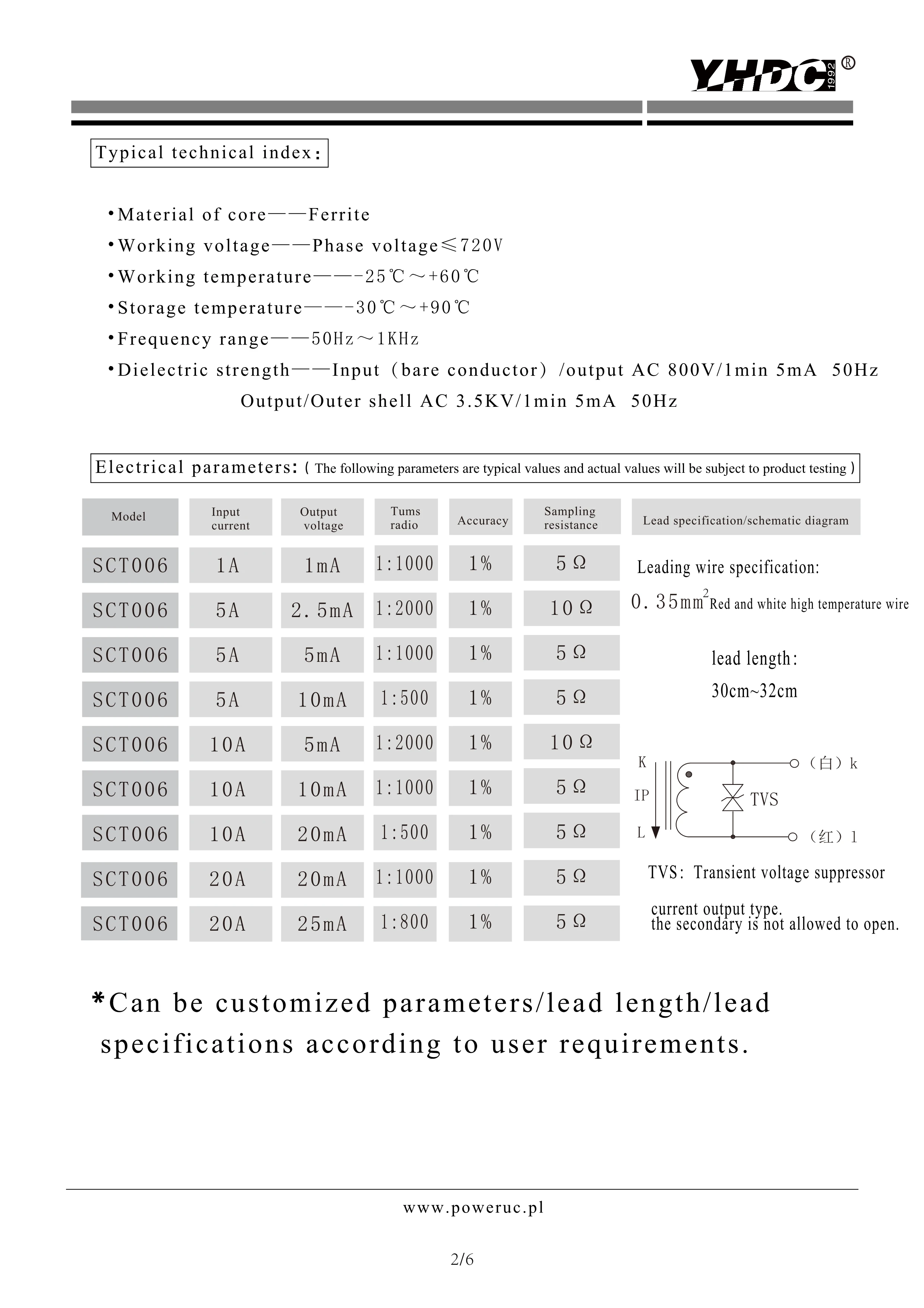

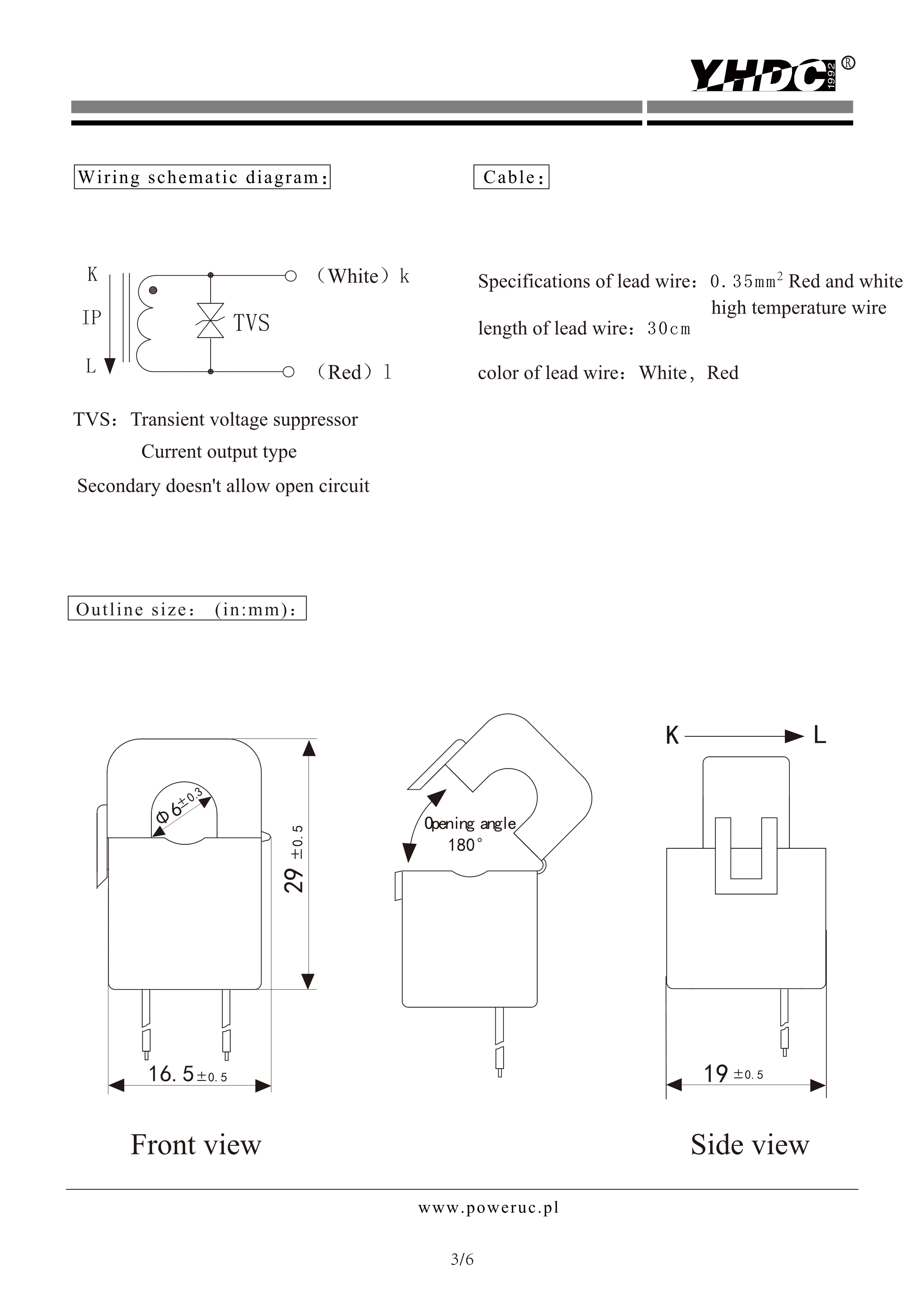

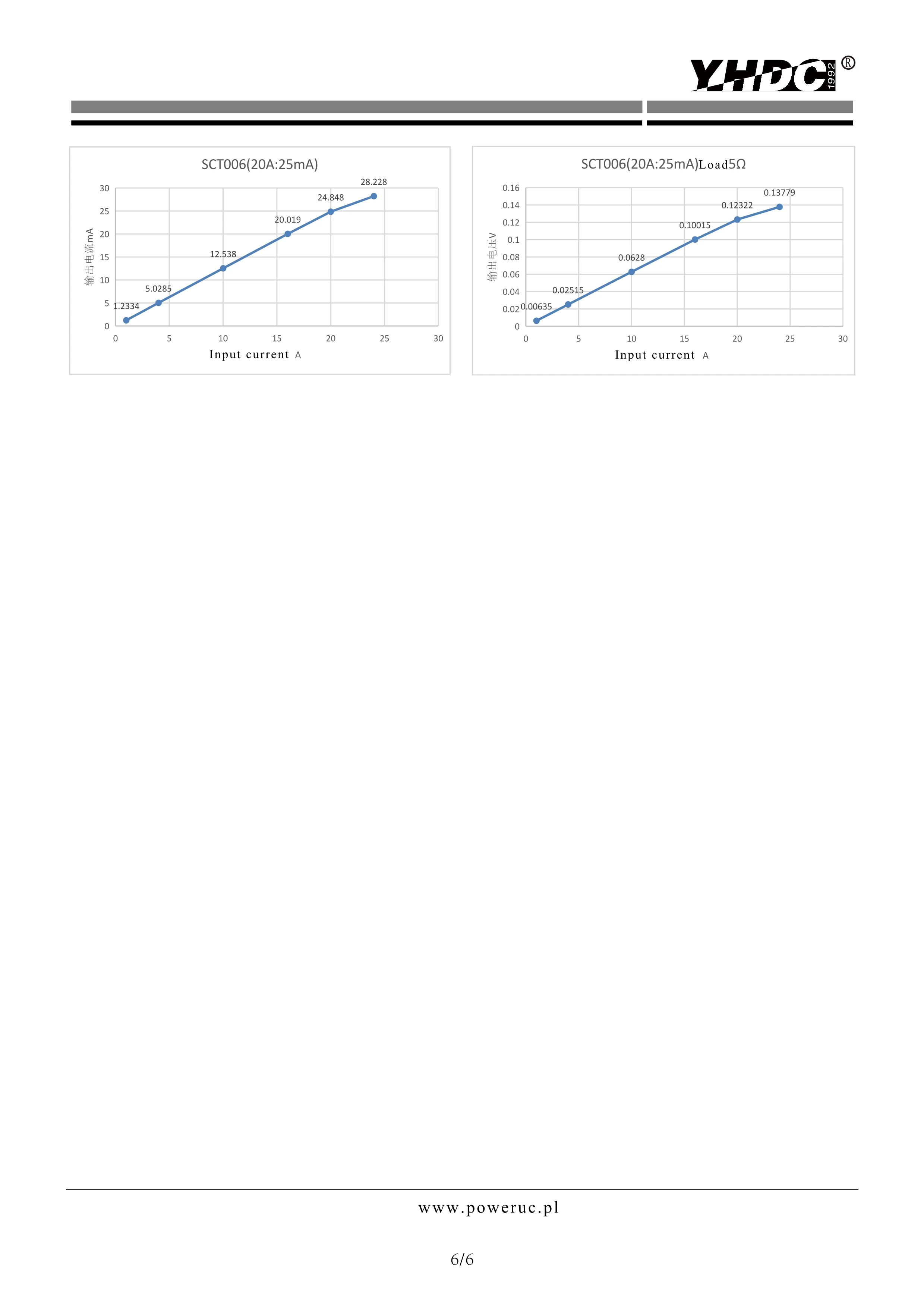

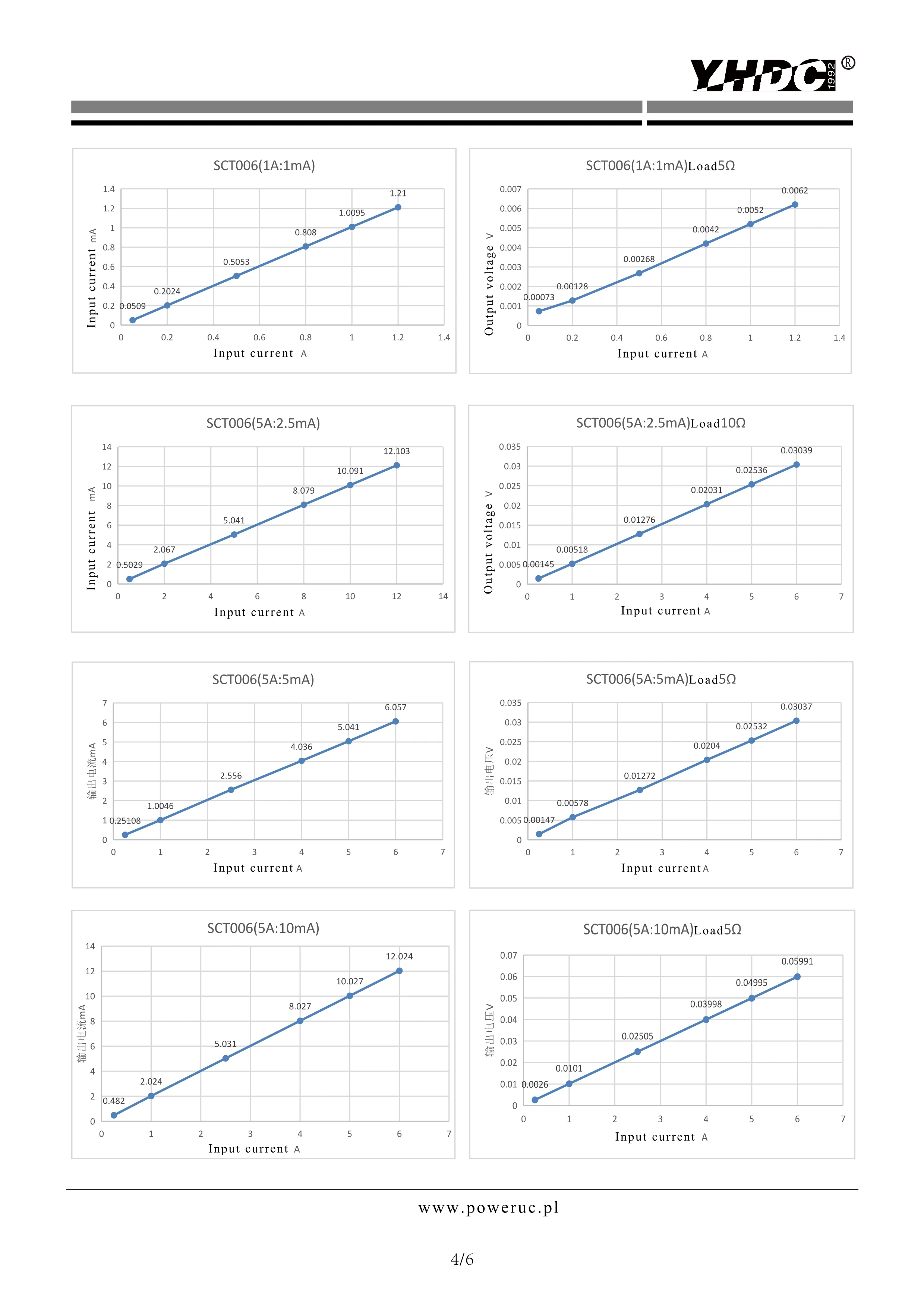

technical data of  YHDC 0-20a 6mm diameter split-core current transformer sct-006

We are the manufacturer of  YHDC 0-20a 6mm diameter split-core current transformer sct-006, we have our own factory, so we can provide you OEM service, and my split core current transformer have got CE/ ROHS / ISO certificate, there is no need for you to worry about the quality, meanwhile as the current transformer manufacturer, we can promise you low price and regular supply, welcome to order our  YHDC 0-20a 6mm diameter split-core current transformer sct-006.
