Limestone Powder With Stearic Acid Surface Coating Machine
- Category: >>>
- Supplier: Qingdao Epic Powder Machinery Co. Ltd.
Share on (60201542056):
Product Overview
Description
Limestone Powder With Stearic Acid Surface Coating Machine
We have developped 3 types of different coating machines for fine powder surface treatment to make functional mineral and chemical materials.
- Pin mill coating system.
- Rotor mill coating system.
- Turbo mill coating system.
Coating Effect

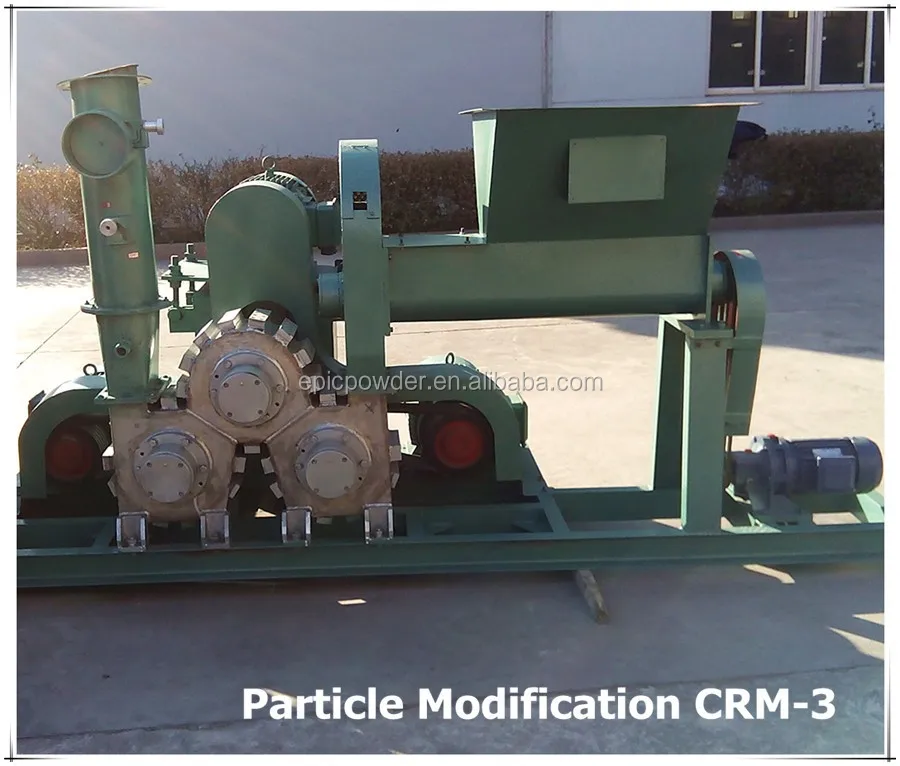

Rotor Mill Coating
Our Rotor-Mill Coating Machine consists of three units of mixing rooms. High-speed rotation creates great vortex flow inside these special-shaped rooms. Powder and coating agent are mixed in the high-speed gas-solid vortex flows. Coating machine with both surface coating and particle dispersing functions is suitable for various powders with different fineness, and has a unique coating effect for the materials with small apparent specific gravity and high volume to weight ratio.
Automatic temperature control system ensures stable high temperature for coating agent melting into liquid and mixing with uncoated powder. Heating and cooling of powder and coating agent are completed in one machine, which does not need independent cooling system.
High utilization ratio of coating agent, high powder-coated rate, high activation grade, low energy consumption, and very few agglomerates in final coated product. The whole system is operated under negative pressure, no dust emission, and low labor intensity.

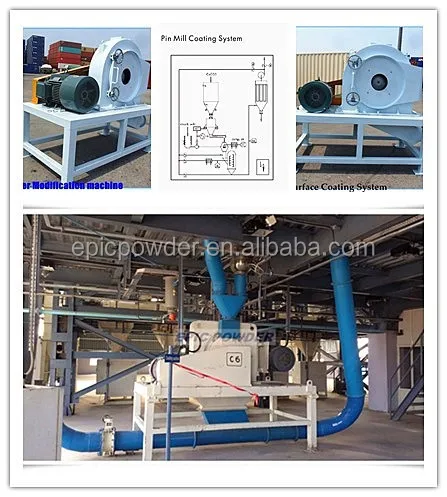

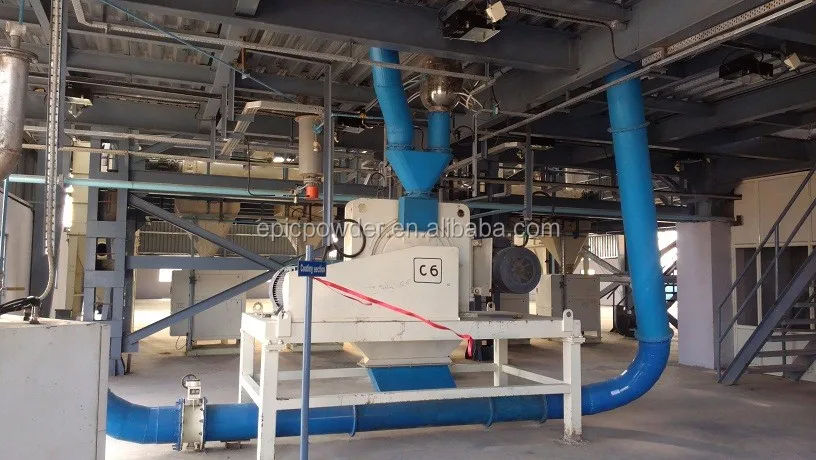

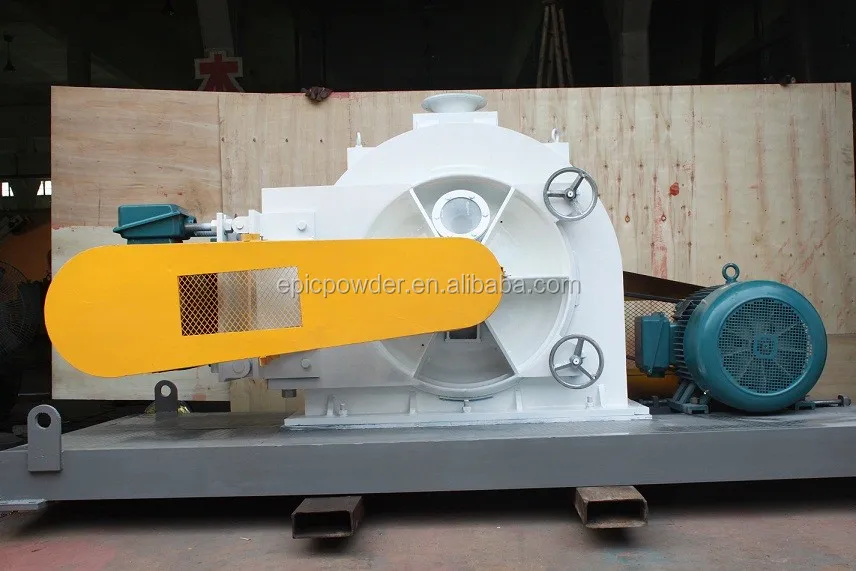

Pin Mill Coating
Pin Mill Coating System:
The uncoated powder feeds into the system via dosing screw and heated by heating screw. The coating agent is fed into the melting tank and after melted into liquid which will be pumped into the pin mill. The heated powder and coating agent is pre-mixed in the bin by high-pressure air flow and then go into the pin mill. The powder is coated under the high-speed rotation of double pin discs. The coated powder is collected by bag filter.
Calcium Carbonate Coating:
The most important target with this process is a uniform and complete distribution of the coating agent in the limestone powder. The proportion of coating agent is only 0.4% to 1.4% by weight for GCC and up to 5% weight for PCC. And in order to uniformly supply this small quantity to the large amount of limestone, the coating agent is melted and then mixed with the limestone powder. Natural or synthethic max like Stearic acid is predominantly used as a coating agent.

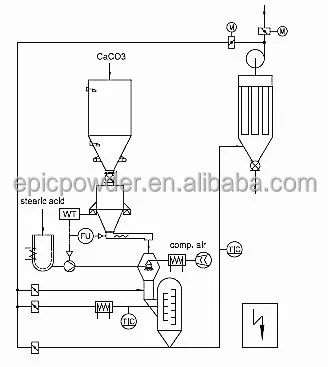

Standard Process Flow Diagram:
Applications:
Ground and light calcium carbonate, all kinds of kaolin, talc, grammite, quartz powder, mica, white carbon black, titanium dioxide, zinc oxide, aluminum oxide, magnesium hydrate, barium sulphate, illite, pyrauxite and tremolite etc.
Project Supply
We are manufacturer for powder processing machines.
More important, we provide tailored design of machine, of engineering, of control system to meet our clients' production requirements. We are a project supplier.
We provide solution for powder processing.
Our project team works based on a substantial test database with over 5,000 test reports of over 1000 various material from mineral industries, chemical industries, food and agriculture industries, pharma industries etc.
What EPCI does?
| Ⅰ. EPC Contracting | ||||||||||
| i. | Technology | Hosokawa Alpine technology and Omya technology | ||||||||
| ii. | Experts/Consultant | Mr. H. Horlamus -- former engineer-- Hosokawa Alpine | ||||||||
| Mr. Victor Evele -- former engineer-- Omya | ||||||||||
| iii. | Experience | over 20 years | ||||||||
| iv. | Application | Minerals, Chemicals, New Materials, Pharmaceutical Materials, Food/Health Care Products, Recycled Materials | ||||||||
| v. | Supply | consultancy, testing, project design, machines, commissioning and training service. | ||||||||
| Ⅱ.Machine Supplier | ||||||||||
| i. | Fluidized Bed Jet Mill | ix. | Turbo Classifier | |||||||
| ii. | Spiral Jet Mill | x. | Multi-wheel Classifier | |||||||
| iii. | Air Classifier Mill | xi. | Dynamic Classifier | |||||||
| iv. | Impact Mill | xii. | Jet Classifier | |||||||
| v. | Vibration Mill | xiii. | Particle Surface Coating Machines | |||||||
| vi. | Ball Mill | xiv. | Particle Shape Modification System | |||||||
| vii. | Grinding System | xv. | Waste PCB Recycling System | |||||||
| viii. | Wet Stir Mill System | xvi. | Waste Tire Recycling System | |||||||
1) What are our main products?
- We design and manufacture various powder grinding mills, classifiers, coating machines, mixing machines, etc.
2) What service do we supply?
- We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
- We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
- We supply project engineering, automation engineering and civil engineering.
- We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
3) How long time is our delivery?
- 60 to 90 days after the down payment received.
4) What payment terms do we offer?
- 30% by T/T as down payment;
- 70% by T/T before shipment or irrevocable L/C at sight.
5) What kind of shipment can we do?
- For complete machines, standard containers or frame containers by sea.
- For spare parts, wooden Case and pallet for delivery by air.
6) What service can we supply for machine installation and test run?
- We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
7) What is our warranty policy?
- We offer warranty of 12 months after installation or 18 months after the delivery.
- We offer lifetime service for our machine products after the delivery, and will follow up the machine status with our clients after the successful machine installation in our clients’ factories.
Kindly reminder, the price vary for different feed material and fineness a little,For details, please contact our project consultants, thank you.
