New 2022 4CH HD CVI AHD Baluns

• High Quaility product,Brand New.
• 4 channel Passive video balun.
• Video transmission via UTP CAT5 cable.
• Full-mition CCTV video at distances up to 300m(720P),200M(1080P).
• 10-20% wire costs saved.
•NTSC,PAL&SECAM video format compatible
• Outstanding interference rejection and transient protection.
• Male BNC allows connection directly to the camera or DVR.
• Ave lots of Extra Cable Money.
| Product Name | 4 Channel Passive Video Transceiver | |

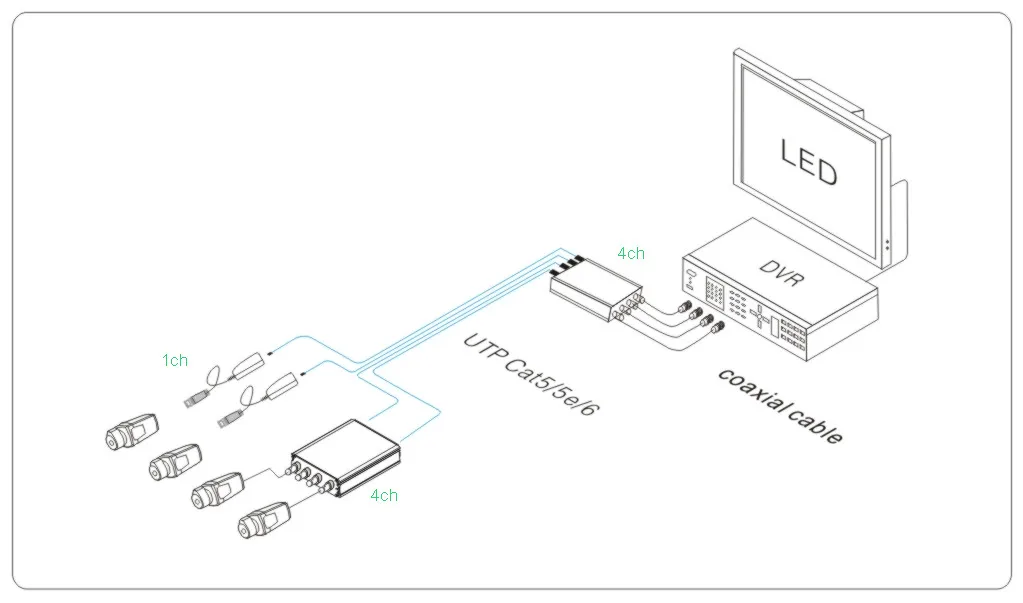

| Applied Devices | CCTV cameras,monitors,DVR,switchers,IP encoders,and other CCTV equipment | |
| Video | Video Format | PAL,NTSC,SECAM |
| Operating Frequency | DC to 5MHz | |
| Max Distance | UTP Category 5e(24AWG)color:300M(720P),200M(1080P). | |
| Common-mode | 15 KHz to 5MHz 60 dB | |
| Impedance | Coax,Male BNC ,75Ω | |
| UTP,RJ45, 100Ω | ||
| Attenuation | 0.5dB typ | |
| Wire Type | Network Wiring | One Unshielded Twisted Pair (for each video signal)24-16 AWG (0.5-1.31mm) |
| Category Type | 2 or better | |
| Impedance | 100+/-20 ohms | |
| DC Loop Resistance | 52 ohms per 1,000ft(18 ohms per 100m) | |
| Differential Capacitance | 19 pF/ft max(62 pF/m max) | |
| Power | No external power required | |
| Connector | Video input/output | Male BNC connector |
| rj45 Jack | ||
| Screw terminal | ||
| Protection | Anti-Interference | yes |
| Lightning Protection | yes | |
| Mechanical | Housing | Aluminum alloy |
| Body Color | Grey | |
| Dimensions(L*W*H) | 10.4(8.3) *4.6cm*2.4cm+24cm bnc cable | |
| Net Weight | 177g/pcs | |
| Environmental | Operating Temperature | -20°to 70° |
| Relative Humidity | 0 to 95%(non-condensing) | |
| Stotage Temperature | -40°to 150° | |




Skype: joanne-cable

Payment
• We accept payment via TT in advance(Paypal and Western Union are welcome).
• Payment must be made within 7 days after your bidding.
• TOTAL AMOUNT DUE includes the final auction price plus S&H(Shipping and Handling).
Delivery
• The delivery time is strarting from we confirm the payment.
• Hpe you charge it as soon as possible ,in case of delay the delivery.
• Exact lead time is based on your amounts and fact. so you'd better show me your exact qty .
• Some delivery time as follow:
| Qty | Delivery Time(working day) |
| Less than 100 | 3 to 4 |
| 100-500 | 5 to 12 |
| 500-1k | 12 to 15 |
| 1k-2k | 20 to 30 |
| 2k-3k | 30 to 50 |
| * the Data is a reference for buyer. | |
| * 5 working days for a week(not including saturday and sunday) | |
| Remark: | |
| 1.MOQ you can find in Products Attributes. | |
| 2.Please read all the information before you take a order. | |
