Tobee Effluent Handling
$12,600
7.5Hp 5.5Kw 3phase submersible aerator
- Category: >>>
- Supplier: SUN MINES ELECTRICS CO. LTD.
Share on (60201844350):
Product Overview
Description

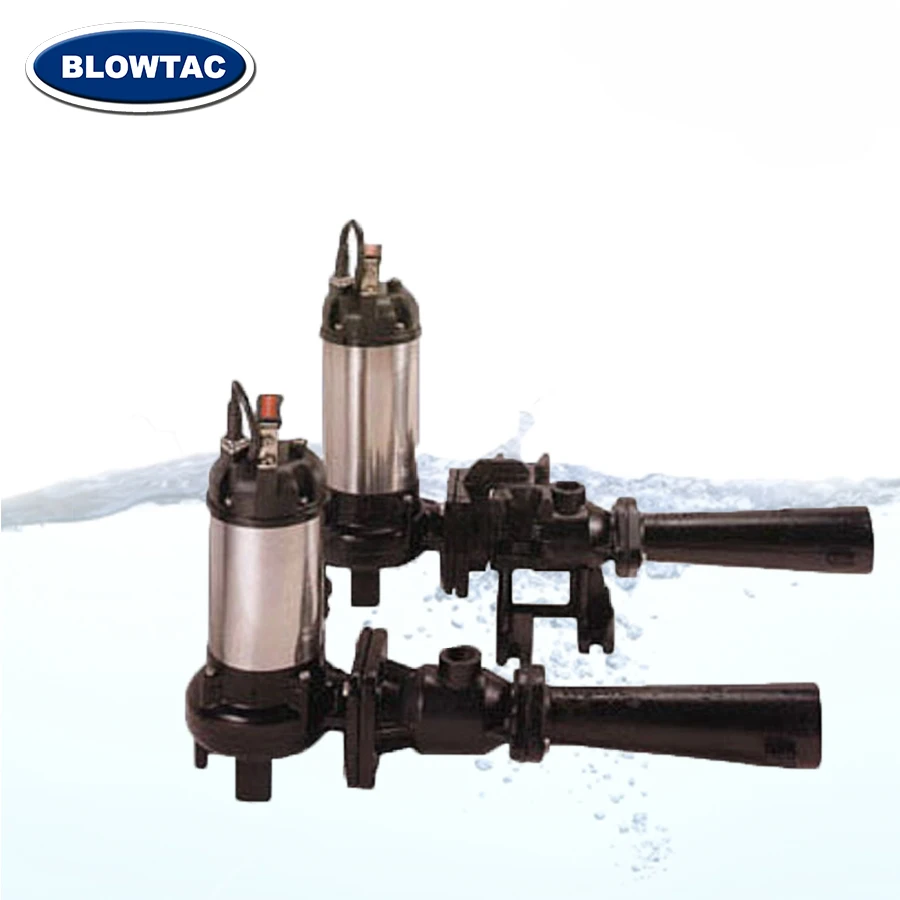

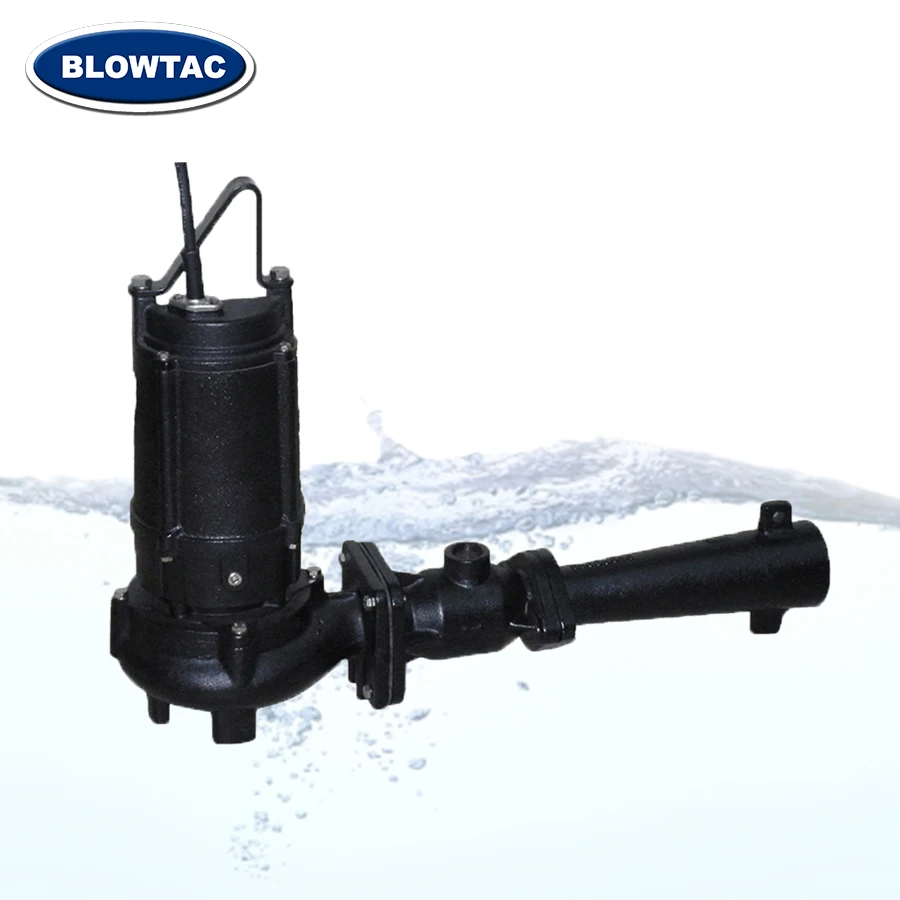

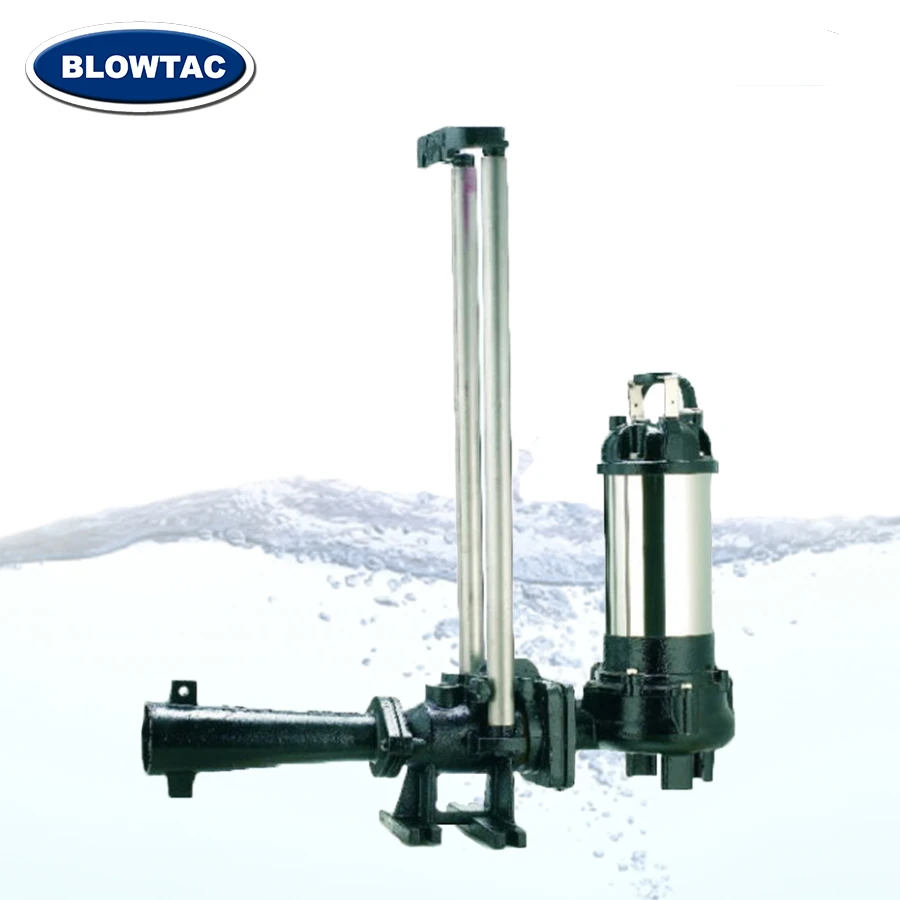

7.5Hp 5.5Kw 3phase submersible water aerator
Product Description
Features
1. High oxygen transfer rate, BOD easy to remove from wastewater
treatment.
2. Mixing and stirring applications for uniform MLSS due to fine bubbles
convention.
3. Low noise and low cost for construction and maintenance.
Application
The wastewater treatment aeration and agitation for any kinds of
factories.
Specification Table

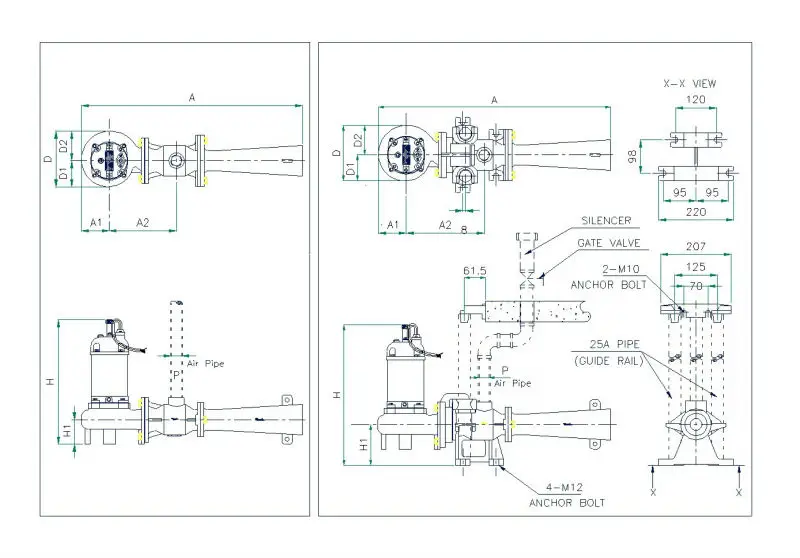

Dimensions
| Model | Output | Rated | Aeration Tank | Dimension (mm) | |||||||||||||
| Air | OTR | W.Depth | Length | Width | Height | ||||||||||||
| HP | kW | m³/hr | kg-O2/hr | m | m | m | m | A | A1 | A2 | D | H | H1 | H2 | H3 | P | |
| JA-04 | 1/2 | 0.4 | 5 | 0.12~0.23 | 1.5 | 2.0 | 1.8 | 2.0 | 649 | 82 | 197 | 163 | 417 | 304 | 120 | 72 | 25A |
| JA-07 | 1 | 0.75 | 10 | 0.3~0.5 | 2.0 | 3.0 | 2.5 | 3.0 | 649 | 82 | 197 | 163 | 471 | 347 | 120 | 72 | 25A |
| JA-15 | 2 | 1.5 | 22 | 0.9~1.1 | 2.5 | 4.0 | 3.5 | 3.5 | 719 | 103 | 246 | 208 | 548 | 400 | 122 | 72 | 40A |
| JA-22 | 3 | 2.2 | 40 | 1.9~2.2 | 3.0 | 5.0 | 4.5 | 4.0 | 719 | 103 | 246 | 208 | 568 | 420 | 122 | 72 | 40A |
| JA-37 | 5 | 3.7 | 80 | 2.9~3.5 | 3.5 | 6.0 | 5.0 | 5.0 | 769 | 110 | 266 | 227 | 633 | 468 | 160 | 92 | 50A |
| JA-55 | 7.5 | 5.5 | 115 | 4.2~5.1 | 4.0 | 7.0 | 6.0 | 6.0 | 769 | 110 | 266 | 227 | 673 | 508 | 160 | 92 | 50A |
| TJA-04 | 1/2 | 0.4 | 5 | 0.12~0.23 | 1.5 | 2.0 | 1.8 | 2.0 | 683 | 82 | 231 | 163 | 465 | 352 | 168 | 120 | 25A |
| TJA-08 | 1 | 0.75 | 10 | 0.3~0.5 | 2.0 | 3.0 | 2.5 | 3.0 | 683 | 82 | 231 | 163 | 519 | 395 | 168 | 120 | 25A |
| TJA-15 | 2 | 1.5 | 22 | 0.9~1.1 | 2.5 | 4.0 | 3.5 | 3.5 | 753 | 103 | 280 | 208 | 596 | 448 | 170 | 120 | 40A |
| TJA-22 | 3 | 2.2 | 40 | 1.9~2.2 | 3.0 | 5.0 | 4.5 | 4.0 | 753 | 103 | 280 | 208 | 616 | 468 | 170 | 120 | 40A |
| TJA-37 | 5 | 3.7 | 80 | 2.9~3.5A | 3.5 | 6.0 | 5.0 | 5.0 | 984 | 110 | 480 | 227 | 741 | 576 | 280 | 200 | 50A |
| TJA-55 | 7.5 | 5.5 | 115 | 4.2~5.1 | 4.0 | 7.0 | 6.0 | 6.0 | 984 | 110 | 480 | 227 | 781 | 616 | 280 | 200 | 50 |
Performance Table
Warranty
We offer one year warranty for our Submersible Jet Aerator .

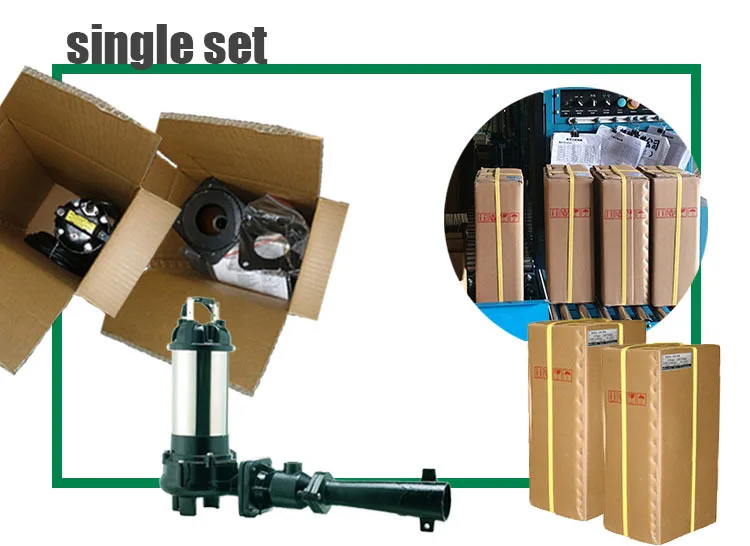

Production & Packing
Trade Information
Trade terms:
EX-work,CIF,CNF,Door To Door
Payment:
- T/T,L/C at sight
- Paypal
- Western Union
- Credit Card
Delivery Date:
About 7-14 days after receiving your payment or L/C at sight (Standard Specification)
Shipping:
By sea, By air,Express delivery
Company Information
CE / UL / SGS / D&B Certified and Patent
FAQ
| Q: What is your MOQ quantites ? |
| A: We have no MOQ limited for our standard specification products. We always prepare enough stocks to reduce the stock cost for our clients. |
| Q : What is your delivery date ? |
A : Normally we will ship you our standard specifications goods about 7-14 days after receiving your payment. It depends on the quantities you order. |
*The information provided here is for reference only
