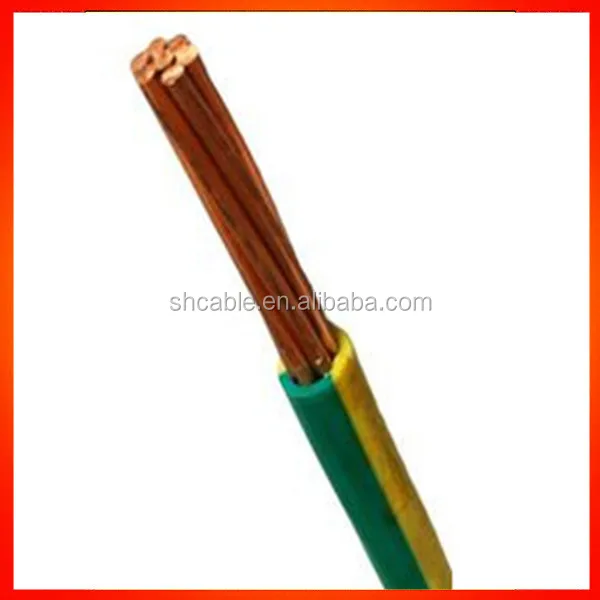

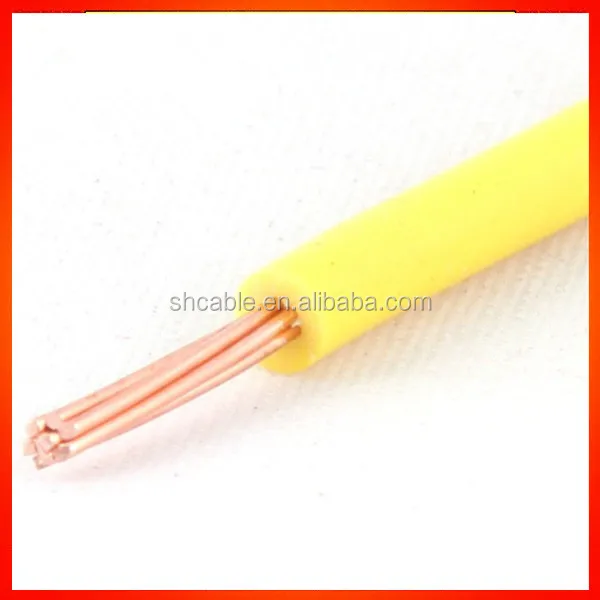

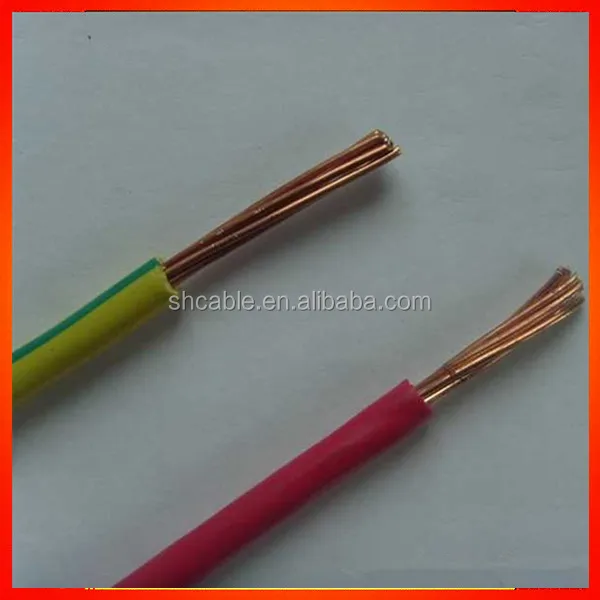

Electrical Wire cable 1/0 AWG 4/0 AWG THW wire
- Category: >>>
- Supplier: Henan Sanheng Industrial Co. Ltd.
Share on (60201900342):
Product Overview
Description
Electrical Wire cable 1/0 AWG 4/0 AWG THW wire
Description of THHN Cable
1) Annealed bare solid (14-10 AWG),annealed bare stranded class C ,concentric round (14-2 A
WG), compressed stranding class B ,(1 AWG - 1000 MCM) copper conductor.
2) Polyvinyl chloride (PVC insulation)
Application of THHN Cable
General use in commercial and industrial construction, and installations where resistance against oils and gasoline is required. May be used for power andcontrol circuits in recognized raceways, in wet or dry locations, and in presence of
gases, gasoline and chemicals. Also suitable as machine tool and switchboard wiring.
Maximum Operating Voltage
600 Volts
Maximum Conductor Temperature
Dry locations (THHN) 90° C
Dry and wet locations (THWN) 75° C
In oil (Gasoline and Oil resistant II) 75° C
Features
1) Good resistance to moisture, heat, oil, gasoline, chemicals and grease.
2) Suitable for installation where thermal overload exists.
3) Strict quality control during manufacturing process.
4) Flame retardant,
5) Smooth nylon jacket aids in easier pulling.
6) Superior abrasion and mechanical properties.
7) Sizes 1/0 and larger are marked "For CT use", and are approved for installation in cable trays. Sunlight resistant in
APPLICATION: General purpose building wiring for lighting and power - residential, commercial, industrial buildings in accordance with the National Electrical Code, maximum conductor temperature of 75° C in wet or dry locations, for circuits not exceeding 600 volts.
| Item Spec. | AWG SIZE | No./Diameter of conductor (mm) | Insulation thickness (mm) | Max.outer diameter (mm) | Ref .Weight(km/kg) |
| THW-16B | 16 | 7/0.49 | 0.76 | 2.8 | 19 |
| THW-14B | 14 | 7/0.62 | 0.76 | 3.4 | 29 |
| THW-12B | 12 | 7/0.78 | 0.76 | 3.9 | 42 |
| THW-10B | 10 | 7/0.98 | 0.76 | 4.5 | 62 |
| THW-8B | 8 | 7/1.23 | 1.14 | 6 | 103 |
| THW-6B | 6 | 7/1.56 | 1.52 | 7.8 | 169 |
| THW-4B | 4 | 7/1.96 | 1.52 | 9 | 249 |
| THW-3B | 3 | 7/2.20 | 1.52 | 9.7 | 306 |
| THW-2B | 2 | 7/2.47 | 1.52 | 10.5 | 376 |
| THW-1B | 1 | 19/1.68 | 2.03 | 12.5 | 487 |
| THW-1/0B | 1/0 | 19/1.89 | 2.03 | 13.6 | 600 |
| THW-2/0B | 2/0 | 19/2.12 | 2.03 | 14.7 | 739 |
| THW-3/0B | 3/0 | 19/2.38 | 2.03 | 16 | 912 |
| THW-4/0B | 4/0 | 19/2.67 | 2.03 | 17.5 | 1130 |
| THW-16A | 16 | 1/1.29 | 0.76 | 2.9 | 19 |
| THW-14A | 14 | 1/1.63 | 0.76 | 3.2 | 27 |
| THW-12A | 12 | 1/2.05 | 0.76 | 3.6 | 39 |
| THW-10A | 10 | 1/2.59 | 0.76 | 4.1 | 59 |
| THW-8A | 8 | 1/3.26 | 1.14 | 5.6 | 98 |
