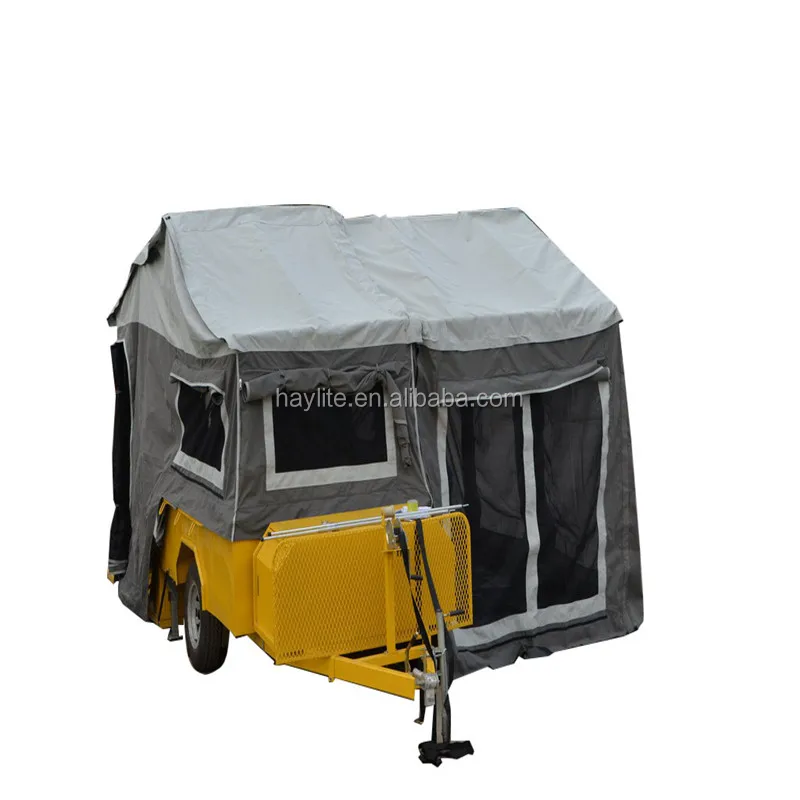

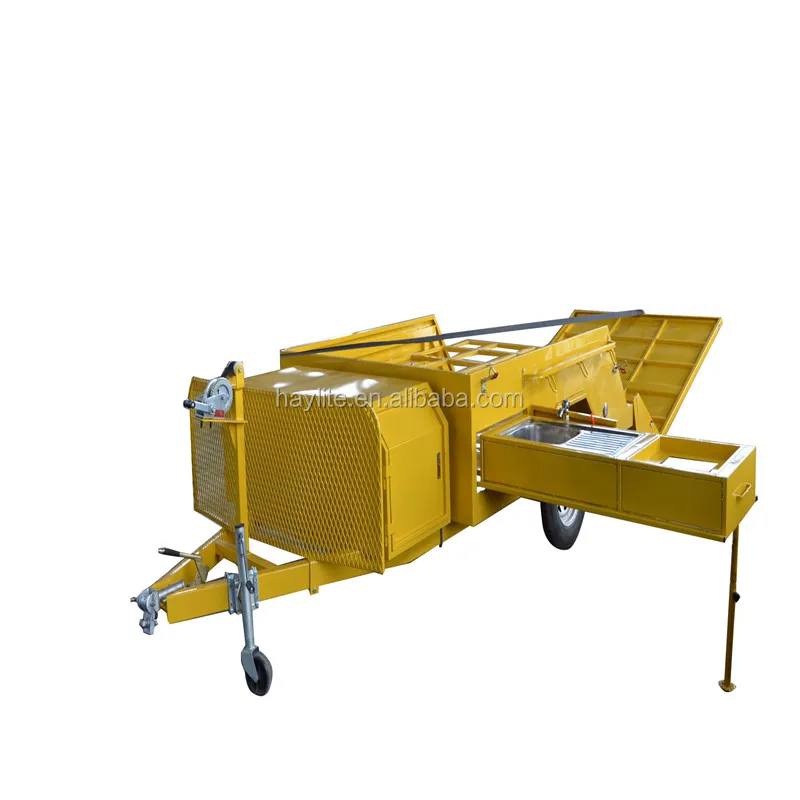

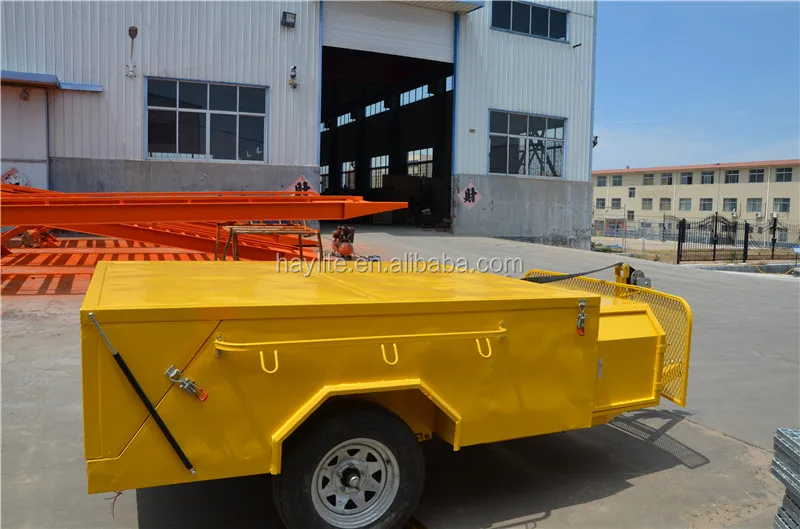

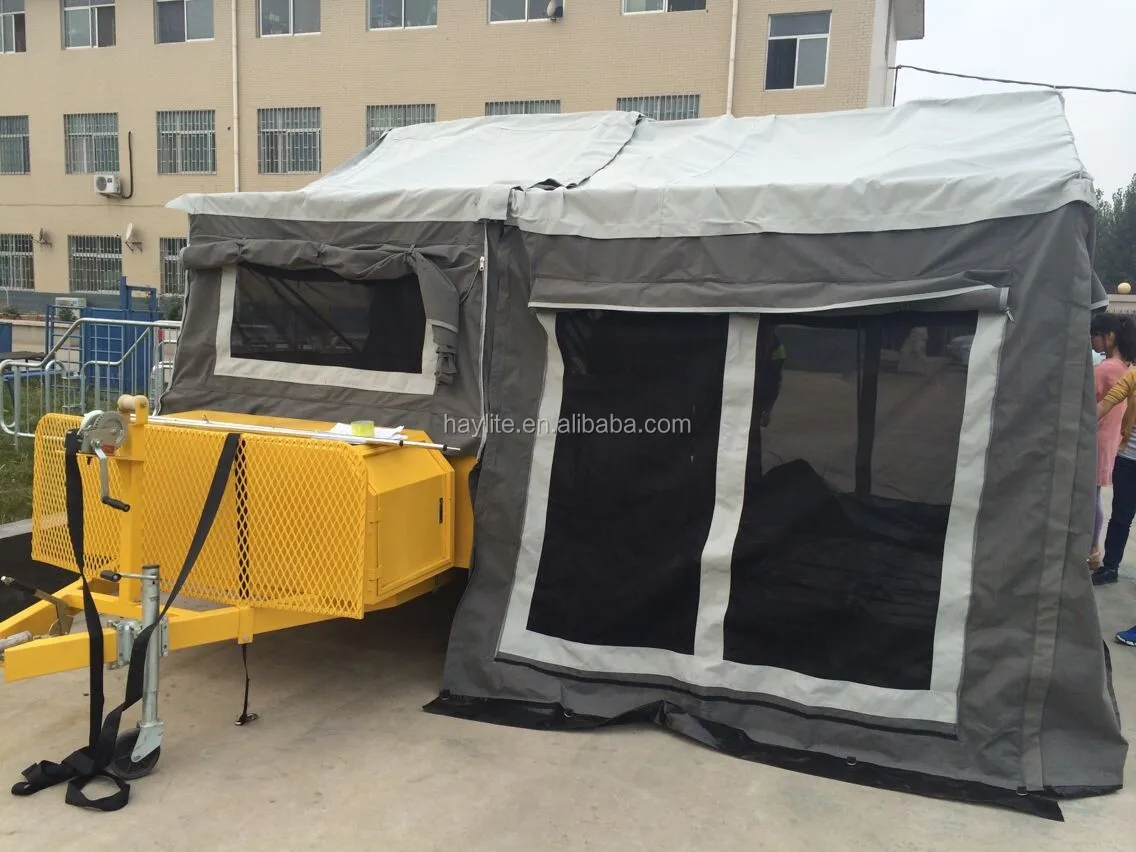

High quality galvanized camper trailer with canvas tent

Technical Specification:

Dimensions: 7ft * 6ft

The main body size:

    Outer box 2200mm(L)x1750mm(W)x600mm(H)

    Inner box size:1940mm(L)x1670mm(W)x520mm(H)

    Extra heavy duty off road chassis: 50x50x2.5mm square tube

    Drawing bar length:1650mm(100x50x50mm tube)

    Ground clearance: 530mm

Trailer weight:710kg

Surface finish: fully powder coated finish

Suspension: 6-leaf shackle heavy duty springs 45x6mm

( eye-to eye type) with 10 electric brake

Wheel: Three new off road 235/75R15 tires with 6 studs steel Ford rim

Jockey wheel: heavy duty solid steel style

Protection: All access doors are lockable and sealed for water/dust proof

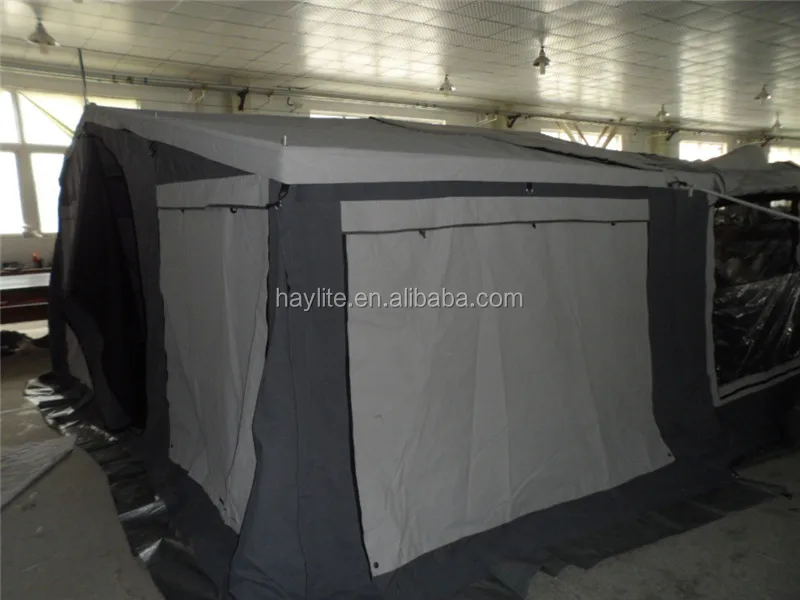

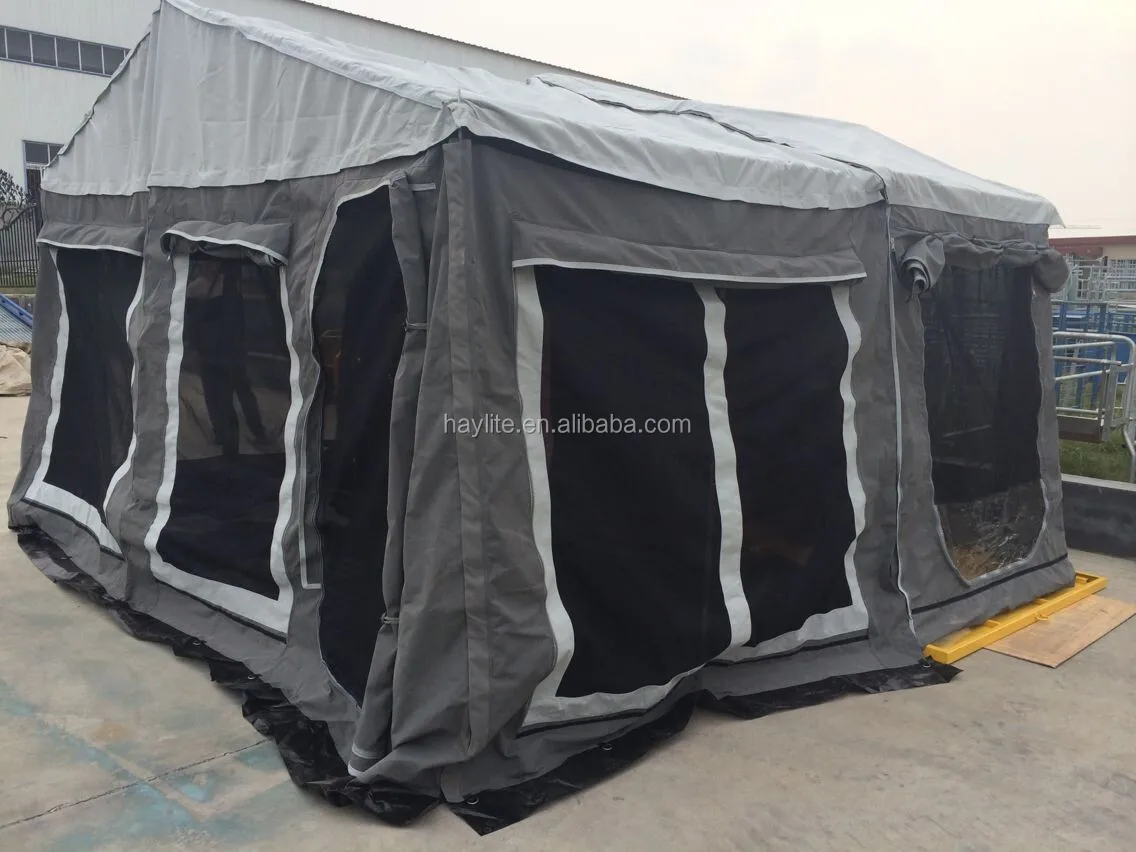

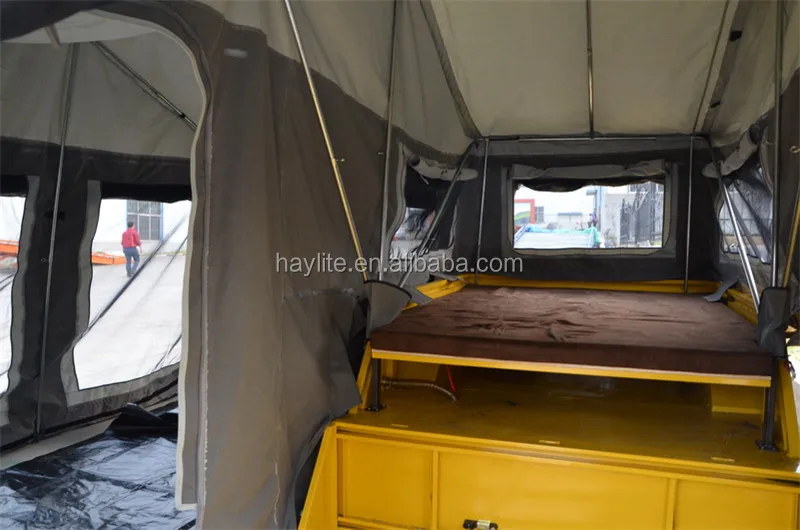

Tent: High quality 12OZ canvas roof and side walls. Sand fly & midge proof window screen

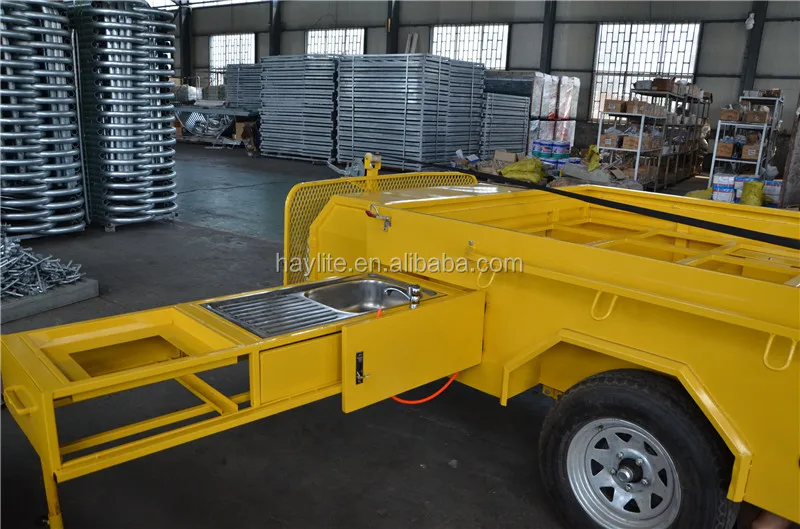

Cooker system: Stainless steel kitchen top and stainless steel sink

Water system: 70L Stainless steel water tank (1120mmx480mmx130mm ) and electric water pump

Coupling: loading capacity--3500KG; unit weight--10KG; In accordance with the Australian standard

Handbrake: hand braking with coupling

Wheel & tire: 15 rims and 235/75R15 tires, stud hubs (including 1 spare tire); In accordance with the  Australian standard and DOT standard

Axle: Dia.45mm solid round axle, capacity--2500KG

Trailer plug:7-pin round or flat plugs as per Australian standard

LED rear light

Winch: PP webbing 8m used to wind camper closed, loading capacity--1000KG

Gas strut: lift up bed base to hold open

Tool box: 1100mm(L)x450mm(W)x500mm(H)

Drawer: Two drawers

1X Gas bottle holder: standard 9KG gas bottle holder

1x20L standard Jerry can holder

2x wind down rear stabilizer legs

Attention:

Jerry can, gas bottle and gas stove/burner are not supplied

Gas burner dimension: 580mm(L)x500mm(W)x115mm(H)

Gas burner is to be sourced by the importer himself

Note: trailers can be custom-made as per customers unique requirements
