Trunking system OA Network steel Raised Access Floor for office building,meeting room

Product Overview

Description

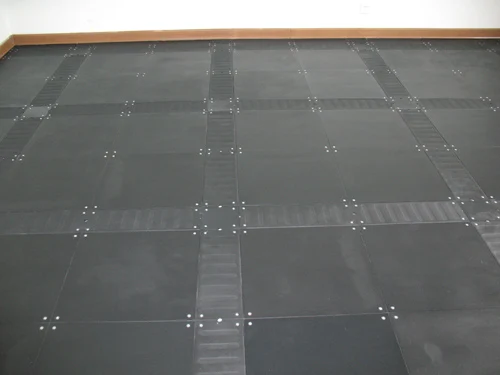

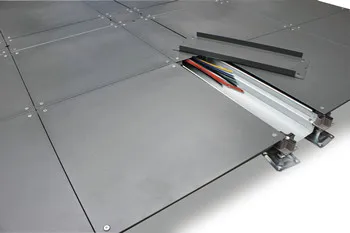

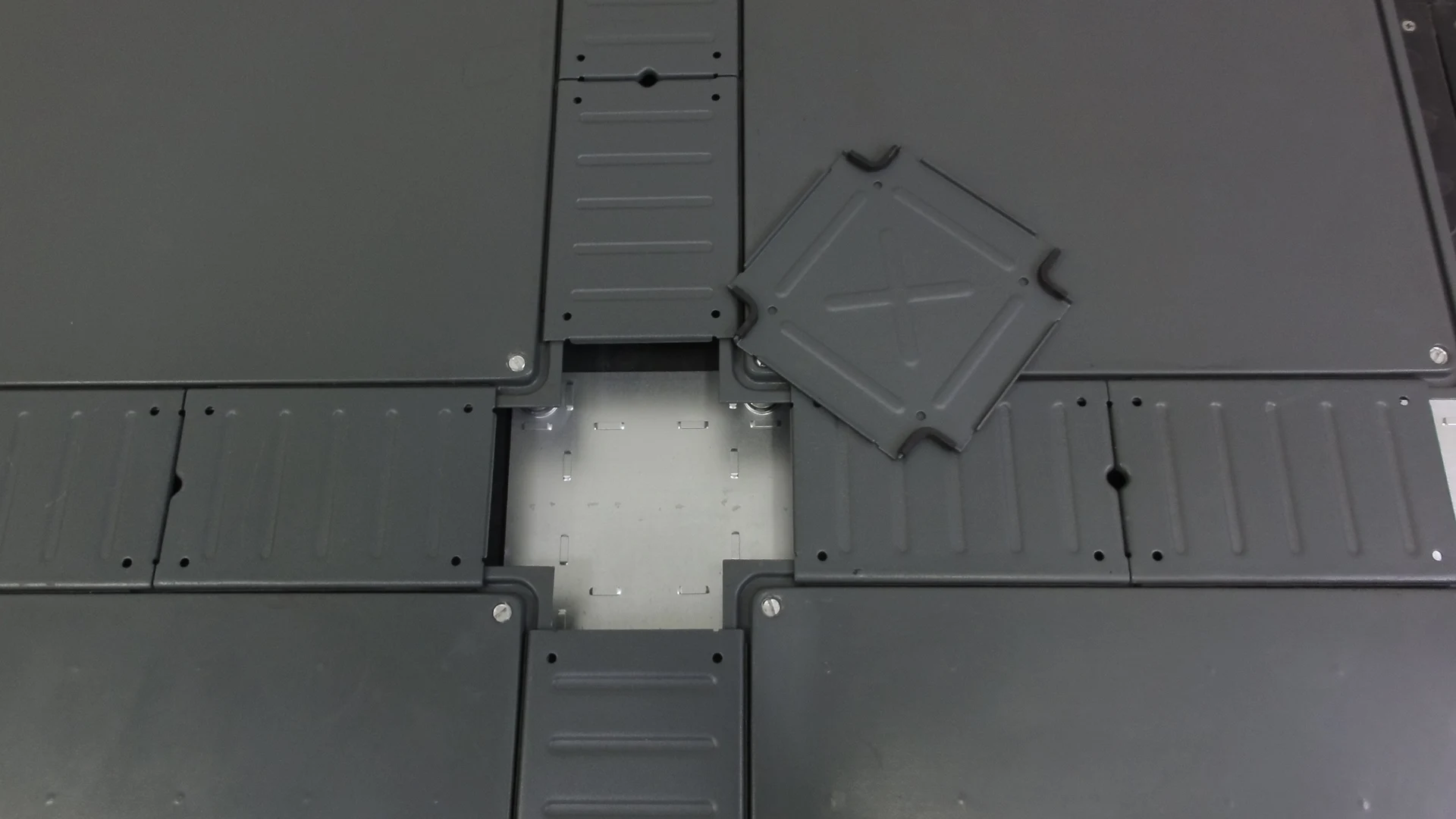

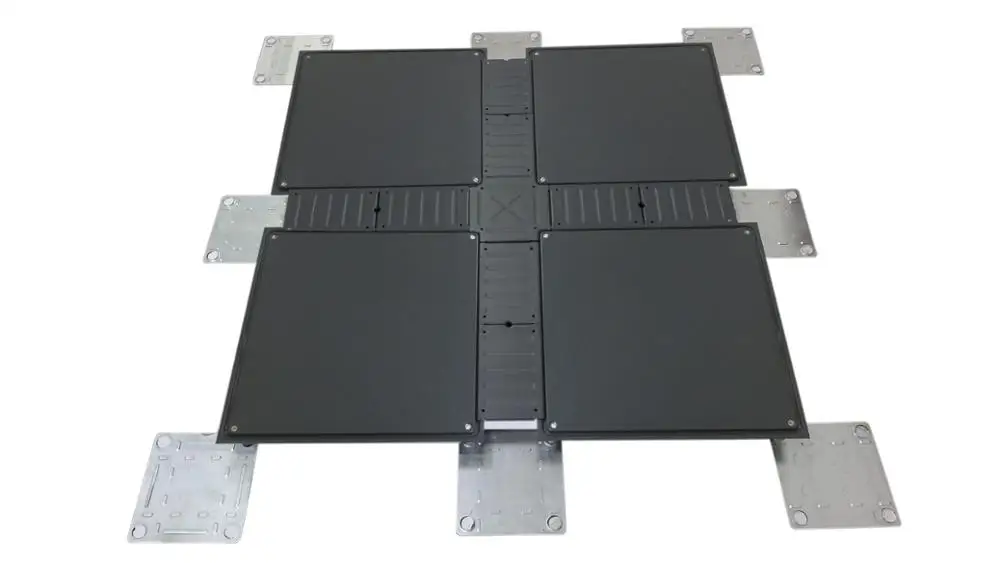

Trunking system OA Network Raised Access Floor System for office,meeting room

Feature

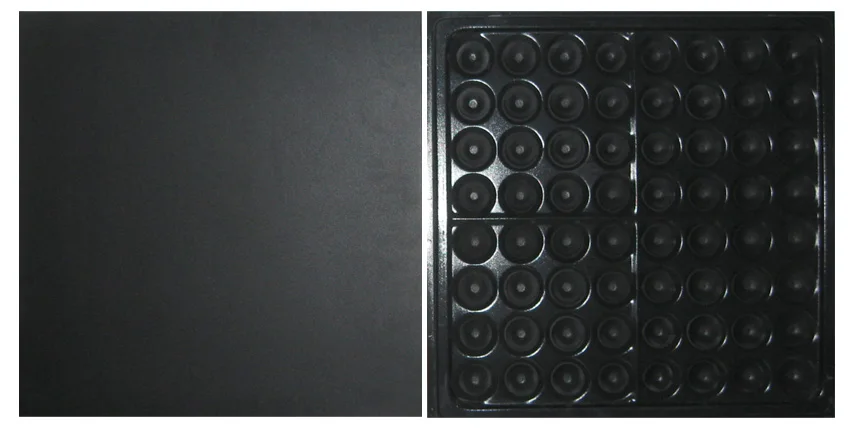

     1,High dimensional precision, newly patent” cross strengthening rib” structure, strong load ability and shockproof.

     2,Adjustable height for pedestal (applied patent), assembly agility, large wire, good exchangeability.

     3,High recycled, convenient removing, saving cost, long performance life.



Application of products

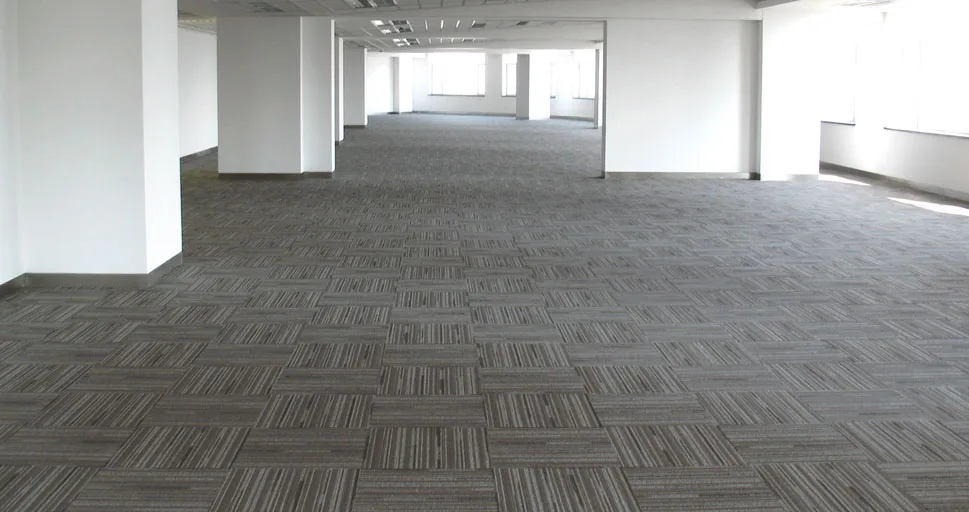

5A closs office building,computer room and occasions which require overhead and large wires.Even eligible for remaking surface for the wires in old office building.

Technical Specification

International	Size	Fire  performance	Concentrated  load			Impact  load	Ultimate  load	Uniform  load	Rolling  load
			(LB)	(N)	(Kg)				10/ Times	10000/ Times
FS220	600*600*35	A	≥220	≥980	≥100	≥148	≥2940	≥4860	979	783
FS440	600*600*35	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1985	1566
FS662	600*600*35	A	≥662	≥2950	≥301	≥445	≥8850	≥12500	2946	2356
FS800	600*600*35	A	≥800	≥3550	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600*600*35	A	≥1000	≥4550	≥453	≥670	≥13350	≥23000	4450	3560
FS1250	600*600*35	A	≥1250	≥5560	≥567	≥720	≥16680	≥16680	5560	4450
