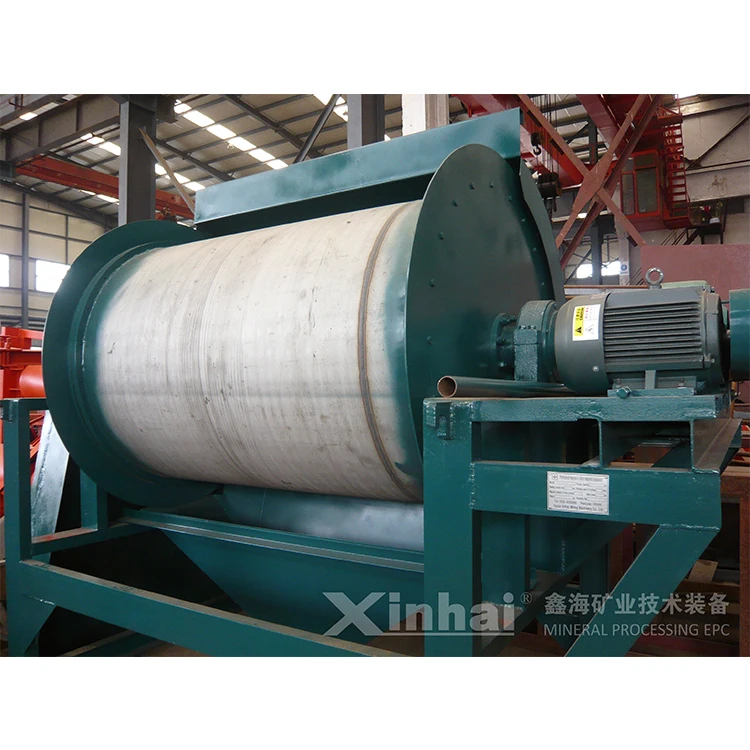

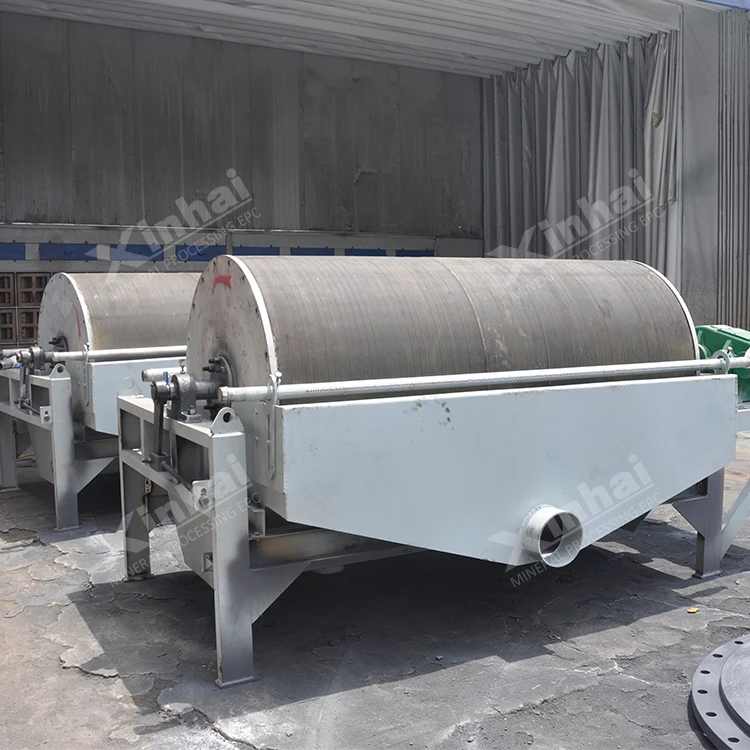

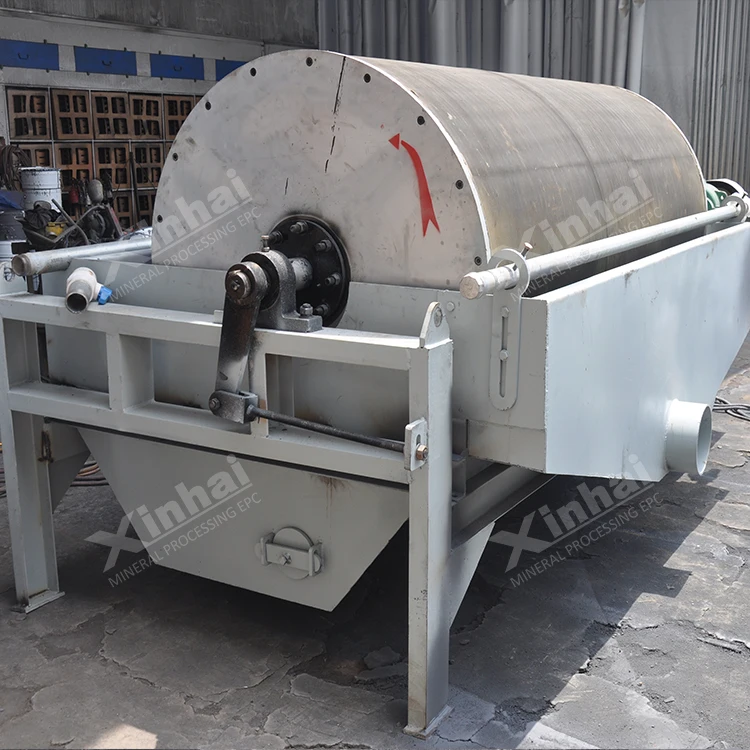

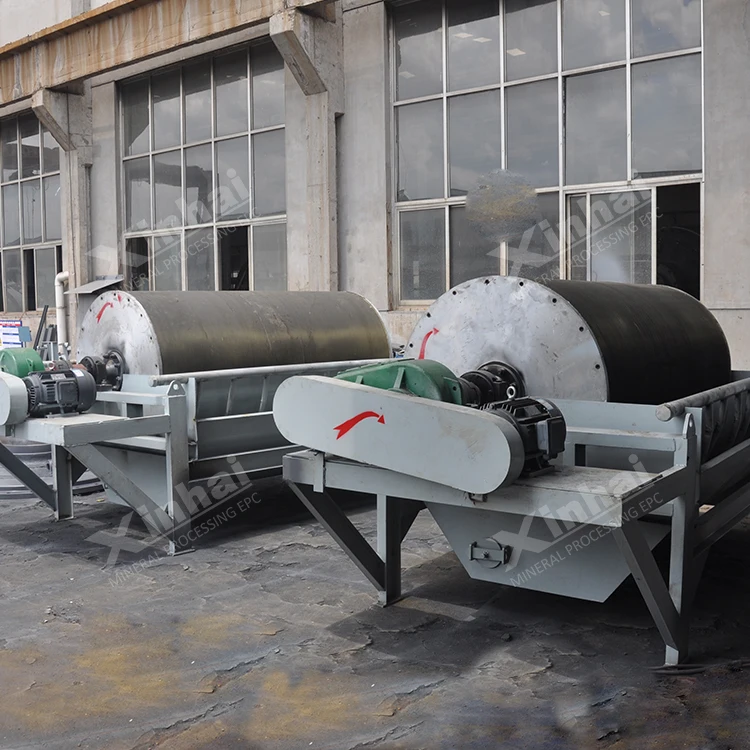

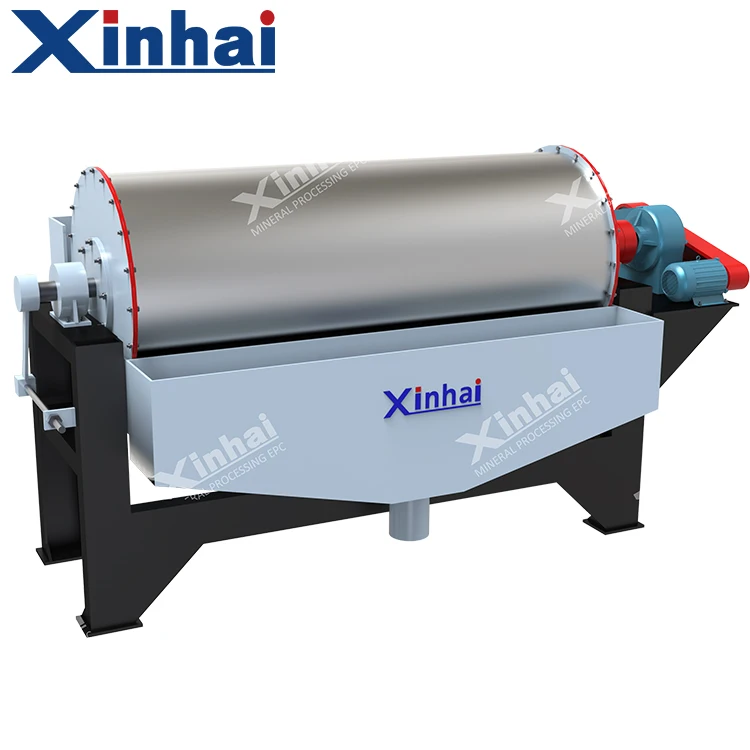

Iron Ore Drum Magnetic Separator Machine For Sale
- Category: >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (60202484340):
Product Overview
Description
Note!!! The current price is not the actual transaction price, the specific price is subject to the sales quotation.
Product Description
Magnetic Separator Machine
[Introduction]:A dry magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley.
[ Capacity ]:20-600t/h[Improvement]:Cylinder could be lined with Xinhai wear- resistant rubber to prolong the service life
Advantages
Magnetic separator
Large feeding particle size (450~0mm), no classification before feeding;High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of harsh environment.

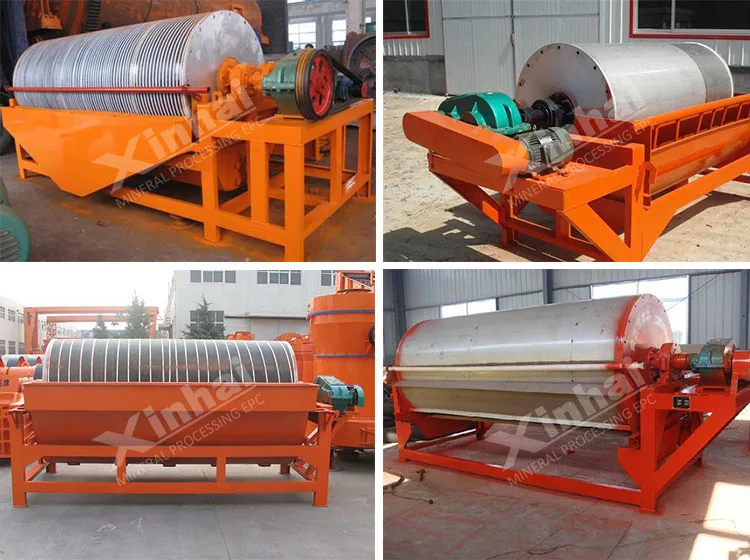

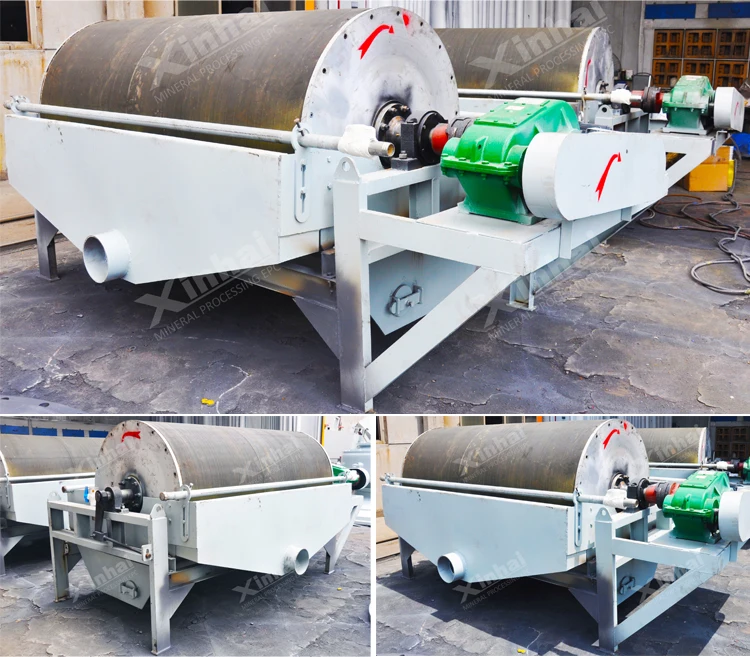

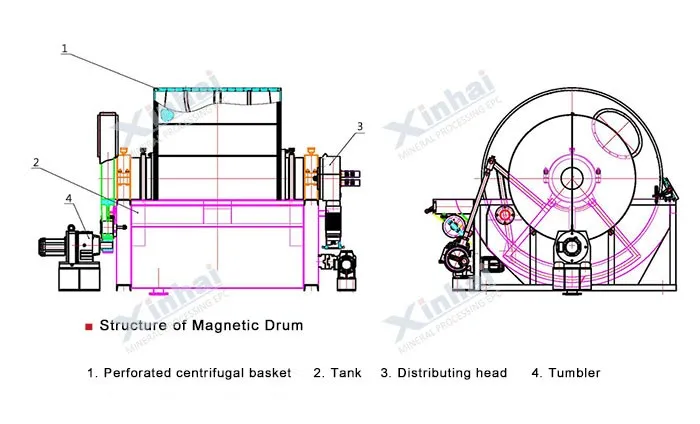

Product Structure
Technical Parameters
Model & Spec. | Diameter of Cylinder (mm) | Length of Cylinder (mm) | Width of Belt (mm) | Surface Magnetic Density (mt) | Capacity(t/h) | Feed Size (mm) | Total Weight (t) |
CTGG-0812 | 800 | 1200 | 1000 | 300~500 | ≤100 | ≤200 | 2.1 |
CTGG-0814 | 800 | 1400 | 1200 | 300~500 | ≤120 | ≤200 | 2.6 |
CTGG-0816 | 800 | 1600 | 1400 | 300~500 | ≤150 | ≤200 | 3.2 |
CTGG-0818 | 800 | 1800 | 1600 | 300~500 | ≤180 | ≤200 | 3.9 |
CTGG-1018 | 1000 | 1800 | 1600 | 300~500 | ≤270 | ≤250 | 4.4 |
CTGG-1218 | 1200 | 1800 | 1600 | 300~500 | ≤350 | ≤300 | 5 |

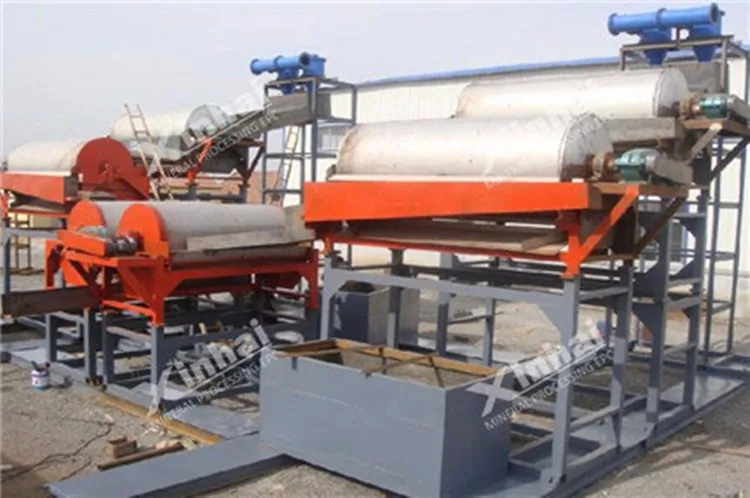

Successful case
