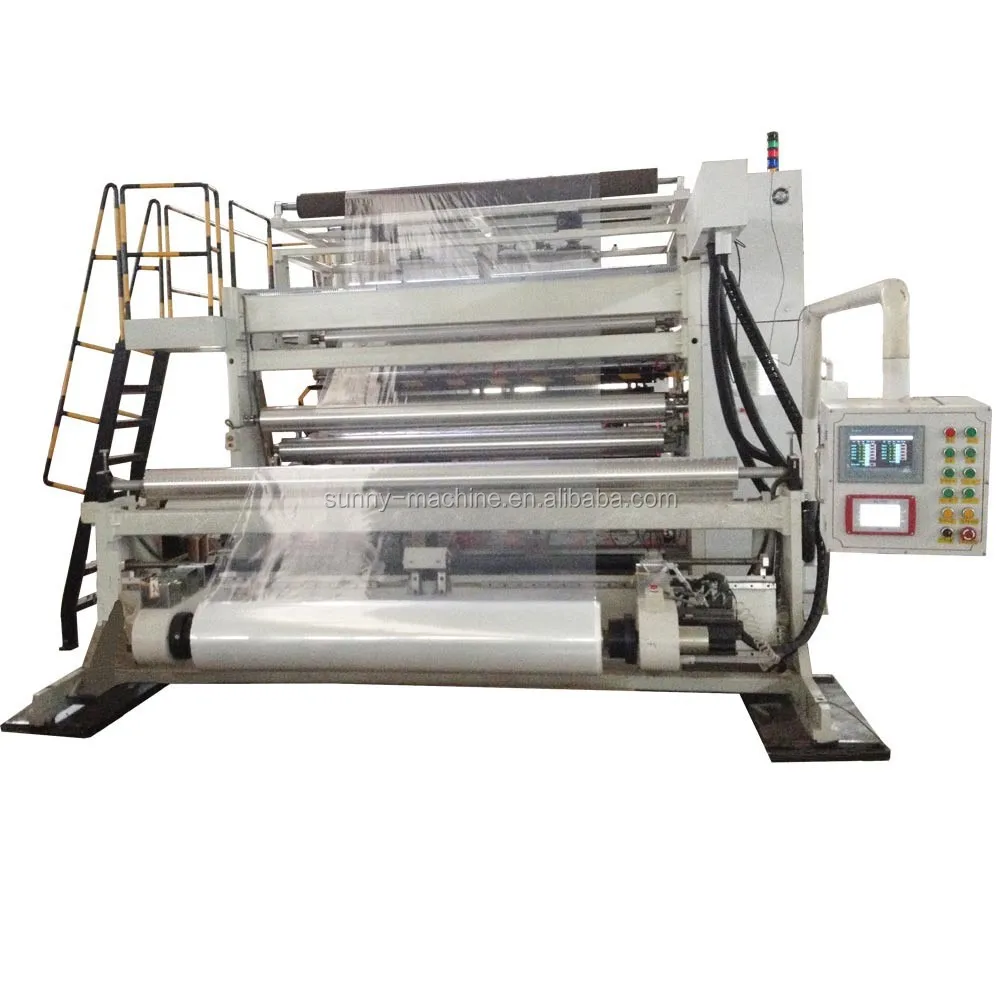

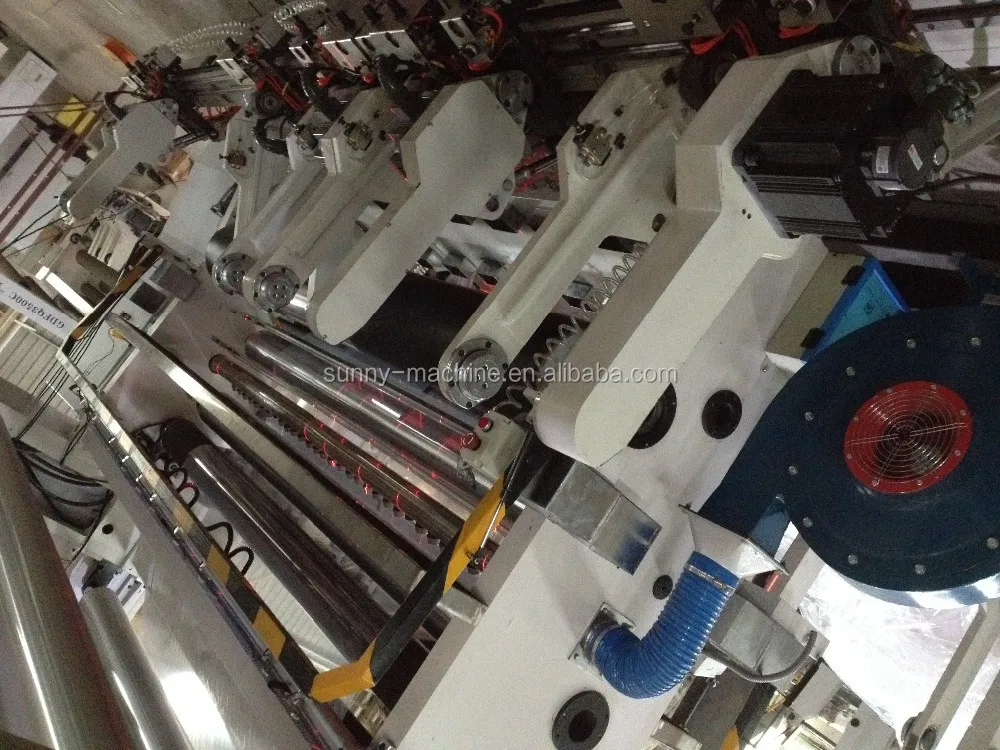

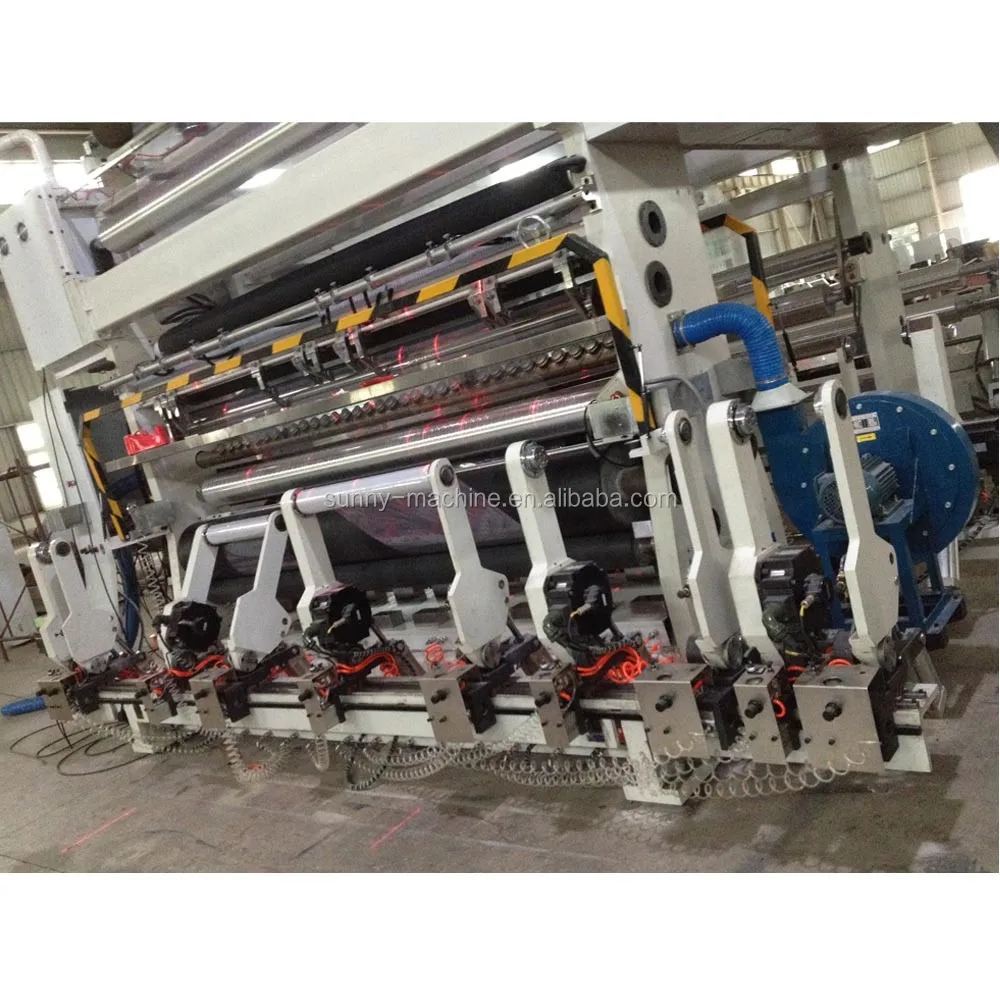

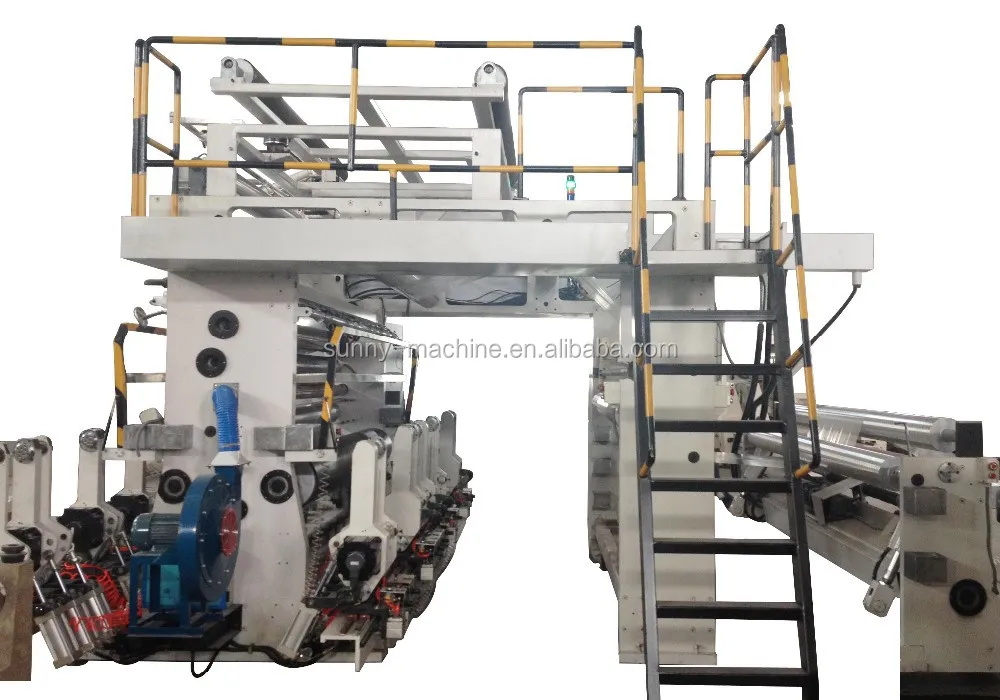

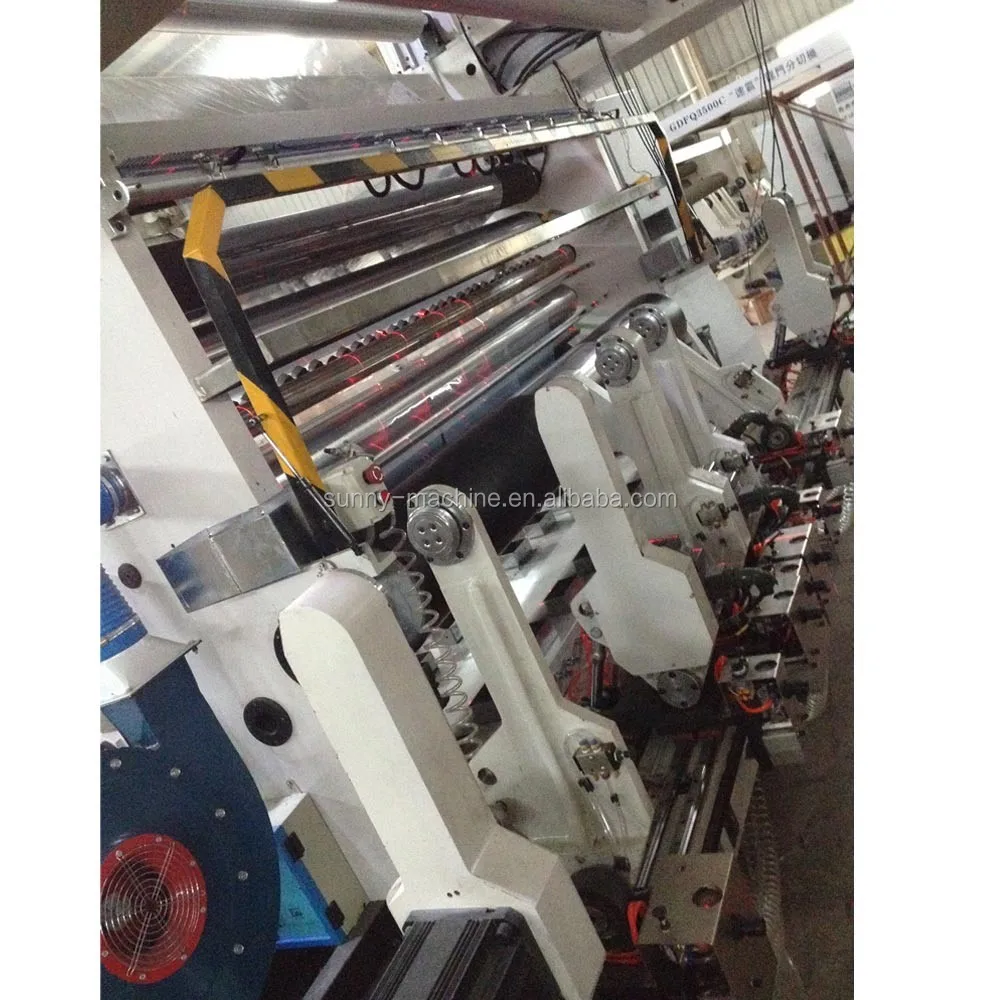

Completely set SERVO MOTOR tape slitting machine CE approved

What is the details of our machine?

Technical parameters

1).  Slitting material: 10-100um, PET/BOPP/POF/LDPE/HDPE

2). Maximum machine speed: 500 m / min; Normal slitting speed 420 m / min; machine running stable, non-obvious vibrate and noise.

3).  Unwind Maximum load-bearing: 2000 kg; Maximum diameter: 1400 mm, normal work 1000 mm; Minimum width of Unwind is 500mm.

4). Rewind Maximum diameter: 700 mm

5). Maximum effective width: 2500 mm; Maximum slitting width: 1300 mm; Maximum second rewind width: 1300 mm; Minimum slitting width: 150 mm;

6). Unwind reeling core: 3 inches and 6 inches plug, diameter is 70mm paper-core;

7). Rewind reeling core: 3 inches and 6 inches paper-core

8). 3 inches rewind air-shaft 1100mm 2 pieces, 1400mm 2 pieces

9). Rewind neatness < 1 mm

10). Machine total power: AC 380V 3 phase 5 lines. About 60 kw

11).Air-source air pressure > 5 kg/cm²

12). External dimension: 5980 mm x 4500 mm x3200 mm (L x W x H)

13).  Machine dead load: About 20 Tons

Other machines as below:

Horographic  UV Coating machine

High-speed Slitting machine GFTW-1200A

Packaging & Shipping

  PACKAGE: SEAWORTHY WOODEN OR NAKED

Our Services



Company Information



Recently exhibitions:

Shantou sunny machinery factory is an integrated professional plant for manufacturing, designing and marketing of slitting, rewinding, laminating, coating, and casting film machinery facilities with more than 17 years experiences.

Over the years, we always set a motto of "science and technology as the guide, customer-focused", products occupied the market quickly, and obtained widespread highly praise and trust from new and old clients. By going continuously improvement and technological innovation, our company has been developed into a very competitive advantage manufacturer gradually among the same industries. Before production, a completely project will be provided to customer, because we have Mechanical Engineer Department, Electric Department, Software Department, so we can offer customer our standard machinery, also we can make all kinds of modification according to customer specific requirements.More surprises in our website www.sunnycn.com.cn.
