Product Overview

Description

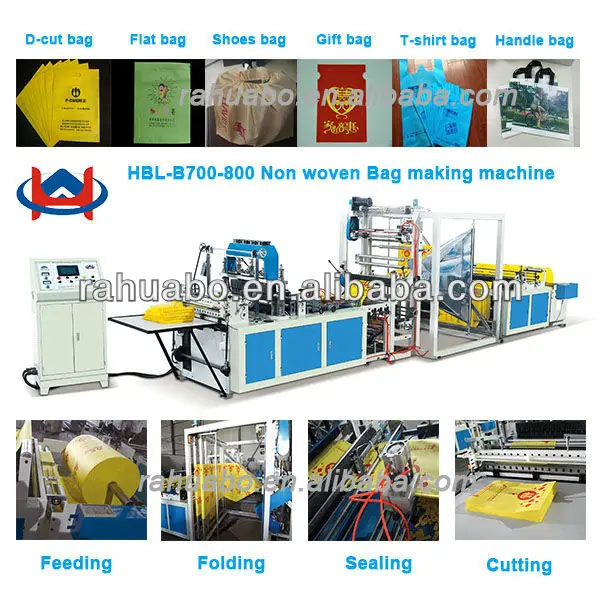

                        HBL-B700 Nonwoven Bag Making Machine



Introduce
This machine equips computer orientation, photocell tracking, and man-machine interface touch screen operation; adopts high wave band ultrasonic heat-combining elements; make up of the functions with bag mouth inner folding, ribbon-through, stiletto, ultrasonic heat-combining cold-cutting etc. It’s the advanced machine to produce kinds of non-woven fabrics handle shopping bag, shoes bag, fashion t-shirt bag 15-50g. Our company also can make the given design according to the customer’s requirement of different bag sizes.

Main Technical Parameter

Type	HBL-B600	HBL-B700	HBL-B800
Production Speed	20-100pcs/min	20-100pcs/min	20-100pcs/min
Bag Width	100-800mm	100-800mm	100-800mm
Bag Length	200-480mm	200-580mm	200-700mm
Bag-making Thickness	40-120g	40-120g	40-120g
Power Supply	380V/220V	380V/220V	380V/220V
Total Power	10Kw	12Kw	15Kw
Overall Dimension (L*W*H)	7800*1650*1800mm	7800*1800*1800mm	7800*1900*1800mm



Components of the machine:

Crossing Ultrasonics: Taiwan Mingyou.

Relay: Omron brand

PLC: made in Taiwan, WEINVIEW brand.

Pneumatic components: made in Zhejiang.

Electrical components and switch: CHNT brand

Inverter: HuaLan Brand, China

Bearings: made in Harbin, China

Key part of Horn: China
