Product Overview
Description
hot sale surface grinder
What Specifications of Our Surface Grinder?
| Main Specifications | M7132x 10 | M7132 x 16 | M7132 x 20 |
| Table working surface (W x L) | 320 x 1000mm | 320 x 1600mm | 320 x 2000mm |
| Max. size of workpiece to be ground (W x L x H) | 320 x 1000 x 400mm | 320 x 1600 x 400mm | 320 x 2000 x 400mm |
| Table longitrdinal travel (hydraulic) | 200-1100mm | 200-1700mm | 200-2100mm |
| Speed of table (stepless) | 3-25m/min | ||
| Min. Down-feed hand-wheel dial graduated to | 0.01mm | ||
| Grinding wheel size (O. D x W x I. D) | Φ 350 x 40 x Φ 127mm | ||
| Electrical equipment total capacity | 10KVA | ||
| Grinding wheel motor power Speed | 5.5kw 1440r/min | ||
| Working surface to base level parallelism | 300: 0.005mm | ||
| Surface roughness | Ra0.63μ m | ||
| Max. allowable weight of workpiece (Including electromagnetic chuck) | 500kg | 800kg | 998kg |
| Electromagnetic chuck (W x L) | 320 x 1000mm | 320 x (880 x 2)mm | 320 x (1000 x 2)mm |
| Overall dimensions (L x W x H) | 2295 x 1500 x 2062mm | 4360 x 1508 x 2062mm | 5020 x 1508 x 2052mm |
| Packing case dimensions (L x W x H) | 261 x 167 x 242mm | 470 x 170 x 244mm | 532 x 170 x 244mm |
| N. W/G. W | 3500/4000kg | 4500/5000kg | 5000/5500kg |

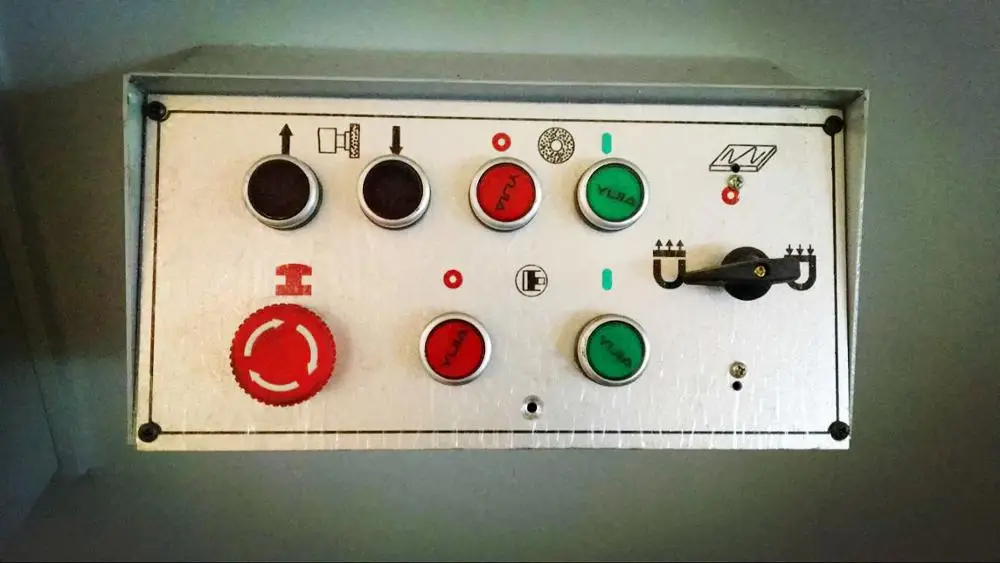

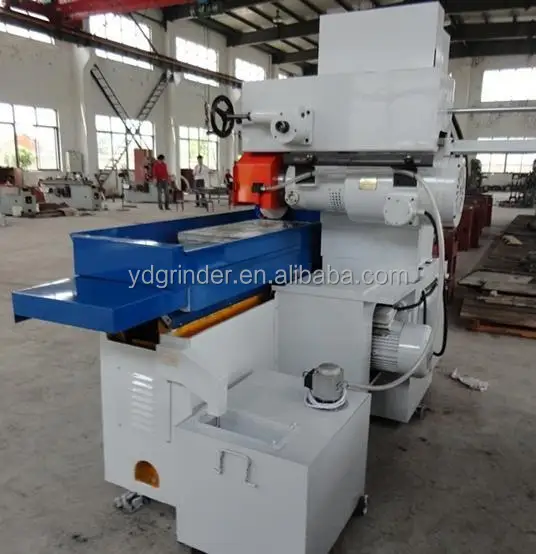

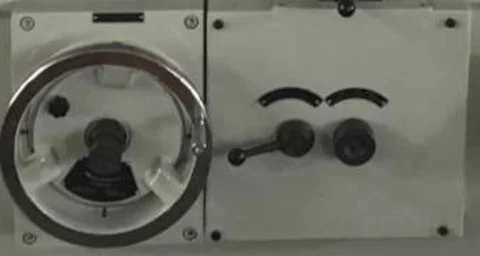

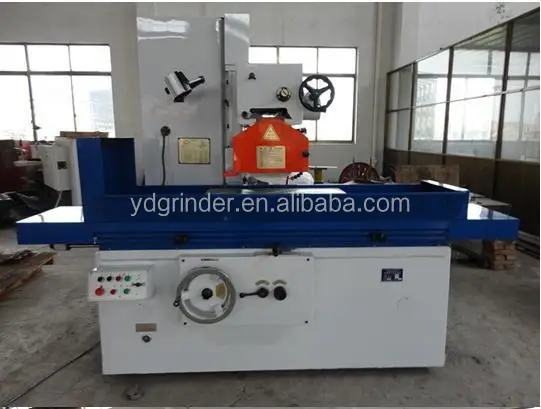

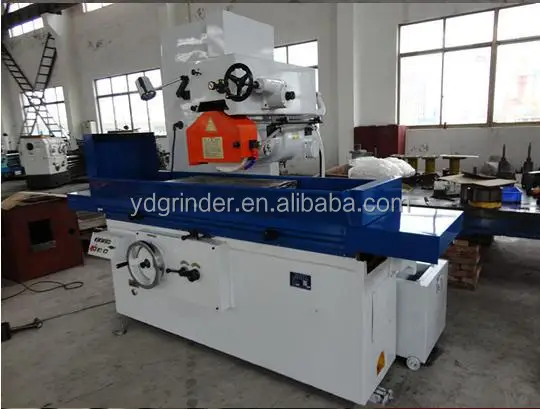

Product Pictures
Company Introduction
Our Factory
Our Advantages
- Payment: T/T, L/C.
- Delivery Time: 10 working days after we receive the payment.
- MOQ: 1set.
- Package Informations: Bakelite Board Box.
Packing
- We are China Leading Surface Grinders Manufacturer.
- Inspected by the International Standardization Organization and CE Certification.
- 100% QC inspection Before Shipment.
- Best Quality & Best Service with Competitive price.
