High Quality Steel Encased Wood Core Raised Access Floor System for office

Product Overview

Description

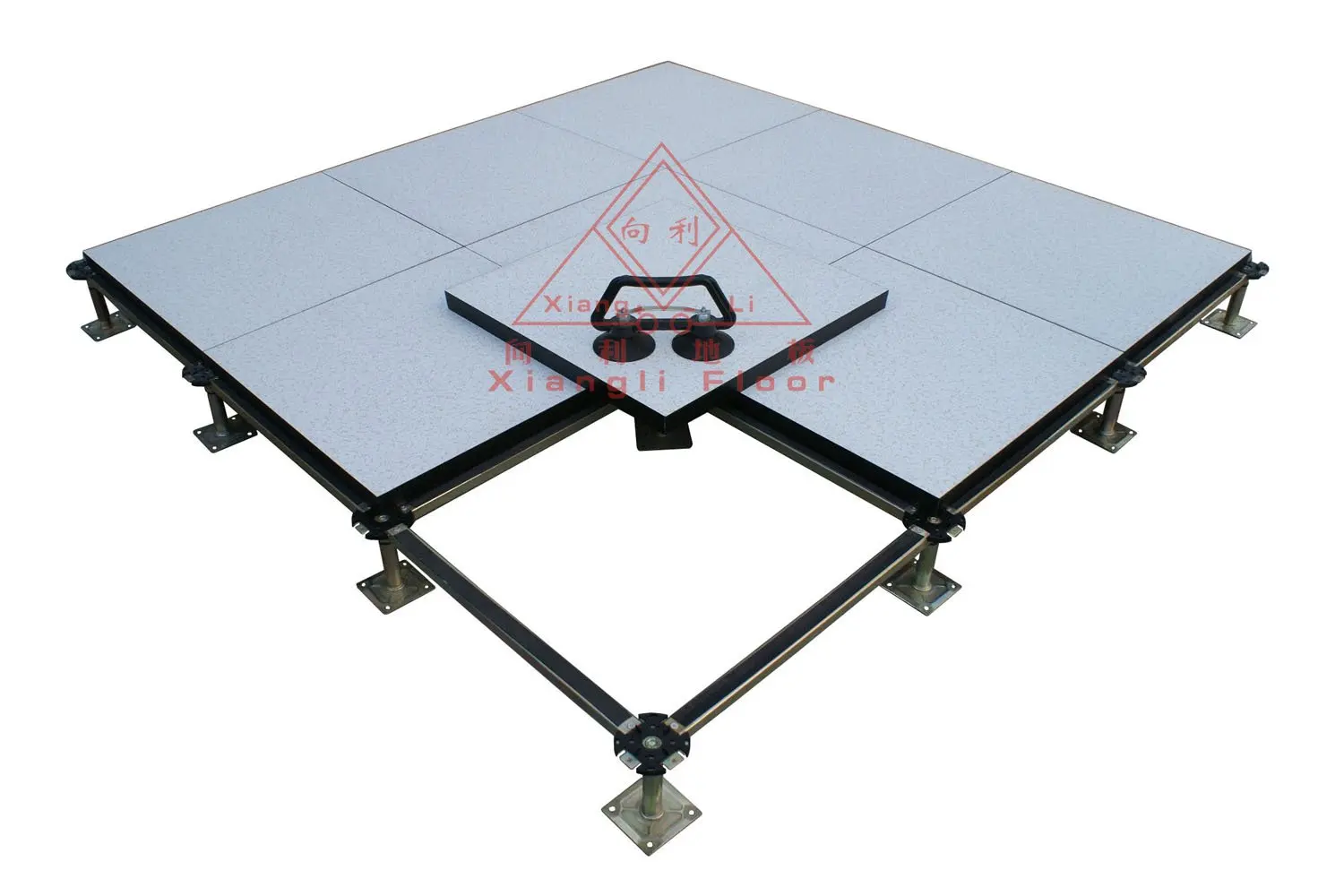

500mm/600mm Steel Encased Wood Core Raised Access Floor System



Advabtages

      1.Easy for the handling and installation.

      2.High loading capacity and light weight.

      3.Sound-proof and good sealing.

      4.Elegant appearance, the core encapsulated by galvanized steel.

      5.Panel’s corner could with or without lock holes.

Technique specification

International	Size	Fire  performance	Concentrated load			Impact  load	Ultimate  load	Uniform  load	Rolling  load
			(LB)	(N)	(Kg)				10/ Times	10000/ Times
FS800	500*500*28	A	≥800	≥3550	≥363	≥536	≥11250	≥16100	3560	2670
	600*600*31
FS1000	500*500*28	A	≥1000	≥4450	≥453	≥670	≥13350	≥23000	4450	3560
	600*600*31
FS1250	500*500*28	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
	600*600*31
FS1500	500*500*28	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
	600*600*31
FS2000	500*500*28	A	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	7120
	600*600*31
