High speed rubber power transmission belt for double twisters
- Category: >>>
- Supplier: Jiangyin Siqiang Tape Co. Ltd.
Share on (60202754040):
Product Overview
Description

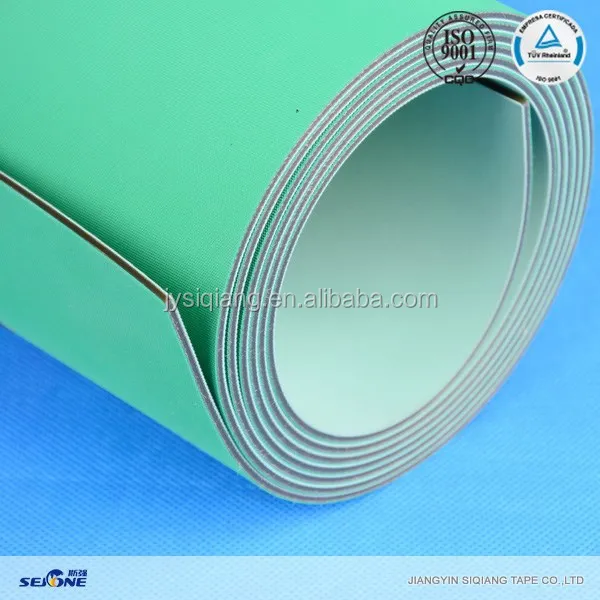

High speed rubber power transmission belt for double twisters
product description
- TECHNICAL DATA
| ITEM NO. | LG-25XN10-A | ANTISTATIC | YES |
| THICKNESS(MM) | 2.5 | TRACTION LAYER MATERIAL | PA |
| BELT WEIGHT(KG/M2 ) | 2.95 | FRICTION COVER MATERIAL | XNBR |
| MANUFACTURING WIDTH (MM) | 500 | FRICTION COVER COLOR | GREEN |
| TENSILE FORCE FOR 1% ELONGATION PER UNIT OF WIDTH (N/MM) | 17 | REVERSE COVER MATERIAL | NBR |
| MIN PULLEY DIAMETER (MM) | 60 | REVERSE COVER COLOR | LIGHT GREEN |
| WORKING TEMPERATURE(OC) | -20~80 | JOINING METHOD | THERMOFIX |

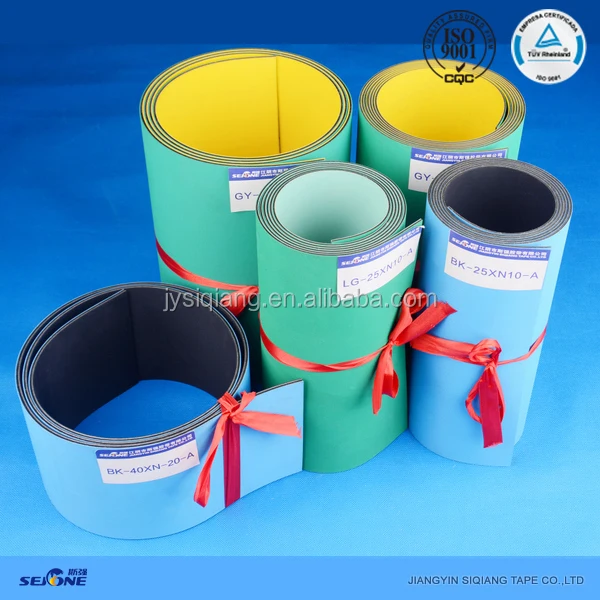

- DETAILED IMAGES
BELTS RECOMMEND
ITEM NO. | THICK NESS (MM) | TRAC TION LAYER | REVERSE COVER COLOR | REVERSE COVER MATERIAL | FRICTION COVER COLOR | FRICTION COVER MATERIAL | JOINING METHOD | ANTI STATIC | TEMPERA TURE (OC) | MAX WIDTH (MM) |
LG-12N3 | 1.2 | PA | Light green | NBR | Green | NBR | Thermofix | × | -20~80 | 500 |
LG-15N5 | 1.5 | PA | Light green | NBR | Green | NBR | Thermofix | × | -20~80 | 500 |
LG-25N12 | 2.5 | PA | Light green | NBR | Green | NBR | Thermofix | × | -20~80 | 500 |
LG-32N12 | 3.2 | PA | Light green | NBR | Green | NBR | Thermofix | × | -20~80 | 500 |
LG-32N15 | 3.2 | PA | Light green | NBR | Green | NBR | Thermofix | × | -20~80 | 500 |
Packaging & Shipping
Accessories
Exhibitions
Partners
Our Services
- Slitting & Cut to length
- Slitting & Open end
- Slitting, open end & skived
- Endless—Thermofix/wedge joint, Flexproof/finger
- Customized belt
- Plenty of stock belt available
More belt joint services as follows,
Company Information
FAQ
Q1: Manufacturer or Trading company?
A: 15 years specialized belt manufacturer.
Q2: Production capability?
A: 5000m2 each month for 200+ different belt items.
Q3: Production Line?
A: 6 automatic belt production lines, PLC controlled.
Q4: About R&D?
A: Yes, we have own R&D team. 8-10 items scheduled annually.
Q5: Material? Supplier?
A: polyamide film imported Toray, Japan; XNBR (rubber) imported from Germany. All suppliers authorized for 5 years and more.
Q6: Quality control?
A: Strict production flow and data to evaluate all steps; sheets track back each step.
Q7: OEM, ODM, Customized?
A: Sure. Not only color, design, texture, but also labeling, writing, marks and package.
Q8: Samples?
A: Sure, we offer free samples. Normally 3 working days.
Q9: Location & Visit?
A: 2 hours’ drive from Shanghai downtown, or 1 hour’s bullet train. Check below map. Call us, if you need us to pick up.
