Precast Hollow Core Concrete Slab Forming Machine For House Roof

Product Overview

Description

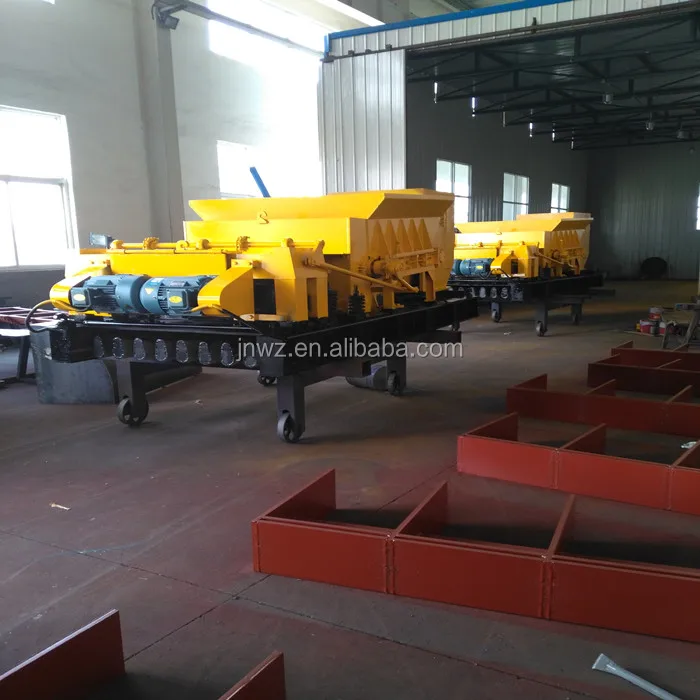

Precast Hollow Core Concrete Slab Forming Machine For House Roof



Product description

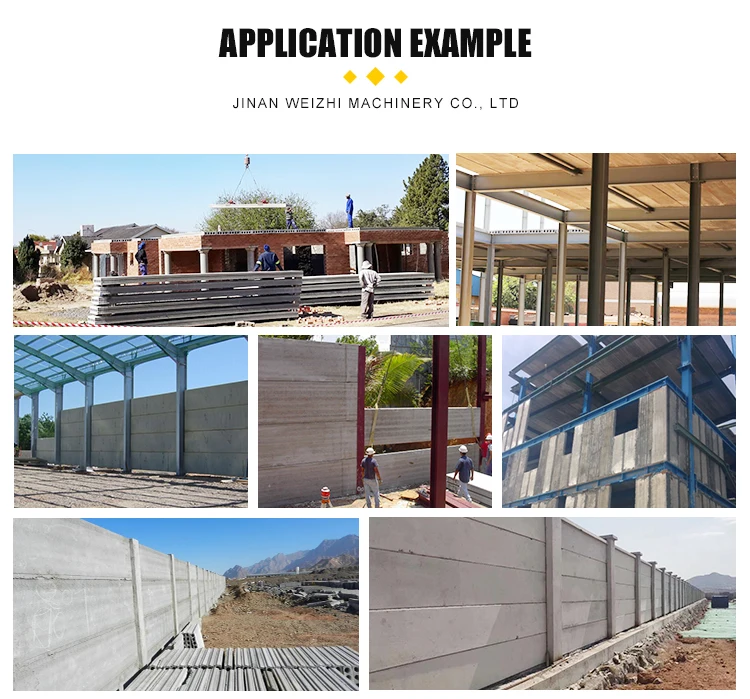

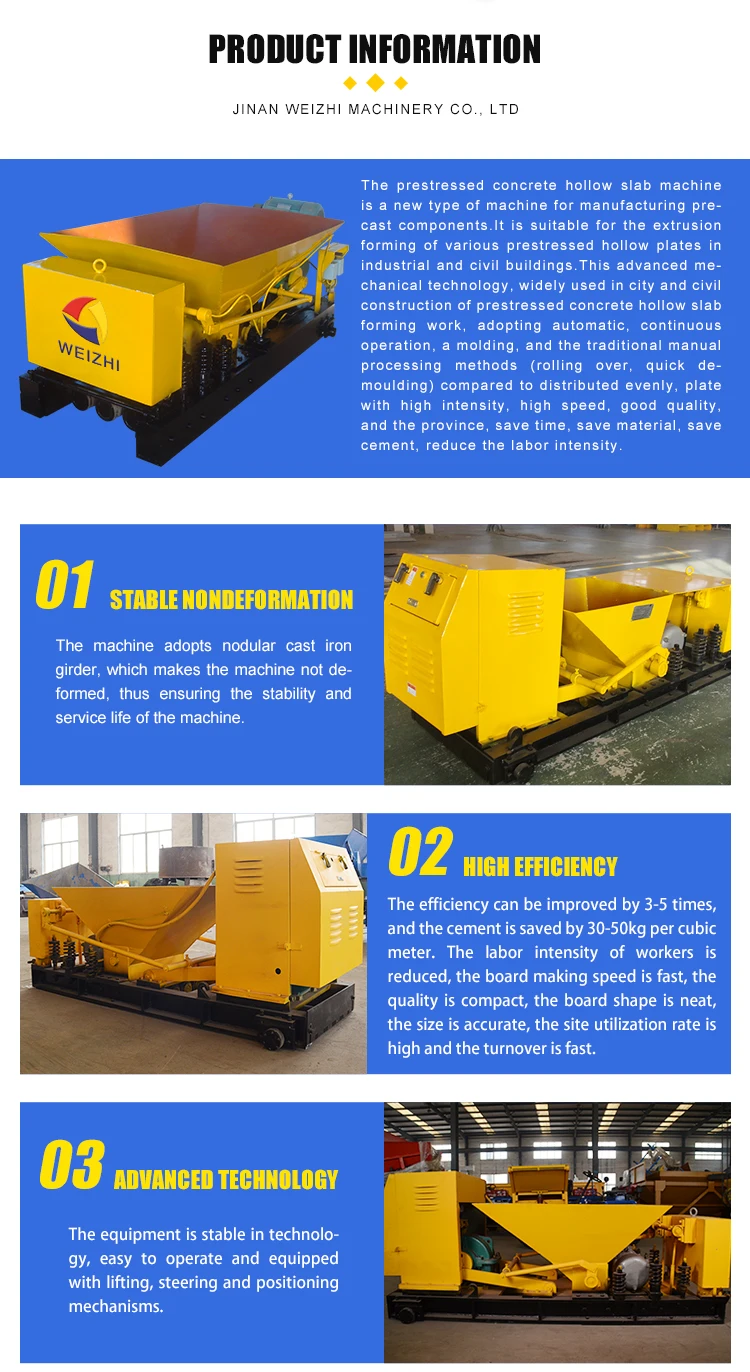

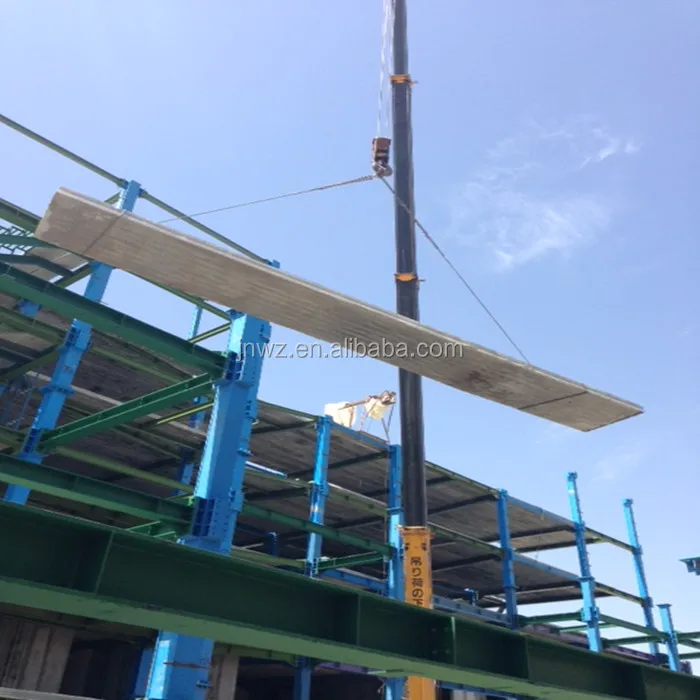

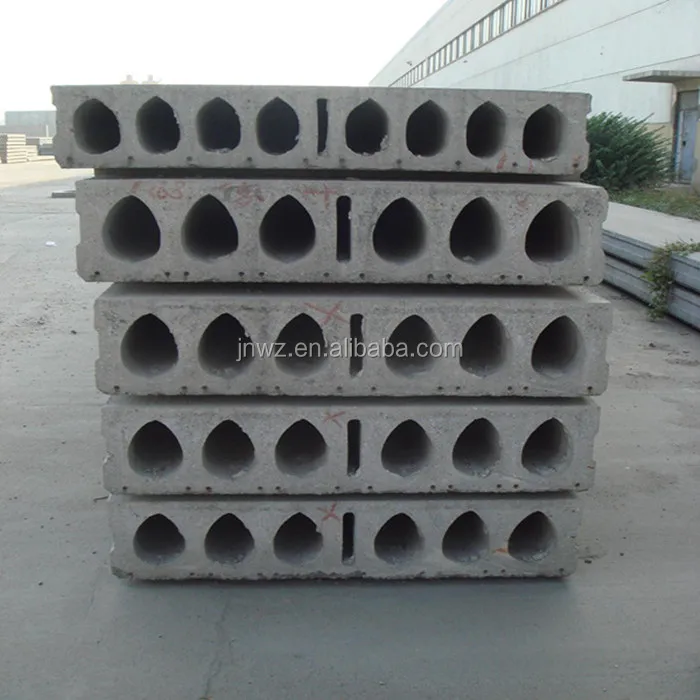

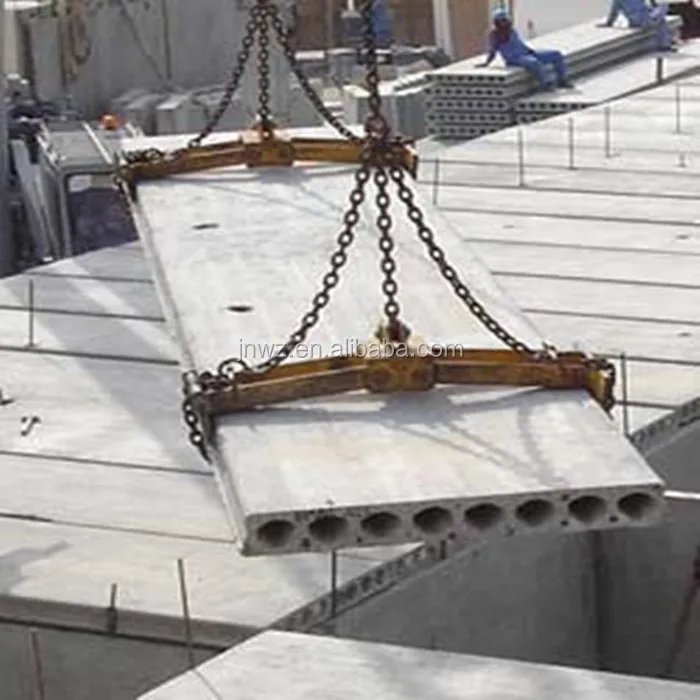

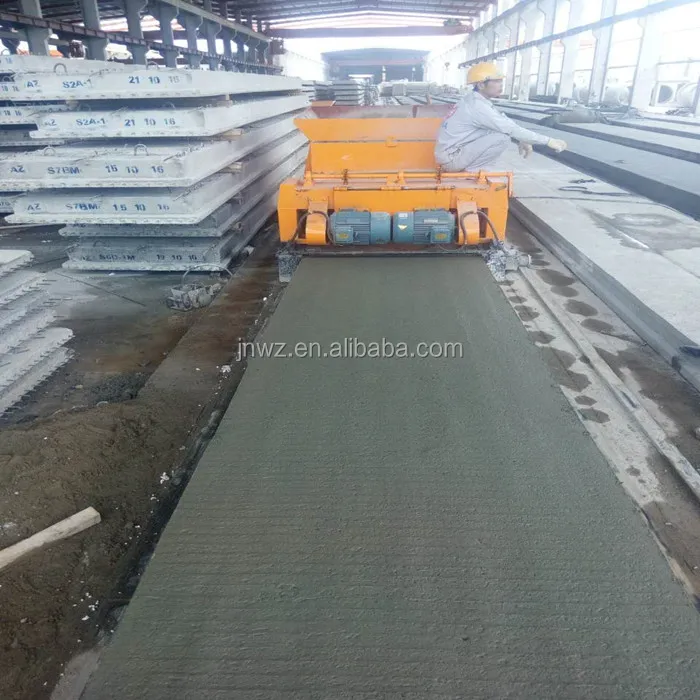

Concrete slab machine works on the long-line table, using the high-strength low- relaxation steel strand as the guide, using the pushing work method to firm the concrete hollow core slab. The slab have the advantages o smooth surface, high-density structure, capable of making construction slabs of 4.2m to 18m. The GLY serious concrete hollow core slab mainly used on the larger bay workshop, school, hospital shopping mall, office building, bulk storage plant etc.



Machine specifications (Your slab sizes can be customized)

Model	Motor Power	Vibrator Power	Dimension (L*W*H)	Weight (kg)	Molding Speed(m/min)	Holes (pcs)	Hole Diameter(mm)
120*600	5.5kw	3kw	2100*850*750	1050	1.2-1.4	5	Ø76
50*500	3kw	0.8kw	1800*750*650	700	1.2-1.4	8	Ø25
50/80*500	4kw	1.5kw	2030*730*660	930	1.2-1.4	7	Ø25 (Ø42)
100*600	4kw	2.2kw	2100*850*730	975	1.2-1.4	6	Ø60
90*600	4kw	2.2kw	2100*840*730	955	1.2-1.4	6	Ø50
60/80*500	4kw	1.5kw	2030*830*660	910	1.2-1.4	7	Ø25 (Ø42)
120*900	7.5kw	3kw	2500*1300*900	1580	1.2-1.4	8	Ø76
120*1200	7.5kw	3kw	2500*1700*900	1650	1.2-1.4	11	Ø76
180*600	7.5kw	3kw	2300*1100*950	1290	1.2-1.4	3	Ø130
