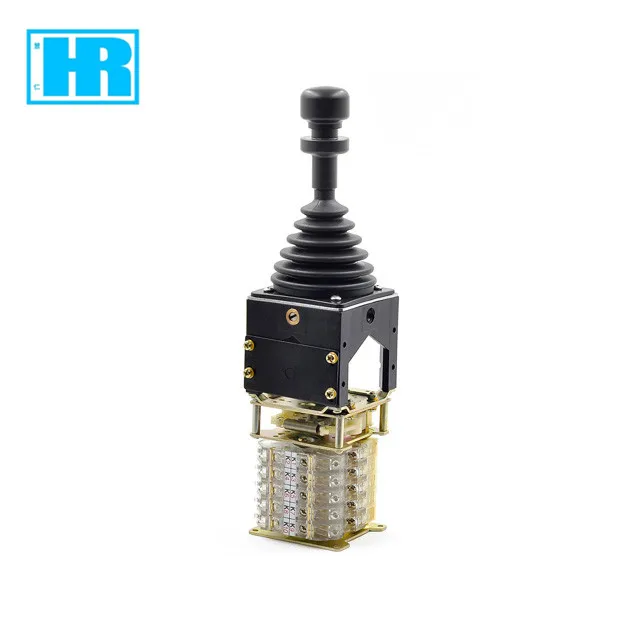

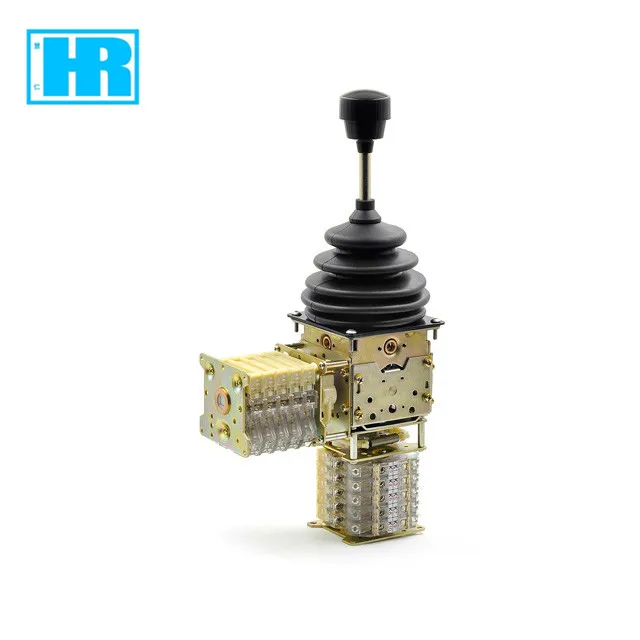

SJ300 long life gear joystick for excavator
SJ300 long life gear joystick for excavator
SJ300 long life gear joystick for excavator
SJ300 long life gear joystick for excavator

SJ300 long life gear joystick for excavator

Share on (60203369876):


Price:$265.00 - $280.00

Quantity:


Product Overview

Description



Product Description

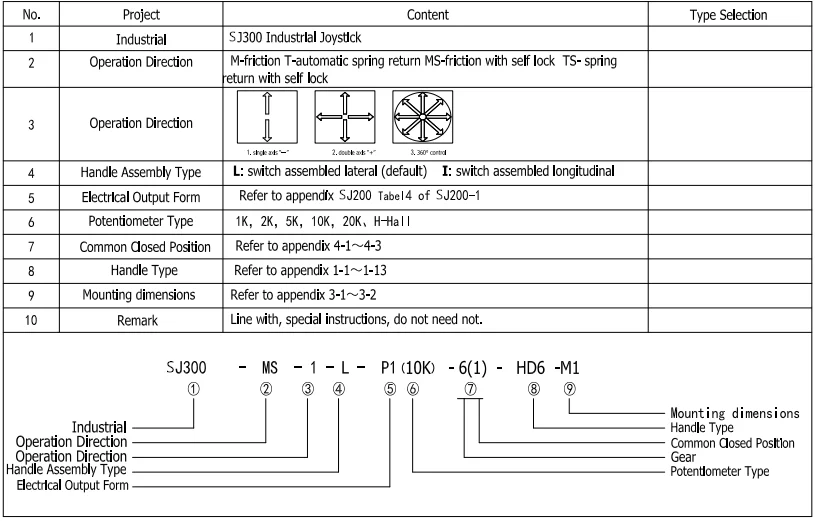

Specification


1.Modular Design
2. Single-axis friction position median with zero self-locking
3. Pure silver contacts
4. The energized current up to 380V 10A, with reliable perfor
 5. Sealed up to IP65, 5 million cycles


SJ200 joystick
Technical Specifications


Environment Specifications
Storage temperature
—50℃~+80℃
Operating temperature
—40℃~+80℃
Installation of flange protection grade
IP65
Vibration
amplitude of vibration ±3g, frequency 10HZ-200HZ
Shock
20g, 6ms, half sine type
EMC anti-interference rank
100V/m, 30MHz to 1GHz, 80% sine wave modulation, meet EN50082-2(1995) standard
EMC Emission rank
150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards
ESD anti-interference grade
Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards

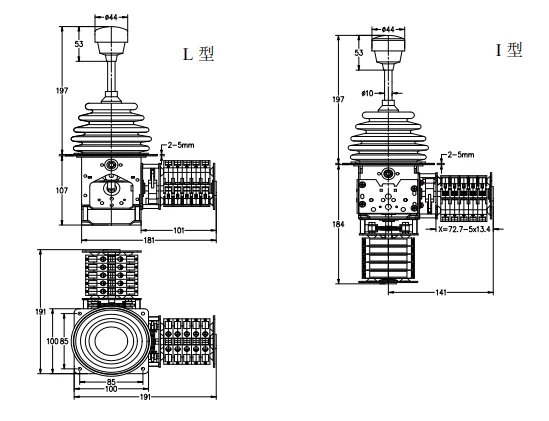

Mechanical Specifications
Mechanical rotation
±32° (potentiometer) ±20° (hall sensor)
Operating torque
5N(50Nmax)
Mechanical life
5,000,000 cycle
Mechanical tolerance
±0.5°
Electrical Parameters




Hall type
Power supply voltage
5±0.5VDC
The power consumption of current
6.5 mA/each hall chip
Resolution
infinition
Maximum voltage
15 VDC continuous
Reverse polarity maximum voltage
14.5VDC
The median voltage (no-load)
48~52%Vs
Load resistance
5KΩ







Potentiometer type
Power supply voltage
DC24V
Power supply current
<20mA
Resolution
Infinition
Resistance (10%)
2KΩ, 5KΩ, 10KΩ
Electrical rotation
±32°
Output voltage range (Relative voltage)
0~100%;10~90%
Maximum voltage
48%~52%
Potentiometer maximum load of voltage
32VDC
Maximum power consumption (25 ℃)
0.25W
The direction of the switch
Switch position ±3°






Contatct us:
Sunny Shen
Email: hrsales2@hzhuiren.com
Whatsapp& Whcat: +86 15757282130
Skype: miaomiao12501


Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.






Related products
.




Company Profile




Excellent R & D team,mechanical and electrical integration professionals, technological exchanges and cooperation with Germany &
Japan outstanding counterparts to protect products quality while to meet customer special requirements.Customer services through
to the end, professional and technical advisers full tracking, sales engineer provide special services one to one,to solve
customer problems asap.
We are specialized in electric conductive plastic products such as angular displacement sensors, precision linear displacement
sensors , precision conductive plastic potentiometers and joysticks.
