Two Axis Hydraulic CNC Surface Grinder surface grinding machine MYK1224
- Category: >>>
- Supplier: Yancheng Dafeng Long-Range Machine Co. Ltd.
Share on (60203535528):
Product Overview
Description

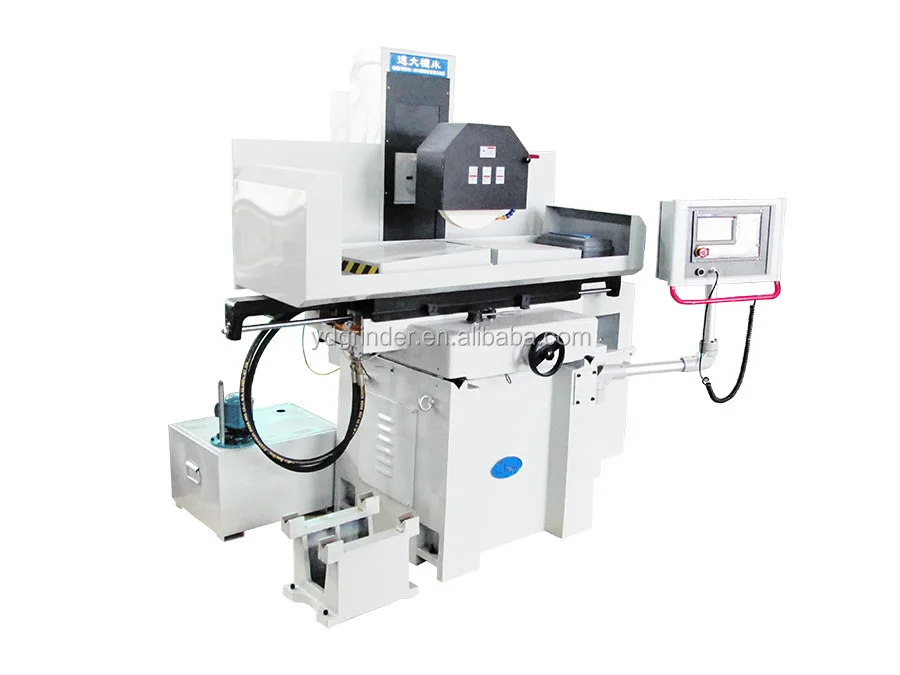

Two-Axis Hydraulic CNC Surface Grinder surface grinding machine MYK1224
What Specifications of Our Surface Grinder?
1.Having reasonable structure,high rigidity,good looking and operating easily.
2.Transverse movement(front and rear) of work table is driven by motor and transmitted by Precision ball screw which can ensure precision,accurate positioning,automatic feed and fast forward and rewind functions.
3. Longitudinal movement (left and right) adopts a flat -type rail guide,hydraulic transmission which can achieve stable running.
4.Vertical movement is transmitted by precision shaped ball screw and driven by servo motor which can ensure precision,accurate positioning,automatic feed and rapid up and down function.

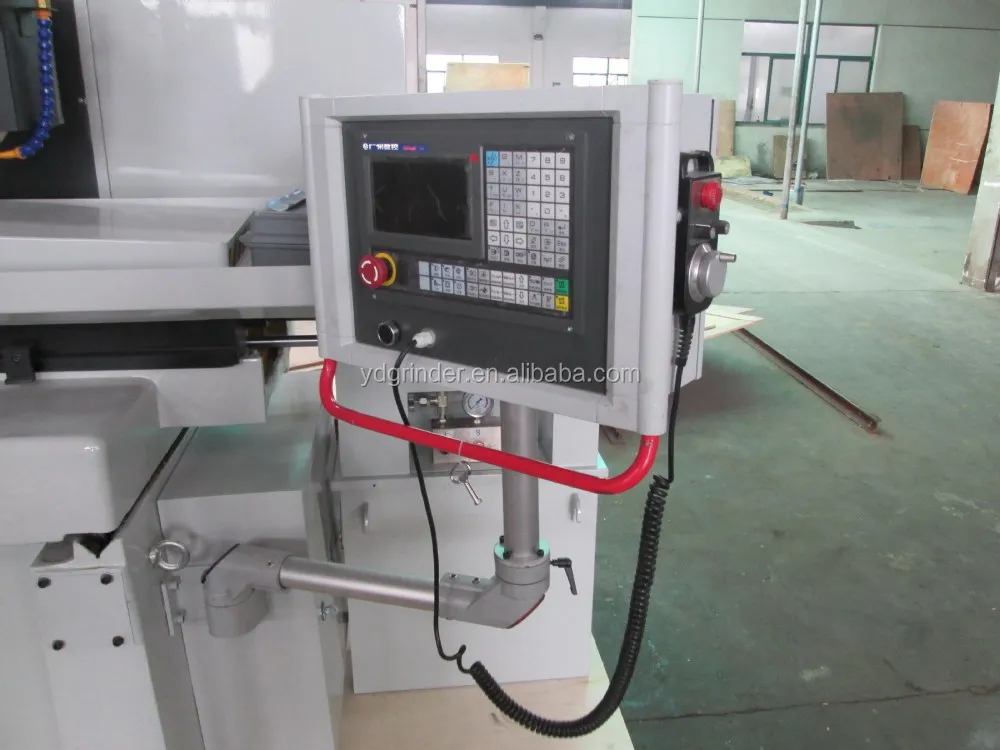

5.Adopting GSK System 980MDC which has high degree of automation.
| Model | MYK1224 | ||
| Working table | Table Size(L × W) | mm | 600×300 |
| Max movement of worktable(L × W) | mm | 650×320 | |
| T-Slot(Number×Width) | mm | 1×14 | |
| Grinding head | Distance from table surface to spindle center | mm | 480 |
| Wheel size(Outer diameter×width×Inner diameter) | mm | Ø300×30×Ø76.2 | |
| Wheel speed | r/min | 1450 | |
| Feed amount | Longitudinal speed (left and right)of working table | m/min | 3-20 |
| Cross speed (front and rear of working table | m/min | 0.5-15 | |
| Vertical automatic feed amount of grinding head | mm | 0.005-0.05 | |
| Rapid up and down speed of grinding head(Approximation) | m/min | 0-5 | |
| Motor power | Spindle motor | kw | 3 |
| Coolant pump motor | W | 40 | |
| Up and down servo motor | W | 750 | |
| Cross servo motor | W | 750 | |

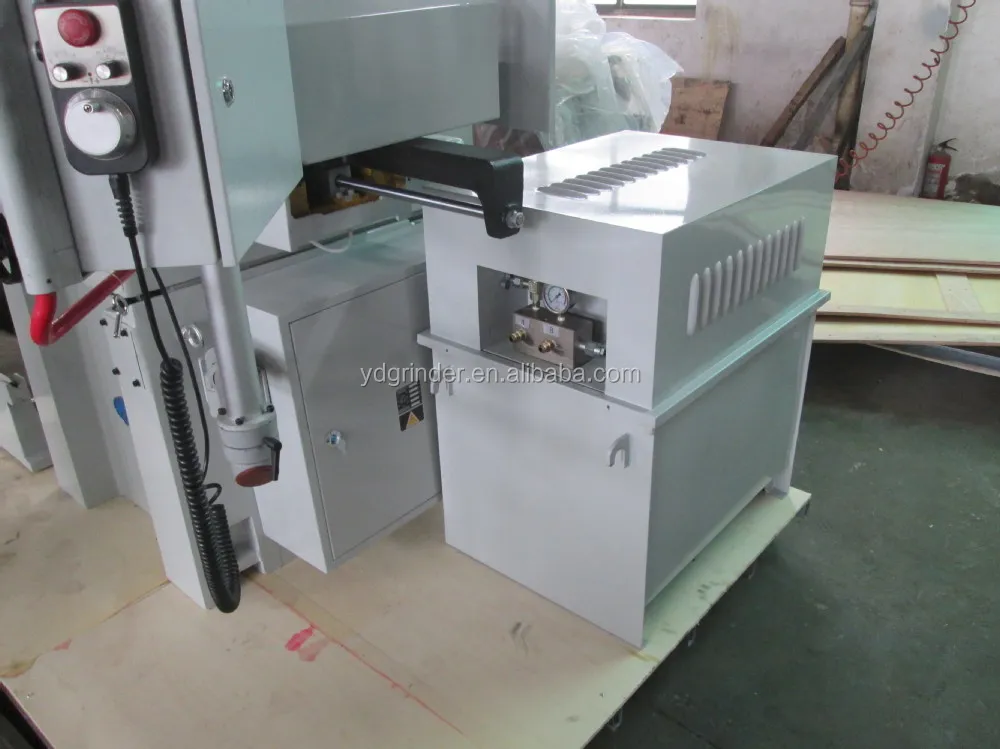

| Hydraulic system | Hydraulic motor | KW | 2.2 |
| Working pressure | MPa | 4 | |
| Oil bank capacity | L | 100 | |
| Max flow | L/min | 18 | |
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 |
| Surface roughness | μm | Ra0.32 | |
| Weight | Net | kg | 1530 |
| Gross | kg | 1650 | |
| Chuck size | mm | 300×600 | |
| Overall dimension(L×W×H) | mm | 2800x1600x1800 | |
| Package dimension(L×W×H) | mm | 2900x1700x2000 | |

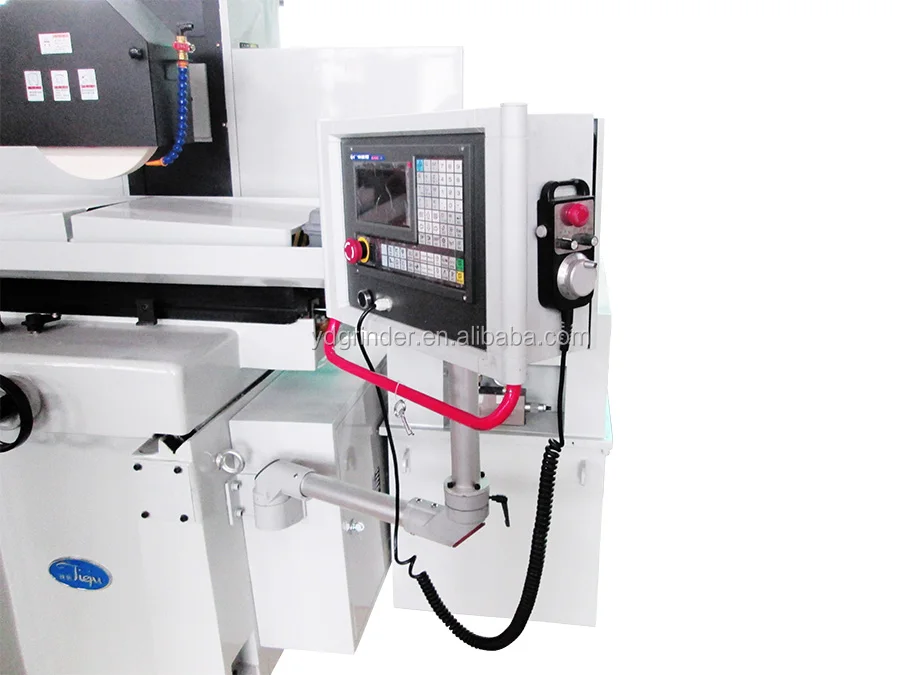

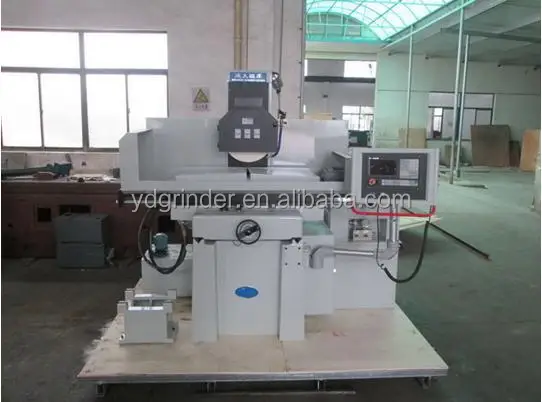

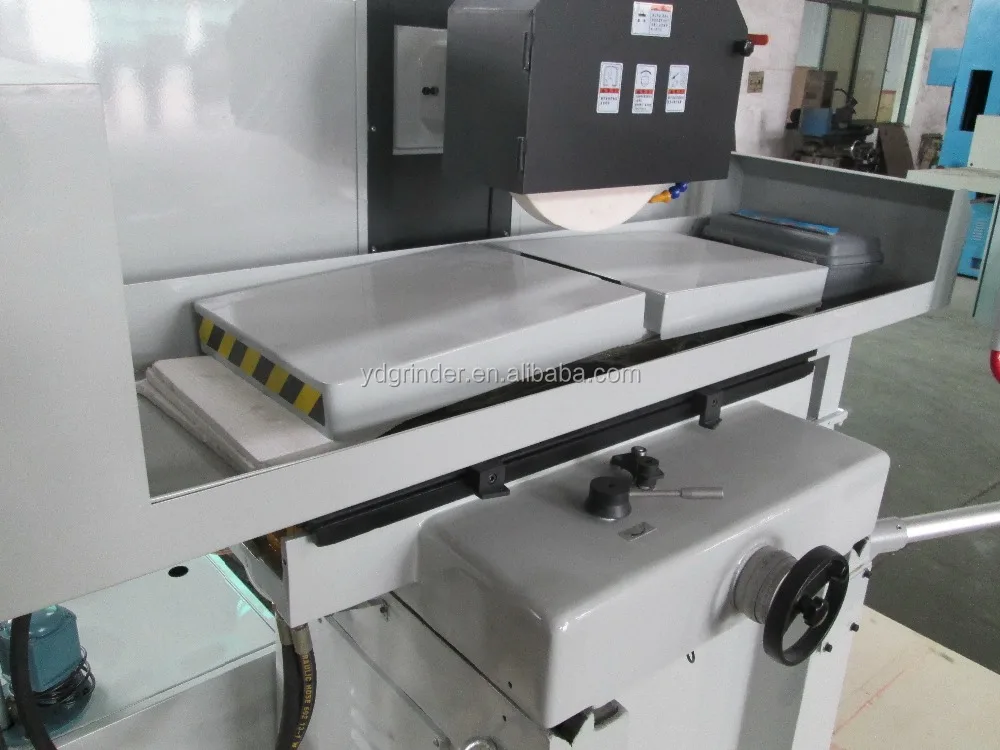

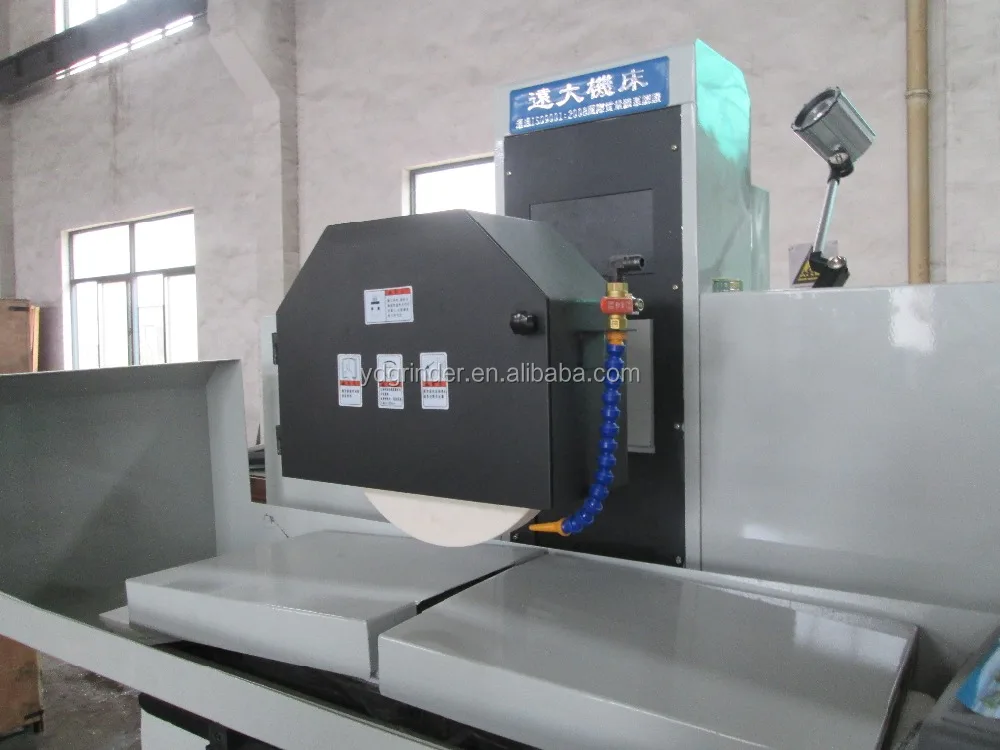

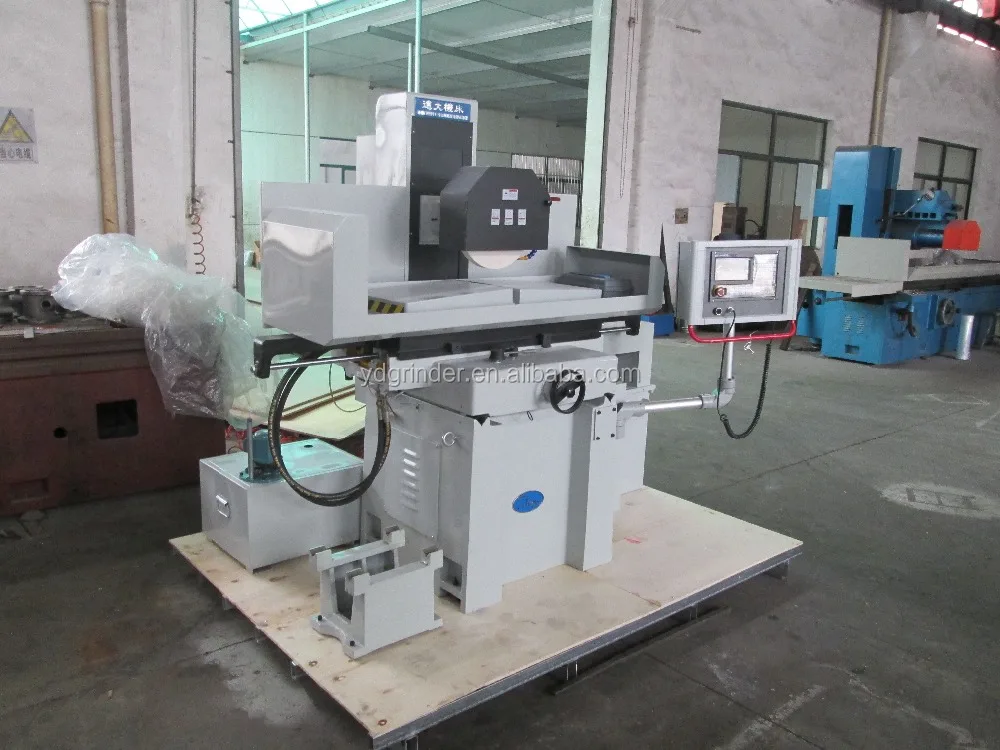

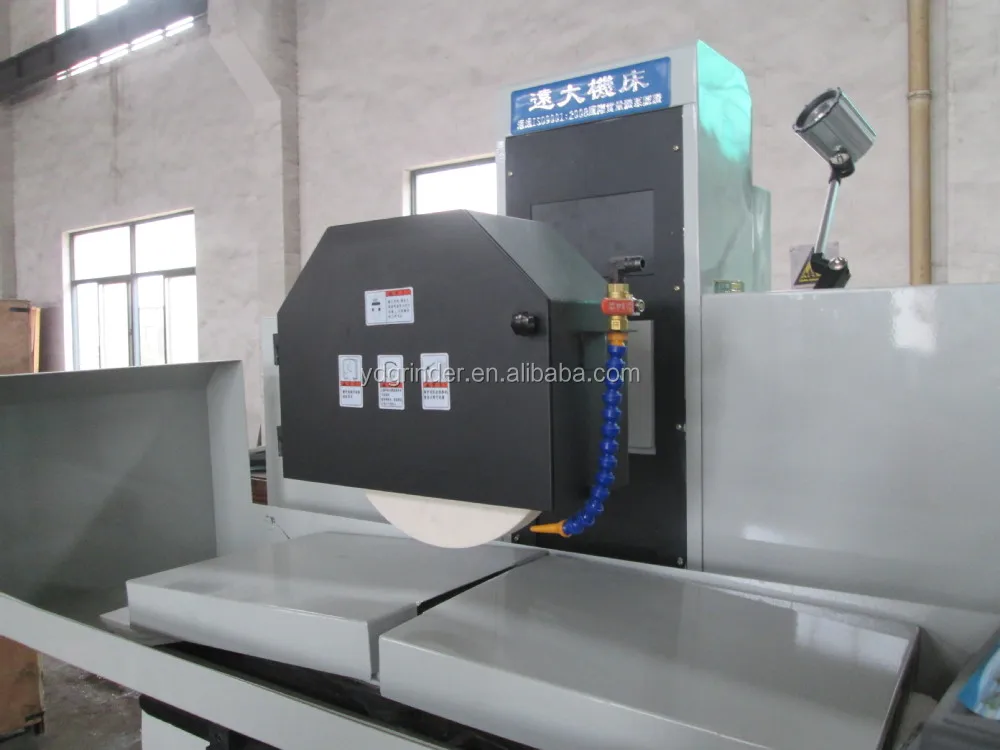

Product Pictures

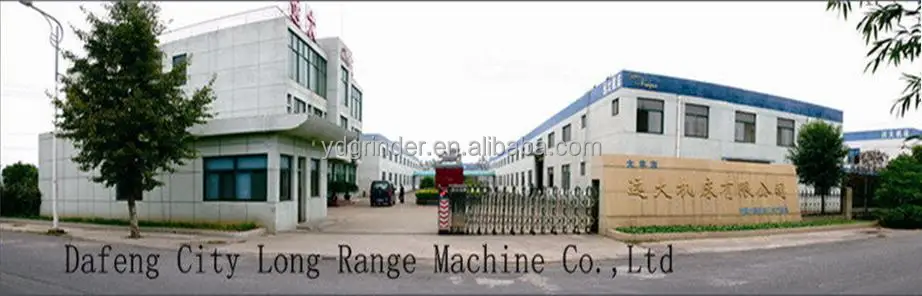

Company Introduction

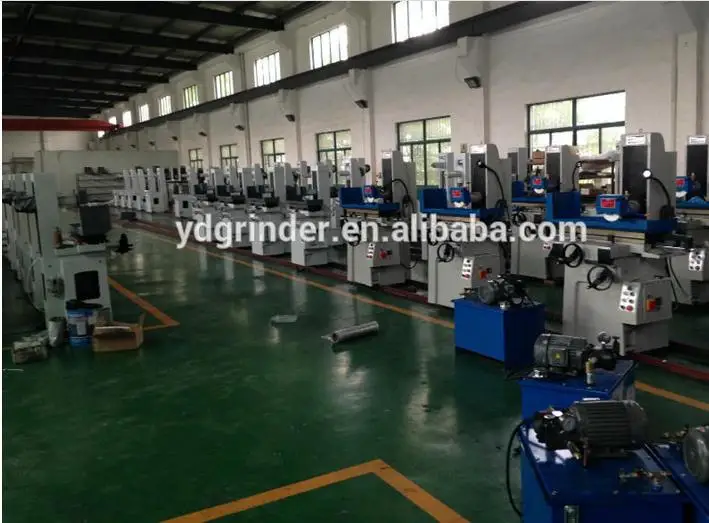

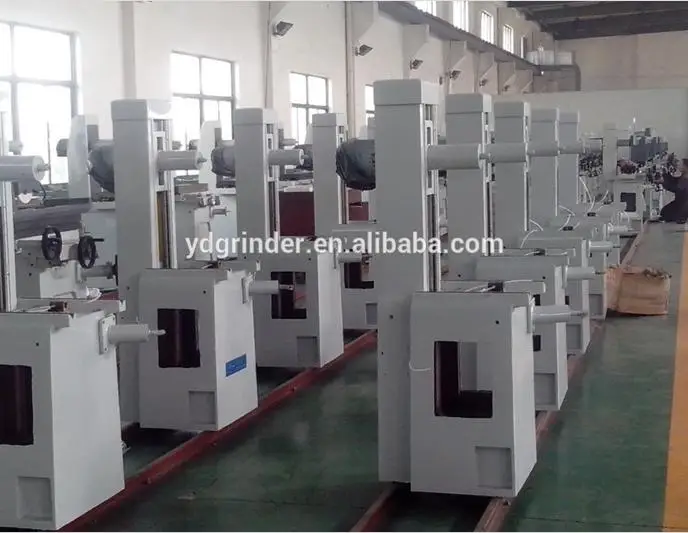

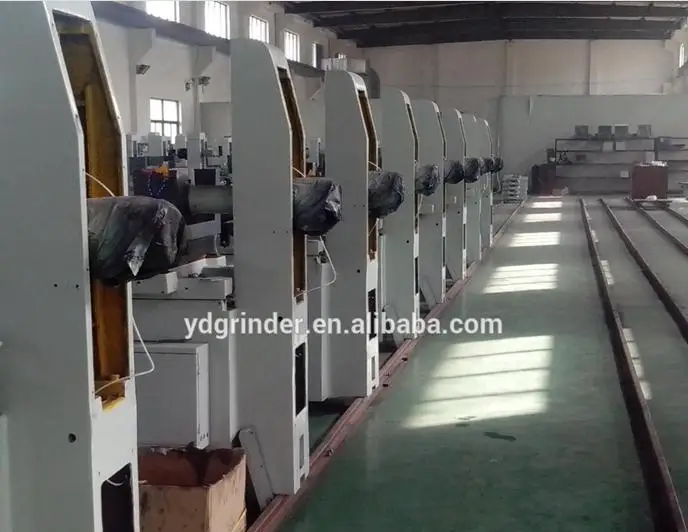

Our Factory
Payment terms and delivery time
- Payment: T/T, L/C.
- Delivery Time: 10 working days after we receive the payment.
- MOQ: 1set.
- Package Informations: Bakelite Board Box.
Our Advantages
- We are China Leading Surface Grinders Manufacturer.
- Inspected by the International Standardization Organization and CE Certification.
- 100% QC inspection Before Shipment.
- Best Quality & Best Service with Competitive price.
FAQ
If you have any questions,please feel free to contact me.
Skype:kweihung
Wechat:15261971289
QQ:1094918830
Tel:8615261971289
