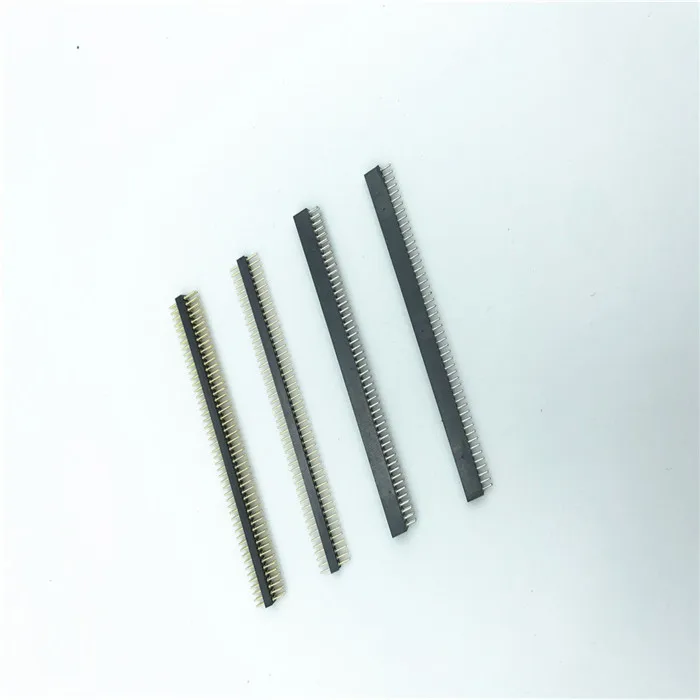

1.27mm sip ic socket S/T pin length=6.4mm

Product Overview

Description

2.54mm   SIP IC SOCKET(MACHINE PIN)

Technical Data

Insulator:Black glass filled polyester

Flammablility:UL 94V-0

Sleeve:Brass CuZn36Pb3

Contacts Clip(6finger):Beryllium copper

Mating pin:Φ0.70 to 0.90mm

Forces:(polished steel gauge Φ0.43)

Mechanical life:min 500 cycles

Current rating:3Amps/contact mas

Contact resistance:max 10MΩ

Dielectric strength:min 1000VRMS

Plating:Gold plated/Tin plated

Operating temperature:-55℃~+105℃

Soldering temperature:+245℃± 5℃,5s max



We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.
