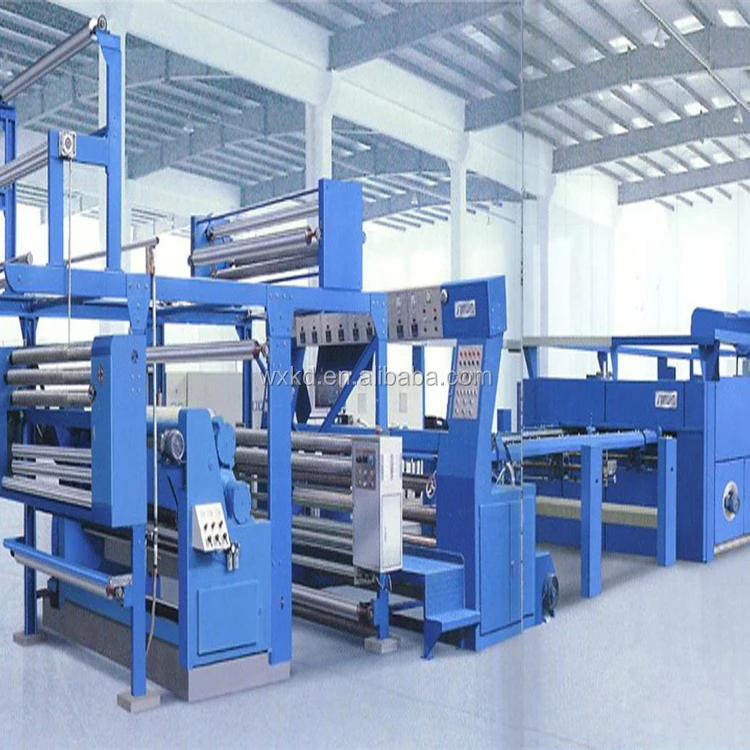

Textile hot air heat setting stenter machine

Product Overview

Description

Textile hot air heat setting stenter machine(KZM180~~360)

Detailed Product Description:



This machine is used for stretching, drying and setting the cotton, polyester,and man-made fabric.



Technical Flow:

Plaint Entry -- 2-Roller Aslant Padder -- Obligate Photoelectric Weft Strangtener – Overfeeding -- Tridactylous Edge Spreader, Infrared Edge Sensor -- Pin or Clip or Combied Pin-Clip -- Stentering and Drying in the 8 Drying Chambers – Air-Jet Cooling -- Cooling Roller  Cooling -- Swing Outlet.



Norminal width	mm	1800~3600
working width	mm	500~3400

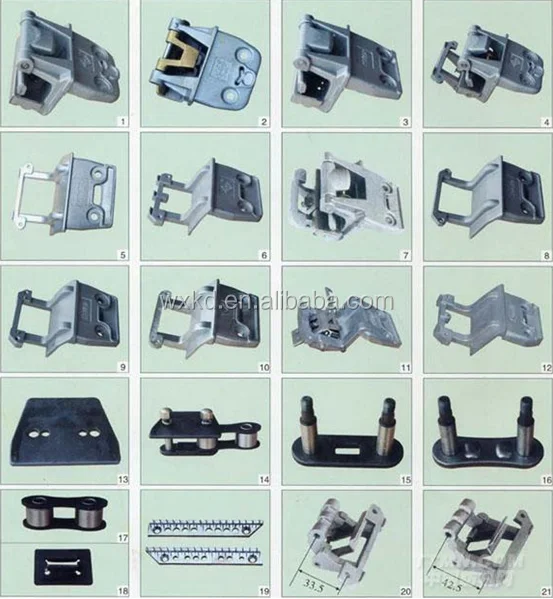

Fabric holding		pinning, clipping or Combined type
heating source		Thermal Oil, Gas, Steam or Electricity
Fabric grammage	g	15~500

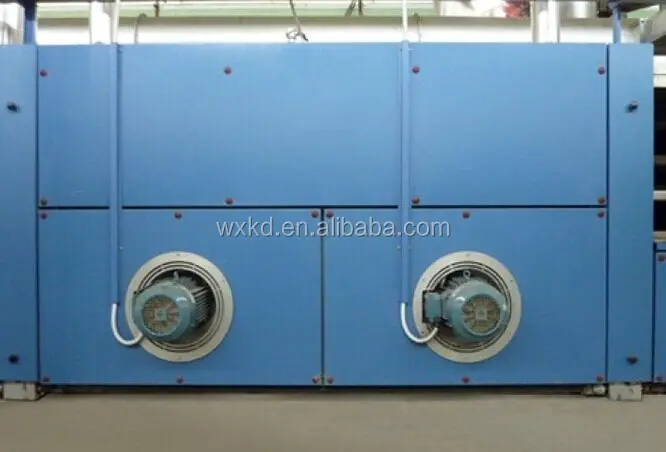

Temperature of chamber	℃	90~230
NO. of chamber		3~12



Gas heating





Thermal Oil heating



Nozzle type:





Packing:





If you have any question,Please contact us directly Thank you!
