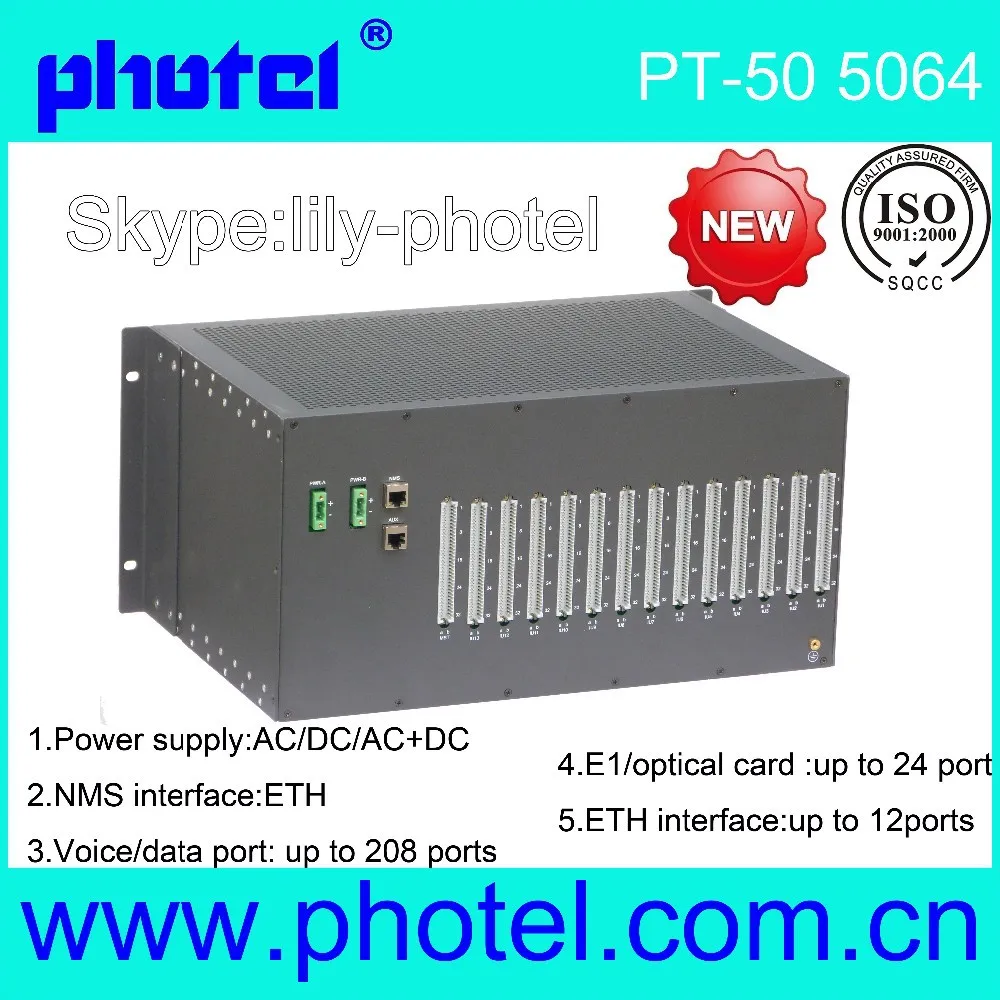

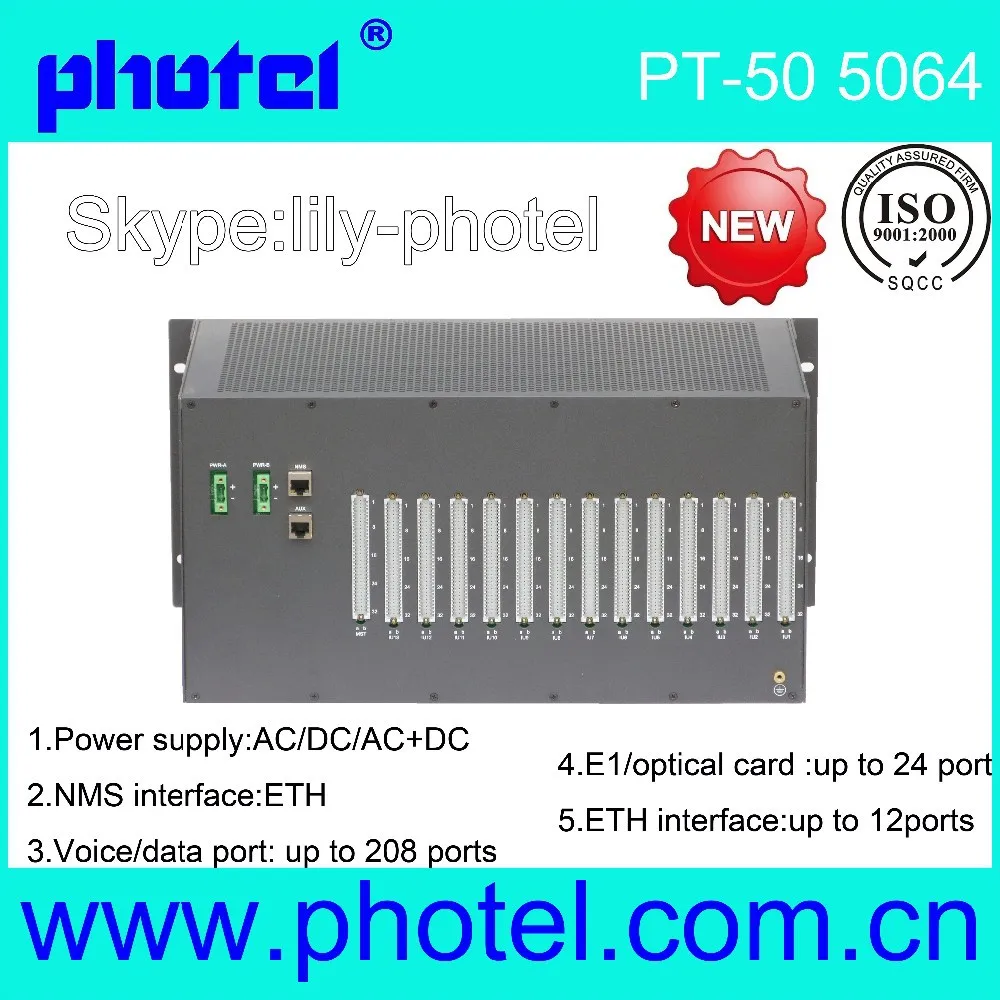

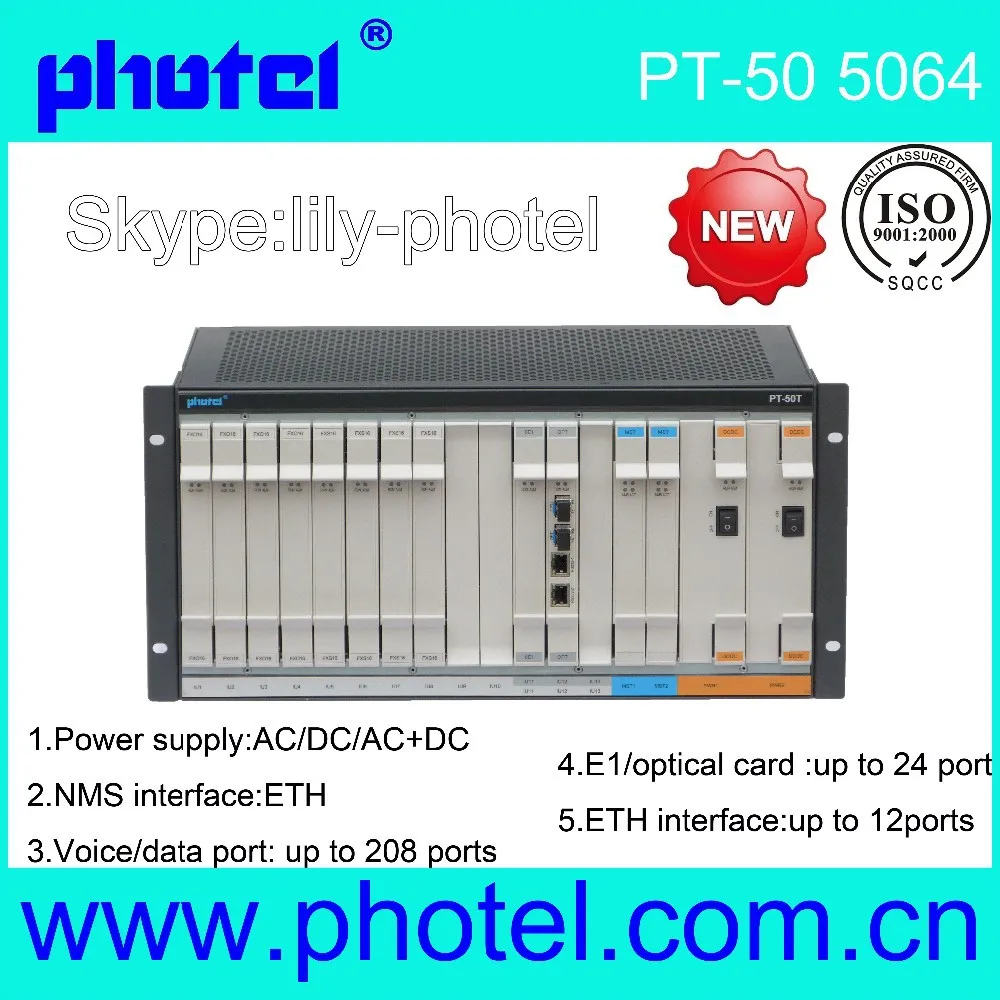

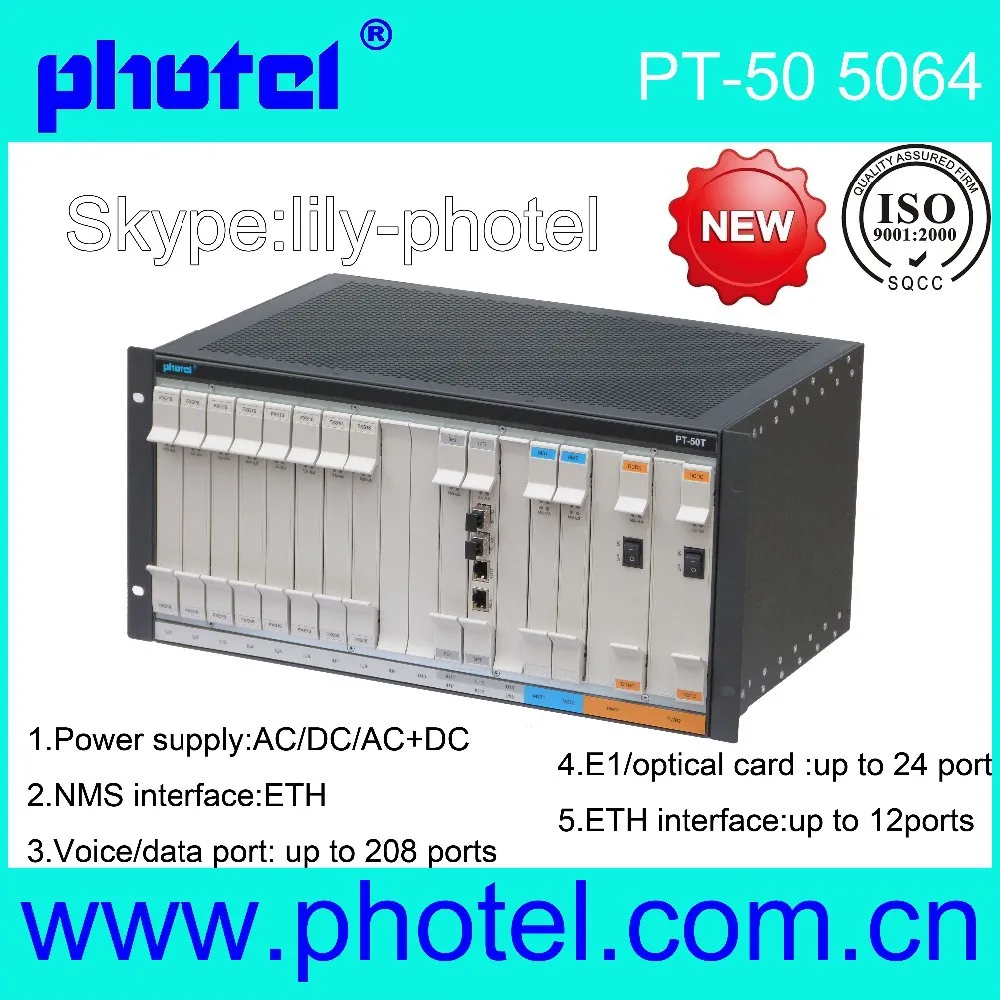

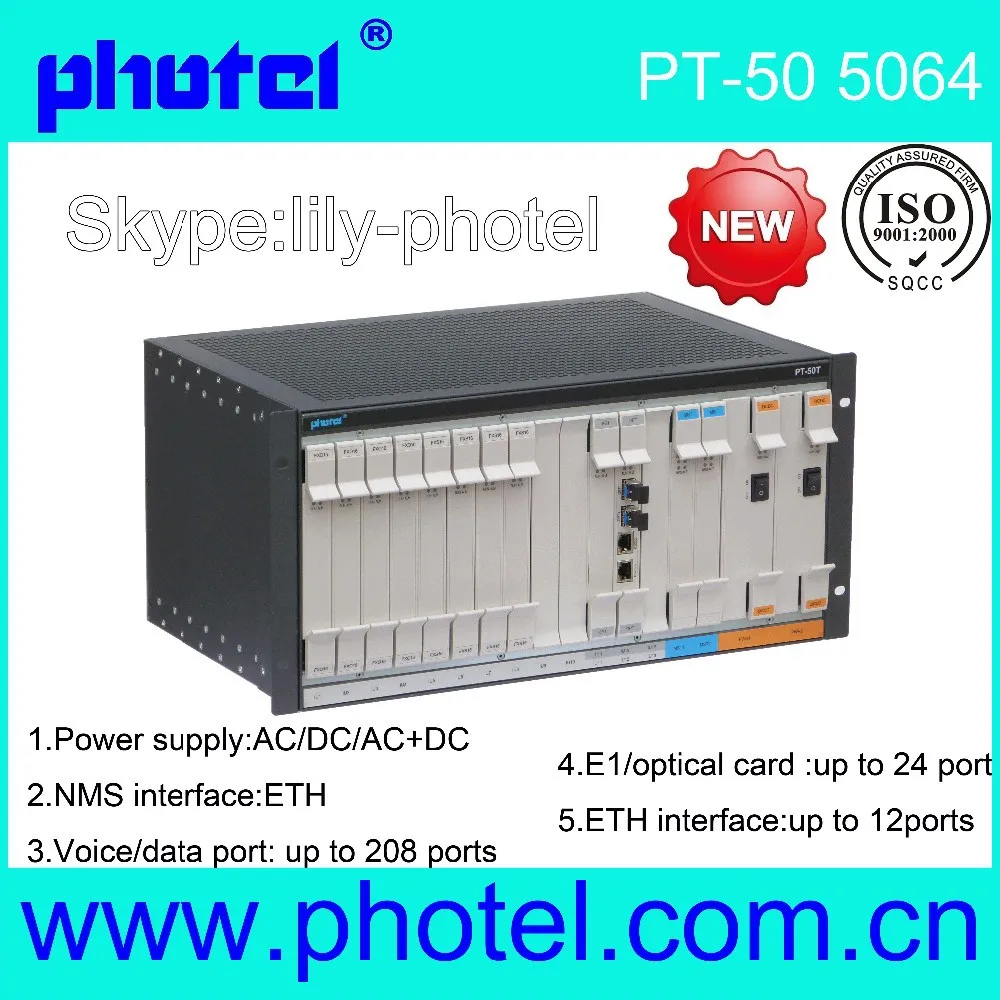

PT-50T 5064 PCM Equipment adopts 5U high standard 19" inch rack. It supports multiple analog and data access, and fiber/electronic integration. The maximum 64Kbps access capacity of PT-50T 5064 PCM equipment is 2048X2048.
PT-50T 5064 PCM Equipment can connect with other transmission equipment through its optical interface or standard E1 interface or ETH interface. It can realize point to point communications and point to multipoint communications by E1 or optical or ETH interface; and it can execute D/I (drop/inset) function through its own 64 E1 cross connection matrix;
PT-50T 5064 PCM Equipment is provided with a powerful NMS system, by which the operating status of the network can be monitored in real time and the functions including malfunction locating, time slot reassignment and online test can be performed easily.
Main Features
High density
The maximum access capacity of 64Kbps interfaces are 416, and the maximum access capacity of E1 interface is 64 as well.
Abundant Access Interfaces
PT-50T 5064 PCM equipment supports different types of user services: RS232 asynchronous data interface, FXO, FXS, etc.
Powerful Net Management System
It is convenient to set cross connection and the level of analog user interface, and read the devices’ settings by the NMS system.
D/I (drop/insert) function
PT-50T 5064 PCM Equipment can be configured to D/I equipment, it flexible to drop or insert channels.
Many types of transmission card
There are many types of uplink cards. The card type will be: PDH card, E1 card, TDMOIP card, ETH card
High Reliability
PT-50T 5064 PCM Equipment supports redundant backup in power card, master card and uplink card. All types of cards support hot swap.
Remote Update function
The master card supports remote update function, the company will provide the update software, and the user can update the card for the remote equipment in its NMS center.
Unique ID card design
The ID card is fixed in the shelf; it can identify the equipment’s ID, and store the configuration data file and dynamic operating data. So if changing other functional cards will not influence NMS to identify the equipment, which makes it more stable during switching master control cards.
Technical Specification
Item
Description
E1 interface
Bit rate: 2048Kbps ± 50ppm
Code type: HDB3 code,accord with G.703 standard Input impedance: 7 5ohm(unbalanced interface),120ohm(balanced interface)optional Frame structure: accord with G.704, G.706 Compression law: accord with G.711 level: ±2.37V ±10%
Standard: Compatible with IEEE802.3, IEEE802.1Q (VLAN) Connector: RJ45
FXS port
Ring voltage:75V
Ring frequency:25HZ
Two-line impedance:600 ohm(pick up)
Return loss:40dB
FXO Switch port
Ring voltage:35V
Ring frequency:17HZ-60HZ
Two-line impedance:600 ohm(pick up)
Return loss:40dB
Power Supply
Input voltage: Standard value -48VDC or 220VAC
Voltage range: -36VDC~-72VDC,176VAC~264VAC Power consumption: <50W
Operation Environment
Working temperature: -10°C ~ +50°C
Working humidity: <=90%(no condensation)
