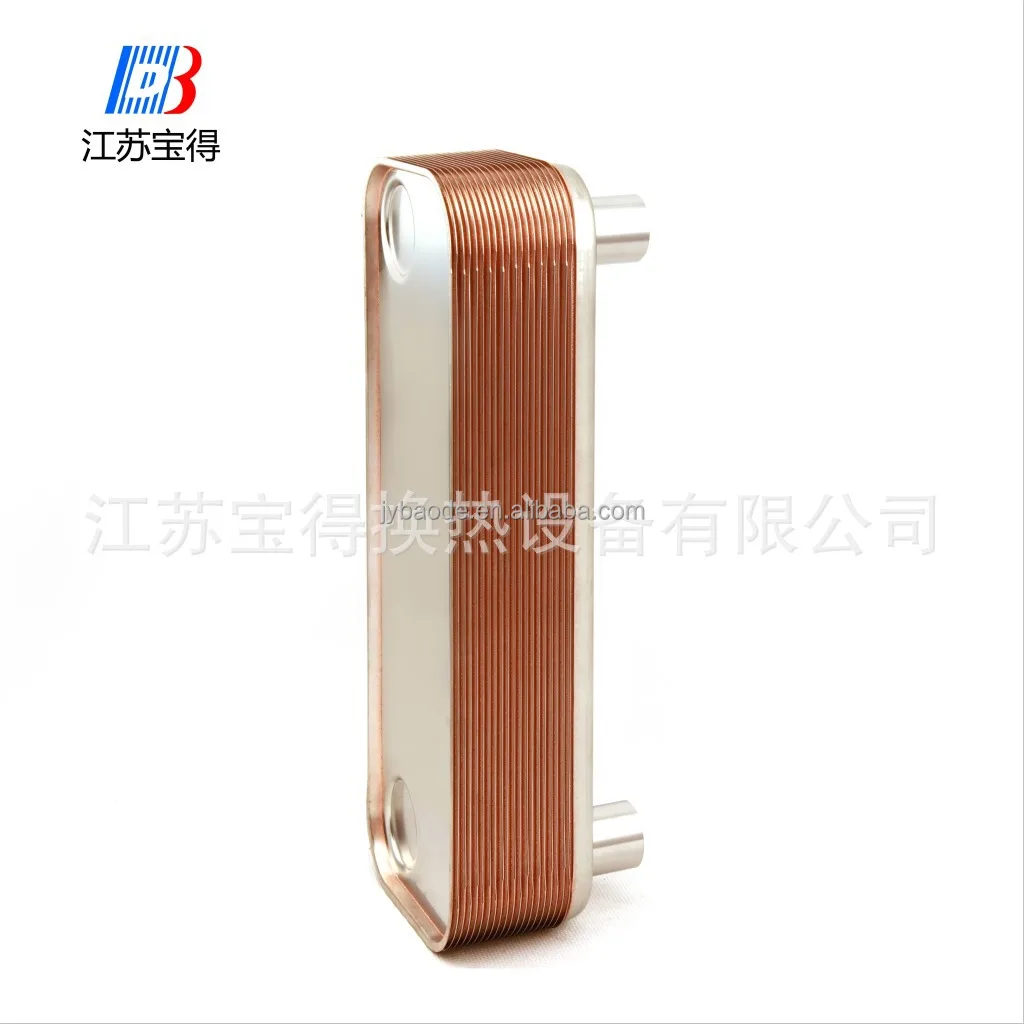

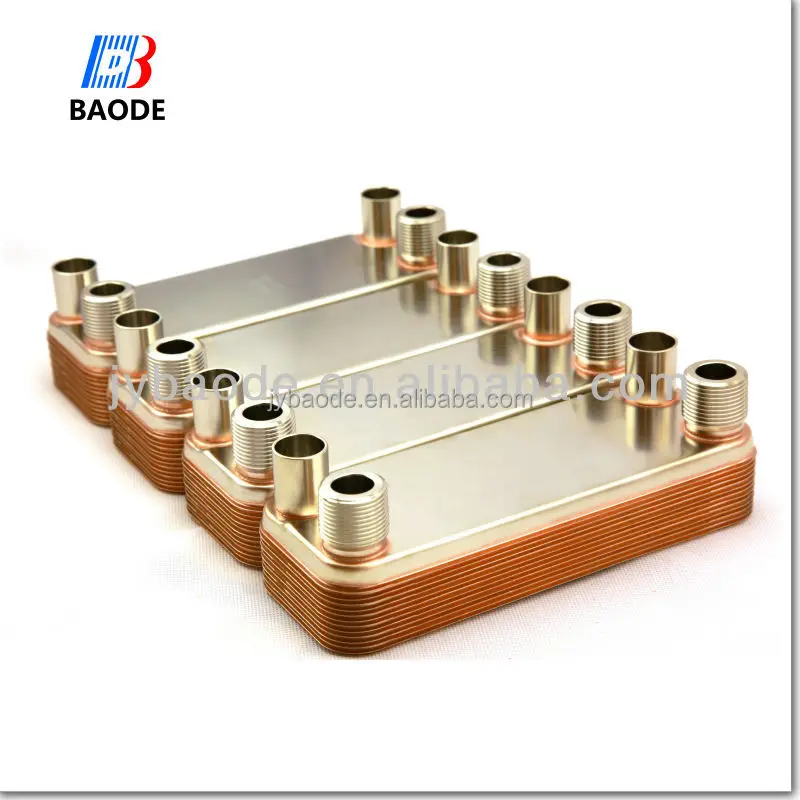

Stainless Steel 316 Plates Copper Brazed Plate Heat Exchanger Evaporator

Product Overview

Description

Stainless Steel 316 Plates Copper Brazed Plate Heat Exchanger Evaporator

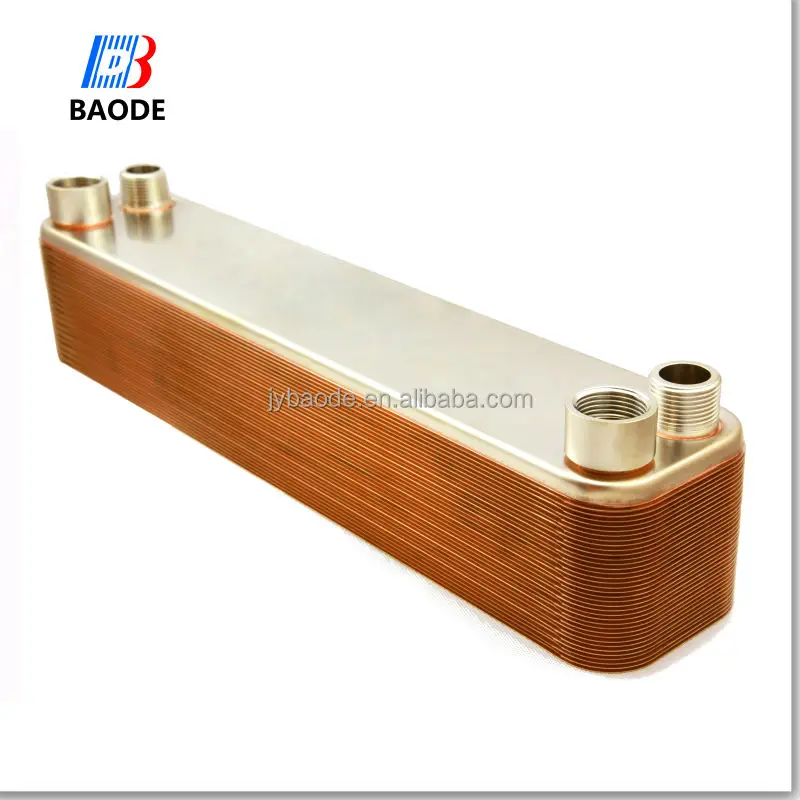

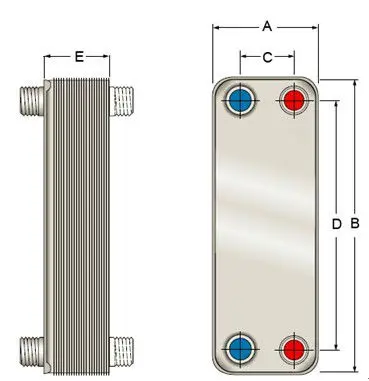

Model	BL95
Width, A [mm]	191
Height, B [mm]	616
Length, E [mm]	11+2.35n
Horizontal port distance, C [mm]	92
Vertical port distance, D [mm]	519
Max pressure [Mpa]	3/4.5
Max flowrate [M3/h]	39
Weight [kg]	7+0.36n



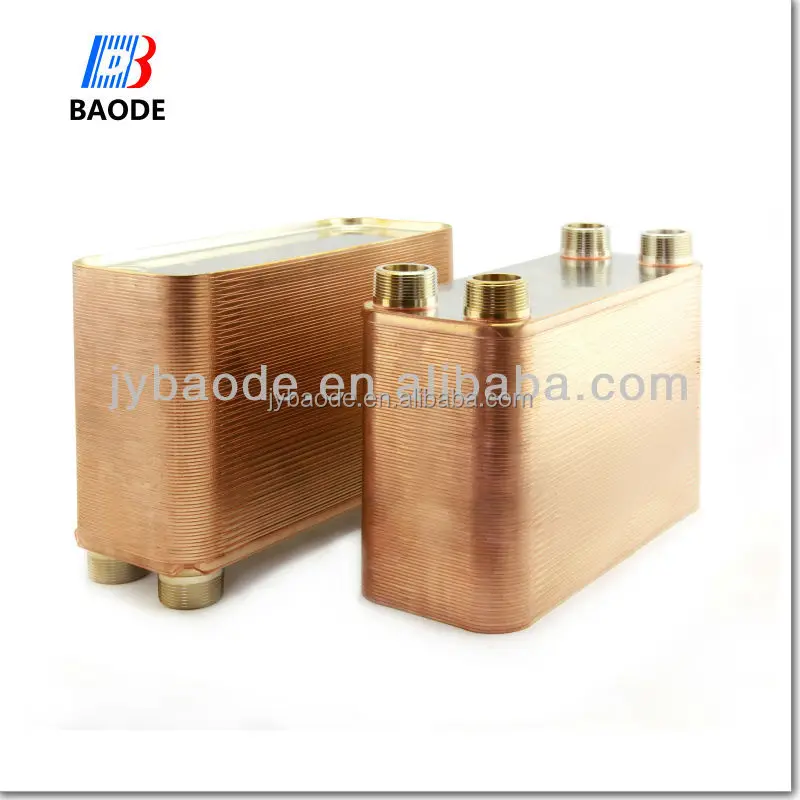

Working Principle

Brazing the stainless steel plates together eliminates the need for sealing gaskets and thick frame plates. As well as holding

the plates together at the contact points, the brazing material seals the package. Baode's brazed heat exchangers are brazed

at all contact points, ensuring optimal heat transfer efficiency and pressure resistance. The plates are designed to achieve

longest possible lifetimes. Since virtually all material is used for heat transfer, the Brazed Plate Heat Exchanger is very compact

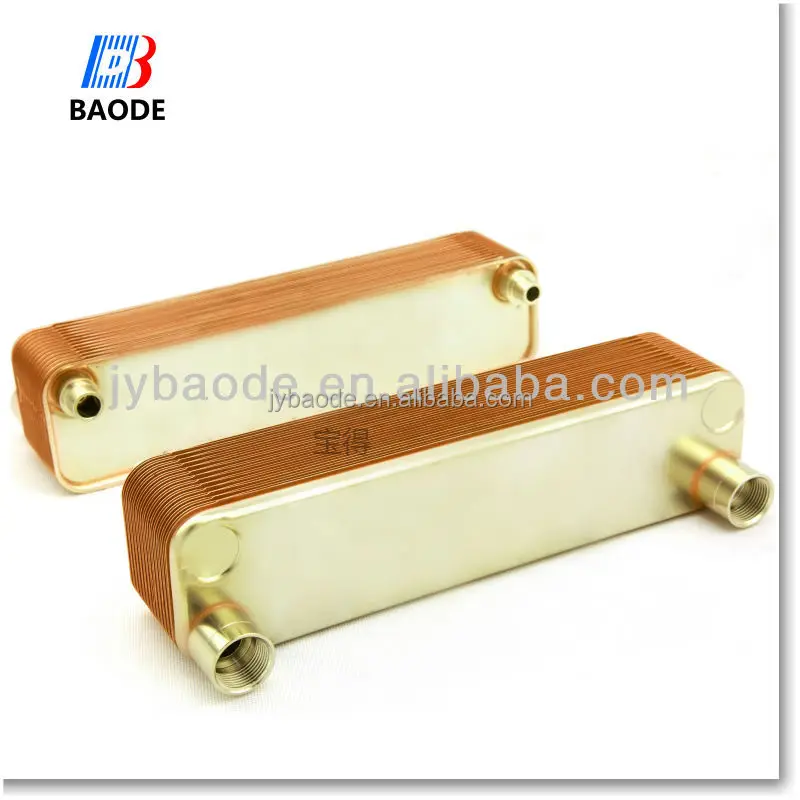

in size and has a low weight and a low hold-up volume. The BPHE (Brazed Plate Heat Exchanger ) consists of thin corrugated

stainless steel plates which are vacuum brazed together using copper as the brazing material. Copper brazed units can be used for numerous of applications. For food applications and applications involving aggressive fluids, Nickel brazed units are requested.



Refrigeration Systems :

Evaporator ,

Condenser,

Economizers and Desuperheaters

Air dryer

Heat pump

Absorption chiller


HVAC

Radiant Floor,

Snow Melt,

Boiler

Solar water heat exchanger

District heating


Other Industrial applications such as:

Heat Recovery

Oil Cooler: hydraulic oil cooling, engine oil cooling, and fuel oil heating.

Steam Heating.

Flat plate heat exchanger

Beer wort cooler

Milk pasteurization

Wind turbine oil cooler

Marine oil cooler



Short delivery time.

High quality

Reasonable price

Customer made

Know-how design and customer support



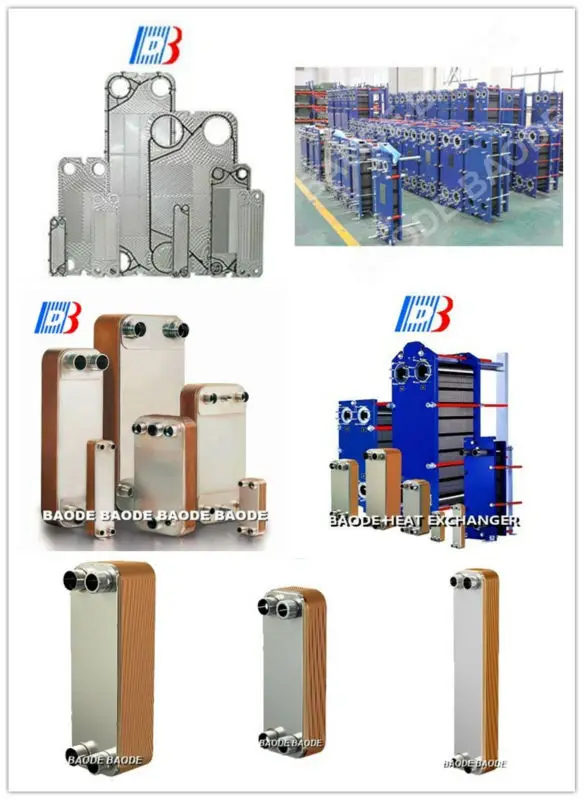

Model	BL14	BL20	BL26	BL26C	BL50	BL95
Width, A [mm]	78	76	111	124	111	191
Height, B [mm]	206	310	310	304	525	616
Length, E [mm]	9+2.3n	9+2.3n	10+2.36n	13+2.4n	10+2.35n	11+2.35n
Horizontal port distance, C [mm]	42	42	50	70	50	92
Vertical port distance, D [mm]	172	282	250	250	466	519
Max pressure [Mpa]	3	3	3	3/4.5	3/4.5	3/4.5
Max flowrate [M3/h]	3.6	3.6	8.1	8.1	12.7	39
Weight [kg]	0.6+0.06n	1.0+0.08n	1.3+0.12n	2.2+0.16n	2.6+0.19n	7.8+0.36n



Model	BL120	BL190	BL200	BL1400	BL100  *	BL200  *
Width, A [mm]	246	307	321	429	248	322
Height, B [mm]	528	696	738	1398	495	739
Length, E [mm]	13+2.36n	13+2.75n	13+2.7n	22+2.78n	10+2.15n	13+2.55n
Horizontal port distance, C [mm]	174	179	188	220	157	205.2
Vertical port distance, D [mm]	456	567	603	1190	405	631
Max pressure [Mpa]	3	3	2.1	1.5	3/4.5	3/4.5
Max flowrate [M3/h]	42	100	100	300	42	100
Weight [kg]	7.2+0.52n	12.5+0.72n	13+0.75n	31.8+1.73n	6.5+0.37n	13+0.78n
