PVC Plastic Shoe Slipper Shoe Making Machine Rotary Injection Molding Machine Slipper Making 24 Station Machine

Product Overview

Description

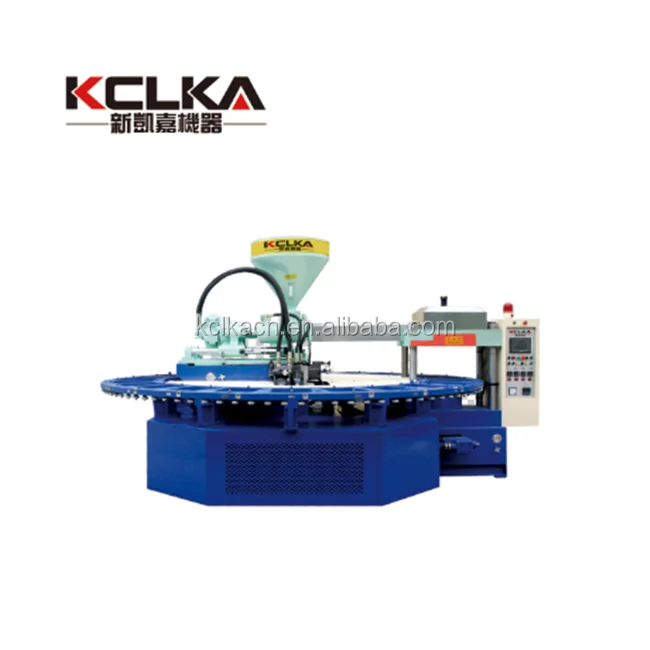

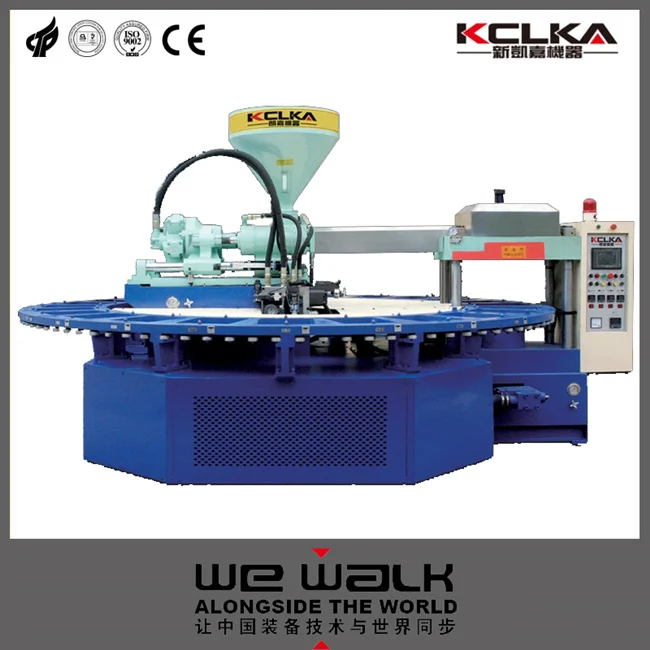

AUTOMATIC ROTARY PVC AIR BLOWING INJECTION MOLDING MACHINE



 Technical Description

Item	Unit	EK16-12P
Raw material		PVC.TPR
Work Stations	Station	24
Mold-clamping Pressure	Ton	70
Mold space(LxWxH)	Mm	460*220*260
Diameter of Screw	Mm	65
Max. Injection Volume	Cm3	785
Injection Pressure	Kg/cm2	140
Heating bands power	Kw	9.64
Temperature Control (Section)	Section	4
Motor	Kw/Hp	18.5
Total Electricity Consumption	kw	30
Machine dimension	M	4..5*3.53*2.1
Productivity/Output	Pair/day	2500
Machine Weight	Ton	6.8



Detailed Description

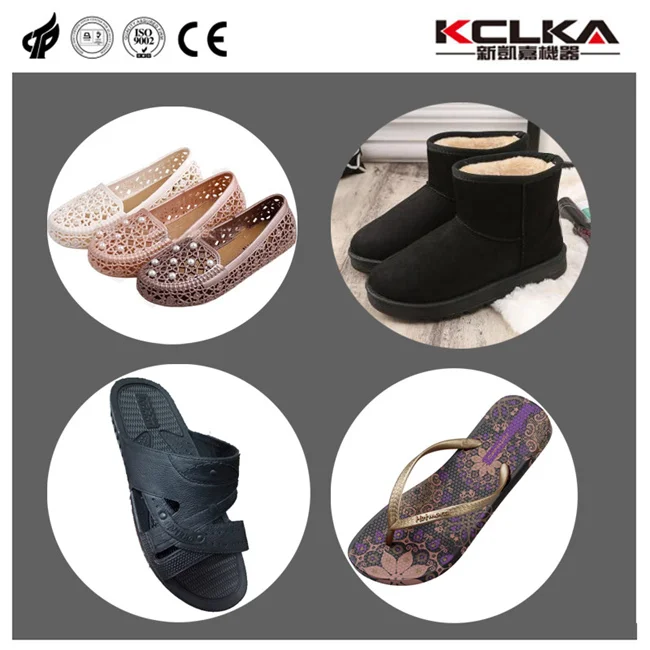

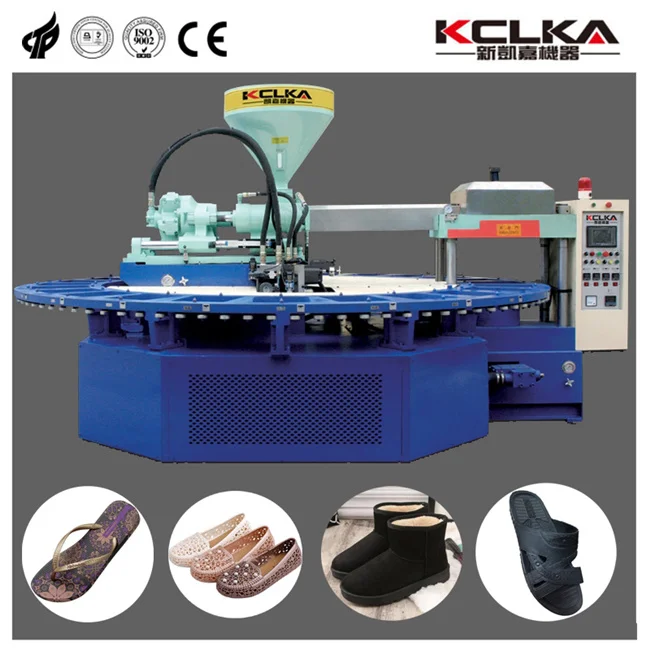

1. EK16-12P series are specialized in the manufacture of various kinds of single color soles, slippers sandals, boots.



2. This unit is suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC, TRP etc.



3. Conformed to human engineering in design, it features operational compatibility.



4. The well interconnected oil circuit by electric control can reduce waiting time. quicken production rate, and promote productivity.



5. It could be equipped with air blowing system can produce light weight ,soft with gloss surface and high value products.



6. Number of various stations may be optionally chosen for small quantity but greater in variety , or mass production
