Precision Thickness Micrometer - Dead Weight Type



Thickness Micrometer










Related Products










Thickness MicrometerThickness MicrometerThickness MicrometerThickness Micrometer








Product Information










Thickness Micrometer

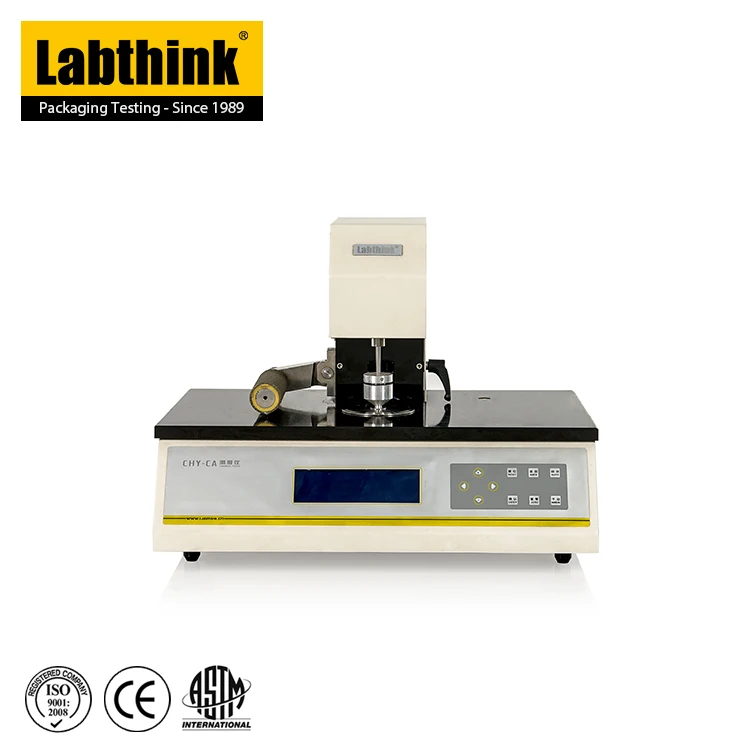

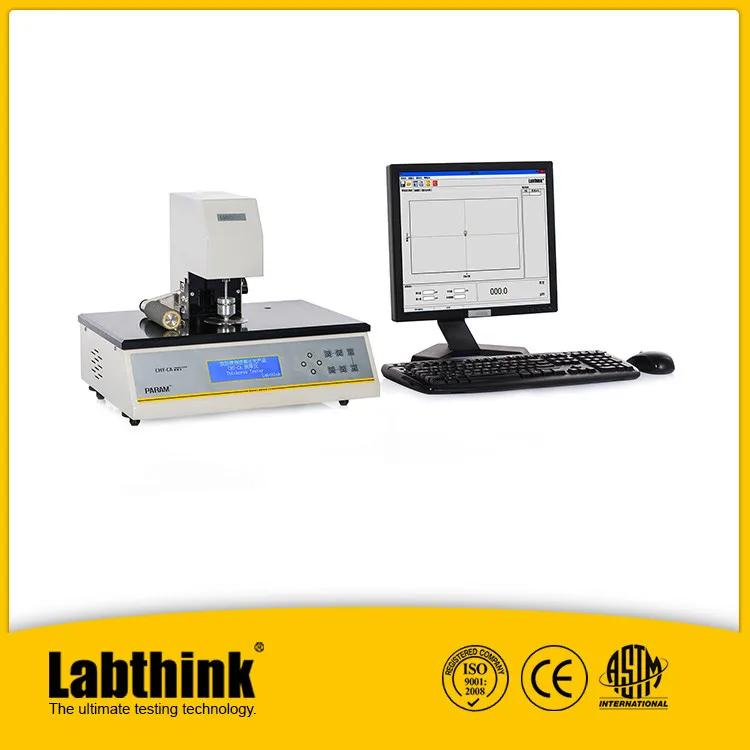

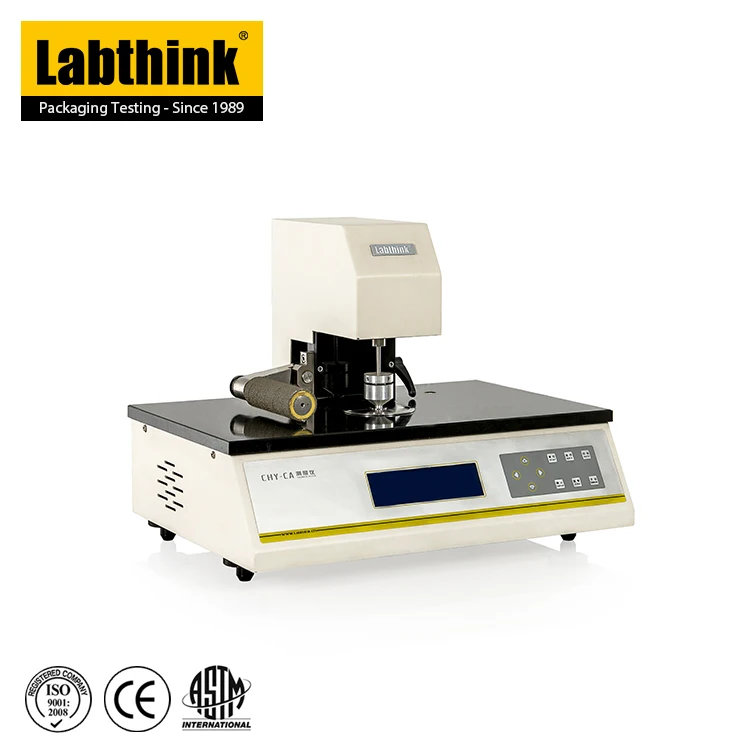

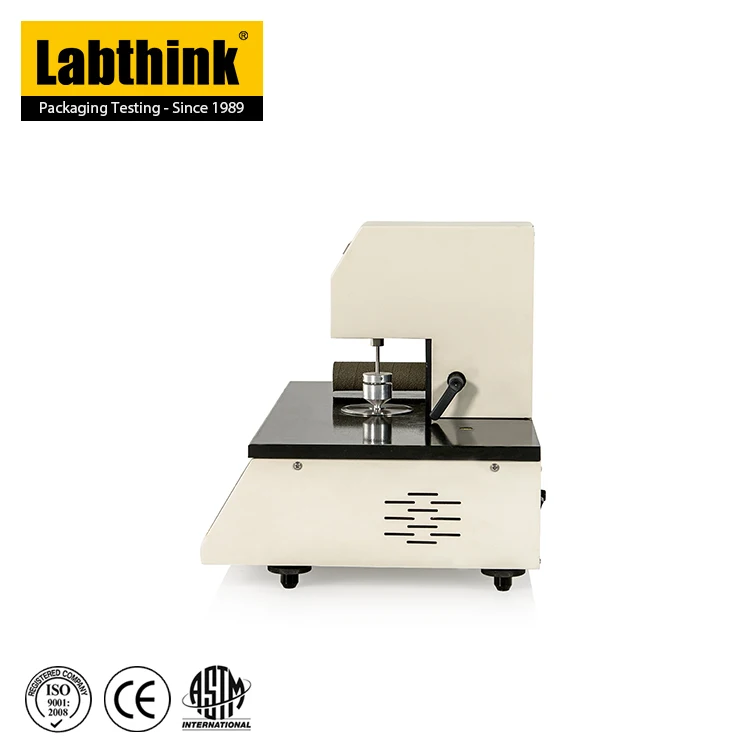

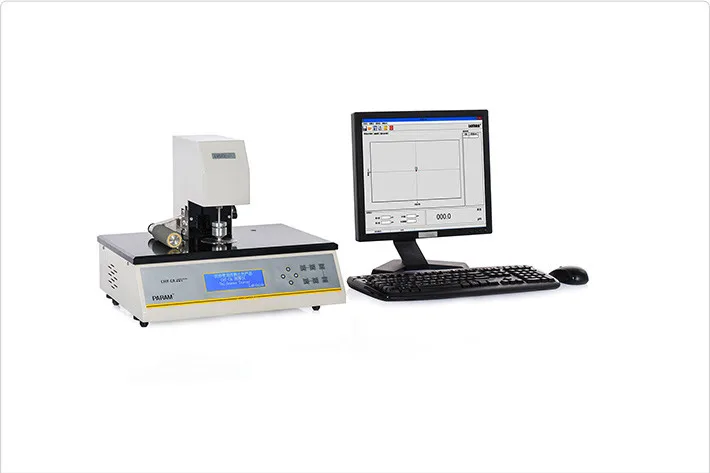

CHY-CA Thickness Tester is designed with automatic specimen feeding feature, which is used for thickness test of specimens within 12mm.






























Standards:



ISO 4593, ISO 534, ISO 3034, ASTM D374,ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702



Features:





  • Automatic specimen feeding, specimen feeding interval, number of testing points and specimen feeding speed could be preset by the user.

  • Automatic lifting presser foot facilitates to minimize system errors that caused by human factors during the test.

  • Manual or automatic operating mode for convenient test.

  • Contact area and pressure are strictly designed according to standard requirements, while customization is also available.

  • Displays the real-time data of maximum, minimum, average and standard deviation value for data analysis.

  • Automatic statistics and printing functions are available which is convenient for the user to obtain the test results.




Specifications:






























































SpecificationsCHY-CA
Test Range0~2 mm (standard)
0~6 mm, 12 mm (optional)
Resolution0.1 μm
Test Speed10 times/min (adjustable)
Test Pressure17.5±1 KPa (film)
50±1 KPa (paper)
Contact Area50 mm2 (film)
200 m2 (paper)
Note: Select one presser foot for film or paper; Customization is available
Specimen Feeding Interval0 ~ 1000 mm
Specimen Feeding Speed0.1 ~ 99.9 mm/s
Instrument Dimension461 mm (L) x 334 mm (W) x 357 mm (H)
Power SupplyAC 220V 50Hz
Net Weight32 kg


Applications:



Basic Applications:
1. Plastic Films, Sheets and Diaphragms
2. Paper and Paper Board
3. Foils and Silicon Wafers
4. Metal Sheets
5. Textiles and Non-woven Fabrics, e.g. baby diapers, sanitary towel and other sheeting
6. Solid Electrical Insulating Materials


Extended Applications:
1. Extended Test Range of 5mm and 10mm
2. Curved Presser Foot

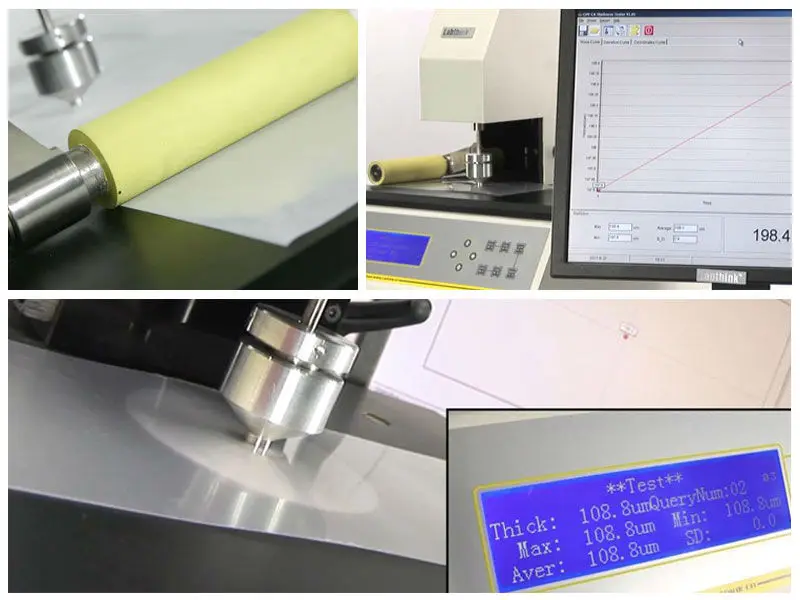

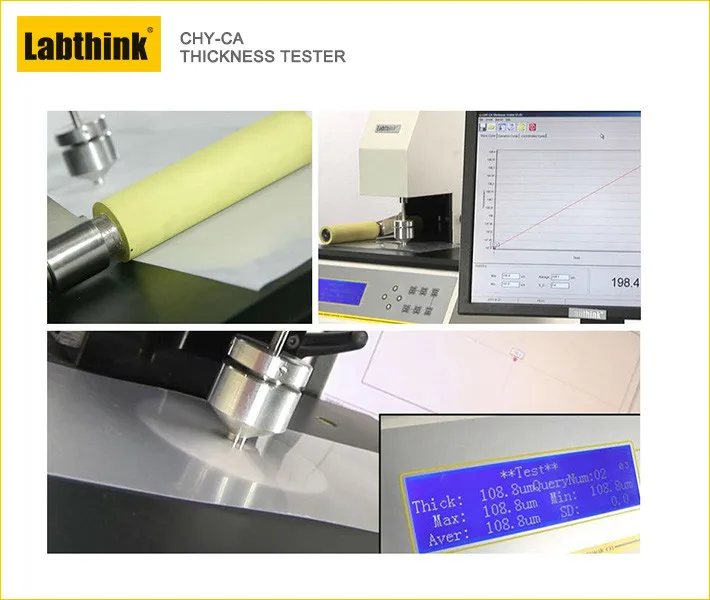

Features & Fixtures:
Thickness Micrometer










Packaging
Thickness Micrometer










How Labthink Serve You?
Thickness Micrometer













Why Choose Labthink?
Thickness Micrometer
Thickness Micrometer











FAQ
Thickness MicrometerQ: How long is the delivery time?
A: Five working days after we received your payment or order confirmed
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
