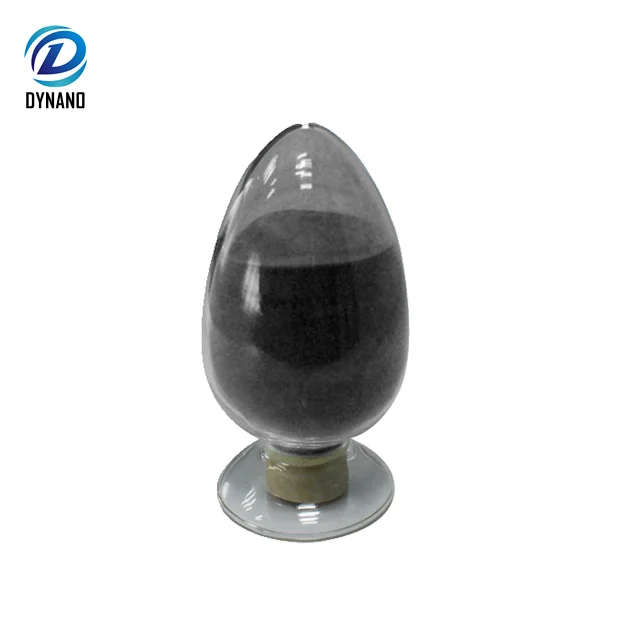

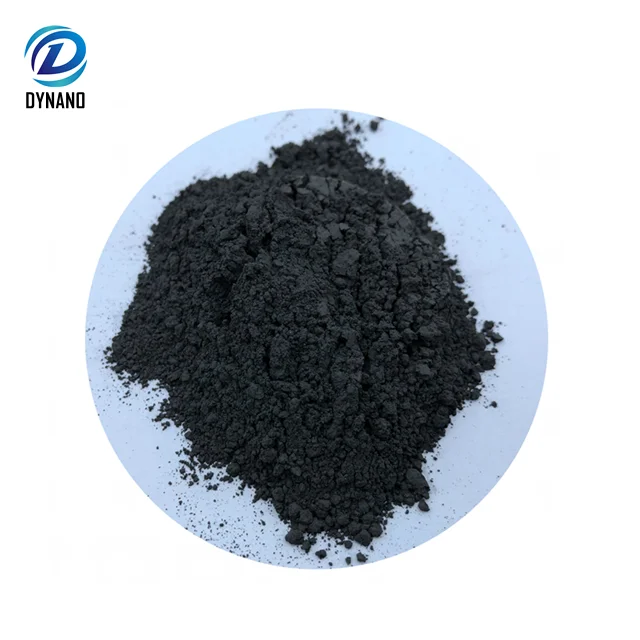

Nano Titanium Boride nano TiB2 powder ( UltrafineTiB2 Titanium Boride nanoparticle powder )
- Category: >>>
- Supplier: Zhengzhou Dongyao Nano Materials Co. Ltd.
Share on (60204742623):
Product Overview
Description
Nano Titanium Boride nano TiB2 powder
( UltrafineTiB2 Titanium Boride nanoparticle powder )
Product Description
Product performance：
Nano titanium diboride (TiB2) is a gray black hexagonal crystal or powder with excellent comprehensive properties, excellent thermal stability, oxidation resistance and electrical conductivity. TiB2 is used for hot pressed ceramic products requiring good conductivity, cathode coating materials of industrial aluminum electrolytic cell, hot pressed titanium diboride + boron carbide composite bulletproof ceramic insert plate, titanium diboride based cermet materials.
Technical Parameter：
Type | APS(D50) | Purity(%) | O(%) | N(%) | C(%) | B(%) | Color | ||||||
TiB2-DY-001 | 30-50nm | ＞99 | ≤0.8 | ≤0.1 | ≤0.1 | 29.5-31.0 | Black | ||||||
TiB2-DY-002 | 0.5-1μm | ＞99.5 | ≤0.7 | ≤0.1 | ≤0.1 | 29.5-31.0 | Black | ||||||
TiB2-DY-003 | 1-3μm | ＞99.5 | ≤0.7 | ≤0.1 | ≤0.1 | 29.5-31.0 | Black | ||||||
TiB2-DY-004 | 10-60μm | ＞99.9 | ≤0.5 | ≤0.05 | ≤0.1 | 29.5-31.0 | Black | ||||||
TiB2-DY-005 | 325mesh | ＞99.9 | ≤0.5 | ≤0.05 | ≤0.1 | 29.5-31.0 | Black | ||||||
Note | According to user requirements of nano particle can provide different size products. | ||||||||||||
Performance characteristics:
1. High purity: the purity can reach 99.99%, no impurity phase detected by XRD, and the content of metal impurity elements detected by GDMS is low;
2. Small particle size: the particle size can reach 20-40nm;
3. Distribution concentration: the particle size is standard normal distribution, without bimodal or multimodal and tailing;4. Typical products:
① Standard 1-3um (D10 ＞ 1.0um, D50: 1.2 ~ 1.8um, D90 ＜ 3.0um, 80% particle size is concentrated in the range of 1-3um)
② 0.5-1.0um (D50: 0.5 ~ 0.8um, D90 < 1.0um) is mainly used for hot pressed titanium diboride + boron carbide composite bulletproof ceramic insert plate
1. High purity: the purity can reach 99.99%, no impurity phase detected by XRD, and the content of metal impurity elements detected by GDMS is low;
2. Small particle size: the particle size can reach 20-40nm;
3. Distribution concentration: the particle size is standard normal distribution, without bimodal or multimodal and tailing;4. Typical products:
① Standard 1-3um (D10 ＞ 1.0um, D50: 1.2 ~ 1.8um, D90 ＜ 3.0um, 80% particle size is concentrated in the range of 1-3um)
② 0.5-1.0um (D50: 0.5 ~ 0.8um, D90 < 1.0um) is mainly used for hot pressed titanium diboride + boron carbide composite bulletproof ceramic insert plate
Test report：
TiB2-SEM（100nm）
TiB2-SEM（10-60μm）
Packing & Delivery

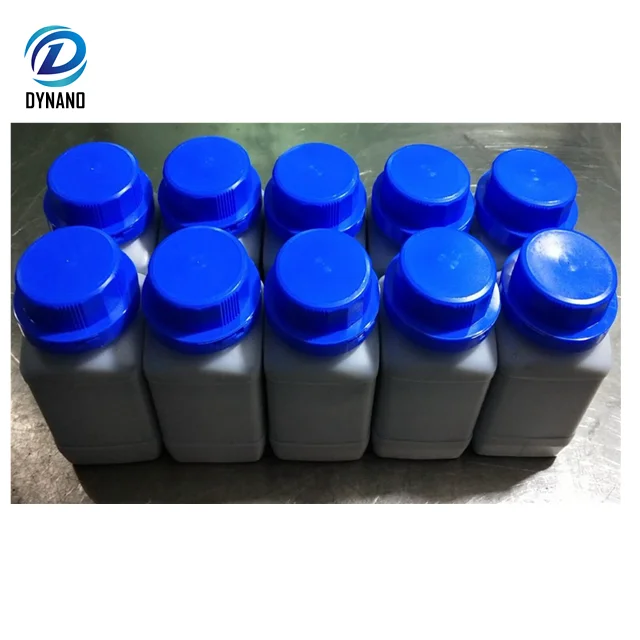

1 | Packing | 100g/bag, 500g/bag, 1kg/bag, 25kgs/bag/drum or according to your requirements. |
2 | Delivery Time | In 2-3 days after receive the payment. |
3 | Storage | It should be stored in dry, cool and sealing of the environment. |
Company Profile
Zhengzhou Dongyao Nano Materials Co., Ltd. mainly engaged in sales of the project of metal nano materials, nano inorganic materials, organic materials, green environmental protection material,mechanical equipment, the products have been sold to the world more than 50 countries and regions.The company has passed ISO9001:2008 international quality system certification, has authorized 5 patents of invention and 15 utility model patents. The company always adhere to the"technology leading, customer first, integrity management" principle, is committed to building the world's nano materials gold supplier.
FAQ
1 | Q:What is the payment way? A: Alibaba Credit Insurance, Western union, Bank transfer (T/T), Alipay all for Option. |
2 | Q: Can your company provide free samples for testing? A: Yes, we can supply some samples as required for your test. |
3 | Q: What is the delivery method? A: DHL, EMS, TNT, Fedex,UPS etc. |
4 | Q: What product parameters and test reports can you provide? A: The testing center can provide information such as SEM, COA and PSA. If necessary, it can entrust a third-party testing agency for testing, such as SGS etc. |
