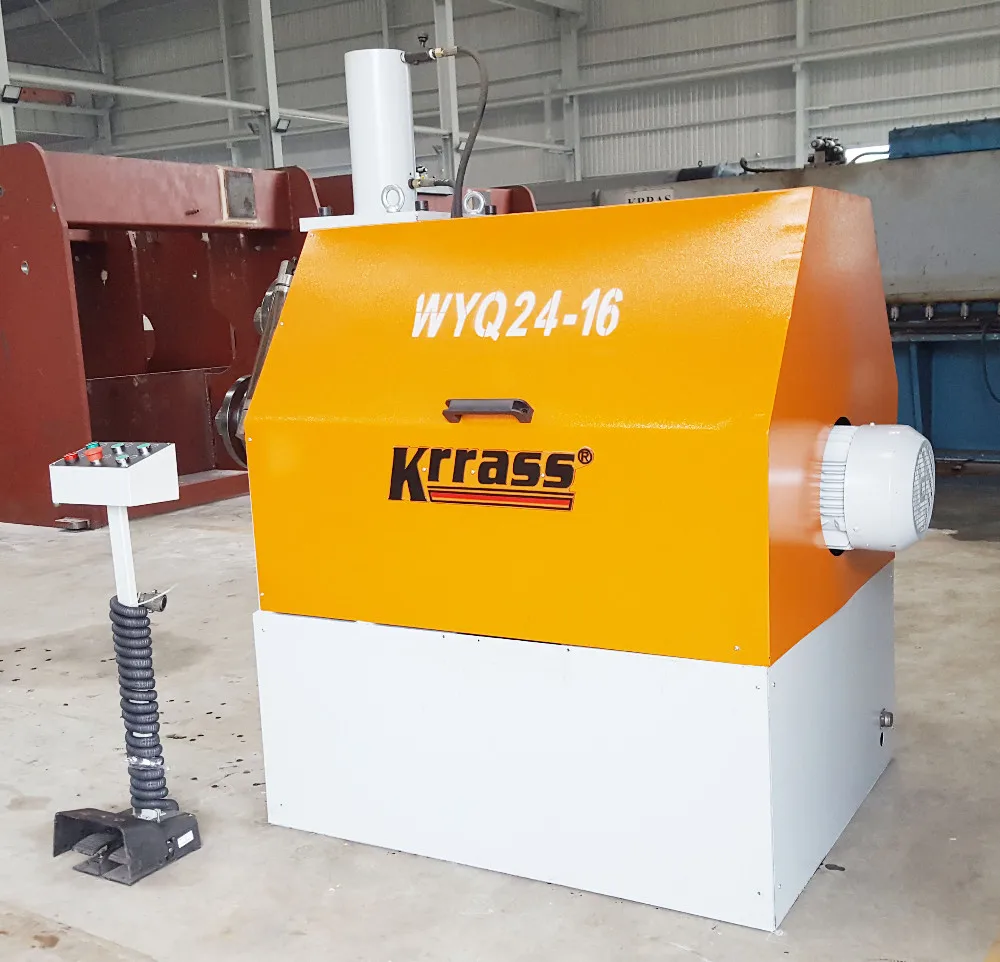

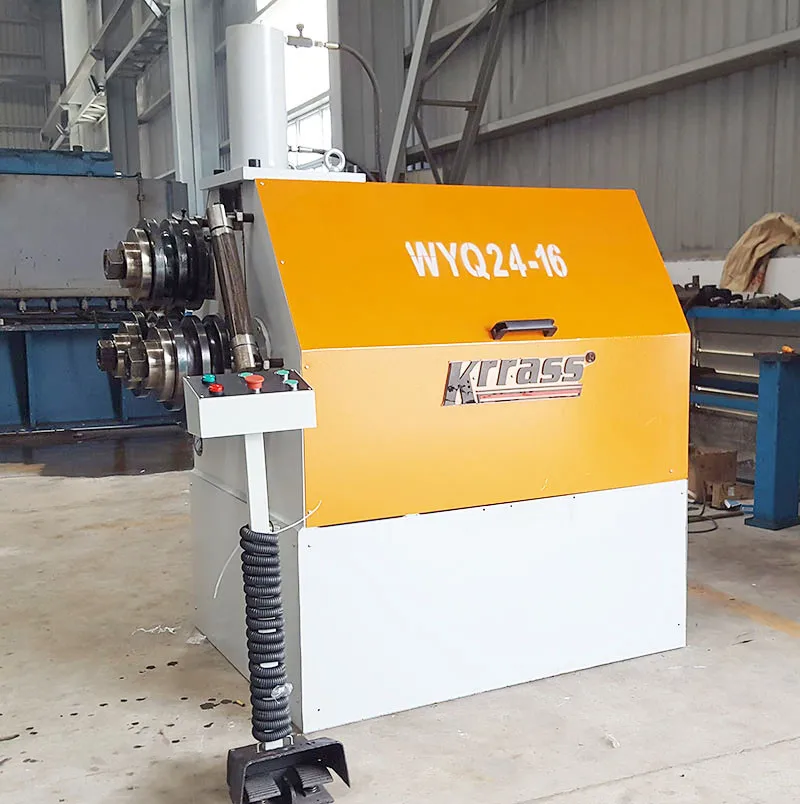

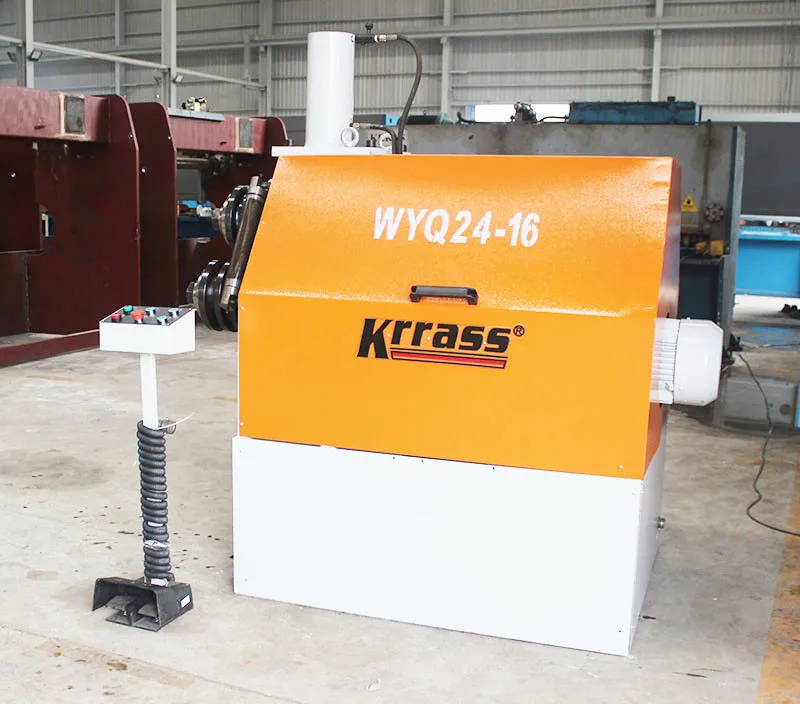

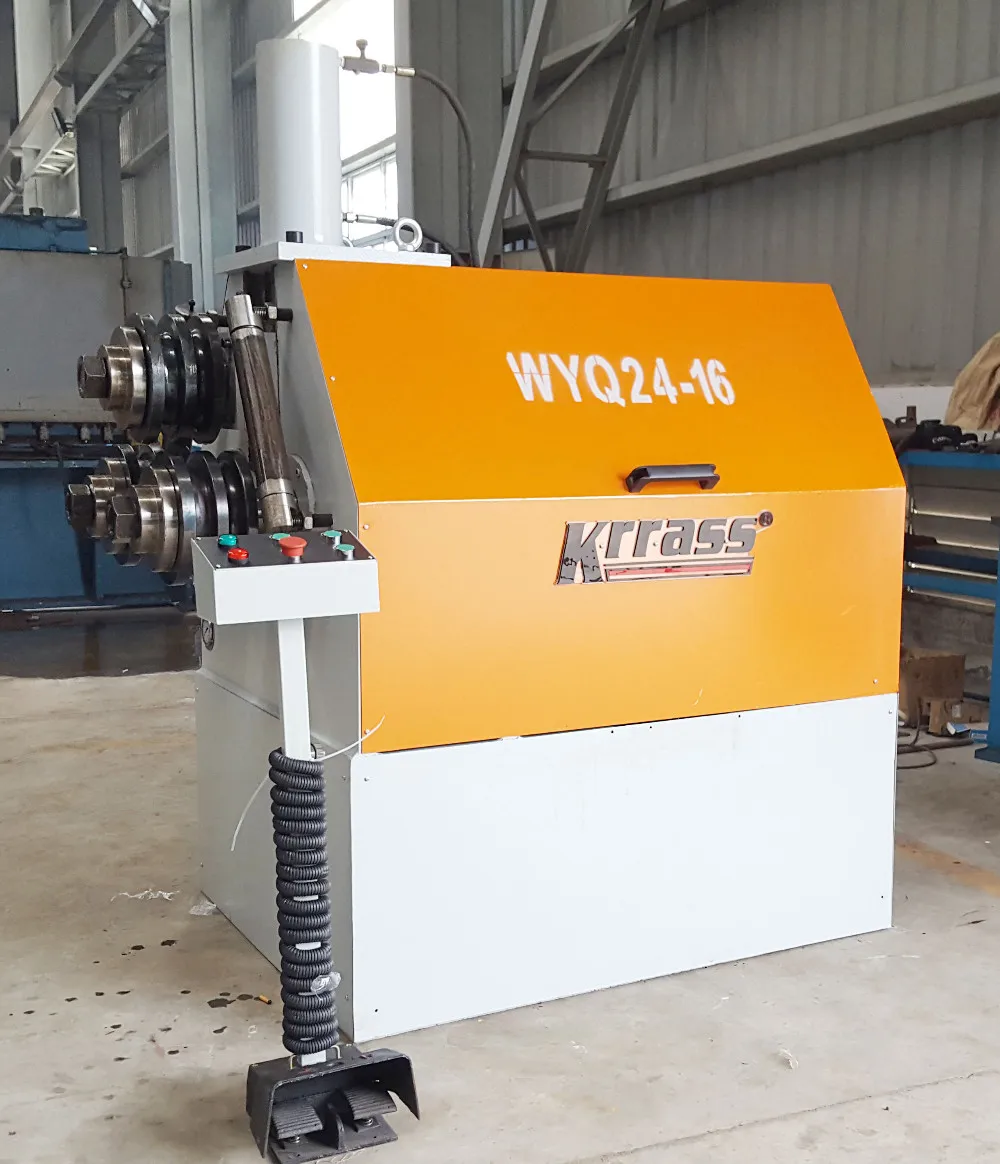

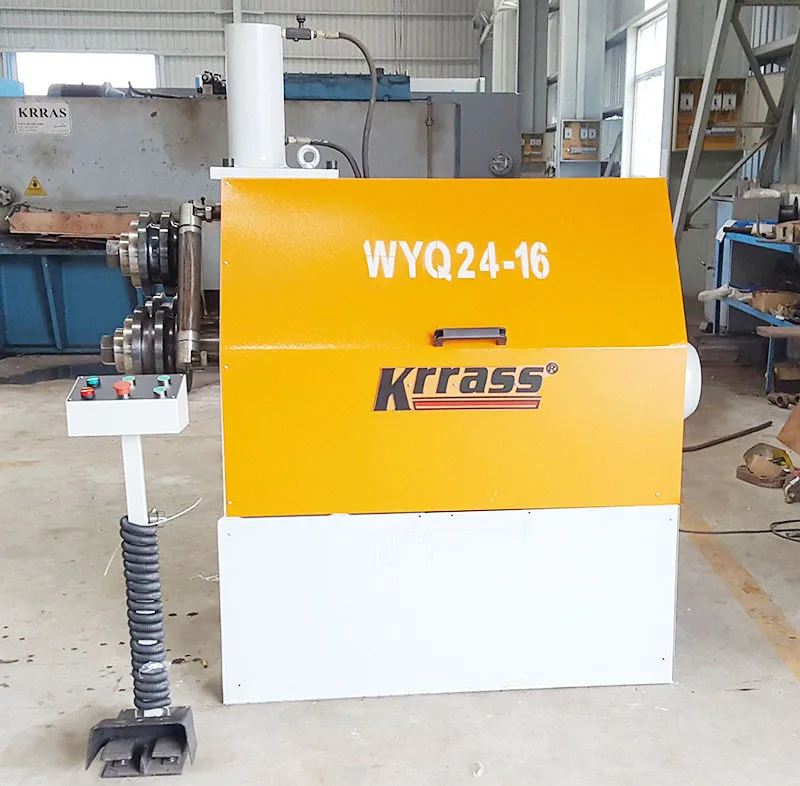

KRRASS profile pipe bending machine export to America,tube bending machine

Product Overview

Description





1. Product Description



1. Standard Equipment:

• Plate Support Arms


• Germany Bosch-Rexroth Hydraulic


• Germany EMB Tubing connector


• Germany Siemens Main Motor


• Tele mecanique/Schneider Electrics


• Hydraulic &Electrical overload protection


• Top and Bottom Tooling(86°,R0.6mm)


• Safety Standards(2006/42/EC):



2. Safety Equipment:

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

• Front finger Protection(Safety light curtain)


• South Korea Kacon Foot Switch(Level 4 of safety)


• Back metal safe fence with CE standards


• Safety relay with Monitor the pedal switch and safety protection





Watch Video on Youtube

https://youtu.be/0VwcoqJ7FXQ





2. Features



1. This section bending machine is high-efficient process equipment used to bend angle steel, channel steel, I-steel, flat steel, side steel, round steel and so on. One time feeding can complete rolling round and corrective round working procedure, it is widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and other business lines.

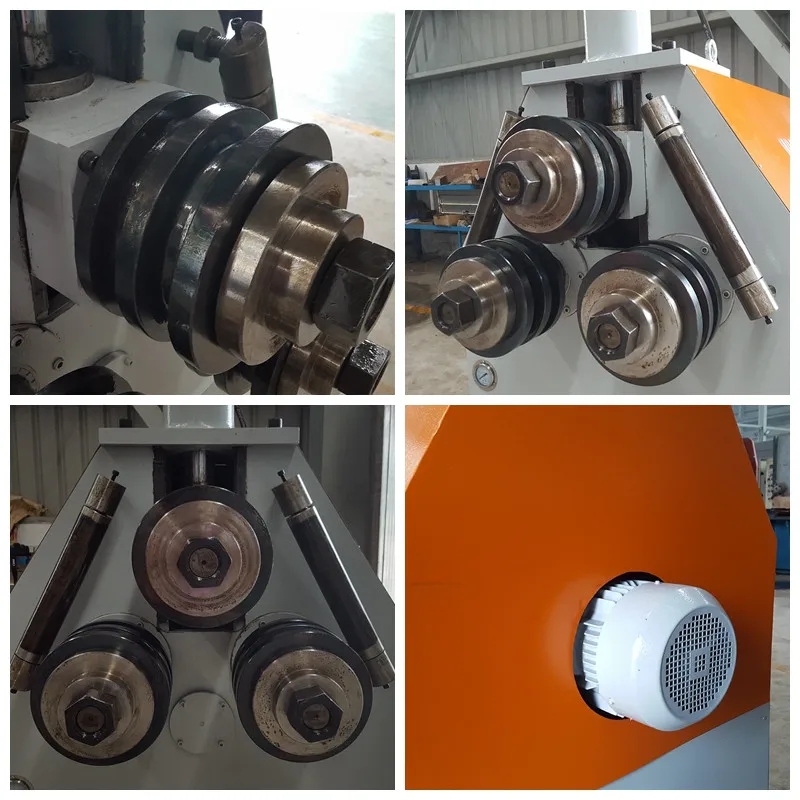

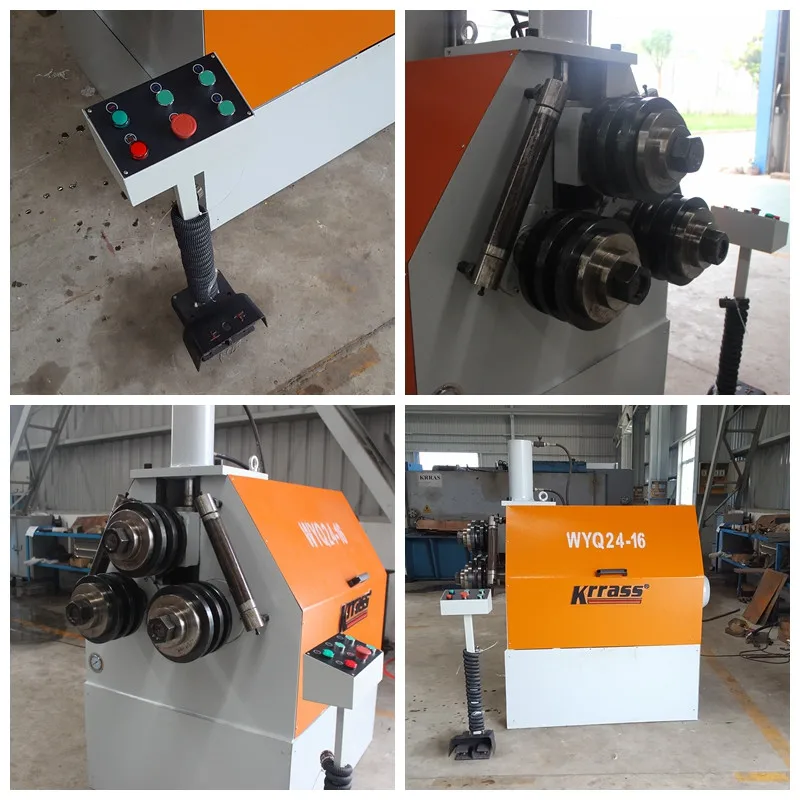

2. Upper roller of the machine is main drive roller with support rollers set on the two sides. It’s controlled by the electrical equipment, half hydraulic pressure drive.


3. This machine which is of advanced structure, reliable operation and complete in function is sophisticated Profile form equipment in domestic and abroad.Technical parameters



































































   Model		WYQ24-6
   Max. Bending Section Modulus		6
   Rolling Speed(m/min)		6
   Yield Strength (Mpa)		450
   Angle Inside Bending	Max. Bending Size(mm)	40X5
   Angle Outside Bending	Max. Bending Size(mm)	50X5
   U-steel Outside Bending	Max. Bending Size(mm)	8
   U-steel Inside Bending	Max. Bending Size(mm)	8
   Flat Horizontal Bending	Max. Bending Size(mm)	100X18
   Flat Vertical Bending	Flat Vertical Bending	50X12
   Round Pipe	Max bending size(mm)	42X4
   Round Steel	Max bending size(mm)	38
   Square Steel	Max bending size(mm)	45X3

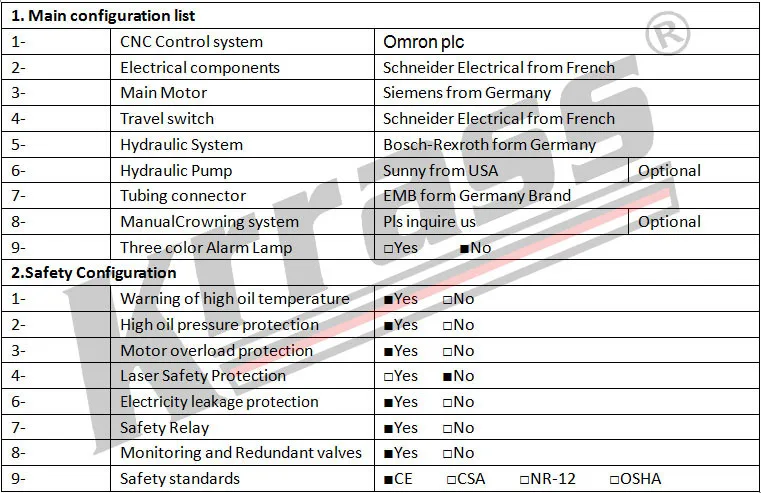

3. Configuration















 Watch The Details on Youtube



https://youtu.be/0VwcoqJ7FXQ

















Check Our Packing Video on Youtube



https://youtu.be/8cmx2DUqKV4
