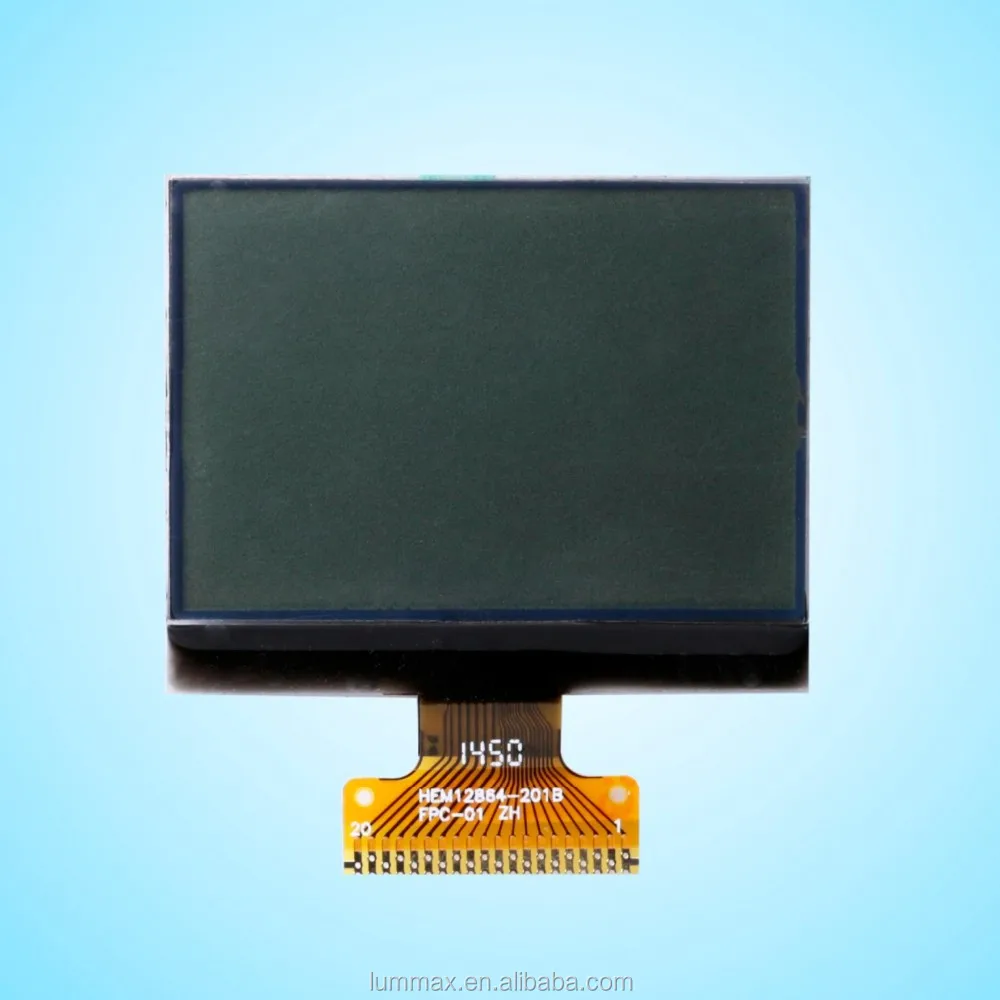

FSTN COG graphic LCD module 128*64 dots: Module Size: 46(W) x 37(H) x 2.8(T) mm View Area: 43(W) x 29.2(H) mm Display mode: Positive, Reflective Driver IC: ST7567 Power supply: DC 3.3V DOT number: 128*64 LCD type: Grey FSTN Temperature range: Extended(-10c-+60c) Viewing angle: 12 h Bonding: COG Can be customized.
Mechanical Datas
NO
ITEM
SPECIFICATION
UNIT
1
Dot Marrix
128(W) x 64 (H)
dot
2
Module Size
46(W) x 37(H) x 2.8(T)
mm
3
View Area
43(W) x 29.2(H)
mm
4
Active Area
39.65(W) x 25.57(H) mm
mm
5
Dot Size
0.28(W) x 0.37(H)
mm
6
Module Thickness
2.80
mm

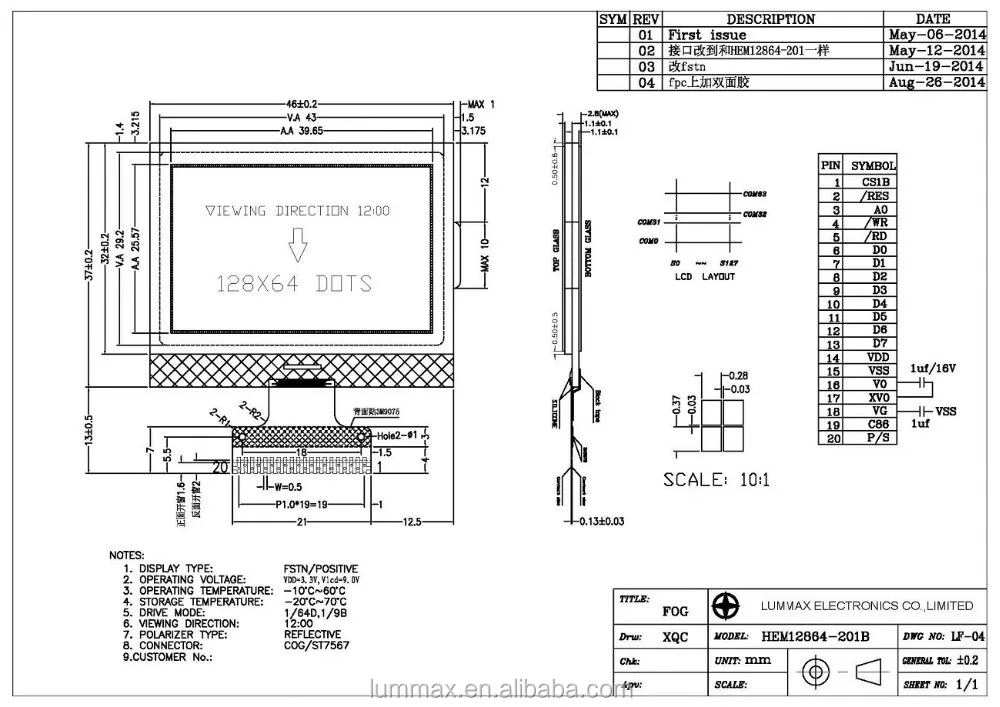

Drawing & Specs
Company Information
Lummax Electronics Co., Ltd. was establishedin May 2004. We are specialized in R&D, production and sales of LCD panel, LCD module, TFT LCD module, and resistive & capacitive touch panel products.
Lummax has 8,000 square meters of workshop and 7,000 square meters of dormitory. Its total investment is up to USD 5 million. We have 620 employees, 15 R&D staff and 40 QC personnel.
In line with quality management standardization, the company sets up quality management system in accordance with ISO9001:2008 international quality management system; In April 2013, we passed the TUV(SUD) certification and obtained ISO9001:2008 certificate.
Our major customers include: EMERSON, SIEMENS, JABIL, WKK and ASTROTECH GROUP etc. In the year of 2013, our annual turnover has exceeded 40 million US dollars.
We welcome all your LCD panel, LCD module and touch screen inquiries.
We will offer best price, fast delivery and good quality to all of our customers.
Our Services
Our sample leadtime: 10 days;
Mass production leadtime: 15 days.
100% product testing and inspection before shipment.
