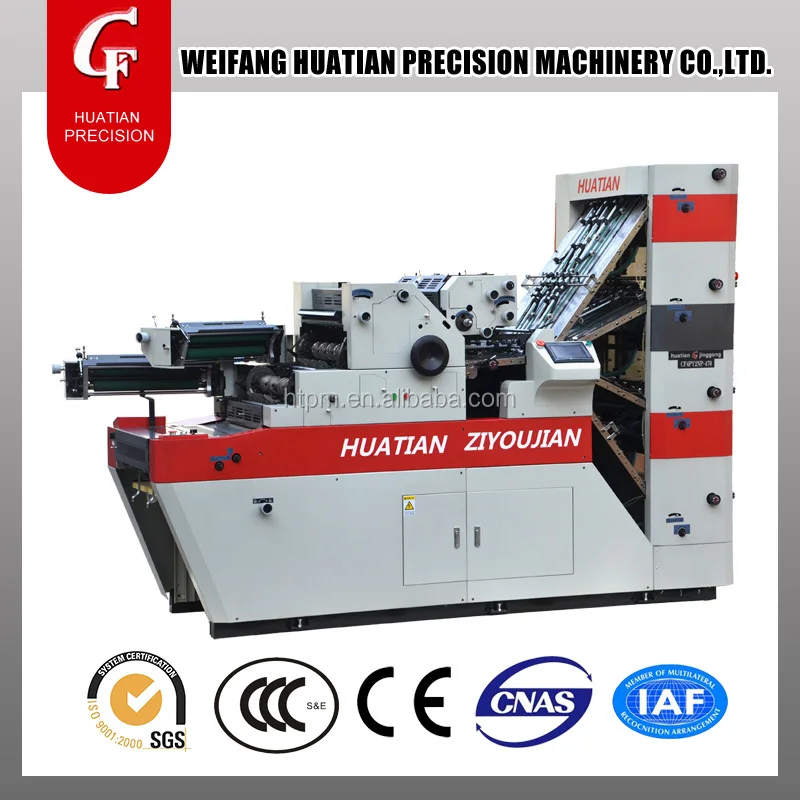

CF4PY2NPS 470 CF brand offset printing machine with number and collate

Product Overview

Description



Double numbering and printing system, perfect perforating function, 4 layers collator









Technical parameter:

Model	CF4PY2NPS-470
Max paper size	470*365mm
Min paper size	210*210mm
Paper type	28-128g/m2
speed	2000-80000sheet/hour
power	Main motor 1.5KW/380V,air pump(1.5KW/380V)×2 units
Machine size	3000(L)×1100(W)×2032(H)
weight	1250KG



Character and Advantage of our offset printing mahcine price:

1. Easy operation :professional design ,compact structure ,easy to operate and do print/number /perforate and collate work automatic

2. Perfect feeder:Paper feeder is vertical arranged in one line,it is easy and safety to load paper and check the paper .

3. Mutifunctional collator:Paper collate function, there are 2 type, one is the paper come together to the number unit, then the first paper is numbered in ink, and other 3 paper is copy color.  Another type is paper come to number unit one by one , then all the 4 paper is original numbered. It could do more than 4 layers collate work

4. Insert cover : It have the function to insert the cover and mark when reach the preset quantity.

5. Special number : the paper to be numbered is optional. and it could reach :Zero Space : number .

6. Optional perforation :It could do the horizontal and vertical perforate work as your request one time ,,and the paper to be perforated is optional.

7. Automatic delivery :The paper delivery could get down automatic, and the delivery pile height is more than 90cm.

8. Automatic oil system: the oil system could oil the machine in fixed time and fixed quantity automatic.

9. Double sheet detection:there is ultrasonic double sheet testing.

Traing and exhibition:
