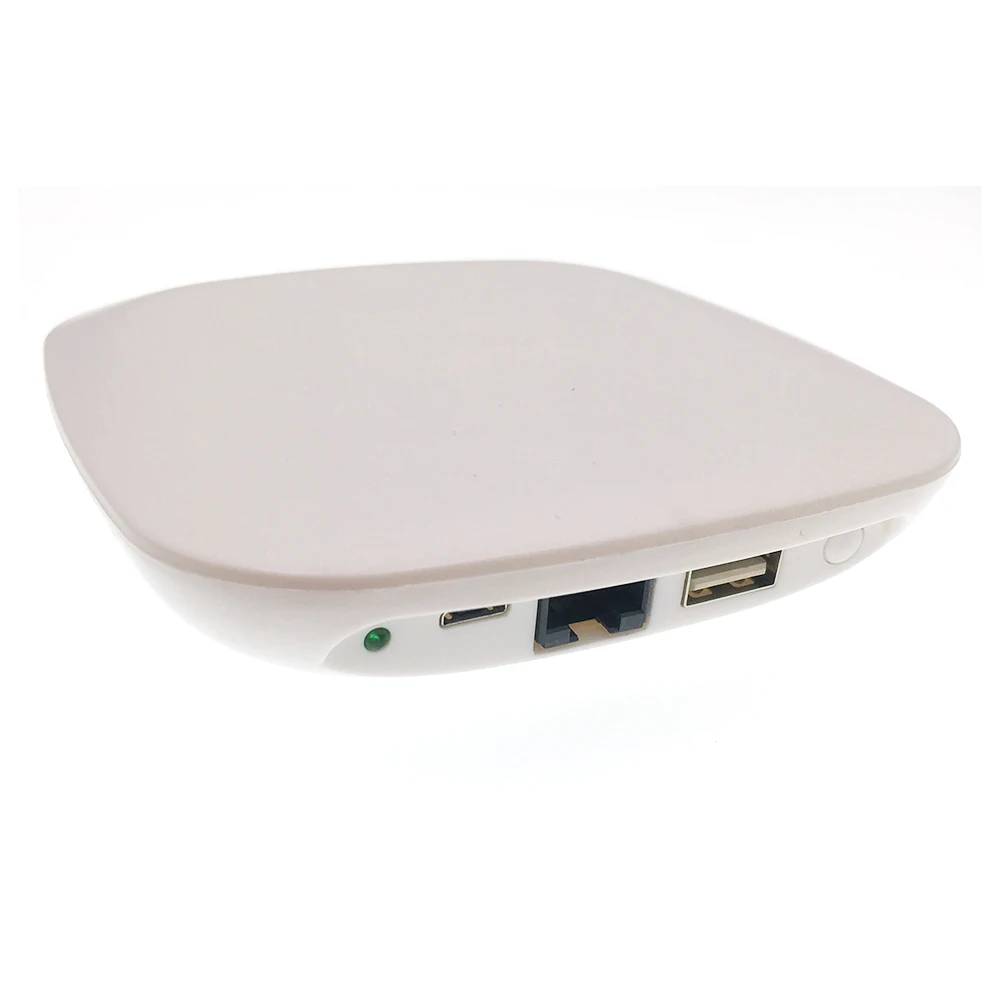

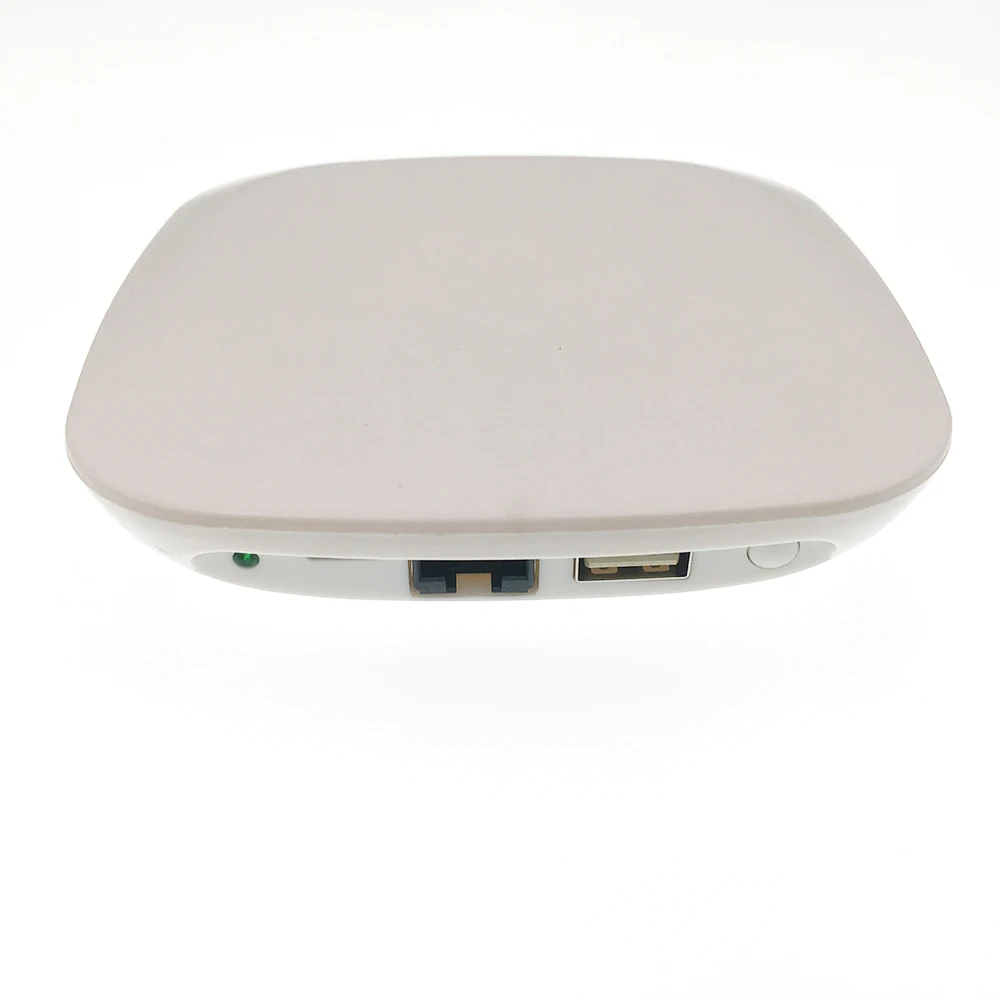

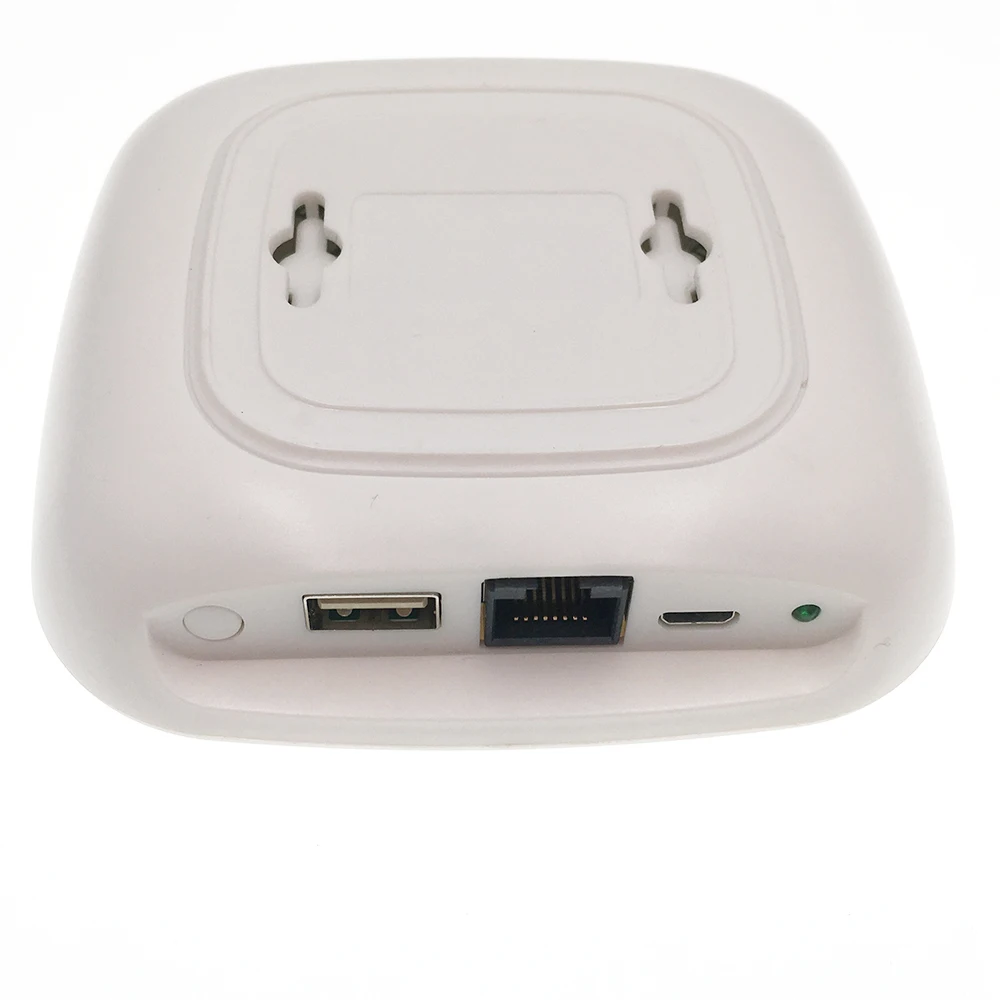

JINOU BLE 4.0/4.1 Bluetooth Wireless Smart Beacon ibeacon Manager/ Gateway WiFi Bridge

BLE 4.0/4.1 Bluetooth Wireless Smart Beacon ibeacon Manager/ Gateway WiFi Bridge

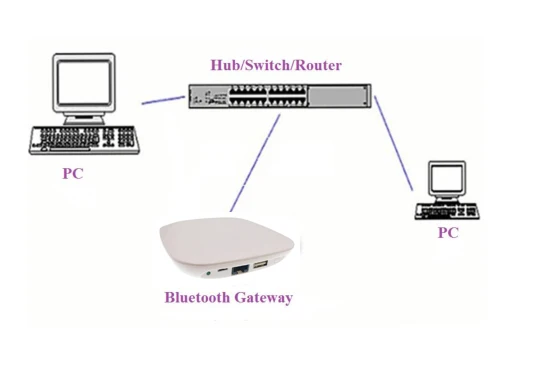

Jinou BLE Bluetooth gateway supports Bluetooth 4.1BLE specification, follows GATT protocol, compatible with other 4.1BLE devices. When BLE getaway searched other BLE devices, it will upload their Bluetooth address, device name, signal power and other information to PC in LAN via TCP/IP. It can use RJ45 or WIFI upload information to PC in LAN network.
BLE gateway and also connect with Jinou Beacons and change beacon parameter such as device name, UUID, Major and Minor.

Characteristics:
In accordance with GATT specification of 4.1BLE. Have good compatibility with other BLE device.
BLE getaway can monitor movement of neighboring BLE devices.

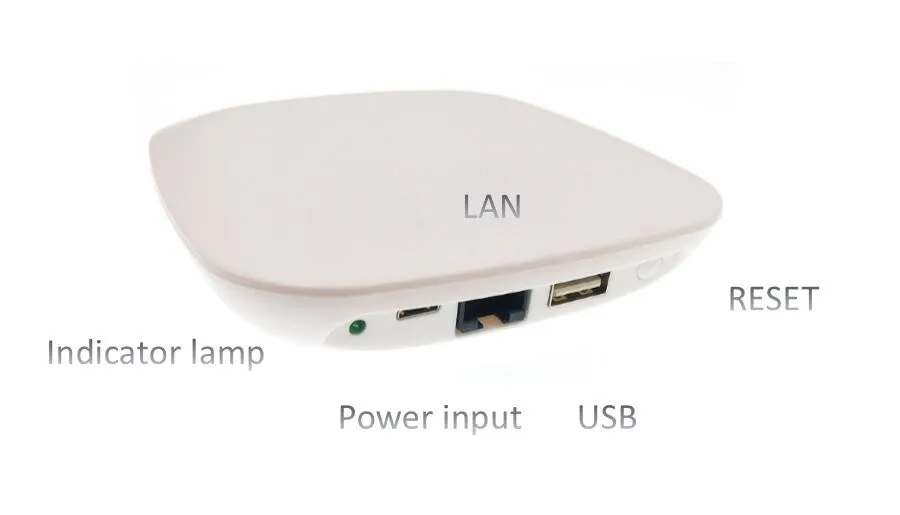

BLE gateway has WIFI function. It can connect router via RJ45 port or connect network via WIFI.
Having data caching function. Don't lose package when uploading date.
In accordance with FCC, CE, ROSH and other certificates.

Bluetooth and WIFI use different frequency, circuits and antenna. Has little interference to each other.
Modes: automatic power-saving mode, BLE mode and high-speed working mode.
Bluetooth protocol: LL, MP, L2CAP, ATT, GATT, GAP
WIFI supports IEEE 802.11b/g/n protocol.
Network supports: TCP/IP, DHCP, ARP, RARP, TCP, UDP

Applications

Device data collection

Staff monitor in school, workshop, etc.

Smart home, building automation

Logistics

Medical

Exercise and fitness

IOT

Type: BTP106-2

1. Linux system

2. Searching range: 30m in open air

3. 10M/100M adaptive network

4. Scan 300pcs broadcasting in 8s

Type: BEM01

1.Linux system

2. Searching range: 50m in open air

3. Remotely update beacon software

4. Scan 13pcs broadcasting in 8s

Type: BTP105

1. Mbed system

2. 10M

3. Scans unlimited broadcasting

4. Connects 1 BLE device

Chongqing Jinou Science & Technology Development CO., Ltd is established in September 2000. We focus on Bluetooth Technology as a leader in China for 15 years. Jinou Bluetooth Technology Research Institute shoulders R & D task for our customers and help them keep top position in their field needless to mention some of them even went IPO.

Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.

In recent years, Jinou has partnerships with Mediacom, Gamestop, Microsoft, ARM, Invengo, HUAWEI,POTEVIO, Southsurvey, Chongqing CHANGAN, Hanwei, SNBC, Newland Group, Hi Target, CMCC, China UNICOM, CQTV, IT University of Copenhagen, Peking University, Tsinghua University, Chongqing University, Chongqing University of Posts and Telecommunication etc..

Some of our products like Smart Socket[Bluetooth/ WiFi/ infrared], Bluetooth headphones, Bluetooth Smart Controller, Fly Mouse, Bluetooth Locks, Bluetooth Medical Module, Wearable Bluetooth Module, Beacon etc., are welcomed by all people around the world except the residents from North pole and South pole.
