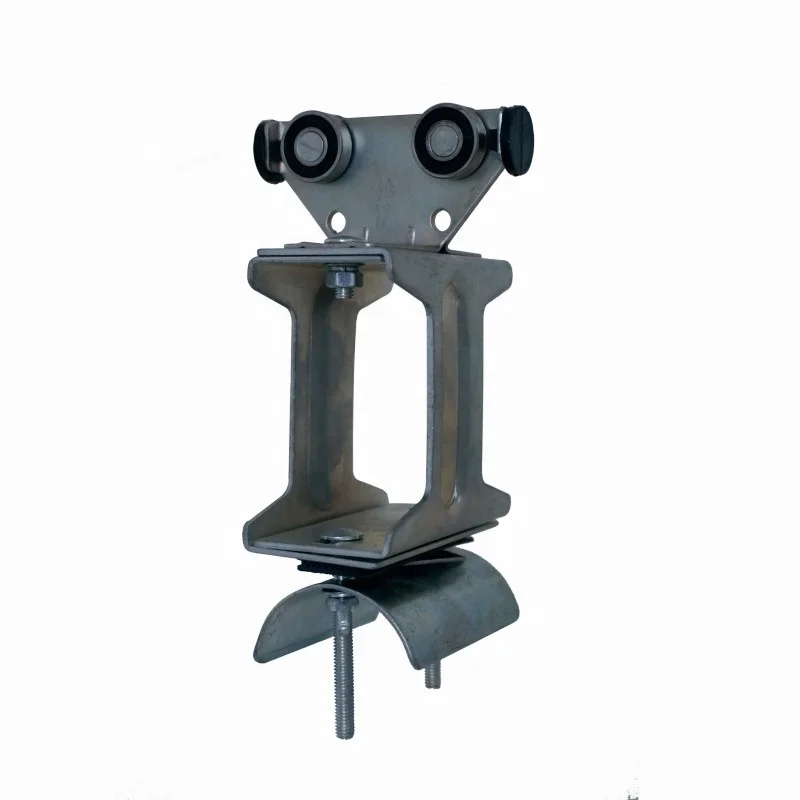

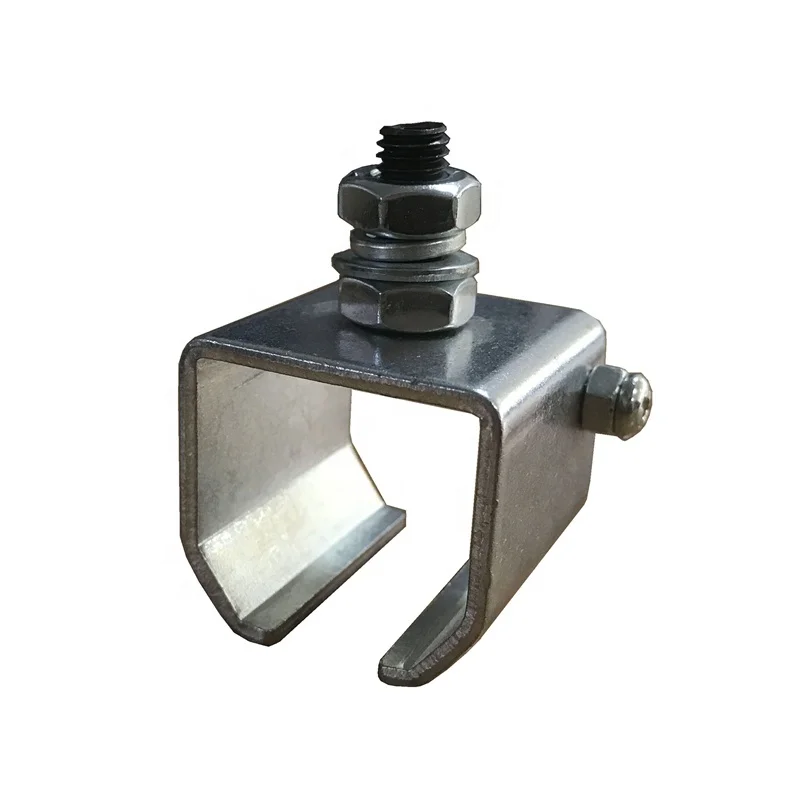

C30MC 60 оцинкованная сталь C трек плоский кабель немедленно гибкий кабель канал кабельныебарабаны для загрузки средней тележка
- Category: >>>
- Supplier: Wuxi Komay Electric Equipment Co. Ltd.
Share on (60205519259):
Product Overview
Description
Product Description
Trolley design:
Flat cable trolleys with support diameters of 50 to 400 mm. Round cable trolleys with u-bolt or ball joint for cable clips. Special designs for special applications. Ideal control unit trolley.
Load capacity: up to 125 kg Max. system length: 150 m
Track Configuration:
Straight, only partially for curved tracks.
Technology

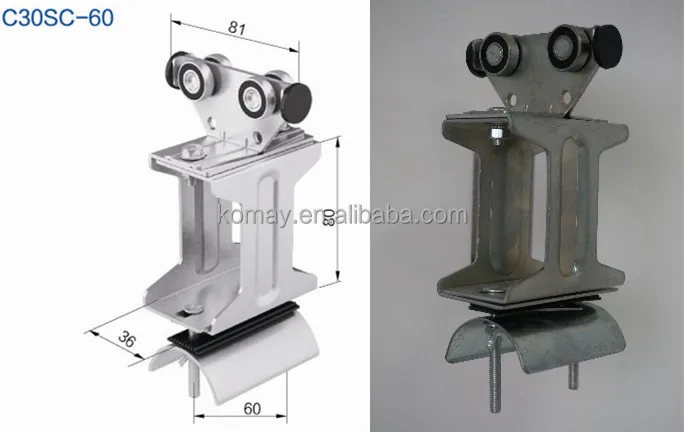

Type | C30MC-60 | ||
Wheels | Ball bearings,hardened,galvanized Temperature resistance Lub.grease of wheels: -30℃ to +125℃ Traveling speed: ca.120m/min. | ||
Material | Carrier body: steel,galvanized Support saddle: steel, galvanized Bumper: Neoprene Dowel: steel,galvanized Hardware: galvanized Temperature resistance: -30℃ to +100℃ | ||
Max. Cable load | Max.20kg per carrier | ||
Dim.of Cable (mm) | Max.60W*32δ | ||
Weight (kg) | 0.28 | ||
Cat.-NO. | 701201 711102(R=50,ABS) | ||
Related Products

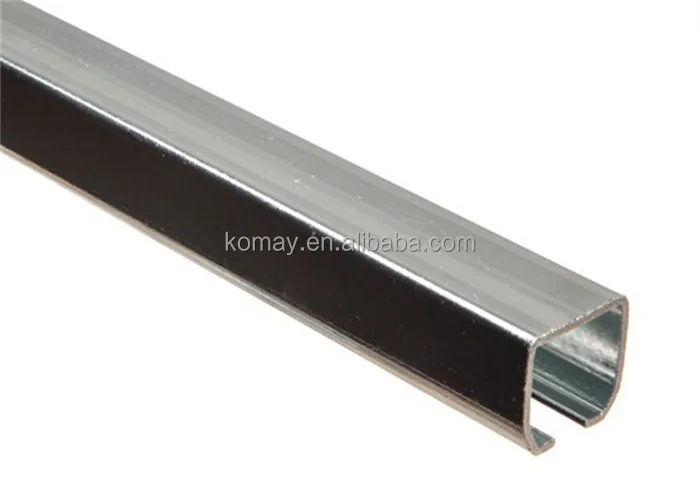

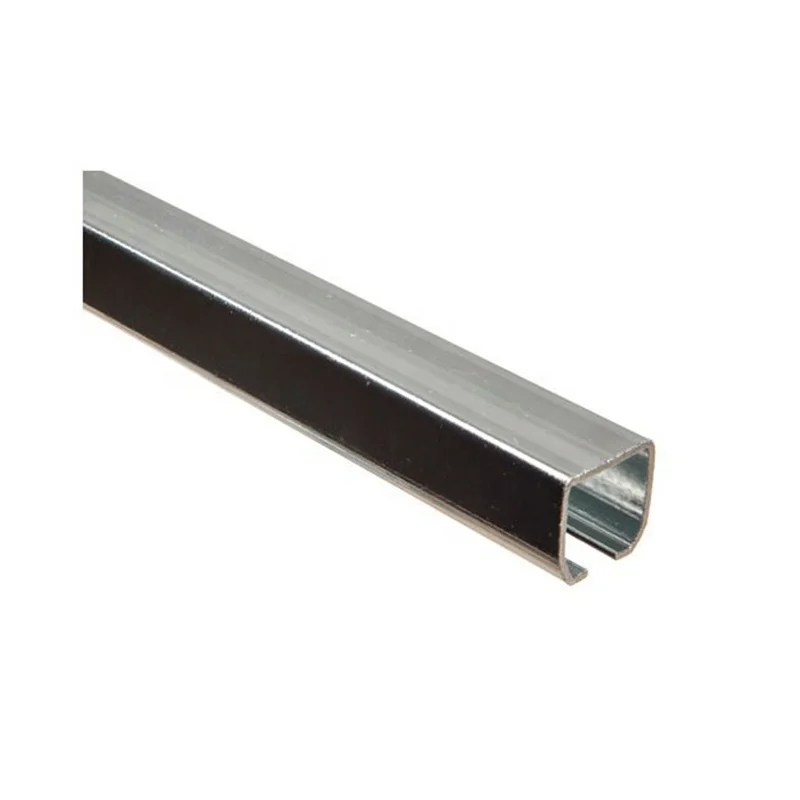

C30*28*1.5mm
 | Type | C30*28*1.5mm |
| Cat.-No. | 700116* | |
| Material | Hot Dipped Galvanized | |
| Weight | 1.03kg/m | |
| A | 30 | |
| B | 28 | |
| C | 10 | |
| Thickness | 1.5mm |
Accessories
Hangers
Towing trolley
