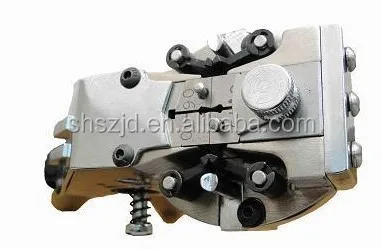

Copper Aluminum Welding Machine copper wire Welding Machine

Product Overview

Description

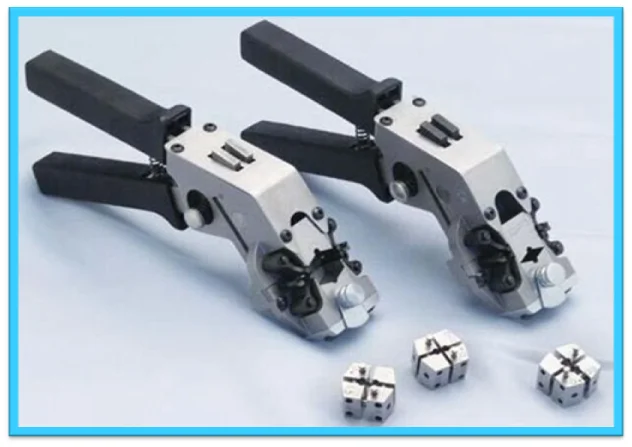

      Copper Aluminum Welding Machine Copper Wire Welding Machine

1.Decription:

*Application: Widely used in cold welding for the wire of copper, aluminum, nickel, Platinum, and other non-ferrous metals

*Welding Range of Copper wire: 0.06mm-0.50mm

Aluminum wire: 0.06mm-0.50mm

*Structure: Imported mould Steel

*Overall dimensions: 190mm*50mm* 60mm (L*W*H)

*Frame-material: Precise die-casting

*Net Weight: 0.7kg

*package weight: 1.3KG

*Package: beautiful aluminum case

*HS code:8468800000

*MOQ: 1 set



2.Specification:



*The main benefits of using cold welding

The process is quick, reliable and cost-effective. The weld cycle takes only seconds to complete and creates a permanent bond stronger than the parent material, without using heat, fillers or fluxes.

*What kind of materials can be welded using cold pressure?

Cold welding can be used to join most non-ferrous wire and strip with diameters of between 0.06mm and 10mm copper and 15mm aluminum.

*Can different metals be welded using cold pressure?

Cold welding can be used to join dissimilar materials, such as aluminum to copper.

*The tolerance of dies to wire

-0.01mm + 0.03mm wire to dies tolerance.

*For example: 0.9mm dies can weld the wire diameter from: 0.89mm to 0.93mm wires

Introduction: Cold pressure welding machine: also can be called as cable & wire pressure welding machine, pressure welder. According to its application and shape, this machine can be divided into hand clamp type, desktop/ bench type, hydraulic type.

The welding part is very firm, we have tried following test.

  *The resistance test:

Resistance value is not greater than the original wire.

  *Pulling forcetest:

Constant to the joints, never broken in the joints.

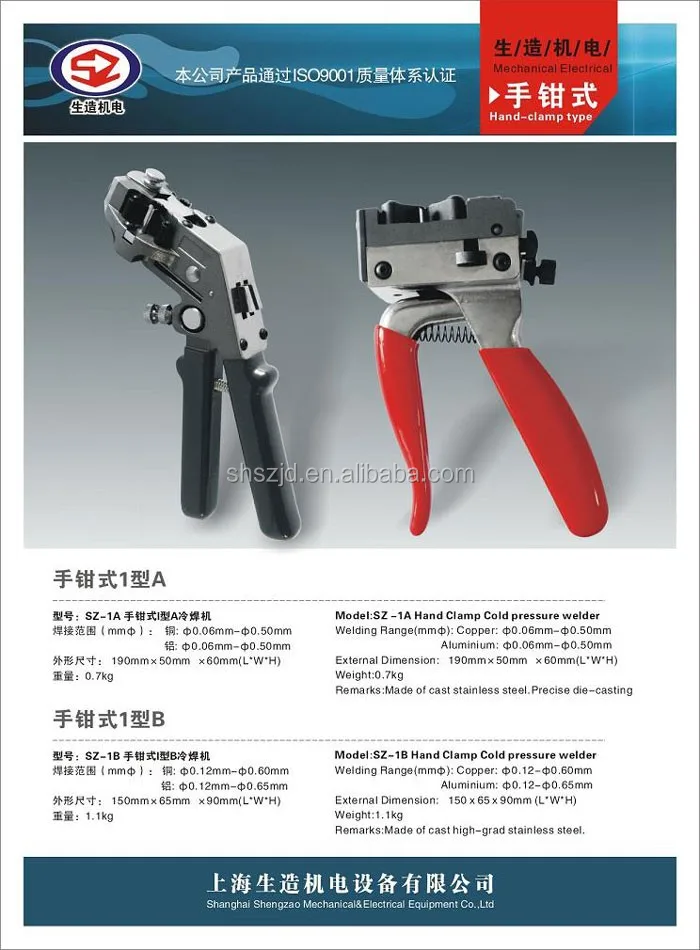

product name	Copper aluminum welding machine copper wire welding machine
Welding range of copper	0.06mm--0.50mm
Welding range of aluminum	0.06mm--0.50mm
Weight	0.7KG
Dimension	190mm*50mm*60mm(L*W*H)
Remark	Made of cast stainless steel
Package	Aluminum case



3.Advantage:

*One year quality guarantee for Aluminum Extrusion Press Machine.

*Reasonable price.

*Flexible delivery for sample and big order.

*14 years working experience for production & Research and Development.



4.Transportation:

*DHL is avaliable.

*Sea and air delivery is avaliable.

*Welcome your agent to deal with copper aluminum welding machine copper wire welding machine.



5.Delivery Time:

 Flexble delivery time,ready to ship,being in stock is available for copper aluminum welding machine copper wire welding machine.



6.Payment Terms:

Western union	MoneyGram	Paypal	T/T	L/C	D/A	D/P
Yes	No	Yes	Yes	Yes	No	No



7.Exporting Countries:

Asia	Europe
South Korea,Japan,India,Indonessia,Iran	Britain,France,Germany,Italy
South America	Afria
Brazil,Chile	Egyt,Tanzania



8.Company Introduction:

Shanghai shengzao Mechanical&Electrical Equipment Co.,Ltd. was established 2000.All-in one service,including parts/accessries/metal design,producing,machine processing and post processing.Operating mutual with each product.Replaceable within 3 months from the date of sale.One year quality warranty and technical guideance.We are an excellent manufacturer of cold welding and pressure welder.

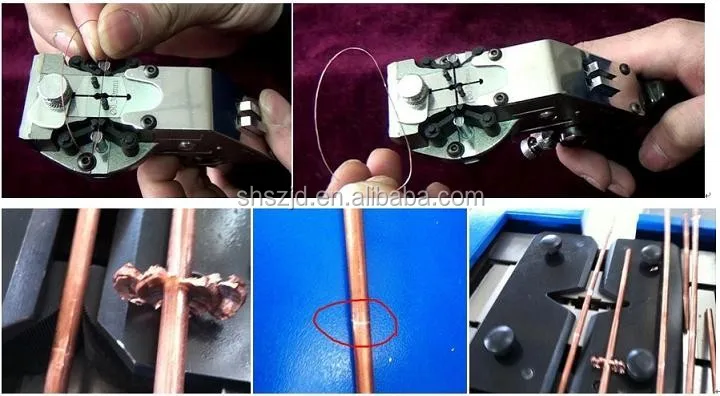

9.Ref. pictures of welding process and dies:

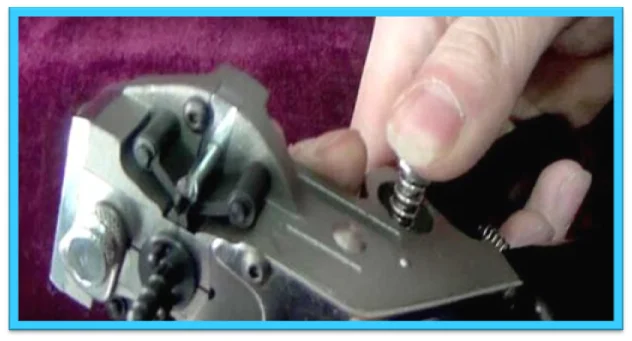

Check and install the dies

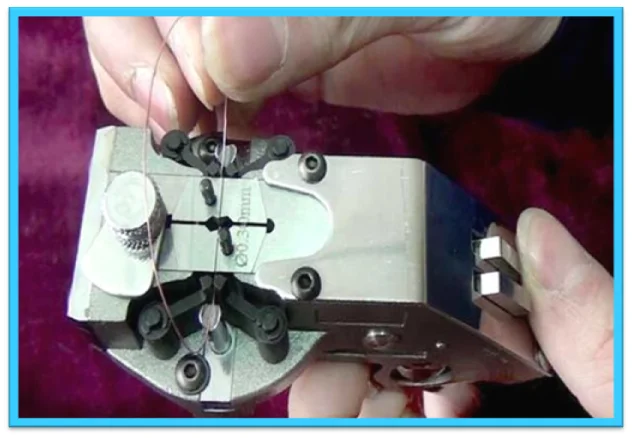

Thread the wires

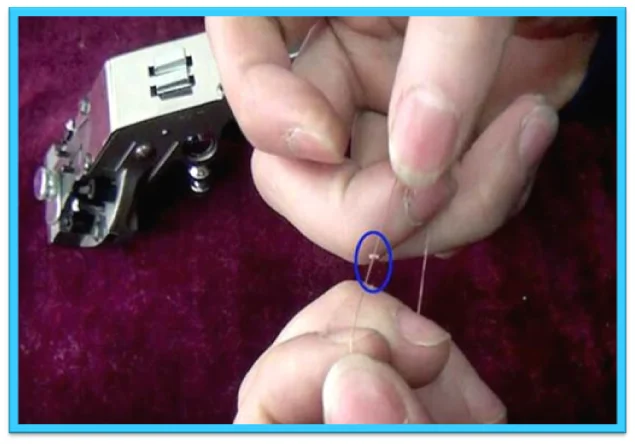

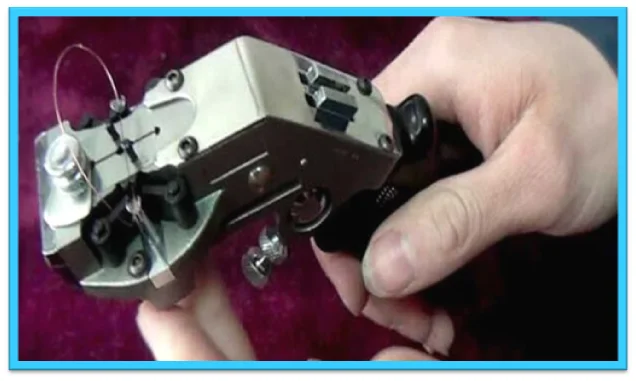

Welding the wire

Clean the flash after welding

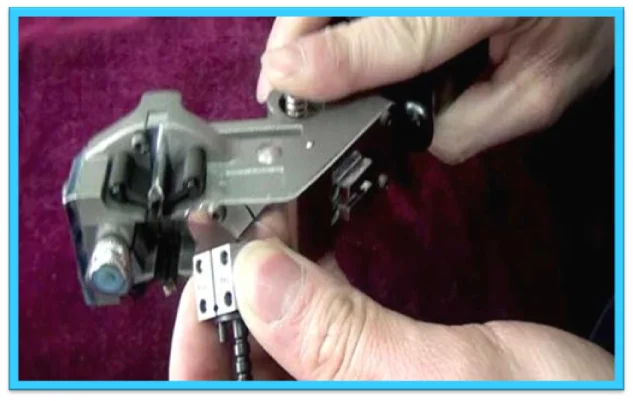

Take out the dies

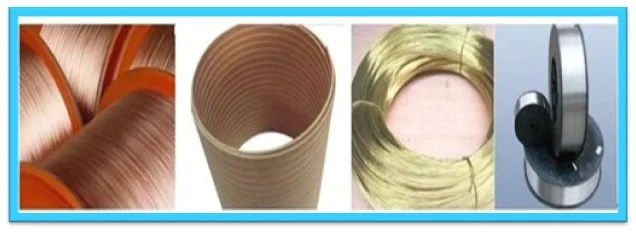

This wire can be welded

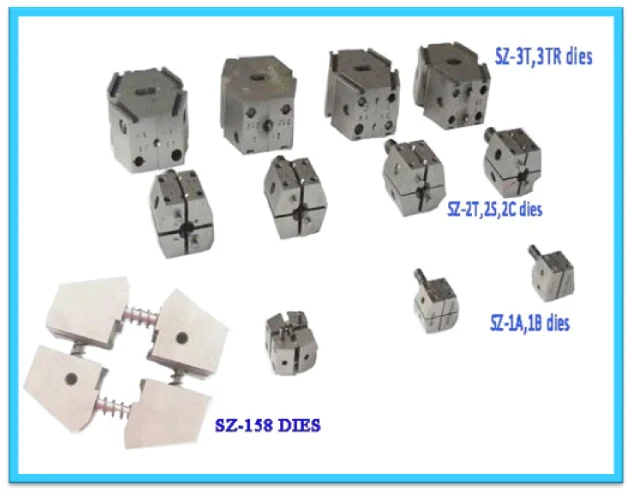

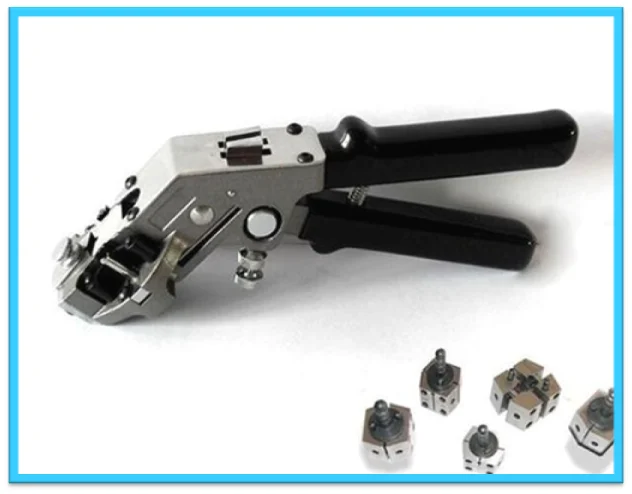

You could choose suitable dies

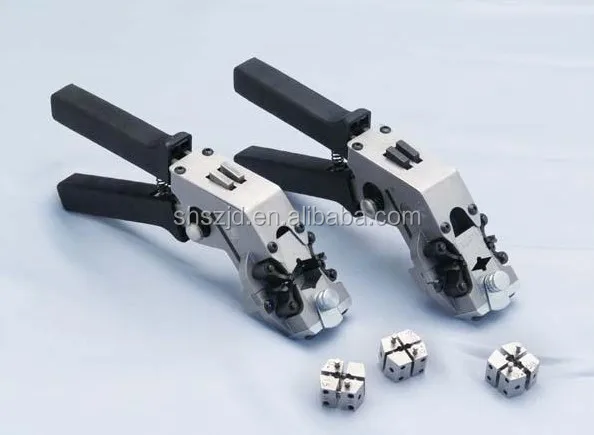

All kind of welding machine



10.Ref. picture of package/factory:

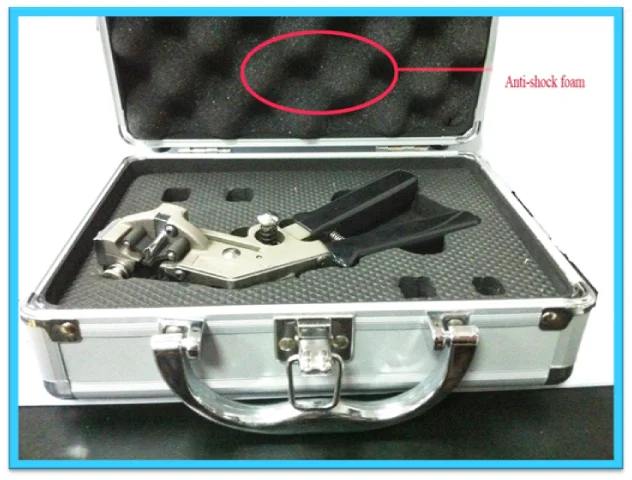

Aluminum case with anti-shock foam



Welcome to our company
