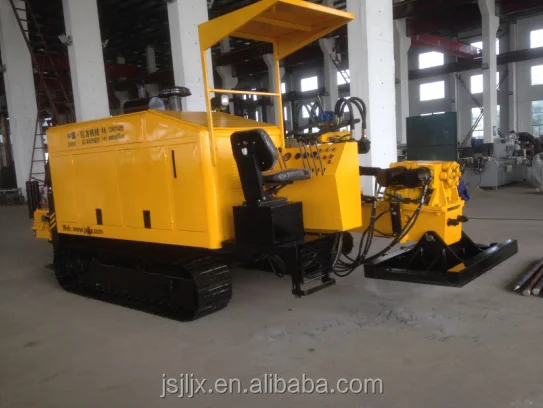

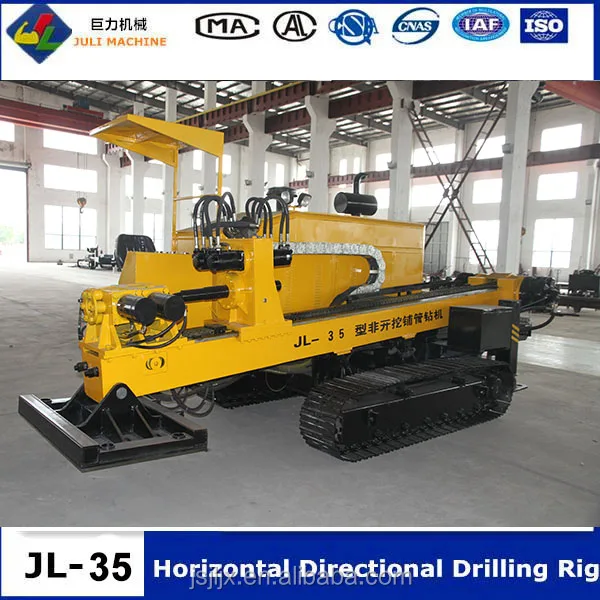

Best underground pipe laying machine type JL360 Horizontal Directional Drilling Machine

Product Overview

Description

 Product description

JL-36 ton Horizontal Directional Driller is a new underground piping construction machinery which is based on the advanced theory of “Trenchless Technology”. With fully hydraulic and power-drive technology, it achieves drilling, rotating, back-broaching, back-towing, and travelling. It is widely used for pipeline construction and maintenance for water supply, coal gas, electric power, telecommunication, natural gas, and petroleum in railways, roads, buildings, rivers, and other construction-limited areas, such as cultural protection areas, downtown areas, crops and vegetation conservation areas.



 Parameter



Steel crawler   gear and rack





JL-36 ton horizontal directional drilling machine
Specifications
Engine Brand	Cummins6CTA8.3-C215 (160kW)
Weight of machine	8500kg
Overall Dimension (L×W×H)	6750x2280x2500
System voltage	24V
Operational
Pullback(max)	360kN
Thrust(max)	360kN
Spindle torque(max)	14000Nm
Spindle speed	0-65-105r.p.m
Incidence angle	8-20°
Ground drive speed	0-2.5km/h
Grade ability	25°
Drilling parts
Diameter of bit	76mm
Length of drill pipe	3000mm
Specification of backreamer	Ø300, Ø400, Ø500, Ø600
On-board fluid system
Max pressure	8Mpa
Max flow rate	320L/min
Mud mixed ingredients system
Mud mixing station structure	integral type
Volume	3m³
Dimension of tank	2.45×1.4×1.55m
