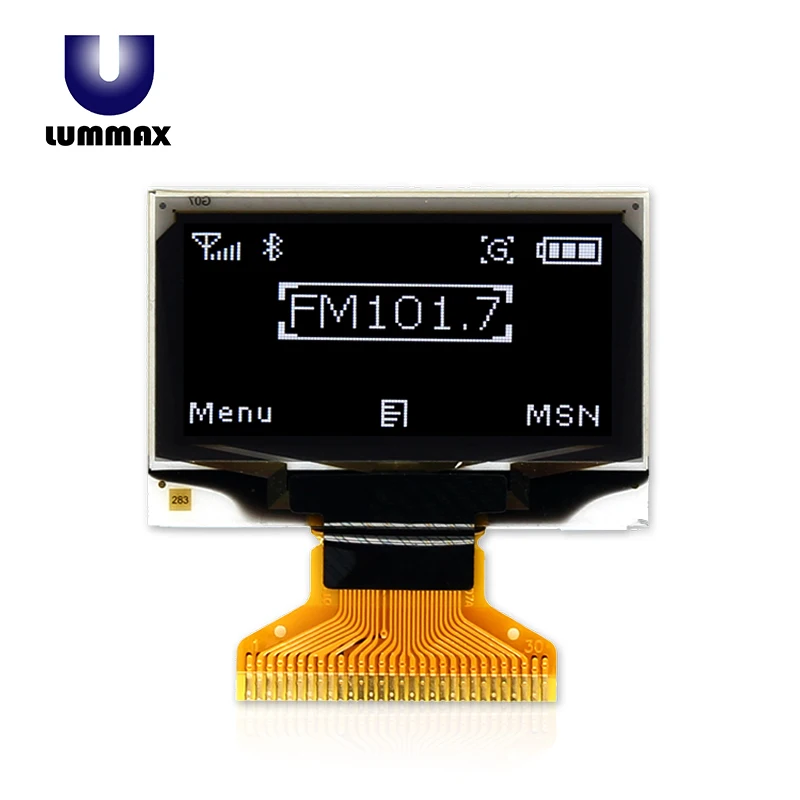

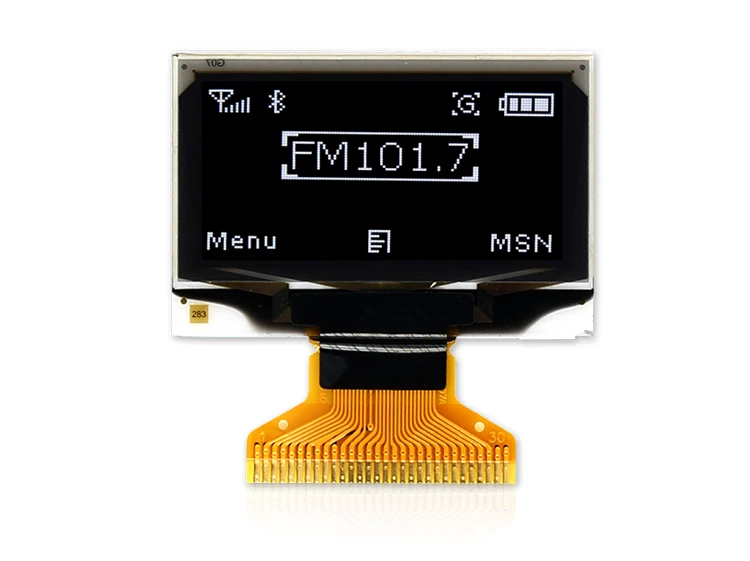

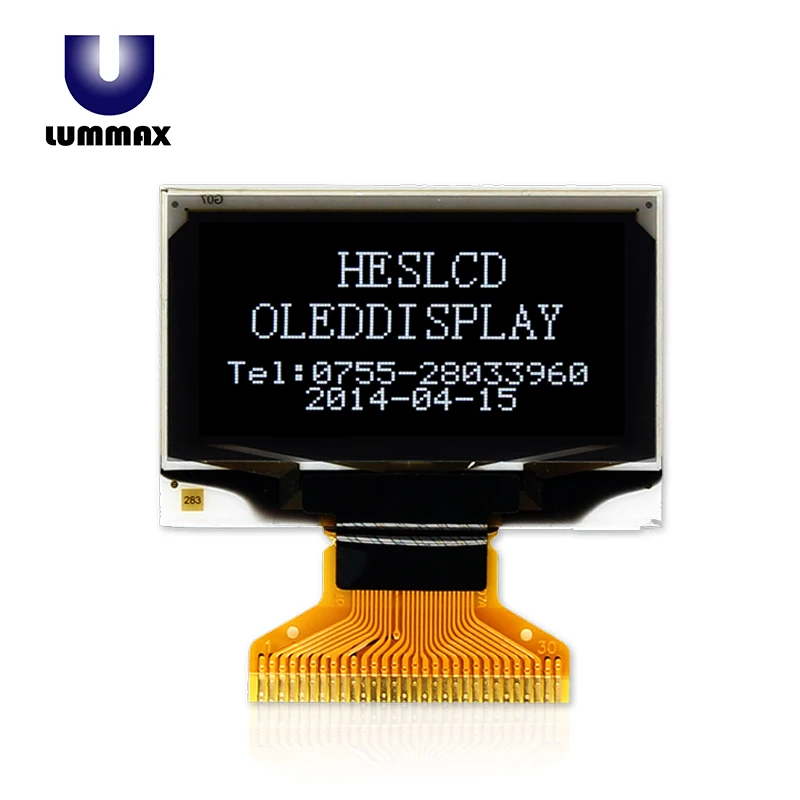

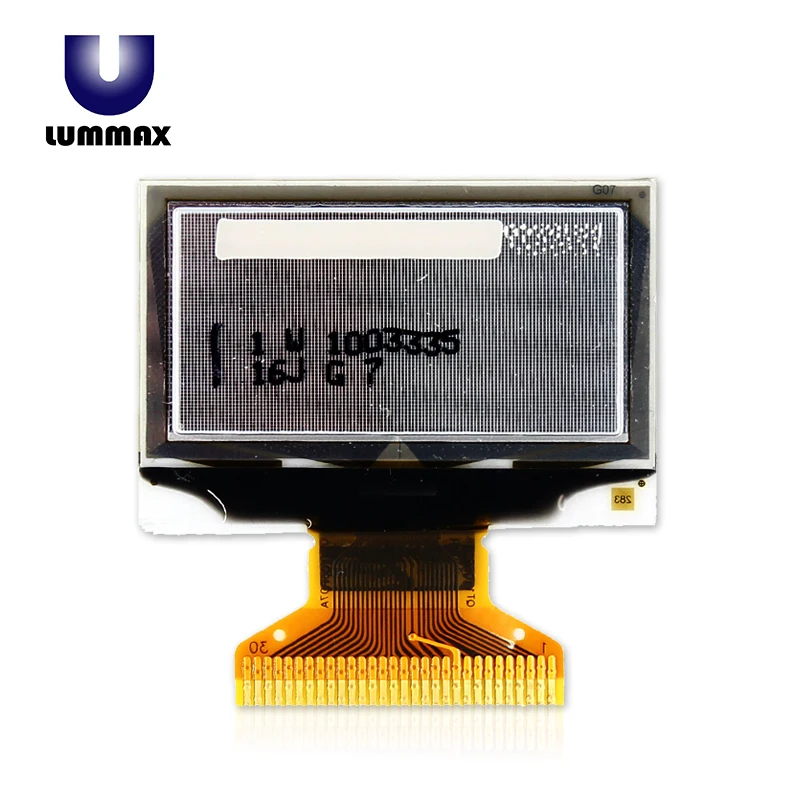

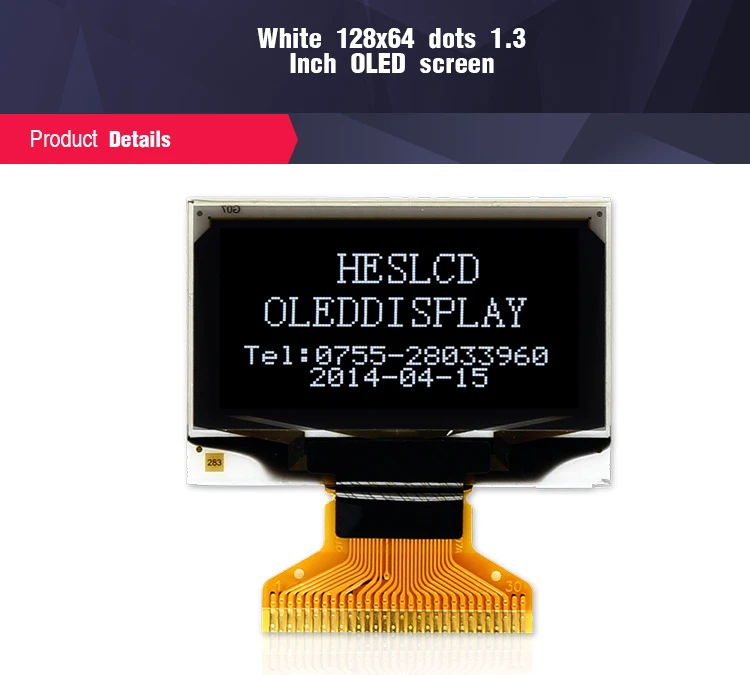

White Color 128x64 Dots 1.3 OLED
- Category: >>>
- Supplier: Shenzhen Lummax Electronics Co. Limited
Share on (60206465816):
Product Overview
Description

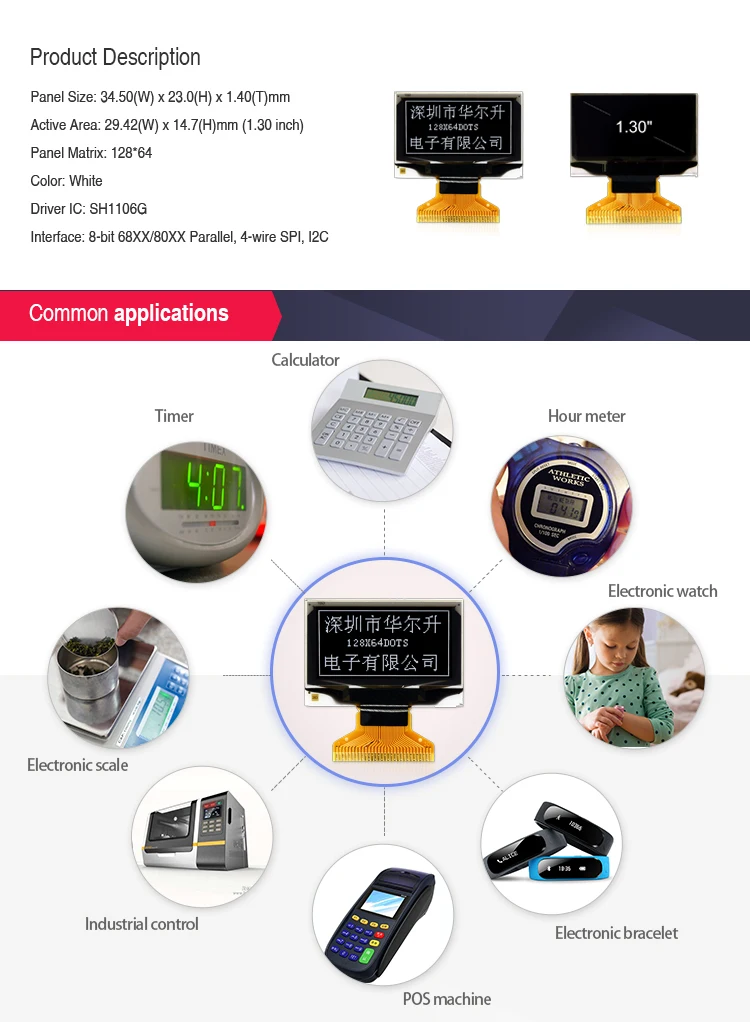

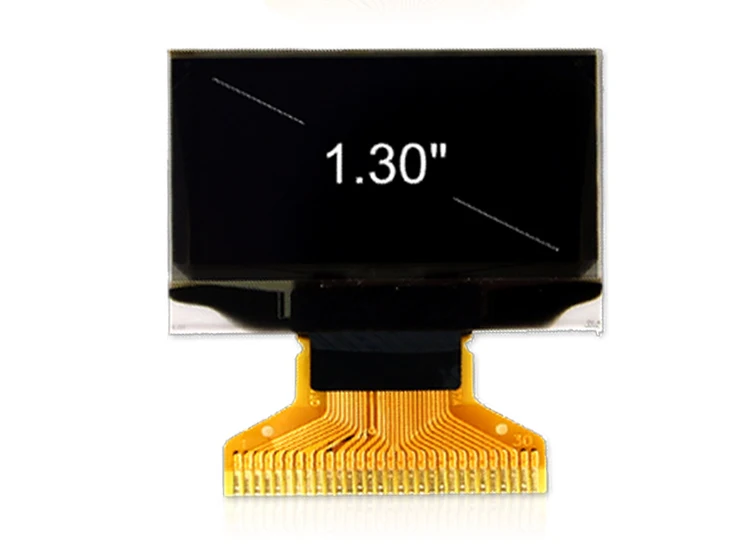

1.3 Inch 128*64 Dots OLED Display
Product description
Product description for

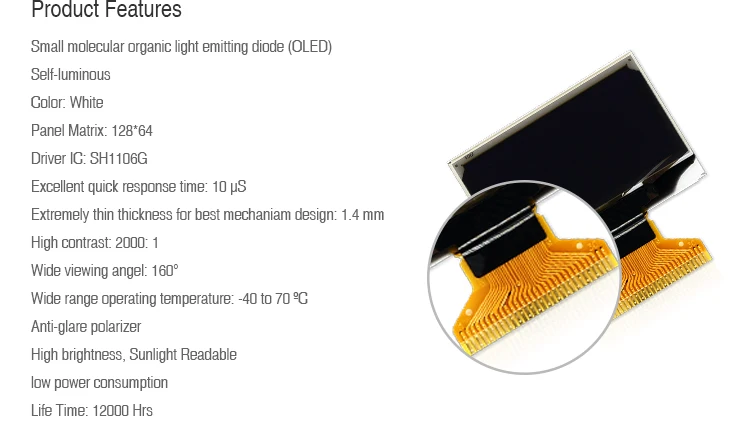

Features
Small molecular organic light emitting diode (OLED)
Self-luminous
Color: White
Panel Matrix: 128*64
Driver IC: SH1106G
Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 1.4 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs
| NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Marrix | 128(W) x 64(H) | dot |
| 2 | Dot Size | 0.21(W) x 0.21(H) | mm |
| 3 | Dot Pitch | 0.23(W) x 0.23(H) | mm |
| 4 | Active Area | 21.744(W) x 10.864(H) | mm |
| 5 | Panel Size | 34.50(W) x 23.00(H) | mm |
| 6 | Panel Thickness | 1.40 | mm |
| 8 | Diagonal A/A Size | 1.30 | inch |
Other PMOLED Models
| Lummax Electronics Standard PMOLED Display Model List | |||||||
| Website: www.lummax-ele.com | |||||||
| Model No | Diagonal Size | Display Format | Panel Size (WxHxT)/mm | Active area/mm | Driver IC | Color | Interface |
| (Inch) | (Dots) | ||||||
| OHEM6448-01 | 0.66 | 64x48 | 18.46x18.1x1.25 | 13.42x10.06 | SSD1306 | White | Parallel,SPI, I2C |
| OEL9M0092-W-E | 0.84 | 96x18 | 29.40X8.40x1.61 | 21.10x3.58 | SSD1307Z2 | White | SPI/I2C |
| OHEM12832-09 | 0.91 | 128X32 | 30.0x11.5x1.20 | 22.38x5.58 | SH1106G | White | I2C |
| OHEM12864-03 | 0.96 | 128x64 | 26.7x19.26x1.45 | 21.744x10.864 | SSD1306 | White | 8bit 68XX/80XX Parallel, 3-/4-Wire SPI, I2C |
| OEL9M1007-W-E | 1.1 | 96x96 | 25.49x29.10x1.45 | 19.655x19.655 | SH1107G | White | Parallel,4-SPI, I2C |
| OEL9M1025-W-E | 1.12 | 128x128 | 27.00x30.10x1.25 | 20.14x20.14 | SH1107G | White | 8080 Parallel |
| OEL9M1028-W-E | 1.13 (Round) | 128x128 | 37.62x41.31x1.45 | 28.80x28.80 | SSD1327ZB | White (gray scale 4) | Parallel,4-SPI, I2C |
| OHEM12864-05 | 1.3 | 128x64 | 34.5x23.0x1.45 | 29.42x14.7 | SH1106G | White | 8bit 68XX/80XX Parallel, 3-/4-Wire SPI, I2C |
| OHEM128128-01 | 1.5 | 128X128 | 33.8x36.5x1.41 | 26.86x26.86 | SSD1327Z | White | 8bit 6800/8080 Series Parallel, Serial Peripheral, I2C |
| OHEM12864-11 | 1.54 | 128x64 | 42.04x27.22x1.45 | 35.052x17.516 | SPD0301 | White | 8bit 68XX/80XX Parallel, 4-Wire SPI, I2C |
| OHEM25632-01 | 1.8 | 256x32 | 52.0x11.5x1.61 | 46.06x5.74 | SSD1326 | White | 8bit 6800/8080 Series Parallel, Serial Peripheral, I2C |
| OHEM12864-09 | 2.4 | 128X64 | 60.5x37.0x2.02 | 55.01x27.49 | SPD0301 | Yellow | 8bit 6800/8080 Series Parallel, Serial Peripheral, I2C |
| P25664-002A | 2.7 | 256x64 | 72.0x25.5x1.60 | 66.53x16.61 | SSD1322Z2 | White | 4-SPI |
| OHEM25664-01 | 3.2 | 256x64 | 87.4x28.5x2.01 | 79.084x19.756 | SSD1322U1R1 | White | 8bit 6800/8080 Series Parallel, 3/4 wire Serial Peripheral |
