Product Overview

Description



Geothermal heat pump.

 1. room cooling, room heating and domestic hot water, flexiable functional combination.

 2. split and monobloc type available;

3. close loop and open loop available

 4. full rang from2kw,4kw, up to 30kw. Heat recovery function is also available as the optional.

5.  high temp version available, leaving water temp can be 70C,full range from 2kw up to 30kw.

 6. DC inverter available with 8kw and 15kw





Our geothermal heat pump is exported to Sweden, Belgium, Poland, Russia, Ukraine… The unit has been very reliable and stable.





Heating Cooling Ground source/ Water source HeatPump  single unit with slim size

Water source heat pump Heat recovery is optional.

5 Times Energy Saving as Normal Gas or Petrol Heater.

Suitable for Frigid zone area.  No capacity loss in even -30C air temp.

Quite unit, free of neighbour complain.

Main Characters:

 Extrimly energy saving, super cost saving with R410a gas inside.

Installation is easy and flexible.

Can be connected with solar water heater system.

All water access parts are stainless steel and copper to keep safe, healthy and non-pollution

 Quality for reliability and save maintenance cost:

Our parts are always choosend with the top brand in the world

Heat exchanger: Stainless steel SU316 plate heat exchanger.

The compressor: Daikin brand Scroll type

Heat expansion valve: Emerson brand

Water pump: Wilo brand from Germany (optional parts)

Four way valve: Saginomiya brand of Japan

The above parts enable our heat pump to be trouble free products.

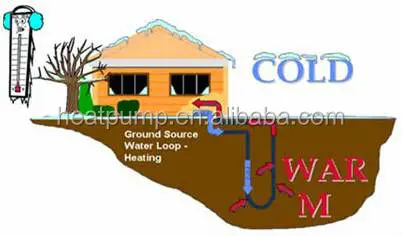

 Warer source heat pump (ground source heat pump) working theory diagram

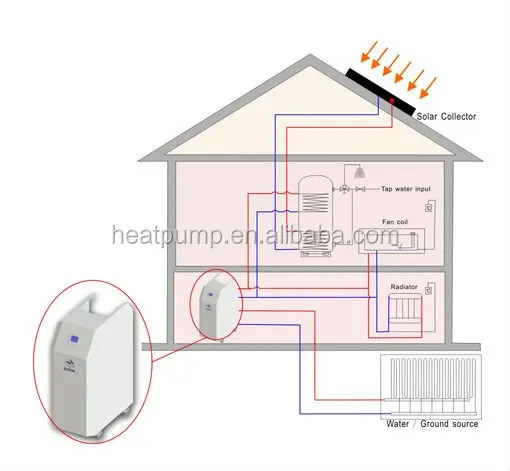

Flexible installation of typical water source heat pump application:

Geothermal Heat Pump for Lake, Pond and River

 Geothermal Heat Pump Horizontal Ground loop

Geothermal heat pump vertical ground loop



We provide 1% free spareparts with containered order and 2 year warranty of main parts for factory fault since shipment arrival.

We will send the spare parts by courrier method after confirm it is due to factory fault.

We don't cover the cost for failure from shipment, wrong installation and incorrect usage. Of course we can provide parts by customer's cost after warranty period.
