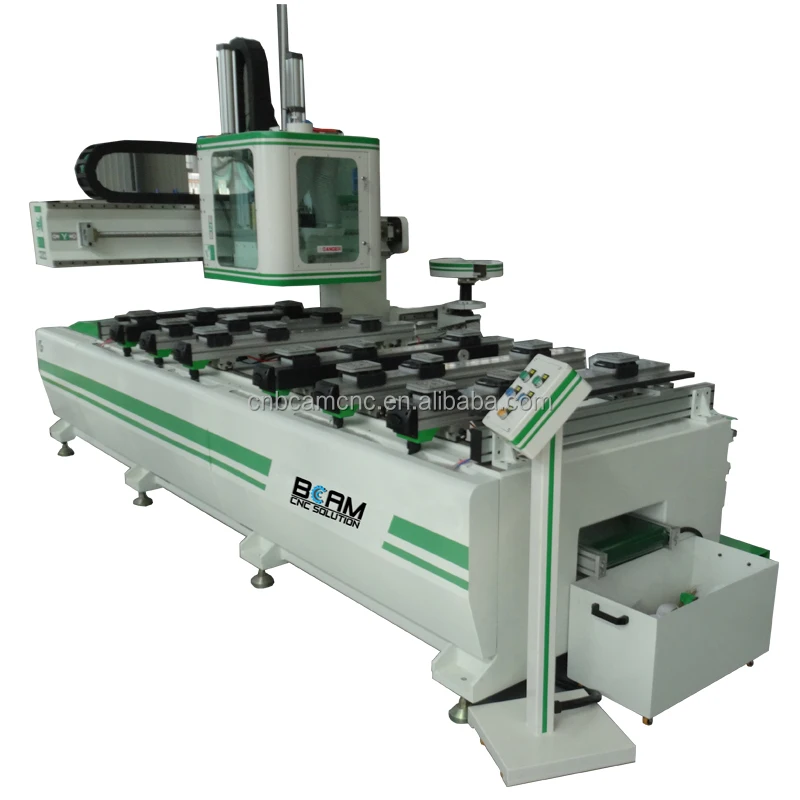

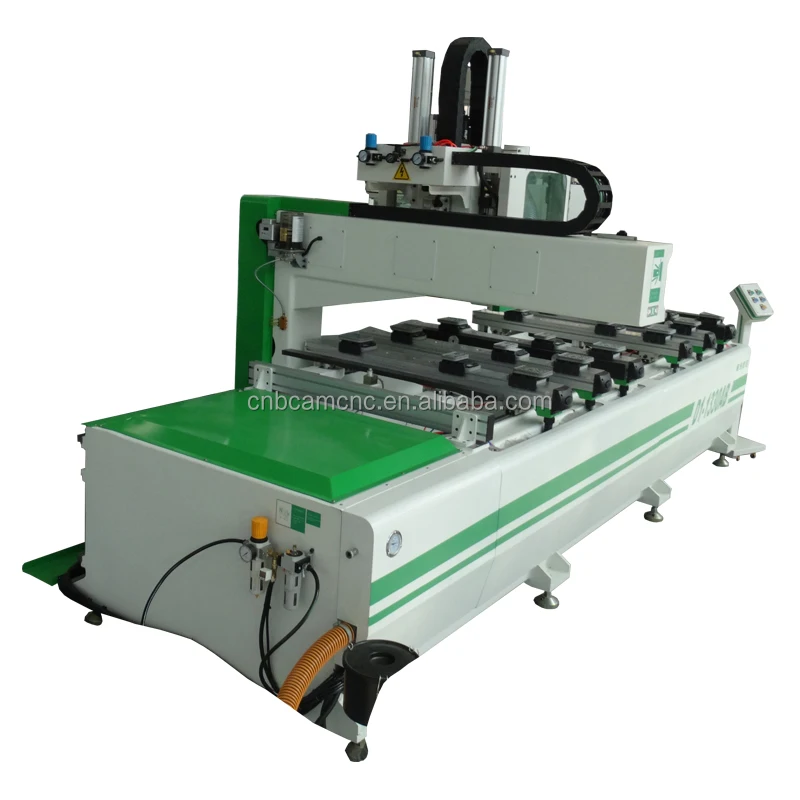

CNC Router BCM1330F ATC CNC router machine for drilling hole and hard wood cutting

Product Overview

Description



 CNC Router BCM1330F ATC CNC router machine for drilling hole and hard wood cutting



Application:



An all-rounder work center suitable for milling, routerting, drilling, side milling, sawing and other applications.
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.
Double work zones guarantee non-stop work cycle--operator can load and unload workpiece on one zone without interrupting the machine operation on the other.
Features worlds first class components and strict machining procedures.



Technical Parameters:



	BCM1330F	BCM13345F
Travelling size	3400*1640*250mm	4660*1640*250mm
Working size	3060*1260*100mm	4320*1260*100mm
Table size	3060*1200mm	4320*1200mm
Transmission	X/Y rack and pinion drive,Z ball screw drive
Table structure	Moveable gantry; suction cups
Spindle Power	9.0/12.0KW
Spindle speed	24000 r/min
Travelling speed	80m/min
Working speed	20m/min
Tool magazine	Carousel
Tool slots	8
Drilling head	9 vertical+6 horizontal+1 sawing units
Driving system	Yaskawa
Voltage	AC380/3PH/50HZ
Controller	OSAI/Syntec



Main allocation and parts

• Taiwan control system(OSAI)


• Italy FAM 9V3H1S


• Taiwan Delta inverter


• Chippings conveyor


• Italy 9KW HSD air cooling spindle


• Janpan YASKAWA servo motor and driver


• Taiwan TBI ball screw tansmission


• Turntable tool changer


• Gear reducer


• 5.5KW vacuum pump


• Tool setting gauge


• Centre automatic lubrecation system


• Control box


• 3 groups moveable positioning cylinders


• Germany Schneider electrical component



Parts pictures



Turntable tool changer

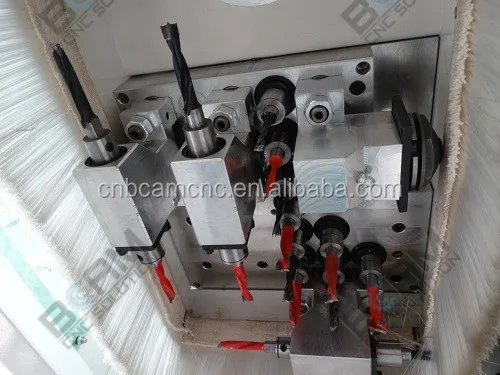

Italy FAM 9V3H1S

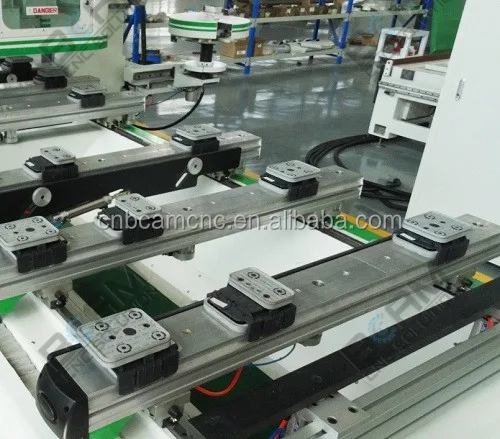

PTP table

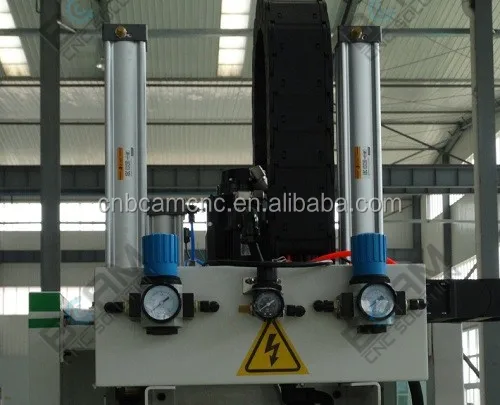

moveable positioning cylinders



Italy FAM 9V3H1S

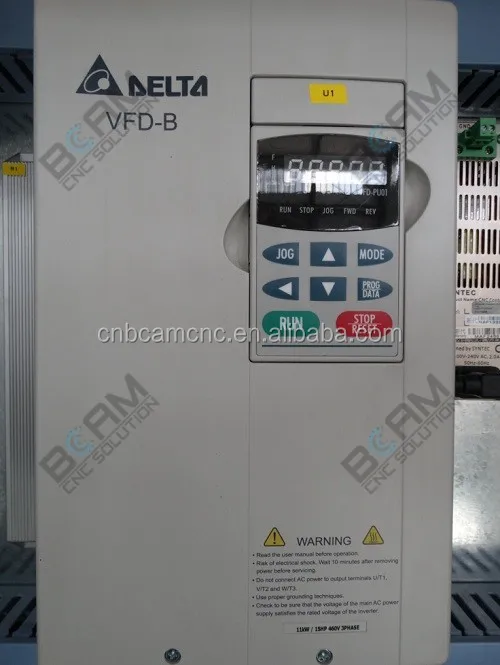

Taiwan Delta inverter





Chippings conveyor





Taiwan control system





Delivery



Certification











1. Delivery time of CNC router machine?

Aplus and S series standard size and configuration CNC router machine delivery time is 2-3 days, C,D,E series machine delivery time is 7 days, F,4 axis and 5 axis series machine delivery time is 20 days. So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.



2. Can you sent machine to my home?

Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.



3.This is the first time to use cnc router machine,is it easy to operate?

Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:

1.English guide video and instruction book are sent to you free together with the cnc router.

2.Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.

3.We have our own after-sales service team,24 hours technical support by calling, video and email.



4.Term of payment ?

50% T/T in advance, 50% T/T before delivery.

After we receive your deposit, we will arrange production,meanwhile machine pictures and videos will be sent to clients in time, when they make sure everything is ok, transfer the balance and we arrange to delivery machine.
