Manufacturing all sizes of PDC cutter for water wells, compact polycrystalline diamond

Product Overview

Description

Manufacture all sizes Polycrystalline diamond compact PDC cutter for oil field, water well



1. Introduction to our company

Company Introduction:

Hejian Deris Petroleum Drilling Equipment Co., Ltd Drilling Supplies Marketing Dept. specializes in drill bits, drill pipe, Mud pump and stabilizers for water well, oil field, construction, geothermal, directional boring, and underground foundation work all over the world. Our purpose is to sell the best quality products at the lowest possible price.



Products Introduction:

Our company is leading supplier in China drilling tools industry, the main products we make and supply are various drill bits and relevant drilling tools: Tricone Rock Bit, Hole Opener, Drag Bit, PDC Coring Bit, Bit Breaker, PDC Cutters, Casting Centralizer, Bit Sub...



2. Introduction to the Polycrystalline diamond compact PDC cutter

Overview

About PDC (Polycrystalline Diamond Compact) Cutter Polycrystalline diamond cutters (PDC) Comprise a polycrystalline diamond (PCD) Top layer integrally sintered onto a tungsten carbide substrate using a high- pressure, high- temperature process(60, 000 atmospheric pressure, 1400-1500 ). This layer combination allows consistently high drilling performance to be maintained. The polycrystalline diamond layer offers controlled wear and the retention of a sharp cutting edge. The tungsten carbide substrate provides a strong and tough support for the polycrystalline diamond layer while facilitating attachment to the drill bit body.



The Planar interface PDC Cutter for oil&gas field is new type and patant PDC cutter that designed by ourself. We manufacture them with higher purity and high grade diamond micro powder and carbide under the advanced technology. The C-C bond of polycrystalline diamond are integrated and perfect, it make diamond layer with high strength, high hardness, high abrasion resistance. The PDC cutters are designed with many kinds of teeth shape and processed by special technology at the latter production. It will reduce the Remanent stress of PDC cutters, make the integrated interface more deep- Set, high thermal stability(temperature can be 750 ) And high impact resistance.  For all PDC oil & gas cutter ranges, the chamfer details on both the polycrystalline diamond table and the tungsten carbide layers can be manufactured to customer requirements. We use the latest advances in materials technology, coupled with optimized engineering design, to achieve superior drilling performance.

Specification

Brand: QUESTT

-       Product:    High impact resistance All Sizes Diamond Hammer Cutter PDC cutters for DTH

-       Material: Diamond with Tungsten Carbide

-       Type:  1304, 1308, 1908, 1313, 1613, 1913,any sizes can be customized.

-       Application 1: PDC cutter/PDC insert for mining, coal mining, oilfield drill bit

-       Application 2: PDC cutter/PDC insert for chain saw cutting tools

-       Application 3: PDC cutter /PDC insert for concrete cutting pad

-       Application Industry: Oil drilling, Coal mining, Gas drilling, Well drilling

-       Certification: ISO 9001:2000

-       Packing: inner: packed in multi-color sponge, outer: packed in plastic box

-       MOQ: 100 pieces

-       Delivery Time: 7 Days

-       Sample: Available

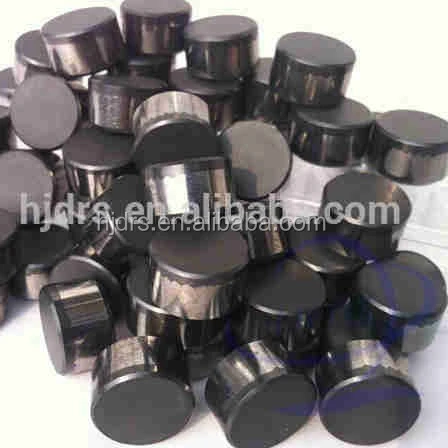

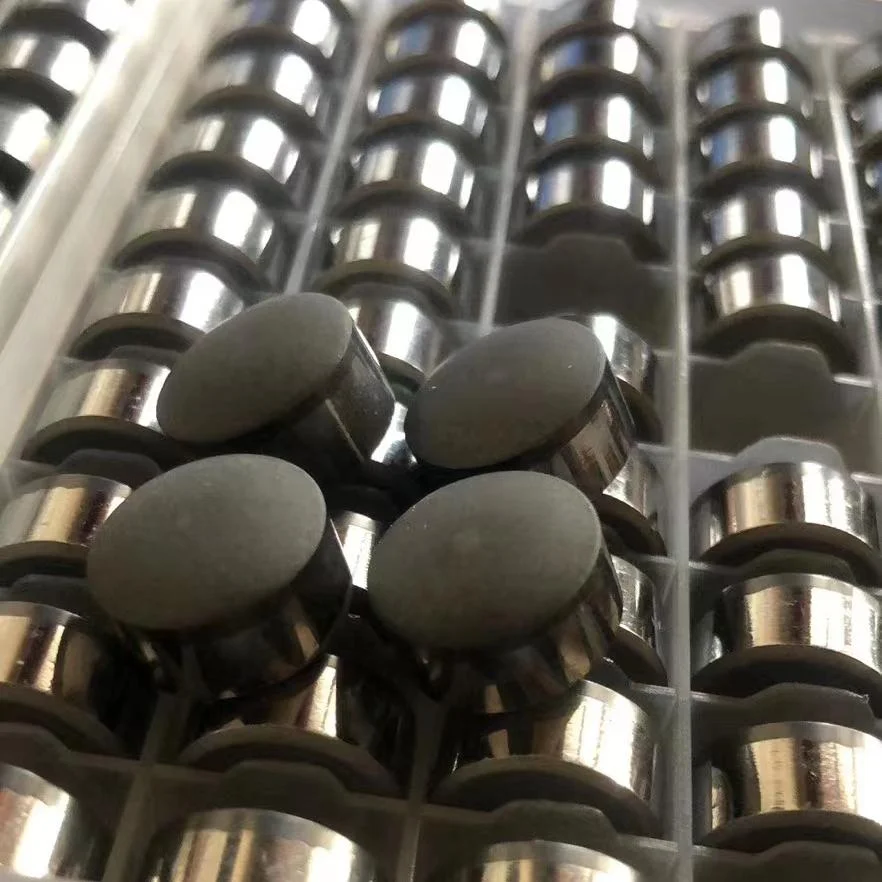

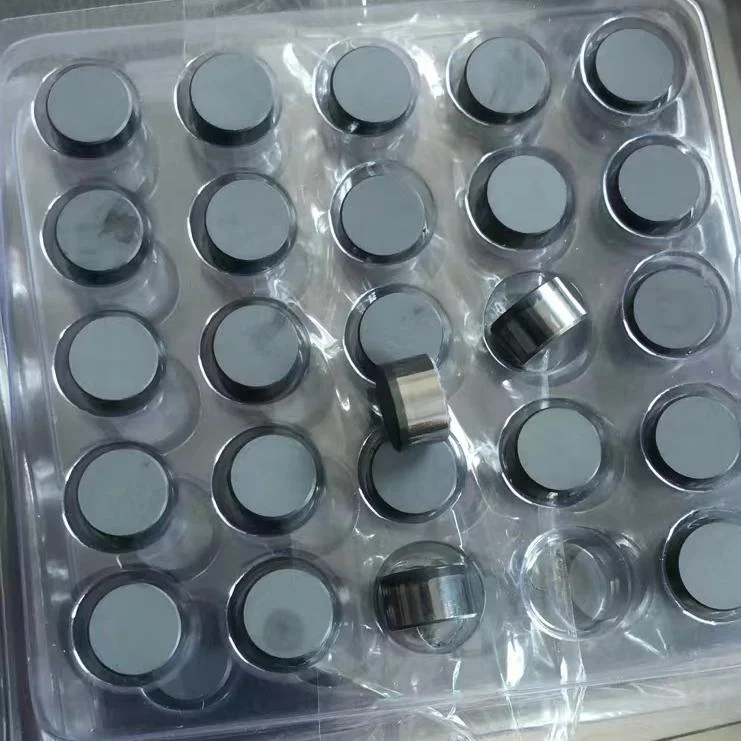

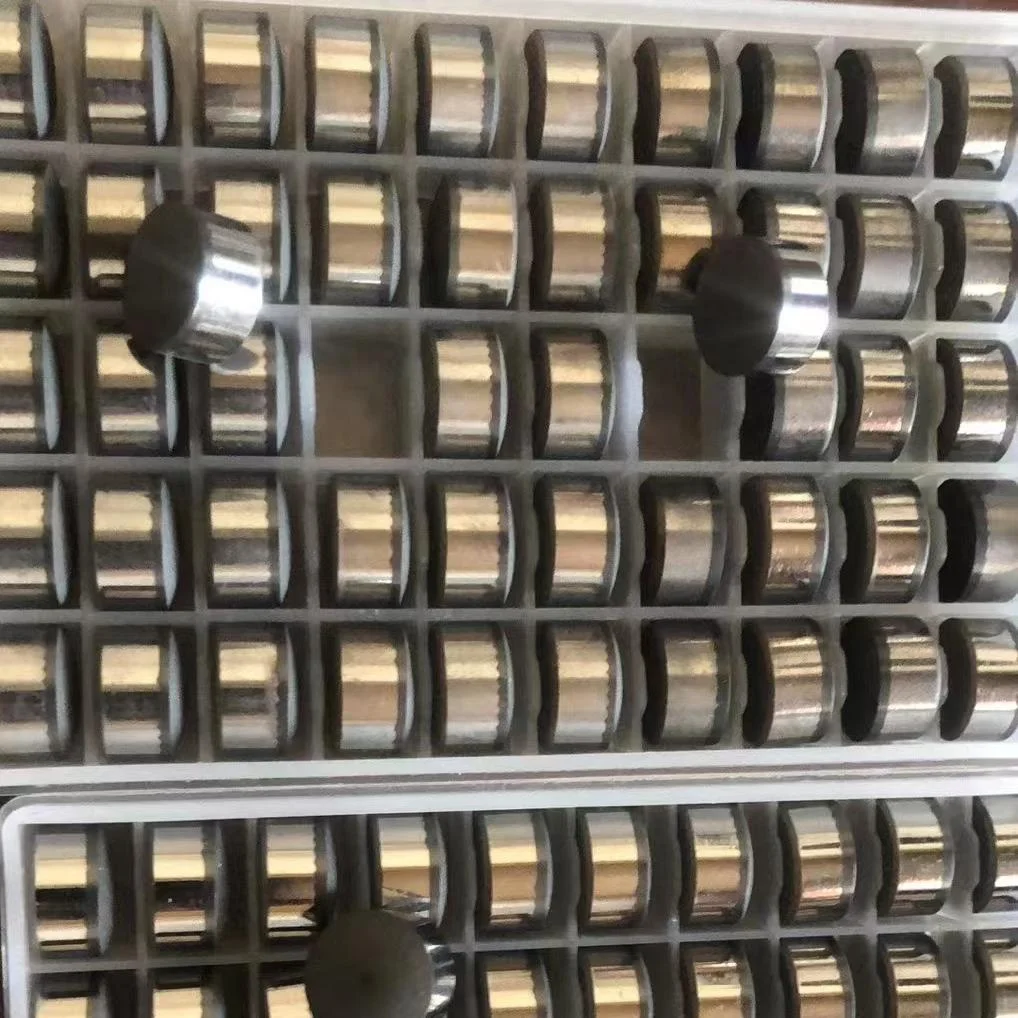

3. Product photos show



4. Introduction to other products manufactured by our factory



5. Introduction to the contact information





Sincerely welcome you to visit our factory!!!

We are looking forward to establishing business relationship with you!!!
