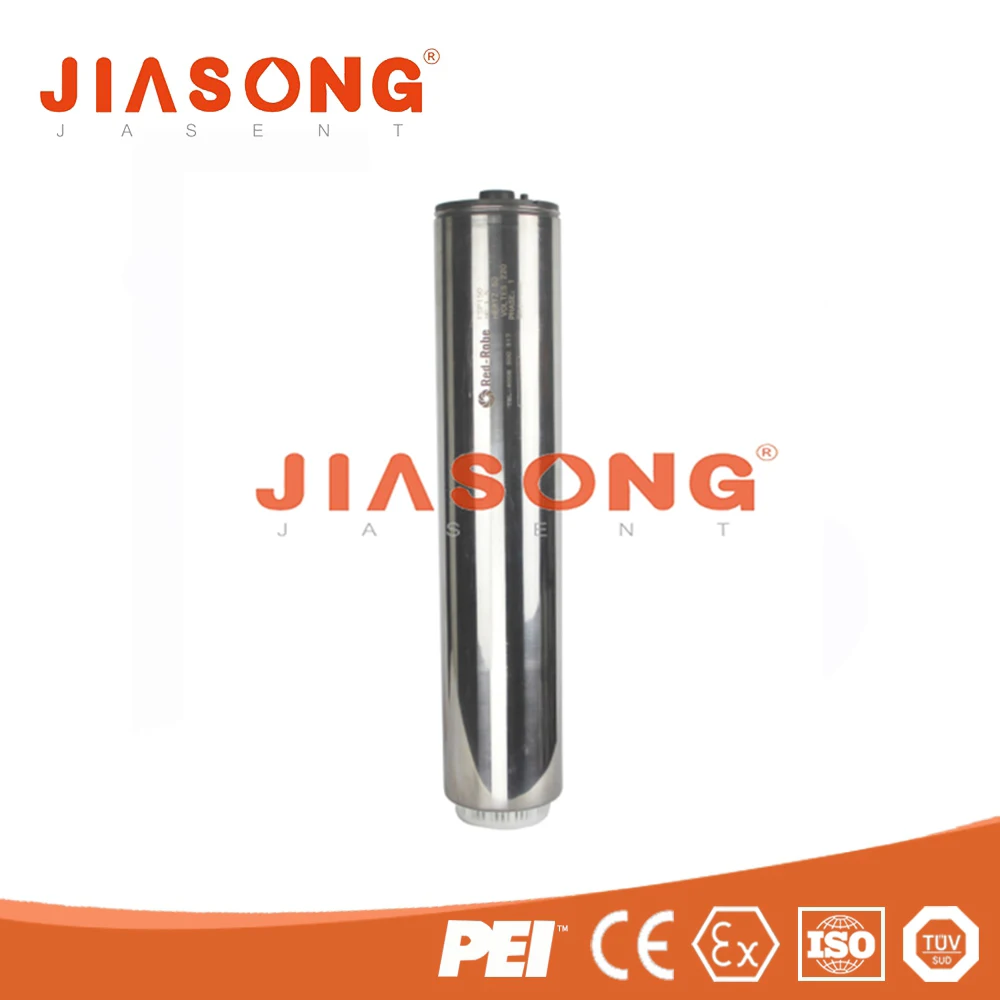

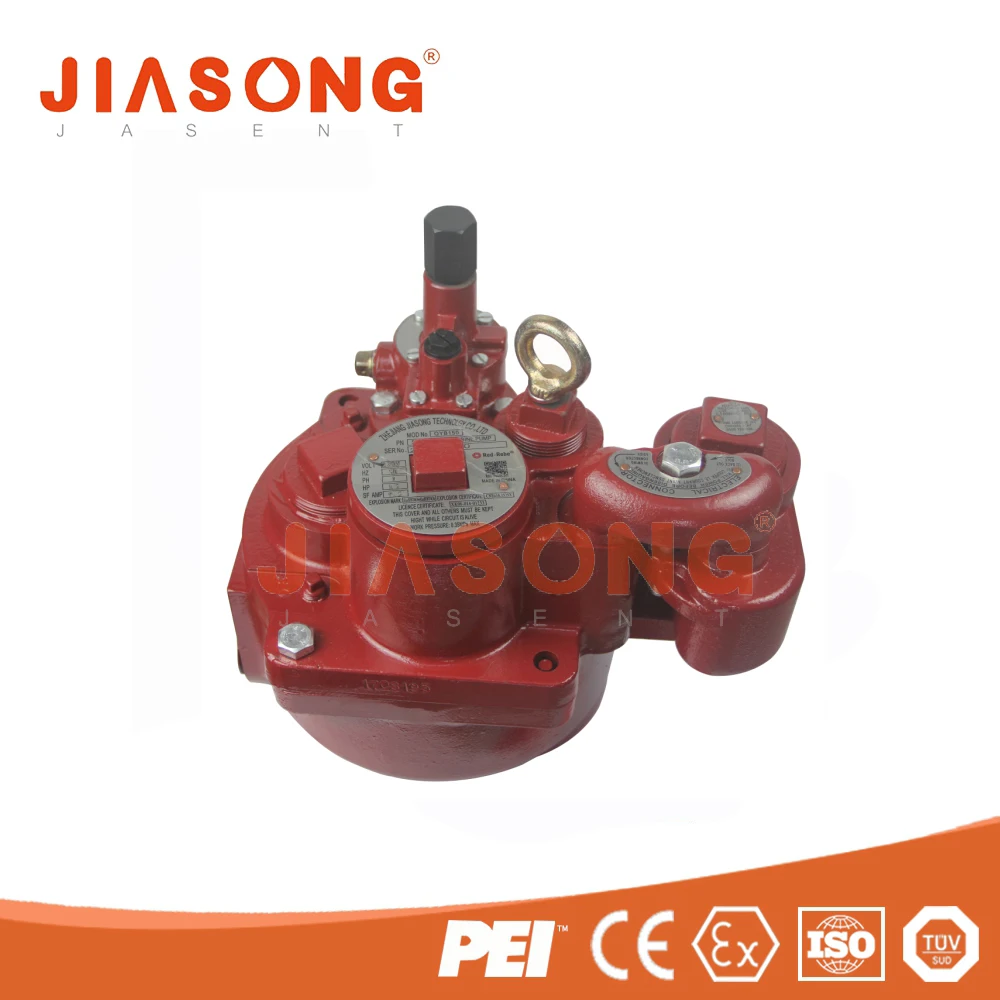

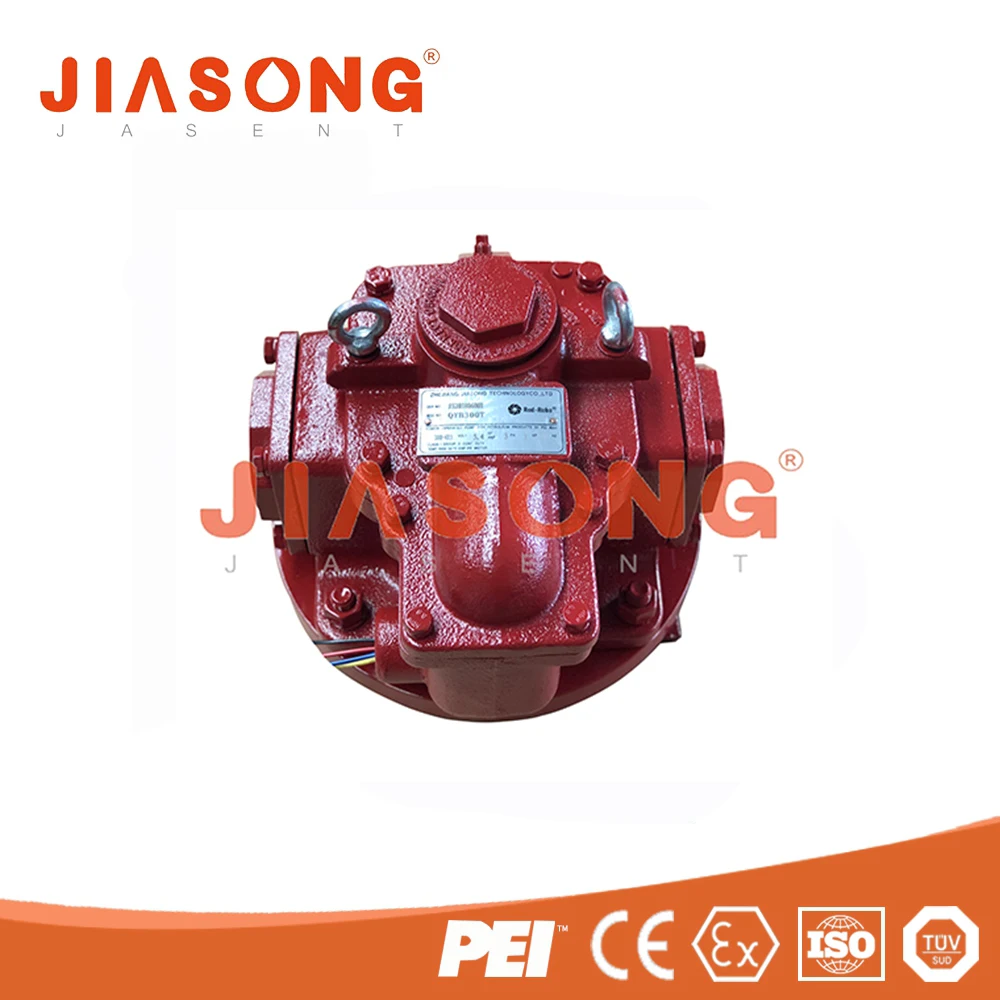

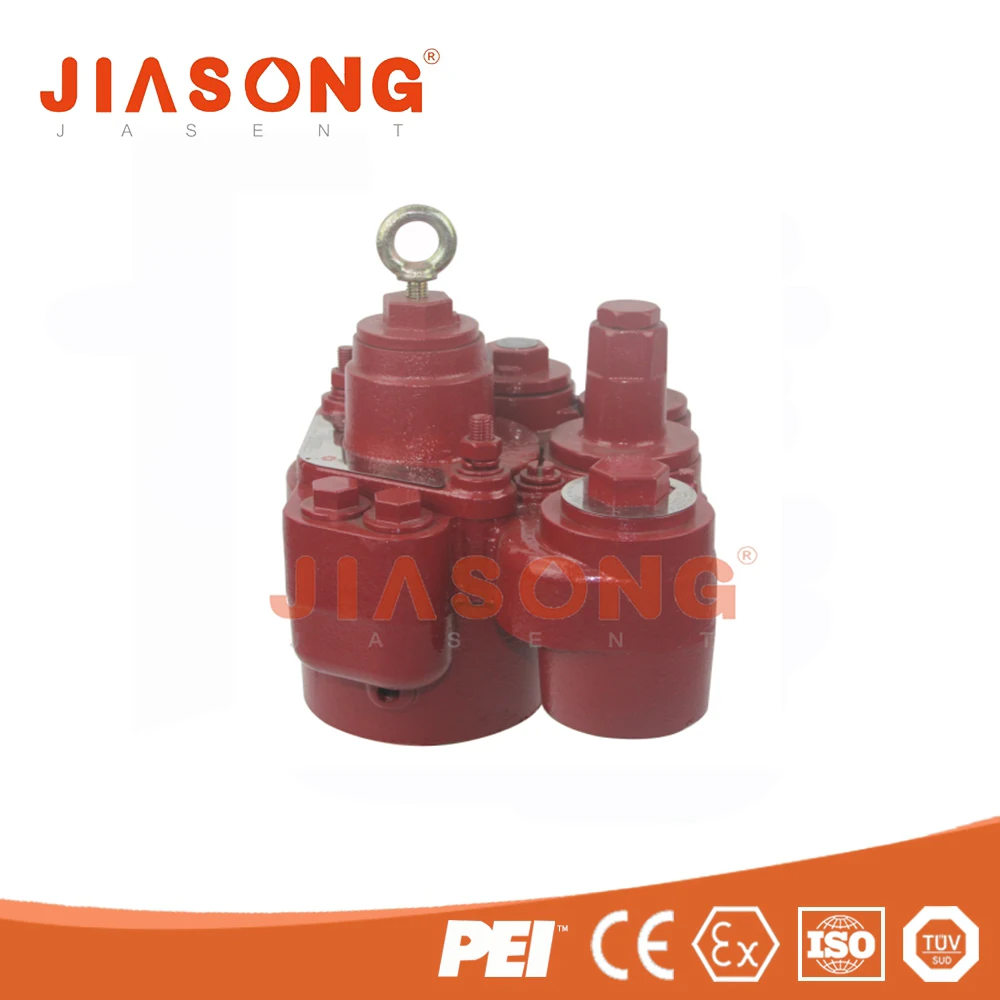

Red Robe Submersible Pump for Fuel Dispenser
- Category: >>>
- Supplier: Shanghai Jiasong Machine Co. Ltd.
Share on (60206919977):
Product Overview
Description
Product Description
Characteristic
Compact structure, easy installation and maintenance, low noise, smooth operation, long service life.
Built-in check valve, switching valve, safety valve (relief valve) and vacuum valve. The submersible pump can run several nozzles simultaneously. It is applicable to gasoline, kerosene, diesel, etc.
The subermersible pump can avoid oil pumping problem caused by oil gasofication. The distance of oil delivery is farther than self sucking pumps'.
Technical Specification
| Model | QYB-150A | QYB-150 |
| Power | 1.5P | |
| Motor Rated Speed | 2820r/min | |
| Flow Range | 250L/MIN | |
| Working Pressure | 0.22MPa | |
| Environmental Temperature | -25°C-+55°C | |
| Noise Level | ≤68dB | |
| Rated Voltage | AC220V or AC380V | |
| Rated Current | 220V-9.5A 380V-0.35A | |
| Ex-proof Class | Exd IIbT4 | |
| Working Pressure Difference | >34KPa | |
| Fixationthread | NPT 4'' | |
| Inlet | NPT1 0.5'' | |
| Outlet | NPT2'' | |
