Vacuum brazed white iron chock bars laminated chockblocks CB100
- Category: >>>
- Supplier: Hunan Hyster Material Technology Co. Ltd.
Share on (60207018342):
Product Overview
Description
About Us
About Hunan Hyster Material Technology Co.,LTD.
About Us
Hunan Hyster Material Technology Co., LTD. was founded in 1995 and located in Changsha city, Hunan province, middle of China, covers more than 8000 square meter production site area. We are a professional manufacturer & exporter of composite Bi-metallic wear blocks/wear plates(White Iron brazed with mild steel, hardness 63HRC/725 BHN), high chromium wear castings, Ni-hard wear Liners/Billets, Chromium carbide overlay wear plates, and other metallic wear castings, mainly serve for industries such as Mining, Quarrying, Material conveying systems, Sugar Cane Milling, Iron Mill/Steel Plant, Cement, Sand, Gravel, Dredging, Crushing etc.
Over 95% products have been sold to nearly 300 customers in more than 45 countries and regions such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Our annual output of bi-metallic wear blocks/bars/plates is more than 4000tons, capable to produce about 1200 different sizes and shapes; annual output of metal wear-resistant castings is more than 6000 tons.
Hyster has its own License for Import and Export and also a professional team of sales staff,who are familiar with English, Spanish, Russian and international logistics.
Top quality with low prices and good services, Hyster people warmly welcome you visit us!
White iron chockybars laminated
They are easy to use and install. They can be bent, cut and formed to suit different surfaces.
The standard thickness of chockybar is 23mm in thick, standard length is 240 mm, width could be from 25mm from 65mm. We can also produce according to your special requests.
Item No | Notched | Size(mm) | Length(A) | Width(B) | Wear(C) | Backing(D) | Thickness(E) | Weight(kgs) |
CB 25 | Yes | 240×25×23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
CB 40 | Yes | 240×40×23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
CB 50 | Yes | 240×50×23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
CB 65 | Yes | 240×65×23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
CB 80 | Yes | 240×80×23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
CB 90 | Yes | 240×90×23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
CB 100 | Yes | 240×100×23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
CB 130 | Yes | 240×130×23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
CB 150 | Yes | 240×150×23 | 240 | 150 | 15 | 8 | 23 | 7.3 |

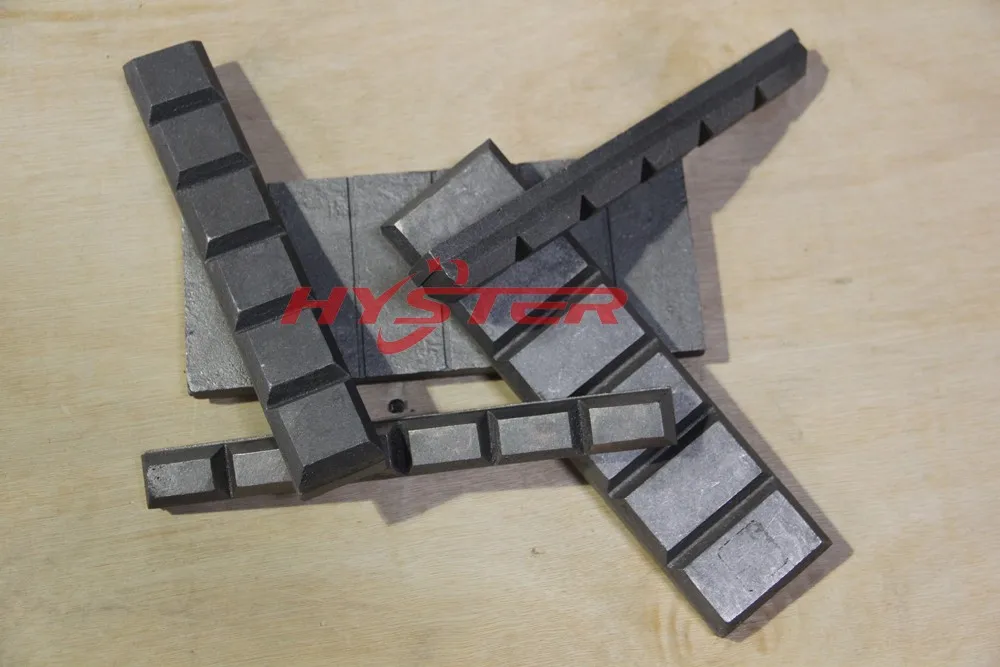

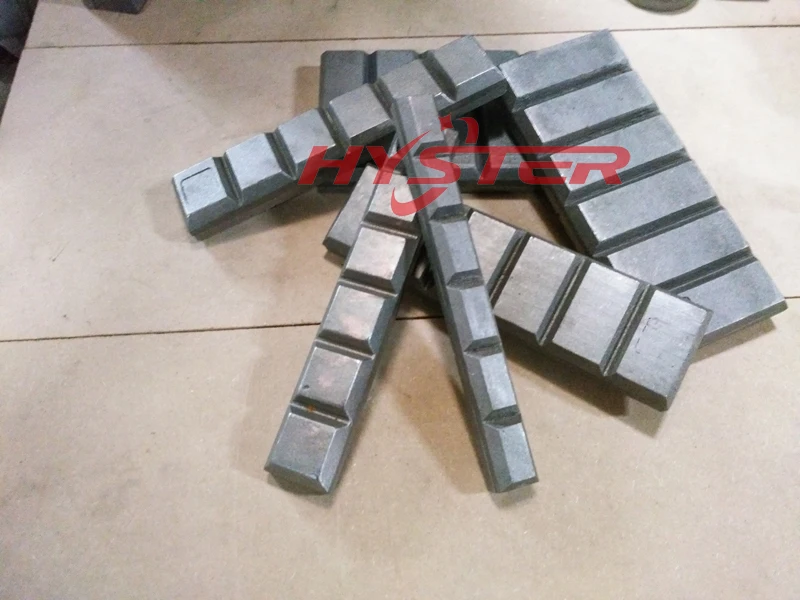

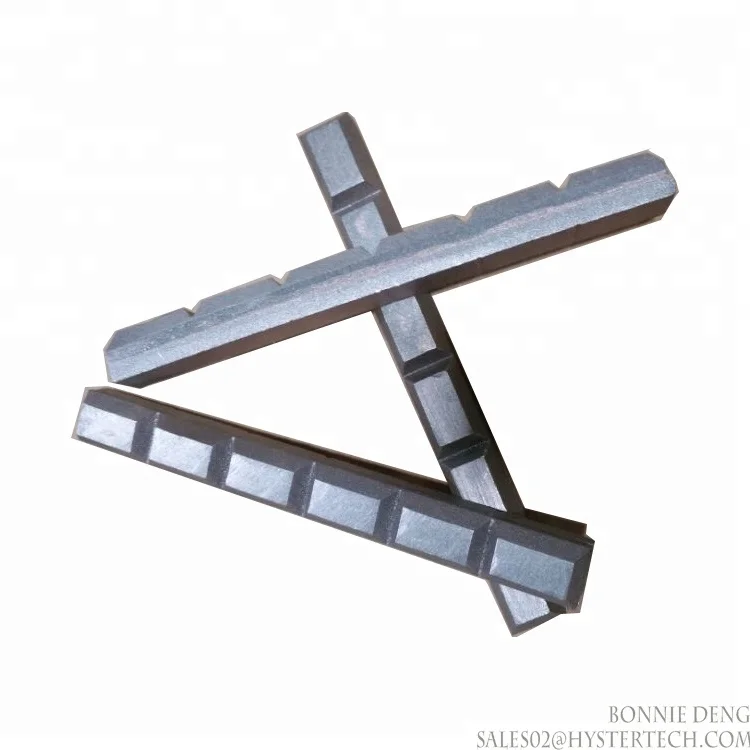

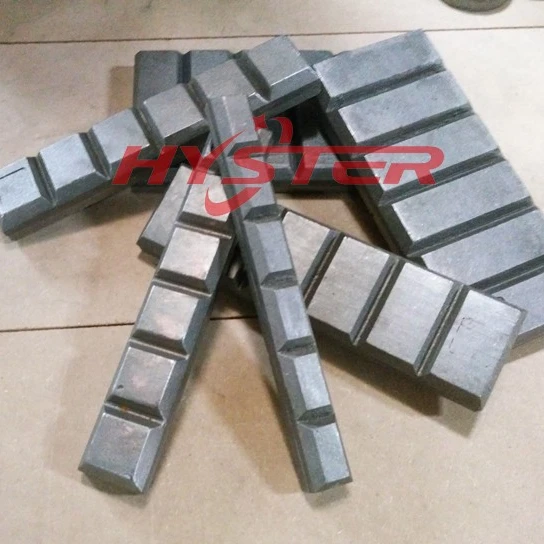

Product Photos
A. Material:
Wear portion is chrome moly white iron white iron(high chrome carbide). ASTM A532 15/3CrMo.
Impact portion is Q235 mild steel or Equivalent.
B. Chemical composition
C | Cr | Mn | Mo | Cu | P | Si | S | B.V.Nb |
2.5-3.5 | 15-18 | 0.5-1.0 | 0.5-2.5 | 0.5-1.0 | 0.02max | 0.5-1.0 | 0.02max | 0.1-0.5 |
C. Mechanical Property:
1) Tensile Strength 630Mpa Min.
2) Shearing Strength 250Mpa Min.
3) Hardness 63 HRC

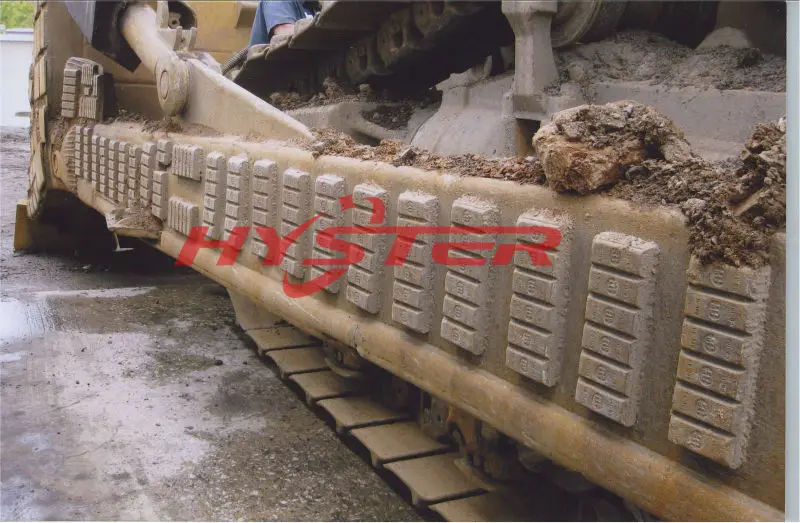

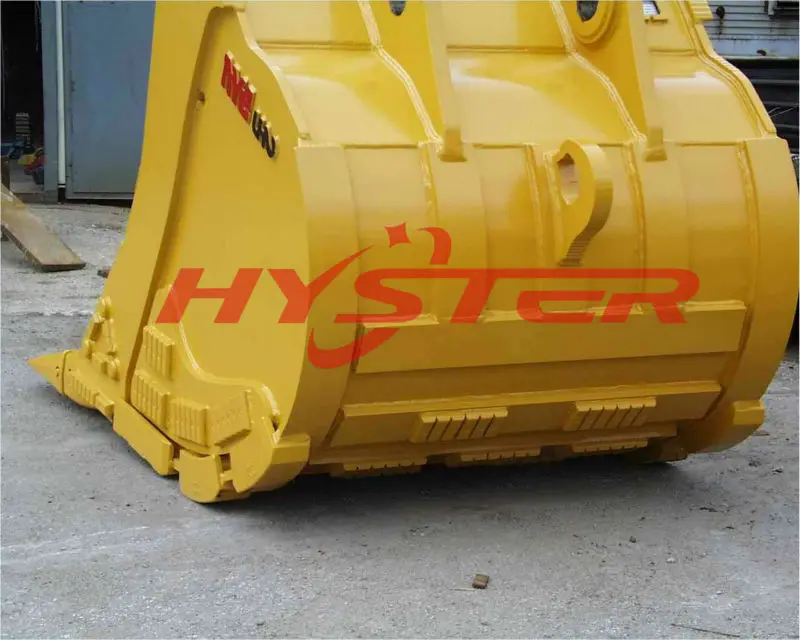

Actual Application
Packaging & Shipping
Packing Material:
Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.
Option 2. Carton, PVC, fastening belt.
Packing Photos:
Delivery term:
1) FOB Shanghai/Ningbo/Shenzhen/Guangdong, China. Other ocean port is also available.
2) CFR/CIF ocean delivery to destination port.
3) Express delivery such as DHL, UPS, TNT, FedEx.
4) Ex-Work Changsha warehouse.
HYSTER MARKET
Over 95% products have been sold to nearly 300 customers in more than 40 countries and regions, such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
The main industries we serve:
-Mining & Quarrying
-Construction
-Crushing
-Dredging
-Cement
-Sugar Mill
-Steel plant
-Oil & Gas
