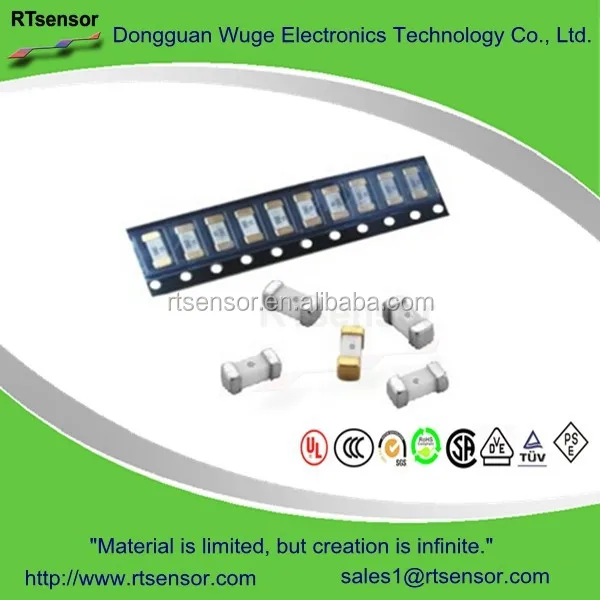

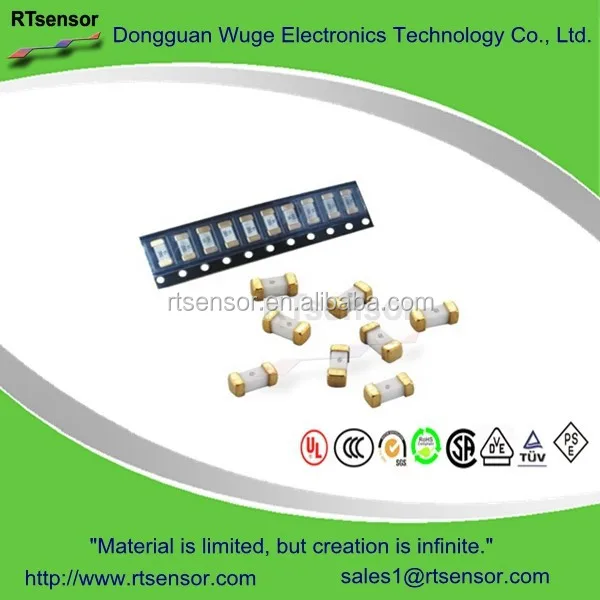

LED Driver Protection 2410 6125 Chip Fast Acting Surface Mount SMD SMT Fuses ,0.5 ~ 15A , 125V/250V/300V

Product Overview

Description

LED Driver Protection 2410 6125 Chip Fast-Acting Surface Mount SMD SMT Fuses ,0.5 ~ 15A , 125V/250V/300V

Quick Details

Catalog Number	SEF
Dimensions	6125(2410)
Volts	250Vac/ 125Vac /300Vac
Amps	0.1A-15A
Agency Information	CE, Std.248-14 Listed Guide JDYX, File E19180, 0-6A, Guide JDYX2,  7-15A, CSA Certified, Class 1422-01, File 53787, 0-6
Typical Applications	Electronic Circuits



Description

SEF (line voltage fuses) is primarily designed for over current protection of line voltage circuits and is widely applied in power applications. Based on an innovative technical platform, RTsensor has successfully eveloped the family with unique polymer materials, product design and manufacturing processes. 2410 fuses boast better reliability, stability, and PPR.



Features

• Extremely small size with 250 VAC rating


• Surface mount fuses in AC applications


• Excellent inrush current withstanding capability


• Operating temperature range: -55°C to +125 °C (with de-rating)


• Complying with IEC 60127-4


• Fiberglass enforced epoxy fuse body


• Copper termination with nickel and tin plating


• Halogen free, RoHS compliant


• 100% lead-free

Applications

• Industrial equipment


• Backlight inverters


• Power supplier


• Networking


• Automotive

Electrical Ratings

Catalogue No.,A = 250V/ B =125V





Note: Customize available !

Material & Dimensional Drawing





Recommended Land Pattern

Average Time / Current Curves



All type fuses

Glass Tube Fuse

Ceramic Tube Fuse

Micro Fuses

Subminiature Fuse

Surface Mount Fuses

PPTC Resettable Fuses

High-Voltage Fuses

How to choose correct fuses ?

Step :



1. Ensure that you PCB request over current protection then fuses make it .

2. Learn your PCB conditions and fuse will working under which conditions

3. According to space , voltage,current, etc factors , choose fuse type and rating value from our above exhibitation !

4. If you dont have ideas with this, just contact us then we will help you make it !
