Flush type wall switch wall switch and socket wall switch socket
- Category: >>>
- Supplier: Etman Electric(Changzhou) Co. Ltd.
Share on (60207388347):
Product Overview
Description

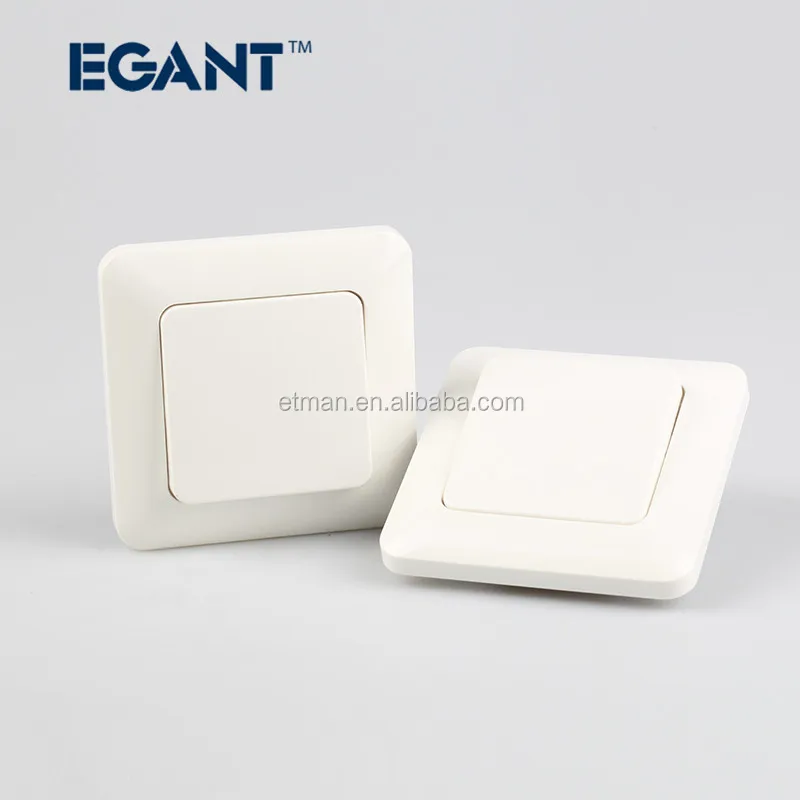

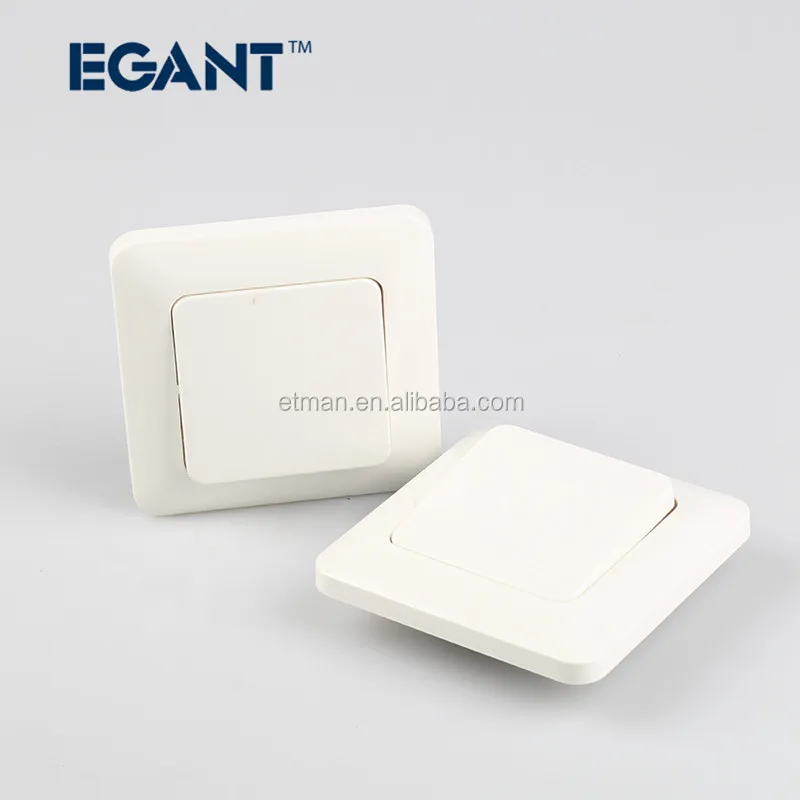

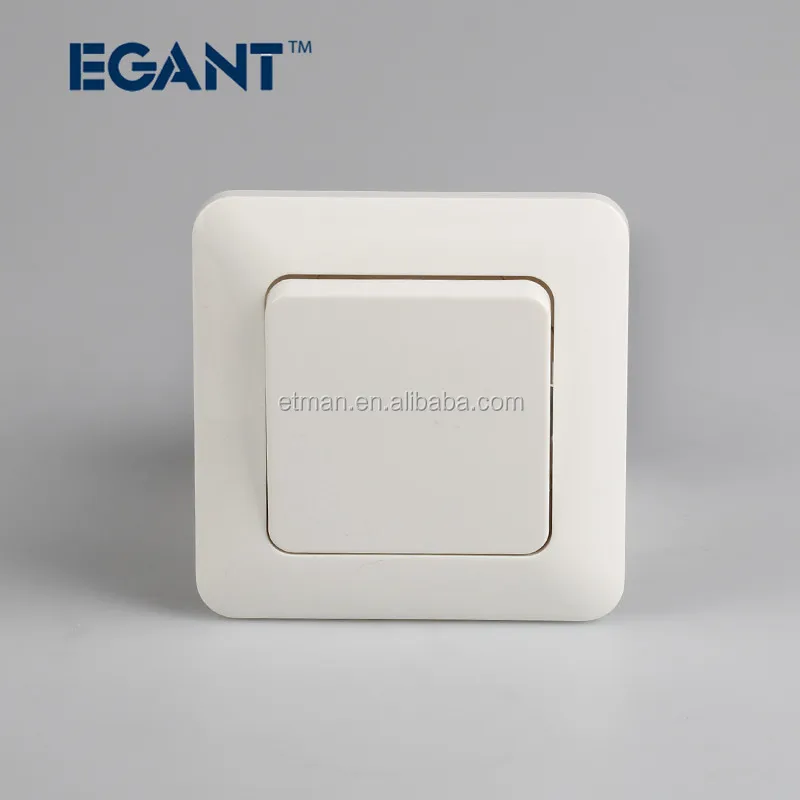

Flush-type wall switch wall switch and socket wall switch socket
Flush-type wall switch wall switch and socket wall switch socket
Product Description

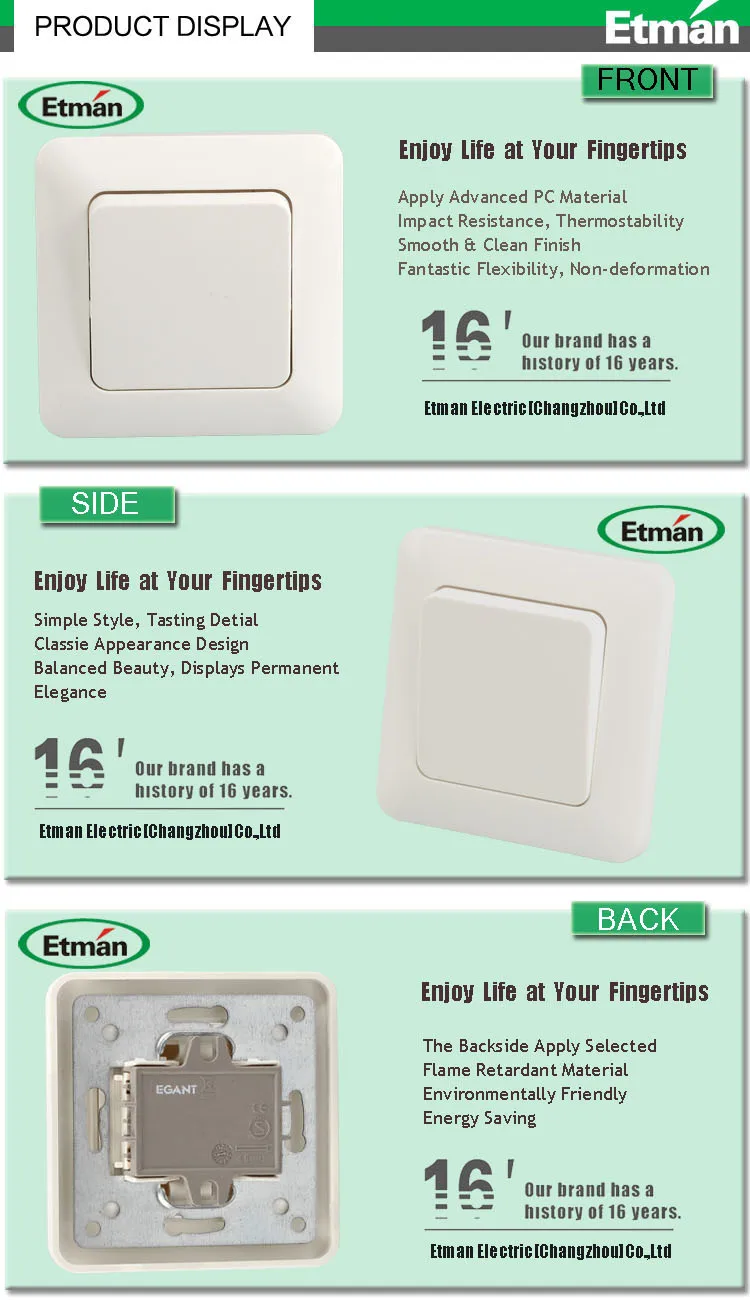

Flush-type wall switch wall switch and socket wall switch socket
Technical Data: 16A 250VAC
Frequency: 50Hz
Colour: White
Main Material: PC(Halogen Free)
IP-Class: IP20
Max. Ambient Temp: 45
Fire Hazard Test: 650/850(IEC60695-2-1)
The Product complies with the Standard(s): EN60 669-1
The product is in conformity with the provisions of the following European Directive(s):LVD(2006/95/EC) RoHS(2002/95/EC)
Certificate(s): CE, Semko
Technical Info:

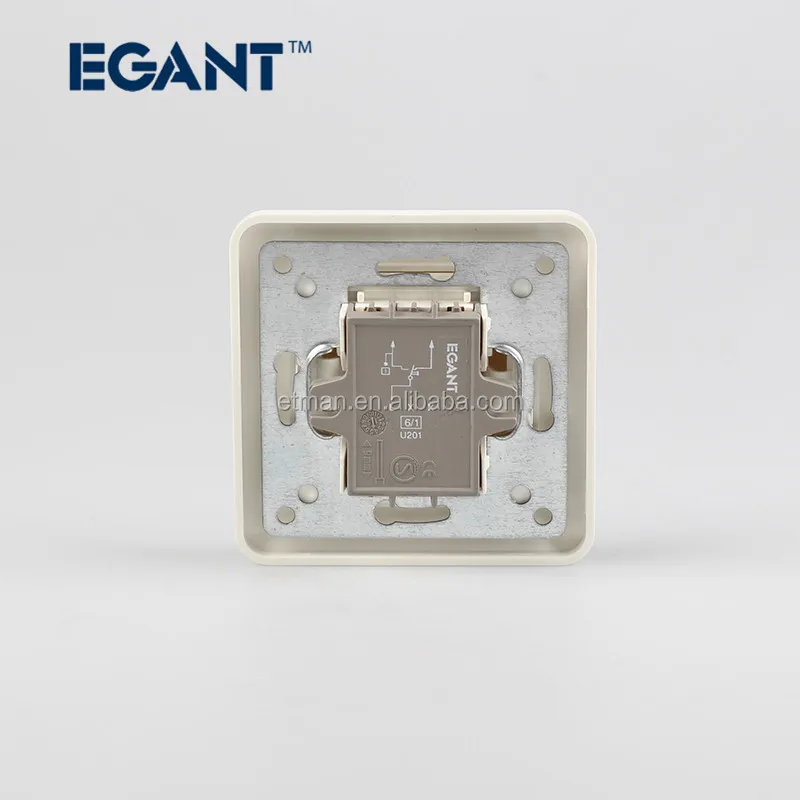

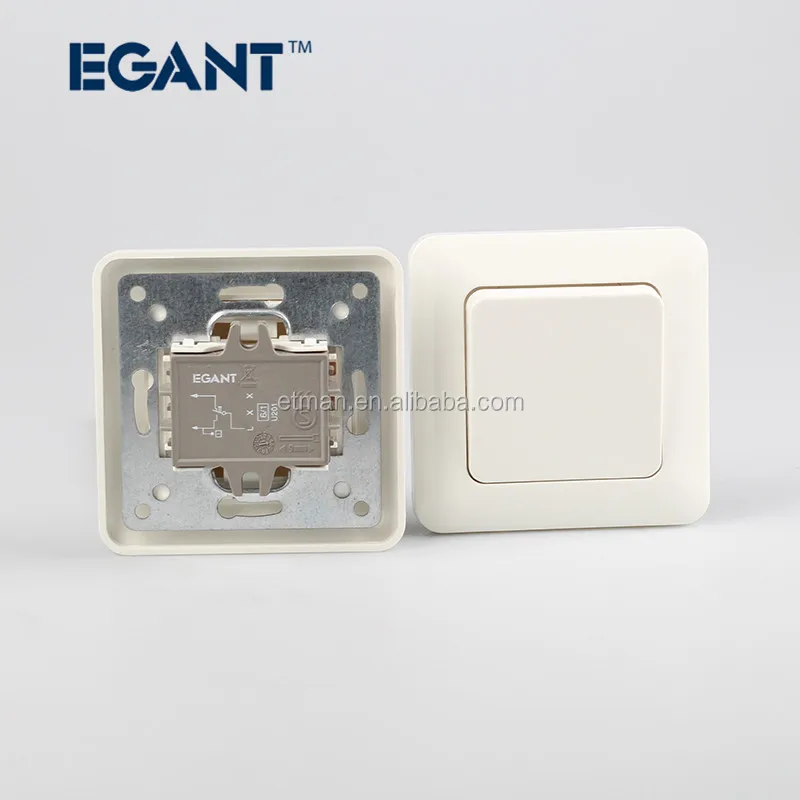

Wiring diagram printed on the rear side.
Thermoplastic in the rocker and cover plate.
Central plate standard size:55*55mm
Screw terminals or Screwless
Flush type or surface available
Flush type fit into wall boxes, screw distance c-c 60mm-cover plate c-c 84mm.
Specifications for Electric Wall Switch
Switches Specification & Function | |
Type | Description/Remark |
ETM201P | 1 pole/2-way,pattern No.1/6 |
ETM202P | 2 pole,pattern No.2 |
ETM203P | 1+2 pole,pattern No.1+2 |
ETM204P | 1 pole and 2-way,pattern No.5 |
ETM351P | 2 pole and 2-way,pattern No.6+6 |
ETM352P | Reversing switch,pattern No.7 |
ETM353P | 3 gang pattern N0.1+1+1 |
Switches,push button Specification & Function | |
Type | Description/Remark |
ETM214P | 1-pole,plus w/spring(doorbell),pattern No.1 |
ETM201PP | 2 pole,push button ,with indication lamp,pattern No.2 |
ETM202PP | 1 pole/2 way,pattern No.1/6 |
ETM203PP | 2 pole,push button, pattern No.2 |
ETM204PP | 1+2 pole,push button,pattern No.1+2 |
Switches,with indication lamp Specification & Function | |
Type | Description/Remark |
Indication lamp on when switch on ,indication lamp odd when switch off. | |
ETM201PL | 1 pole/2-way,pattern No.1/6 |
ETM202PL | 1 pole/2-way,with indication lamp,pattern No,1/6 |
Indication lamp off when switch on,indication lamp on when switch off. | |
ETM204PLN NEW | 1 pole/2-way,pattern No.1/6 |
Indication lamp always om. | |
ETM202PLN NEW | 1 pole/2-way,with indication lamp ,pattern No,2/6 |
Switch,with indication lamp,push button Specification & Function | |
Type | Description/Remark |
Indication lamp on when switch on,indication lamp off when switch off. | |
ETM202PLP | 1 pole/2-way,pattern No.1/6 |
ETM202PLP | 1 pole/2-way,with indication lamp,pattern No.1/6 |
Indication lamp off when switch on ,indication lamp on when switch off. | |
ETM201PLNP NEW | 1 pole/2-way,pattern No.1/6 |
Indication lamp always on. | |
ETM202PLNP NEW | 1 pole/2-way,with indication lamp,pattern No.1/6 |
Shutter,push button Specification & Function | |
Type | Description/Remark |
ETM355P | 1 pole |
ETM358P NEW | 2 pole |
Hotel card Specification & Function | |
Type | Description/Remark |
ETM356P | 1 pole/2-way,pattern No.1/6 |
ETM357P NEW | 2 pole,pattern No.2 |
Surface splash proof wall rocker switch Specification & Function | |
Type | Description/Remark |
ETM280S | 2-pole,pattern No.2 |
ETM282S | 1-pole/2-way,pattern No,1/6 |
ETM283S | 2-pole,pattern No.2 |
ETM284S | 1-pole and 2-way,pattern No.5 |
ETM285S | 2 pole and 2-way,pattern No.6+6 |
ETM280SL | 2-pole,with indication lamp,pattern No.2 |
ETM282SL | 1-pole/2-way,with indication lamp,pattern No.1/6 |
ETM410S | Turn switch,lockable,2-pole,16A,pattern No.2 |
ETM410SLNEW | Turn switch,lockable,2-pole,16A,pattern No.2 |
ETM281S | 2x2-pole,16A,pattern No.2 |
Product Applicantion
Flush-type wall switch wall switch and socket wall switch socket

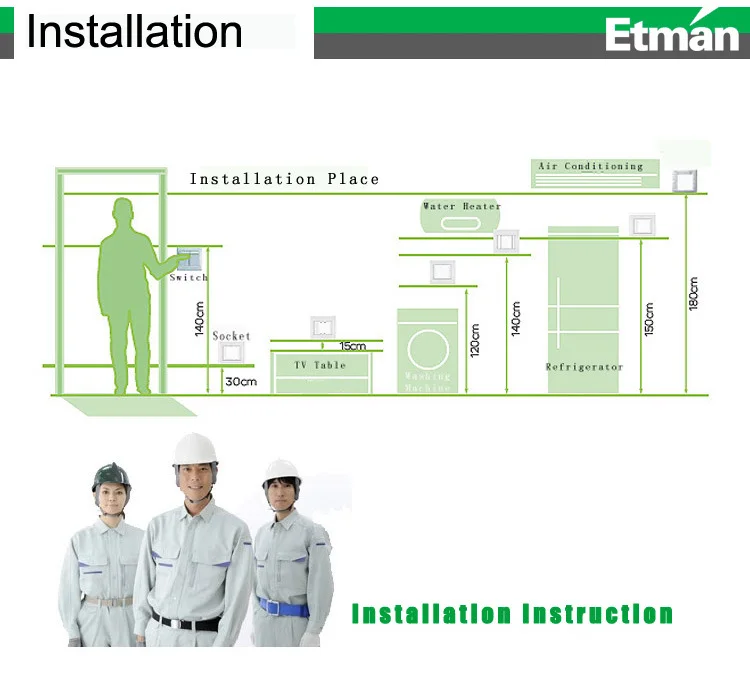

·Switch installation place should better locates on the wall for 1.4m from the floor, and 0.2m from door gate
·Socket installation place is dependent on different enviroement:
Living room: 30cm from the floor
Kitchen/Restroom:1.4m from the floor
Air conditioning socket: 1.8m from the floor
·The distance between socket and power cable should be more than 50cm
·Advise to use water-proof plug, socket in rest room.
·Advise light switch for rest room to install outside the rest room to avoid water get into the switch to affect life time or cause accident.

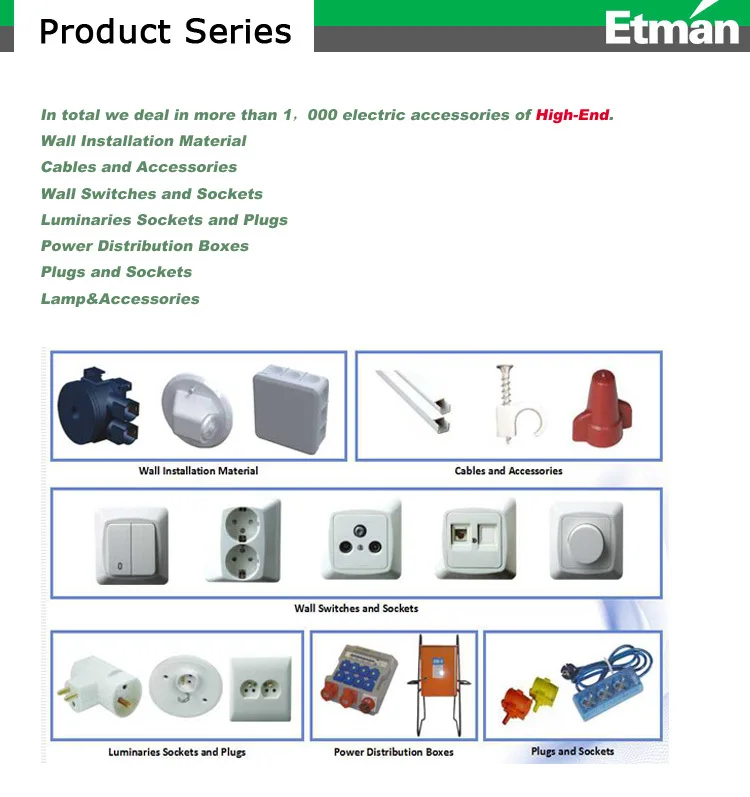

Product Series

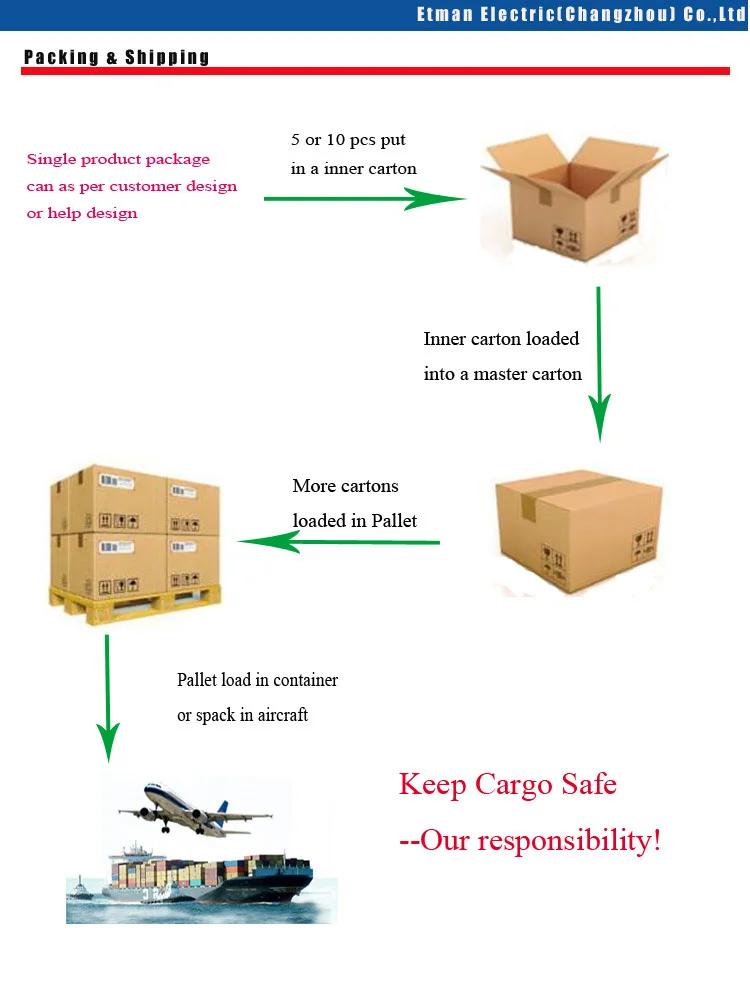

Packaging & Shipping
