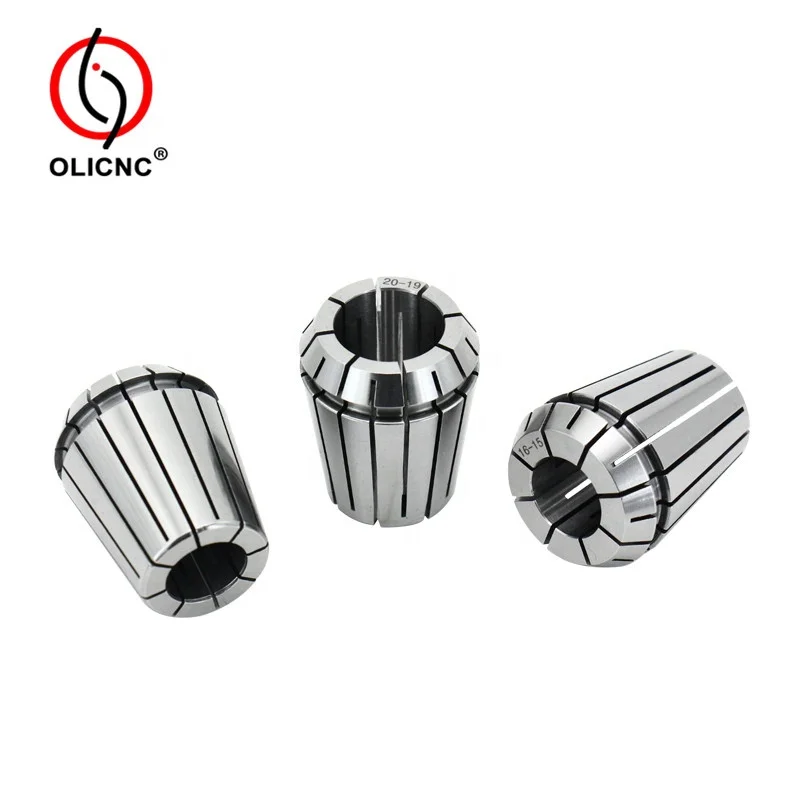

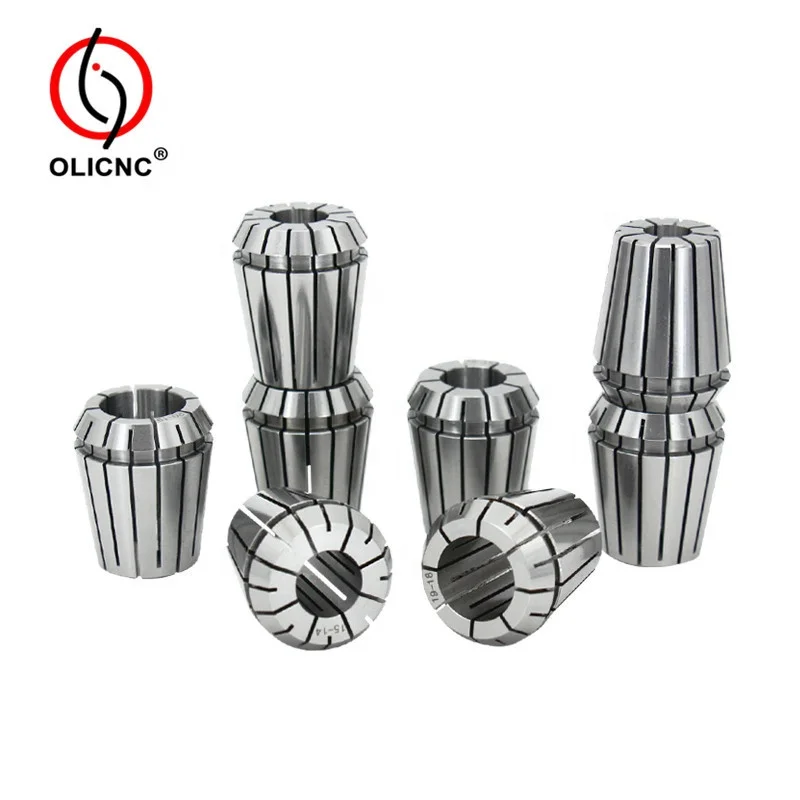

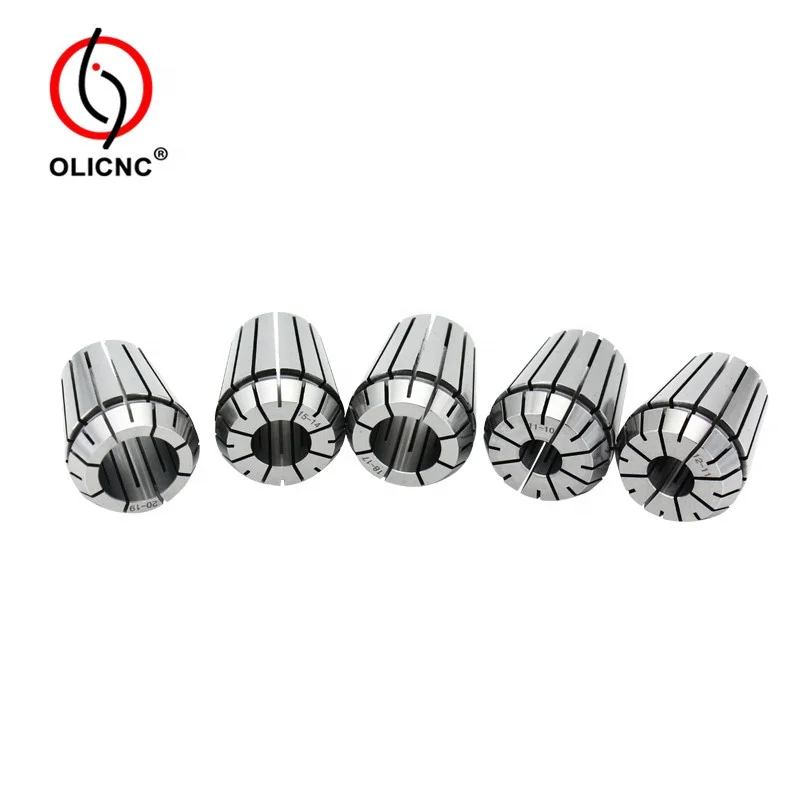

Machine tools ER16 collet 3-10mm Type ER collet Precision 0.008mm ER Spring Collets

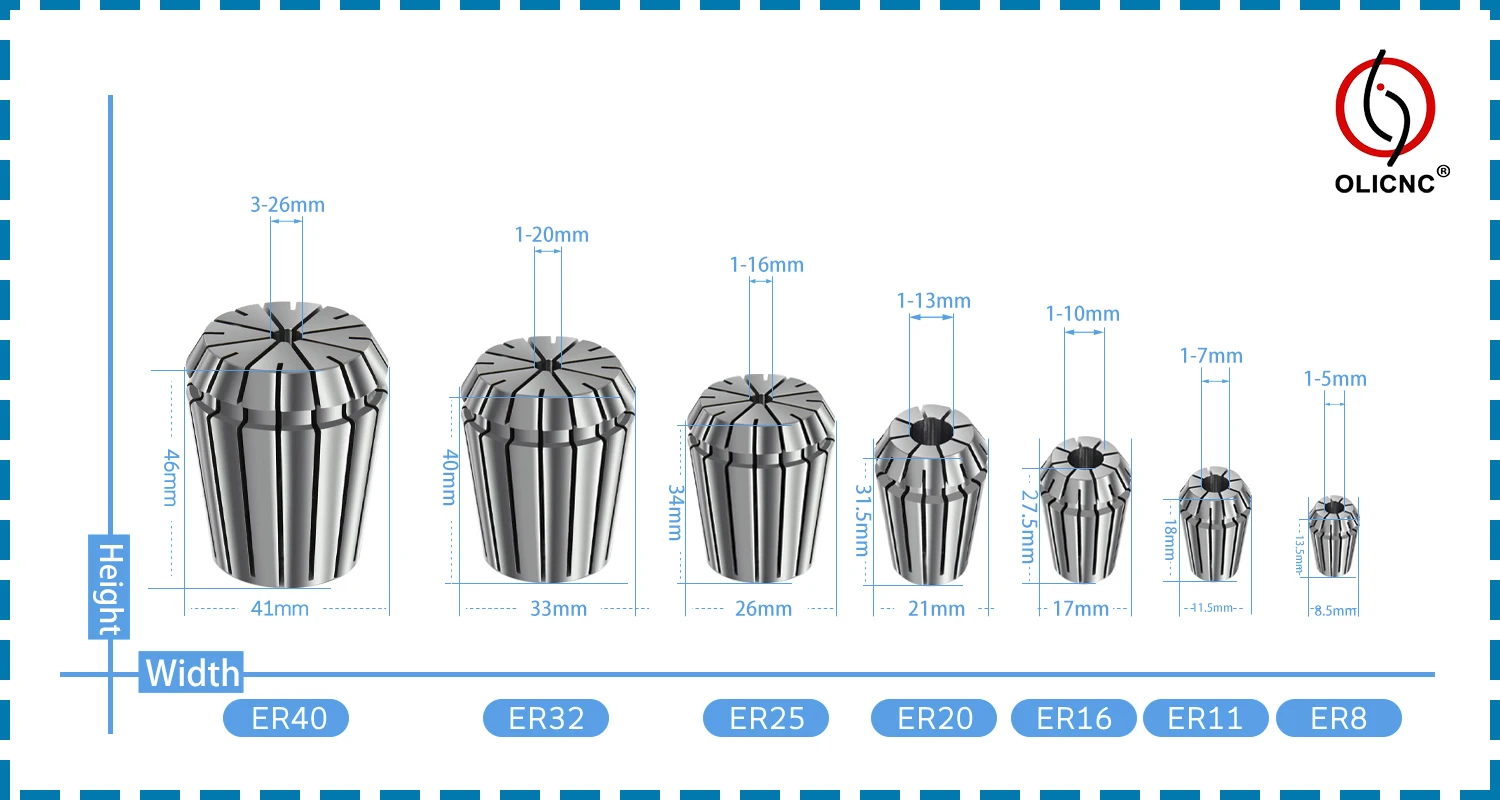

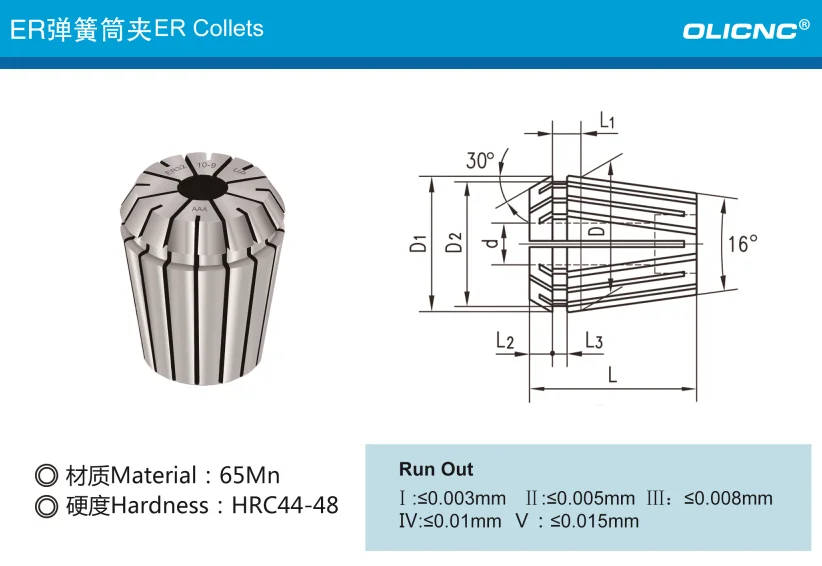

型号 Model | dH7 | D | D1 | D2 | L | L1 | L2 | L3 | 弹性收缩量 Collapsible capacity |
ER8 | 1.0-5.0 | 8 | 8.5 | 6.5 | 13.5 | 2.7 | 1.5 | 1.5 | 0.5 |
ER11 | 1.0-7.0 | 11 | 11.5 | 9.5 | 18 | 3.8 | 2.5 | 2 | 0.5 |
ER16 | 1.0-2.5 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4 | 2.7 | 0.5 |
2.5-10.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4 | 2.7 | 1 | |
ER20 | 1.0-2.5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
2.5-13.0 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 1 | |
ER25 | 1.0-2.5 | 25 | 26 | 22 | 34 | 6.66 | 5 | 3.1 | 0.5 |
2.5-16.0 | 25 | 26 | 22 | 34 | 6.66 | 5 | 3.1 | 1 | |
ER32 | 2.0-2.5 | 32 | 33 | 29.2 | 40 | 7.16 | 5.5 | 3.6 | 0.5 |
2.5-20.0 | 32 | 33 | 29.2 | 40 | 7.16 | 5.5 | 3.6 | 1 | |
ER40 | 3.0-26.0 | 40 | 41 | 36.2 | 46 | 7.66 | 7 | 4.1 | 1 |
ER50 | 6.0-10.0 | 50 | 52 | 46 | 60 | 12.6 | 8.5 | 5.5 | 1 |
10.0-34.0 | 50 | 52 | 46 | 60 | 12.6 | 8.5 | 5.5 | 2 |

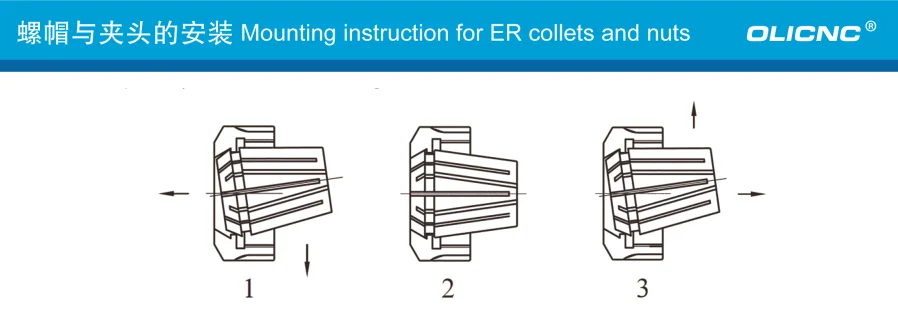

1. Put the collet into the nut,turn the collet slightly,pust it into the nut at the offered direction evenly.When the offset flange into the undercut of the collet.
2. Fix the nut and the collet on the spindle rotate the nut until the collet is in pressing.Wipe the straight shank of cutter,and insert it into the pilot hole.Tighten the unt with a wrench till the cutter is clamped heavily (Caution:never tighten the nut without cutter in it for it will break).
3. When changing the tool,Loosen the nut and it shall bring out the collet and the cutter together,and then draw the cutter out push out slightly the collet in the offered direction,it shall be ready for any change of the cutter.
2. Fix the nut and the collet on the spindle rotate the nut until the collet is in pressing.Wipe the straight shank of cutter,and insert it into the pilot hole.Tighten the unt with a wrench till the cutter is clamped heavily (Caution:never tighten the nut without cutter in it for it will break).
3. When changing the tool,Loosen the nut and it shall bring out the collet and the cutter together,and then draw the cutter out push out slightly the collet in the offered direction,it shall be ready for any change of the cutter.
型号 | 规格Types | ||
Model | 公制metric | 英制inch | |
ER8 | 1/1.5/2/2.5/3/3.5/4/4.5/5 | 1/32,3/64,1/16,5/64,3/32,7/64,1/8,9/64,5/32,11/64,3/16 | |
ER11 | 1/1.5/2/2.573/3.5/4/4.5/5/5.5/6/6.5/7 | 1 /32,3/64,1 /16,5/64,3/32,7/64,1 /8,9/64,5/32,11 /64.3/16,13/64 7/32,15/64,1/4,17/64 | |
ER16 | 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7 7.5/8/8.5/9/9.5/10 | 1/32,3/64,1/16,5/64,3/32,7/64,1/8,9/64,5/32,11/64,3/16,13/64,7/32,15/64,1/4,17/64,9,32,19/64,5/16.21/64,11/32,23/64,3/8 | |
ER20 | 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/ 7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/ 12.5/13 | 1/32,3/64,1/16,5/64,3/32,7/64,1/8,9/64,5/32,11/64,3/16,13/64,7/32,15/64,1/4,17/64.9,32,19/64,5/16,21/64,11/32,23/64,3/8, 25/64,13/32,27/64,7/16,29/64,15/32,31/64,1 /2,33/64 | |
ER25 | 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/ 7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/ 12.5/13/13.5/14/14.5/15/15.5/16 | 3/64,1/16,5/64,3/32,7/64,1/8,9/64,5/32,11/64,3/16,13/64,7/32,15/64,1/4,17/64,9/32.19/64,5/16.21/4,11/32,23/64,3/8,25/64,13/32,27/64,7/16,29/64,15/32,31/64,1/2,33/64,17/32/35,64 9/16,37/64,19/32,39/64,5/8 | |
ER32 | 1/1.5/2/2.5Z3/4/5/6/7/8/9/10/11/12/13 14/15/16/17/18/19/20 | 1/16,3,32,1/8,5/32,3/16,7/32,1/4,9/32,5/64,11/32,3/8,13/32, 7/16,15/32,1 /2,17/32,9/16,19/32,5/8,21/32,11 /16,23/32,3/4,23/32 | |
ER40 | 3/4/5/6/7/8/9/10/11/12/13/14/15/16/ 17/18/19/20/21/22/23/24/25/26 | 1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,3/8,13/32,7/16,15/32,1/2,17/32,9/16,19/32,5/8,21/32,11/16,23/32,3/4,25/32,13/16,27/32, 7/8,29/32,15/16,31/32,1" | |
ER50 | 6/7/8/9/10/11/12/13/14/15/16/17/18/ 19/20/21/22/23/24/25/26/27/28/29/ 30/31/32/33/34 | 1/4,9/32,5/16,11/32,3/8,13/32,7/16,15/32,1/2,17/32,9/16,19/32,5/8,21/32,11/16,23/32,3/4,25/32,13/16,27/32,7/8,29/32,15/16, 31/32,1" ,1-1/32,1-1/16,1-3/32,1-1/8,1-5/32,1-3/16,1-7/32,1-1/4, 1-9/32,1-5/16 | |
ER8 (1-5mm) | ER11 (1-7mm) | ER16 (1-10mm) | ER20 (1-13mm) | ER25 (1-16mm) | ER32 (1-20mm) | ER40 (3-26mm) | ER50 (10-32mm) |
1.0-0.5 | 1.0-0.5 | 1.0-0.5 | 1.0-0.5 | 1.0-0.5 | 1.0-0.5 | 3-2 | 6-5 |
1.5-1.0 | 1.5-1.0 | 1.5-1.0 | 1.5-1.0 | 1.5-1.0 | 1.5-1.0 | 4-3 | 7-6 |
2.0-1.5 | 2.0-1.5 | 2.0-1.5 | 2.0-1.5 | 2.0-1.5 | 2.0-1.5 | 5-4 | 8-7 |
2.5-2.0 | 2.5-2.0 | 2.5-2.0 | 2.5-2.0 | 2.5-2.0 | 2.5-2.0 | 6-5 | 9-8 |
3.0-2.5 | 3.0-2.5 | 3-2 | 3-2 | 3-2 | 3-2 | 7-6 | 10-9 |
3.5-3.0 | 3.5-3.0 | 4-3 | 4-3 | 4-3 | 4-3 | 8-7 | 11-9 |
4.0-3.5 | 4.0-3.5 | 5-4 | 5-4 | 5-4 | 5-4 | 9-8 | 12-10 |
4.5-4.0 | 4.5-4.0 | 6-5 | 6-5 | 6-5 | 6-5 | 10-9 | 13-11 |
5.0-4.5 | 5.0-4.5 | 7-6 | 7-6 | 7-6 | 7-6 | 11-10 | 14-12 |
5.5-5.0 | 8-7 | 8-7 | 8-7 | 8-7 | 12-11 | 15-13 | |
6.0-5.5 | 9-8 | 9-8 | 9-8 | 9-8 | 13-12 | 16-14 | |
6.5-6.0 | 10-9 | 10-9 | 10-9 | 10-9 | 14-13 | 17-15 | |
7.0-6.5 | 11-10 | 11-10 | 11-10 | 15-14 | 18-16 | ||
12-11 | 12-11 | 12-11 | 16-15 | 19-17 | |||
13-12 | 13-12 | 13-12 | 17-16 | 20-18 | |||
14-13 | 14-13 | 18-17 | 21-19 | ||||
15-14 | 15-14 | 19-18 | 22-20 | ||||
16-15 | 16-15 | 20-19 | 23-21 | ||||
17-16 | 21-20 | 24-22 | |||||
48-仃 | 22-21 | 25-23 | |||||
10-18 | 23-22 | 26-24 | |||||
20-19 | 24-23 | 27-25 | |||||
25-24 | 28-26 | ||||||
26-25 | 29-27 | ||||||
30-28 | |||||||
31-29 | |||||||
32-30 | |||||||
33-31 | |||||||
34-32 |

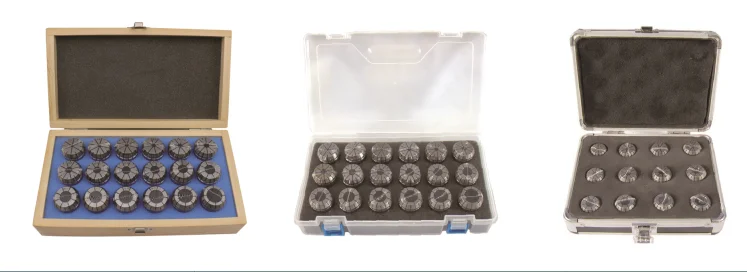

ER Collet Set
型号Model | 规格Spec | 支/套 PCS/SET | |
ER20-12PCS | 2 3 4 5 6 7 8 9 10 11 12 13 | 12PCS/SET | |
ER20-13PCS | 1 2 3 4 5 6 7 8 9 10 11 12 13 | 13PCS/SET | |
ER20-11PCS | 3 4 5 6 7 8 9 10 11 12 13 | 11 PCS/SET | |
ER20-14PCS | 1 1.5 2 3 4 5 6 7 8 9 10 11 12 13 | 14PCS/SET | |
inch size need to ask us if we have stock | |||
ER20-16PCS(inch) | 1/32 1/16 3/32 1/8 5/32 3/16 7/32 1/4 9/32 5/16 11/32 3/8 13/32 7/16 15/32 1/2 | 16PCS/SET | |
ER20-14PCS(inch) | 3/32 1/8 5/32 3/16 7/32 5/16 11/32 3/8 13/32 7/16 15/32 1/2 | 14PCS/SET | |
ER20-11PCS(inch) | 1/8 5/32 3/16 7/32 1/4 9/32 5/16 11/32 3/8 7/16 1/2 | 11 PCS/SET | |

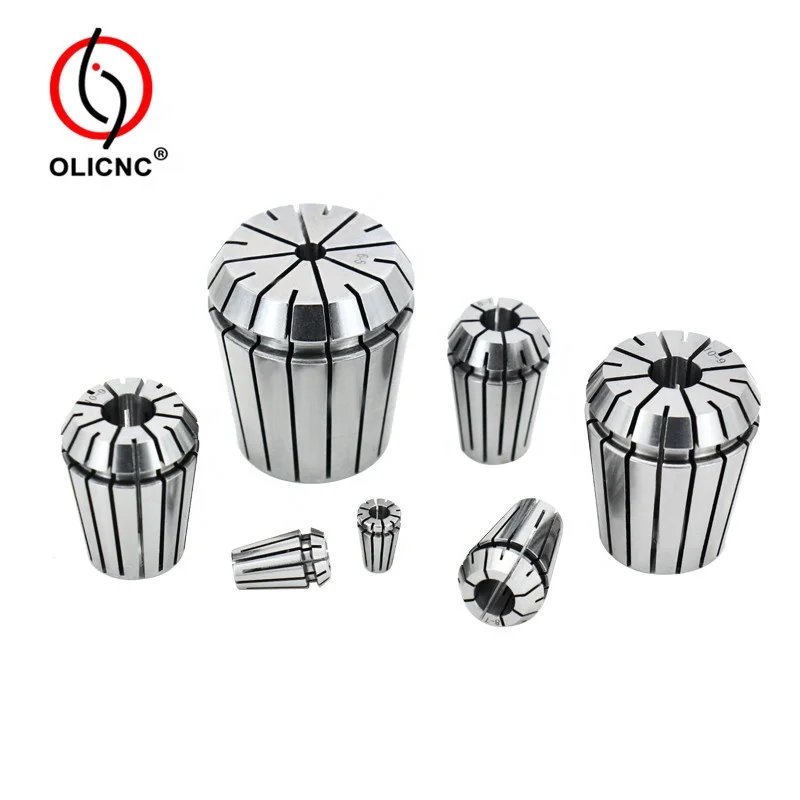

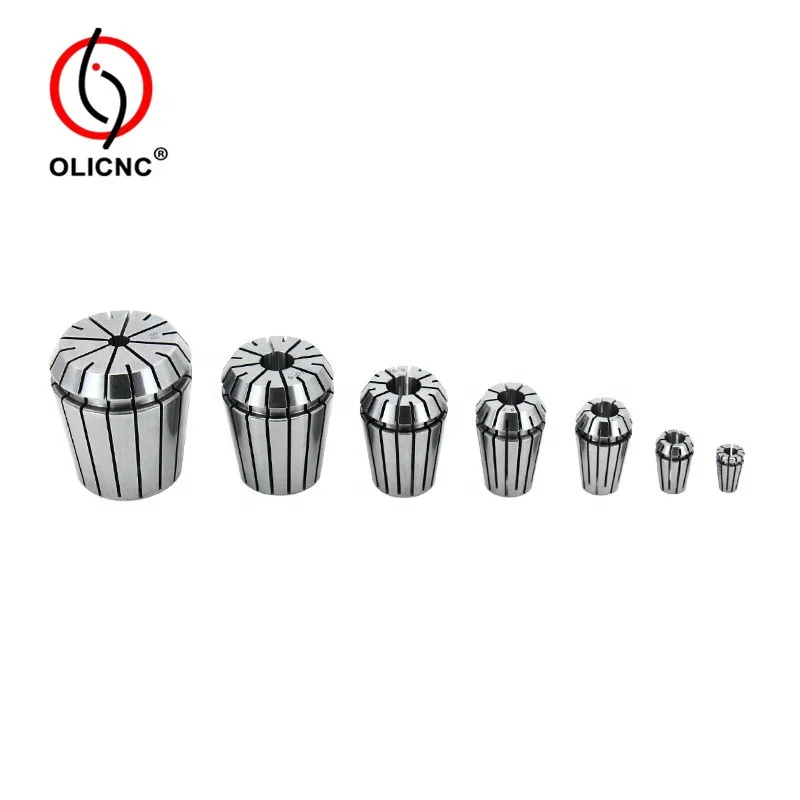

Product Photograph
Related Products
Packing&Shipping

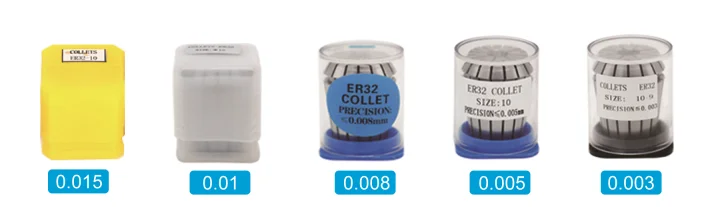

Packaging ：Carton box or as clients' requirement
Delivery time ：Normally ready goods within 15days , Orders about 30days
