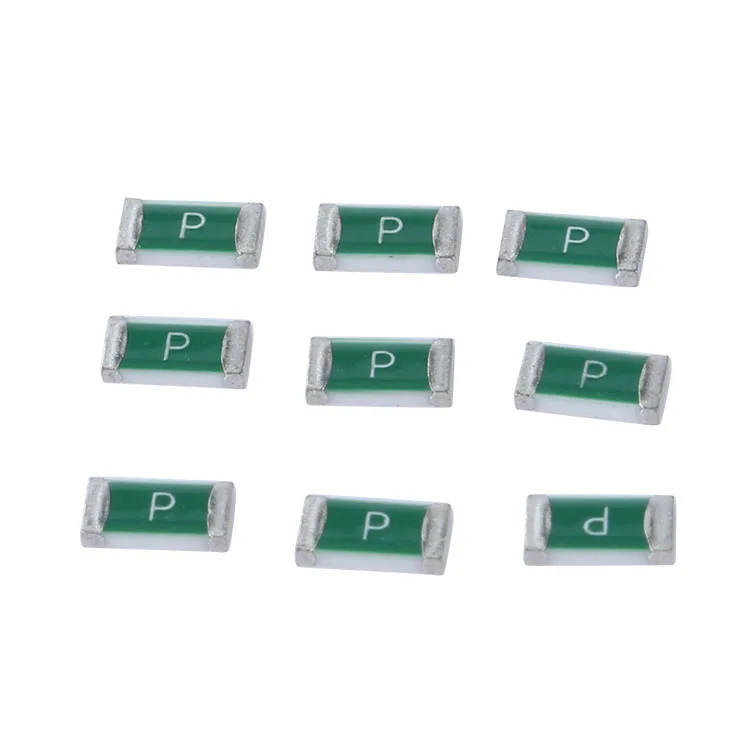

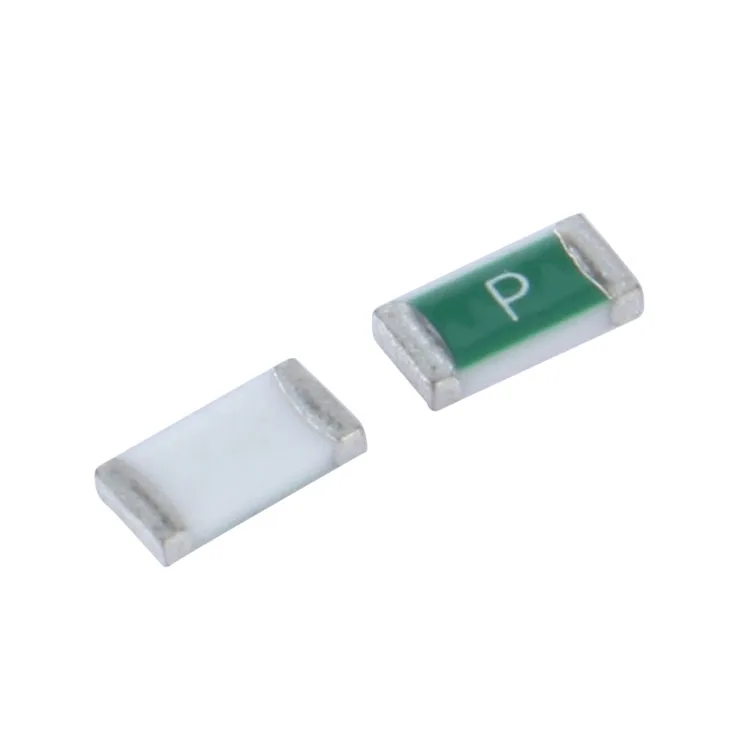

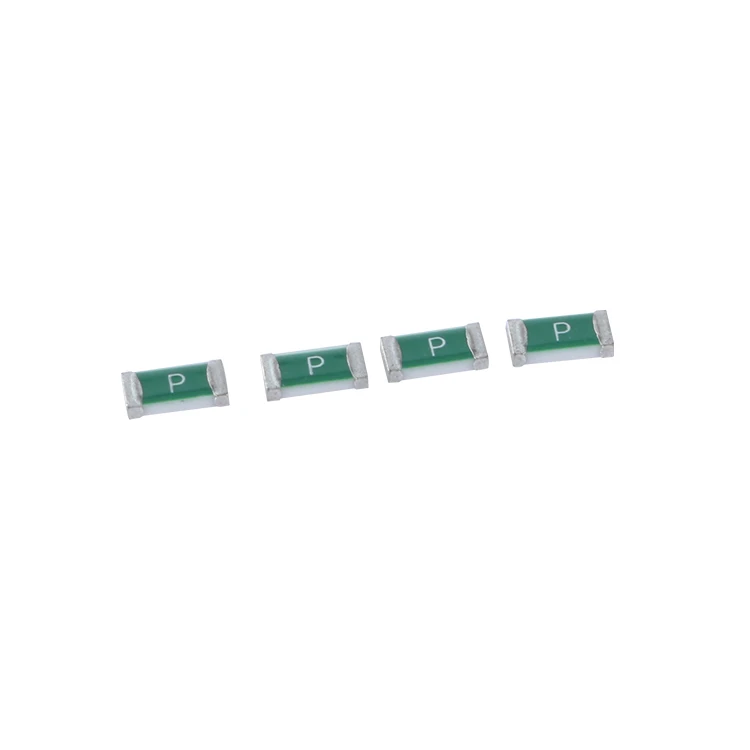

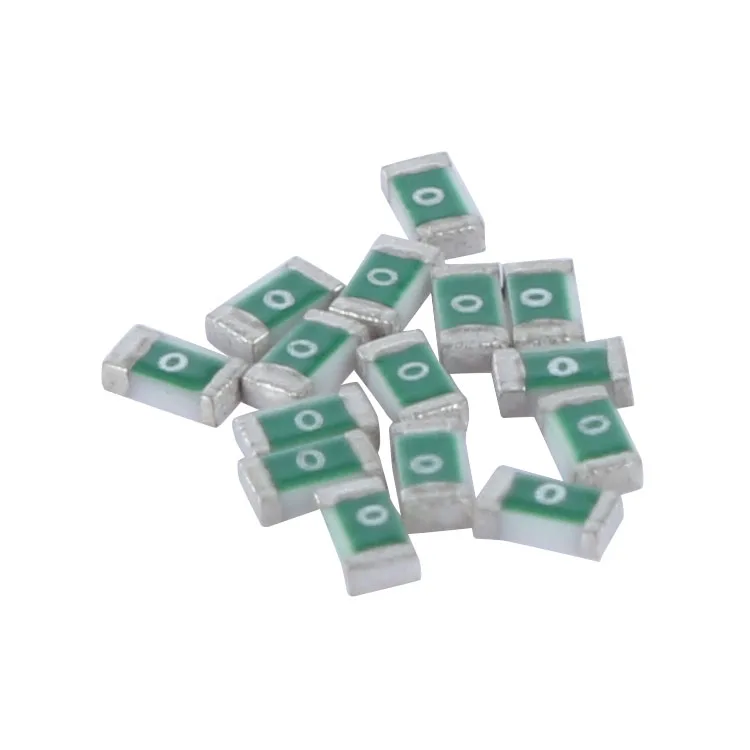

LITTELFUSE 0438001.WR Resistor 1608 metric 0603 Fast Blow SMD Fuse 500mA

Product Overview

Description

LITTELFUSE 0438001.WR Resistor 1608 metric 0603 Fast Blow SMD Fuse 500mA

Quick Details

Catalog Number	06 100 X
Dimensions	0603
Volts	32V/63V
Amps	0.25A-8A
Agency Information	US,GERMANY
Typical Applications	Electronic Circuits



Description

06 100 Series are the fuses set the industry standard for performance,

reliability and quality. The solder-free design provides excellent on-off

and temperature cycling characteristics during use and also makes our

SMD fuses more heat and shock tolerant than typical subminiature fuses.



Features

Applications

For secondary protection in space constrained applications such as:

• LCD backlight inverters


• Digital cameras


• DVD players


• Bluetooth headsets


• Battery packs

Electrical Ratings



Clear Time Electrical Characteristics
Rated Current	1.0In	2.0In
250mA~8A	4 hour minimum	60 sec maximum





Part No.	Rated  Voltage DC		Rated Current (A)	Breaking Capacity (A) 1	Typical Cold. Resistance (mOhms) 2	Typical Voltage Drop (mV)	Typical Pre-Arcing I2t (A2Sec) 3	Alpha Mark
06 100 0.25	63V	32V	0.250	50A	3250	893	0.00042	D
06 100 0.375			0.375	50A	1310	587	0.00093	E
06 100 0.5			0.500	50A	1070	582	0.0020	F
06 100 0.75			0.750	50A	470	427	0.0092	G
06 100 1			1	50A	257.5	295	0.018	B/H
06 100 1.5			1.5	50A	137.5	220	0.065	H
06 100 2	-		2	50A	72	160	0.115	K
06 100 2.5			2.5	50A	52	145	0.14	L
06 100 3			3	50A	35	130	0.21	O
06 100 3.5			3.5	50A	23.8	130	0.55	R
06 100 4			4	50A	21	120	0.52	S
06 100 5			5	50A	14	110	1.70	T
06 100 6			6	50A	8	110	2.30	V
06 100 7			7	50A	5.6	80	2.8	X
06 100 8			8	50A	3.5	75	4.96	Z



1. DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source)


2. DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25degrees


3. Typical Pre-arching I2t are measured at 10In Current

      Note: Customize available !

Material & Dimensional Drawing





Clear Time Curve



Environmental Characteristics

Storage Conditions ………………+40 °C Max. 70% RH Max. Packed in original packaging.

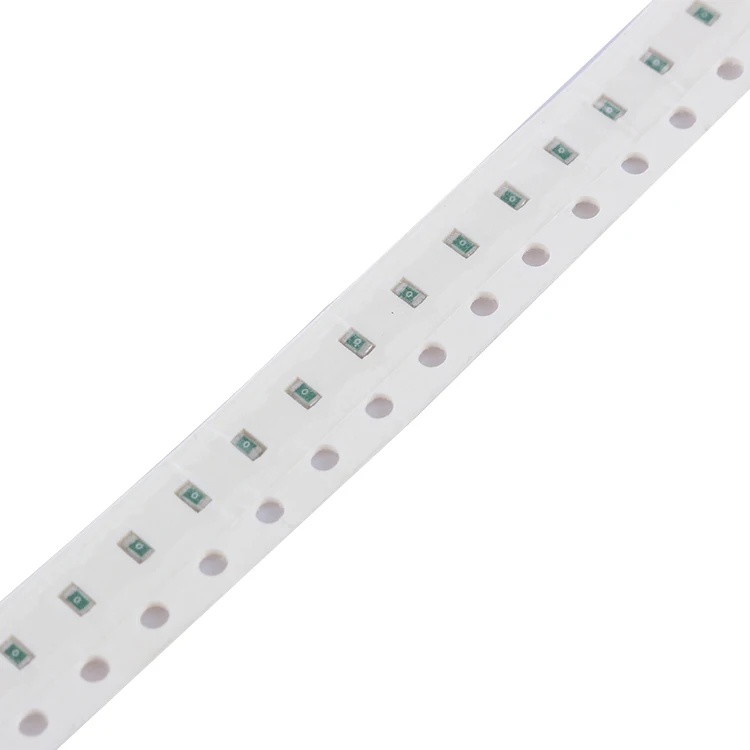

Package information

Model                                                                                 Q’ty/Reel

06 100 X                                                                             5000 pcs

Note: Reel packaging per EIA-481-1 standard

All type fuses

Glass Tube Fuse

Ceramic Tube Fuse

Micro Fuses

Subminiature Fuse

Surface Mount Fuses

PPTC Resettable Fuses

High-Voltage Fuses

How to choose correct fuses ?

Step :



1. Ensure that you PCB request over current protection then fuses make it .

2. Learn your PCB conditions and fuse will working under which conditions

3. According to space , voltage,current, etc factors , choose fuse type and rating value from our above exhibitation !

4. If you dont have ideas with this, just contact us then we will help you make it !

Why choose us ?

Our Flexible Terms

1) Small order quantity accepttable

2) OEM/ODM Available

3) Payment: T/T, Paypal , Western Union , Cash , Money Gram , etc.

4) Lead time : 5 days

5) After-sales services providied

6) Related export docs such as CO ,FROM E ,FROM A provided .

7) Logistic arrangement

8) Factory sales directly and help you save purchasing cost

.

.

.

.

.

.

Our Customers

How to contact us to inquiry or place fuse order ?

END !
