Non Asbestos rubber Gasket sheet with Compressed Jointing
- Category: >>>
- Supplier: YD Rubber Co. Ltd.
Share on (60207652000):
Product Overview
Description
Non-asbestos Gasket Sheet
Thickness:from0.4 to5.0mm
Size:2000x1500mm; 1500x4000mm; 1500x1500mm
Color:red,yellow,black,etc
Non-asbestos Gasket Sheet
SUNWELL Non-asbestos sheet is made from kevlar fiber, natural rubber, aramid fiber, filling materials and dye. Compressed and calendered under high temperature and pressure into a sheet form. It eliminates non-asbestos rubber sheet essentially and thoroughly.
Product Description
Non-asbestos Sheet Typical Application
> Suitable for water, high temperature steam, compressed air, joint part of tubing, valve, heat exchanger, etc.
> Can be used in food and medicine industrial.
Non-asbestos Sheet Prime Features
> 100% non-asbestos
> Wide range of temperatures
Technical Datas
Non-asbestos Rubber Sheets Physical Property | |||||||||
GB/T3985-1995 | |||||||||
Item | XB200 | XB250 | XB300 | XB350 | XB400 | XB450 | XB510 | ||
Thickness | 0.3 mm -10.0 mm | ||||||||
Density | 2.0 g/cm3 | ||||||||
Burning Loss≤ | 30% | 28% | |||||||
Rebound degree | 40 | 45 | |||||||
Temperature ℃ | 200 | 250 | 300 | 350 | 400 | 450 | 510 | ||
Pressure M Pa | 1.5 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | ||
Aging Coefficient ≥ | 0.9 | ||||||||
Compressibility % | 12±5 | ||||||||
Stress-relaxation≤ | 50 | ||||||||
Pliability | No Crack | ||||||||
Color | Black, green, red, grey, blue, yellow, etc. | ||||||||
Size | 1270*3800, 1520*4100, 1540*4580, 1520*2020, 1520*1520, 1520*1350, 1520*1020, 1270*1270mm | ||||||||
MOQ | 5 tons. | ||||||||

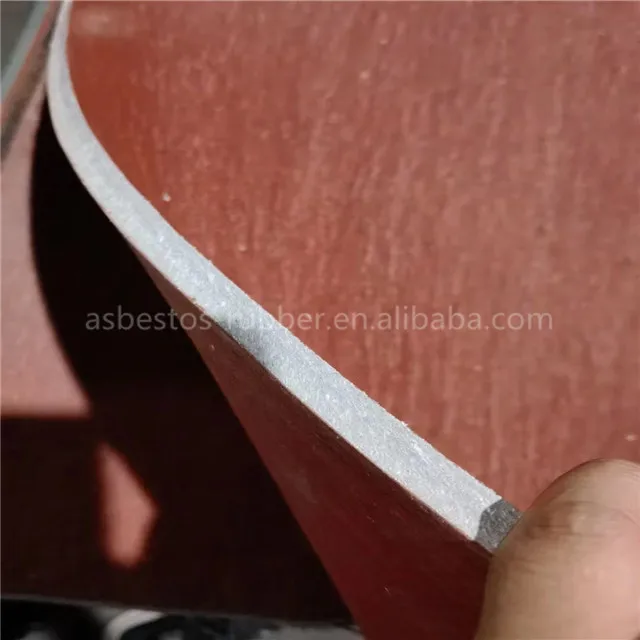

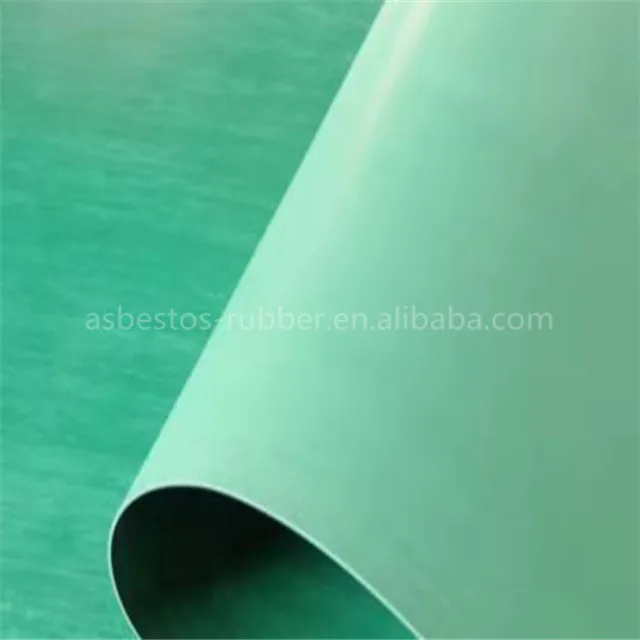

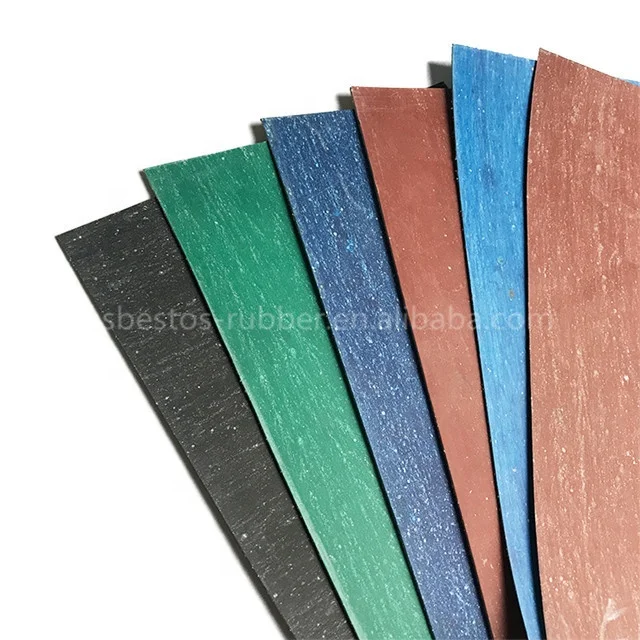

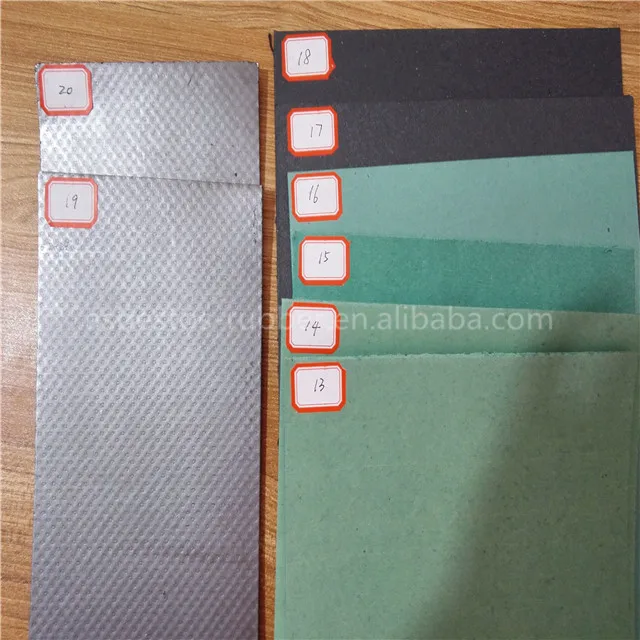

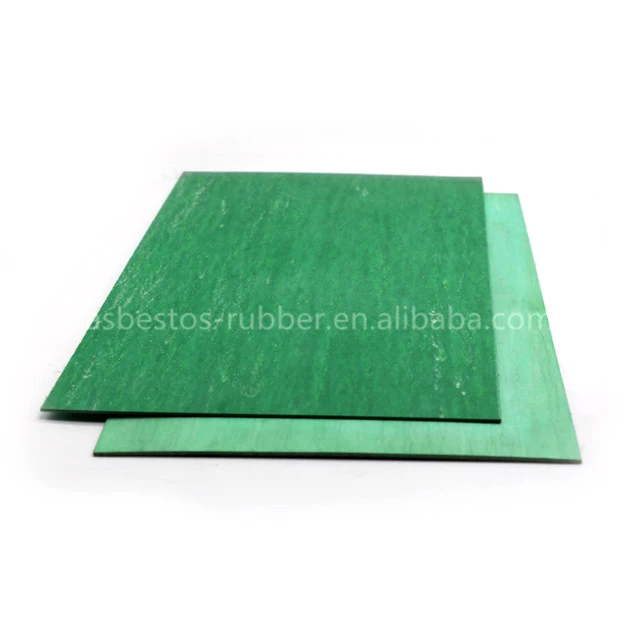

Product Photos
Packaging & Shipping
Certifications
Our Services
Click ↓Follow ↓to send email to Ms LUCY for details!
Thanks ! ^-^ & Have a nice day !
YD Rubber Co., Ltd.
non-Asbestos Rubber Sheet, Rubber Sheet, Packing Products, PTFE Products
Add:6-1-2903 Pingxiang Building, the SouthRoad,NankaiDist.,Tianjin,China
Tel: +86-22-27330786 Fax:+86-22-27330786 13622070827
