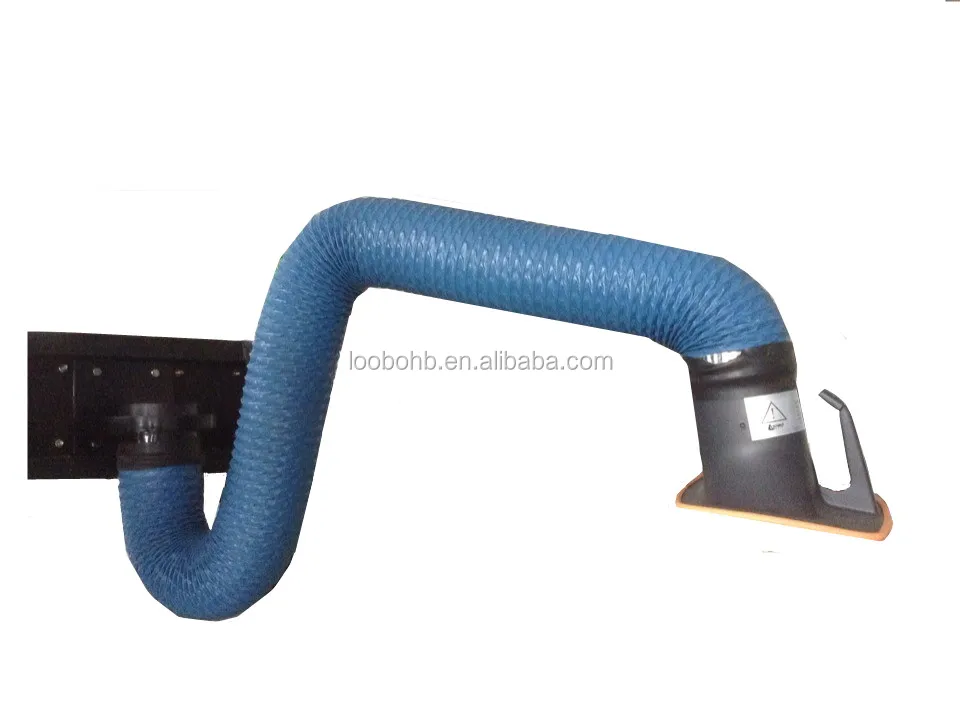

wall mounted flexible smoke extraction arm/fume tracker/exhaust fume hood

flexible fume extraction arms for welding smoke/fume extraction system

*Facility Characteristics:

> Length: 2m-5m Diameter: φ150mm, φ175mm, φ200mm (other specification should be customized)

> Import PVC steel wire air hose, anti-corrosion; endure acid, and high temperature 140⁰C Skeleton material: the spring steel is galvanized, and other metal components and fasteners are all stainless steel 304#.

> Suction cover: stainless steel, 360 degree arbitrary hover with wind control valve for suction mouth

 > Light weight, high strength, with power device, easy to operate, hover freely. It can be adjusted in any direction, and its capture effect is good.

> Compared with the fixed pipeline system, flexible suction arm has unparalleled performance superiority. It can adapt to all kinds of complex conditions .Not only can with suction pipeline, but also can be placed any best capture location. Thus, it can capture welding fumes effectively

>Can work according to the scene of the need to configure the different suction hood, for example, large type, round type, square shape, hat shape, etc.

>Options: fire prevention network, work light, smoke/light/ temperature probe

* Application places:

 Suction arm is widely used in metal processing, welding fume, polishing, and thermal processing of oil mist treatment, peculiar smell removing, dust removing and other industries.

Essential feature:

Note:

In fact, all directions, dia and lengths according to customer's requests.

Length from 2m-5m for regular uses, or longer type accordingly

Diameter from 150mm-300mm for regular uses, or other size accordingly

Applications:

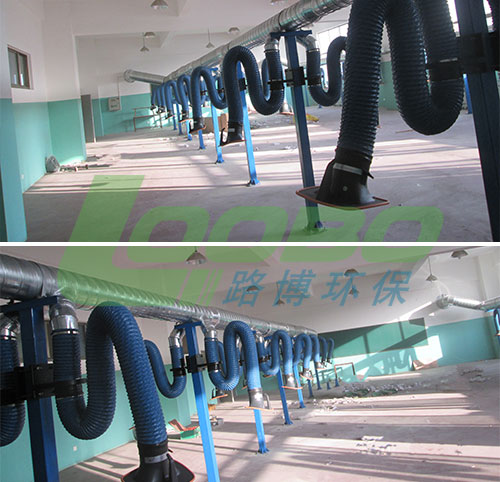

Wall-mounted type, mainly used for the central fume/dust extractions proje

  General Specifications :

1.JYB Model, Bult-in structure support: Dia-150mm/200mm

2.JYC Model, External Support stucture: Dia-150mm/200mm

3.LB-JC Model, Extension External support structure:

4.LB-QXB Model, Joint Arm: Dia-75mm , length-1.0-1.5m

5.LB-JYD Mini Model: 1.0m*50mm

  6.LB-JD Multi-joint arms:

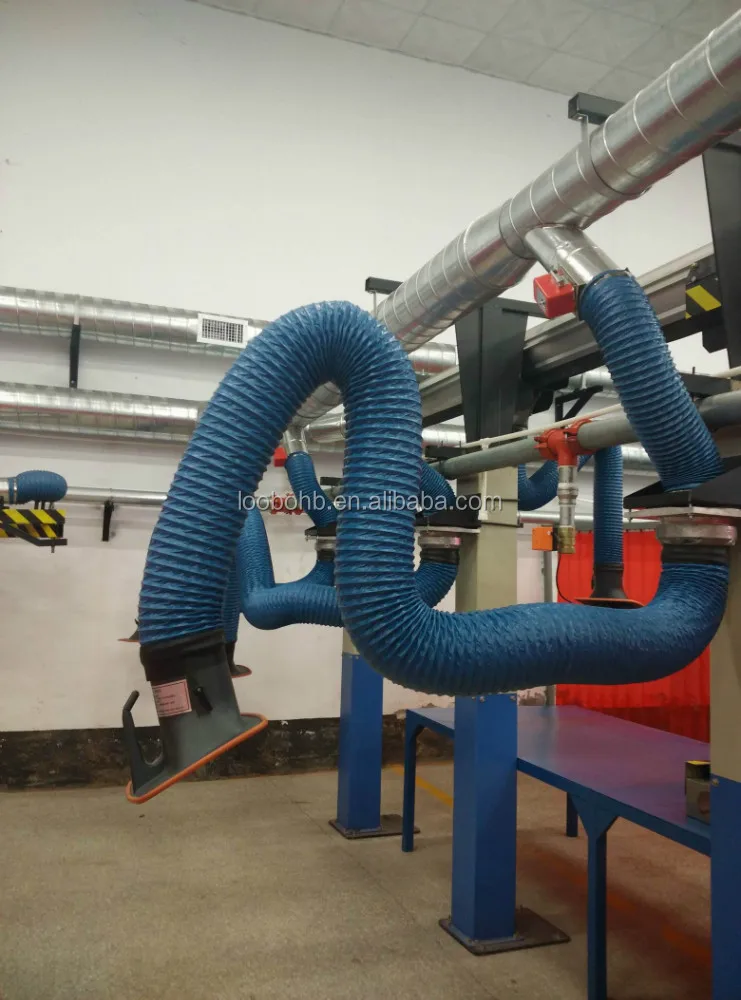

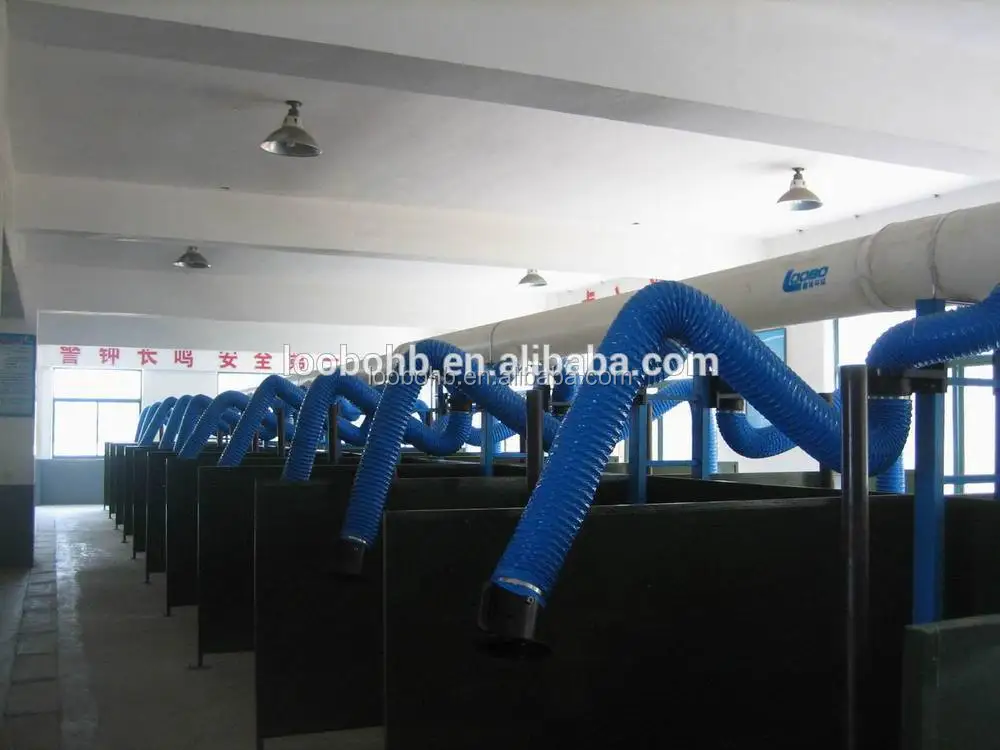

Industrial System:
